a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel,ultra-fast engravingon stainless steel-30mm/s;

c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.

[Original diode] Original diode, high quality,20,000 hours life time!

[Easy to use] Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.

[Applicable materials] Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel,Stone,Bamboo,Leather,Rubber,Alumina,Solid wood, etc.

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

Feature:

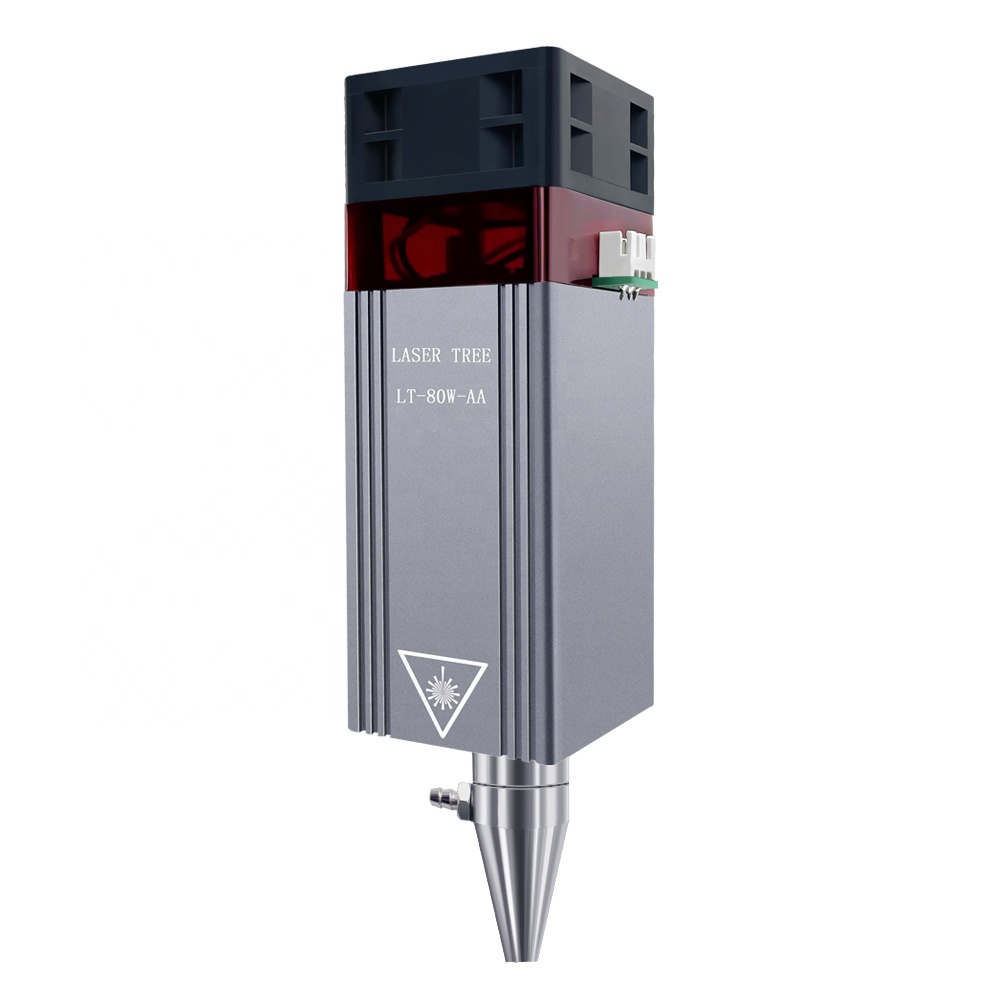

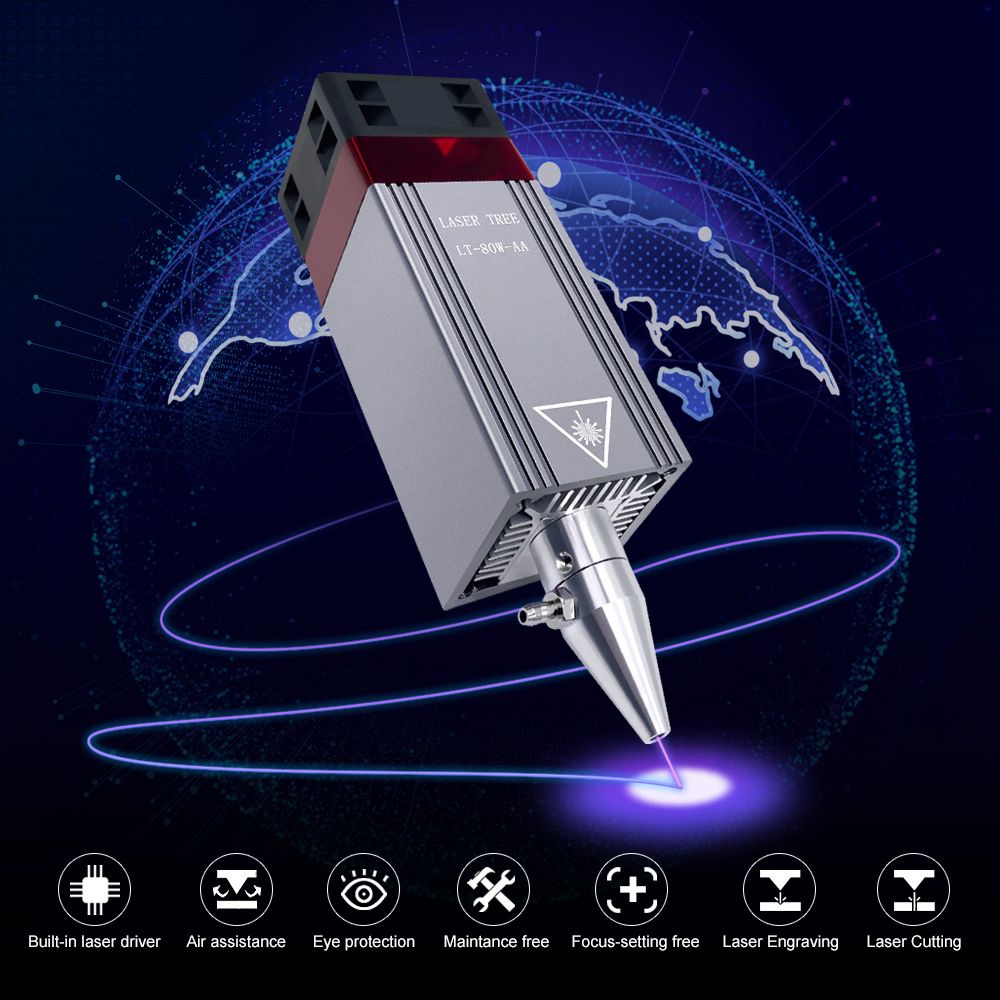

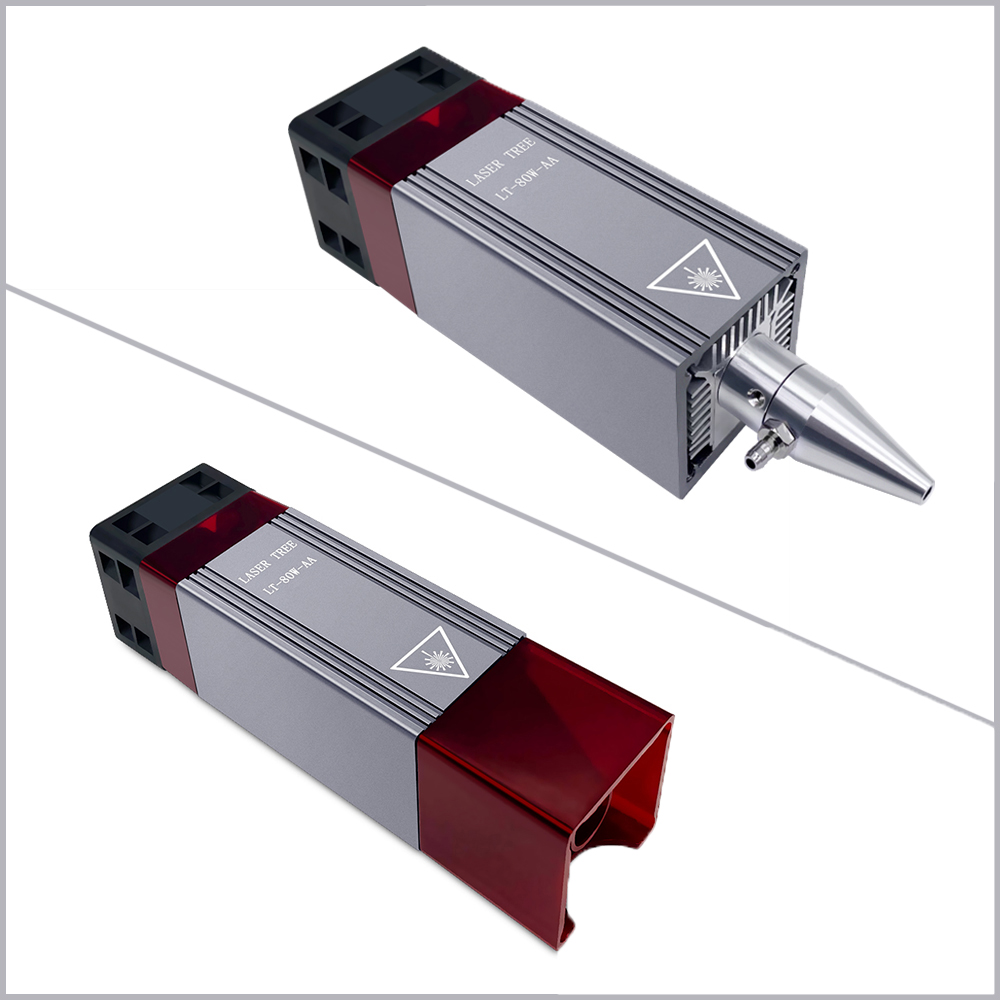

Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
Easy to assemble—small, compact, convenient and easy to install.

Specification:
Effect output power: 80W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 3.2A
Interface parameters: support TTL signal control power
Item size: 15 * 4 * 4cm
Packing size: 20 * 12 * 8cm
Product weight: 300g

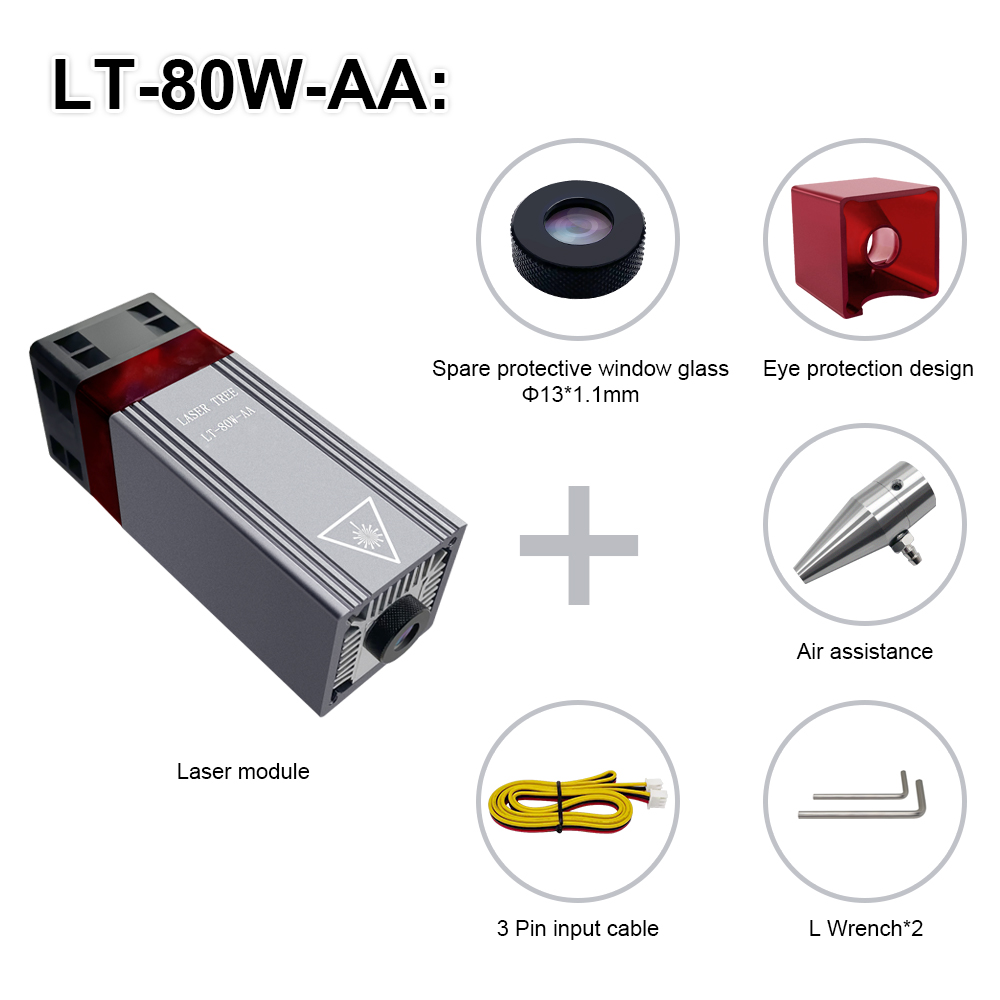

LT-80W-AA Packing list:（350g）
1*Laser module
1*Eye protection design
1*Spare protective window glass
1*3 Pin input cable
2* L Wrench
1*Air assistance

LT-80W-AA Kit A Packing list:（400g）
1*Laser module
1*Eye protection design
1*Spare protective window glass
1*3 Pin input cable
3* L Wrench
1*Air assistance

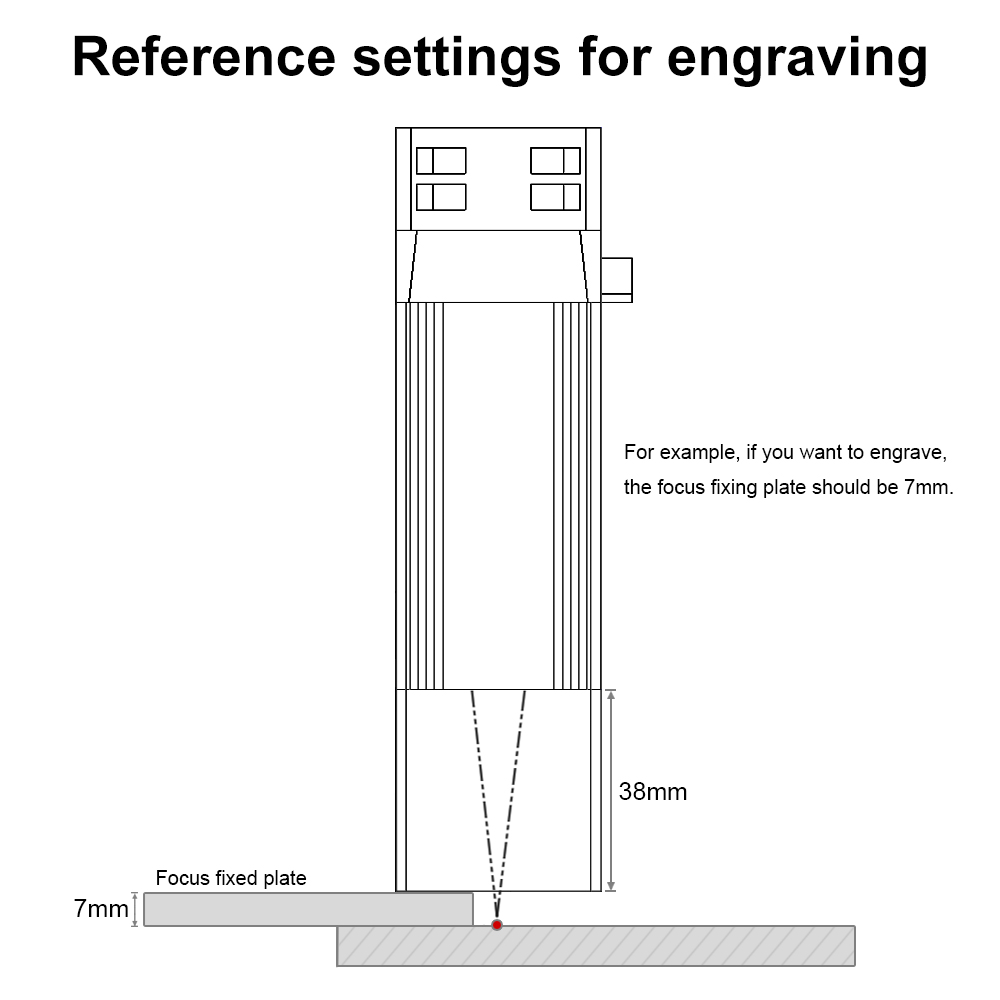

3*Focus fixing plate
