80W Laser Module Head with Air Assist for Laser Engraver

By LASER TREE

Product Description

[Main performance]
a.Directly engrave mirror stainless steel: no need painting black;
b. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s;
c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.

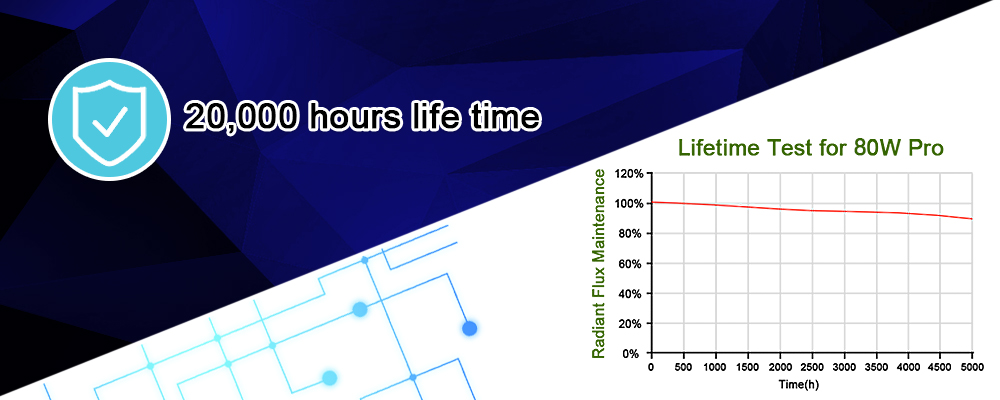

[Original diode] Original diode, high quality, 20,000 hours life time!

[Strong compatibility] Suitable for various types of laser cutting machines and engraving machines.

[Applicable materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

Features:

Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

Fixed focus laser head—suitable for three-axis engraving machine, easy to install.

Easy to assemble—small, compact, convenient and easy to install.

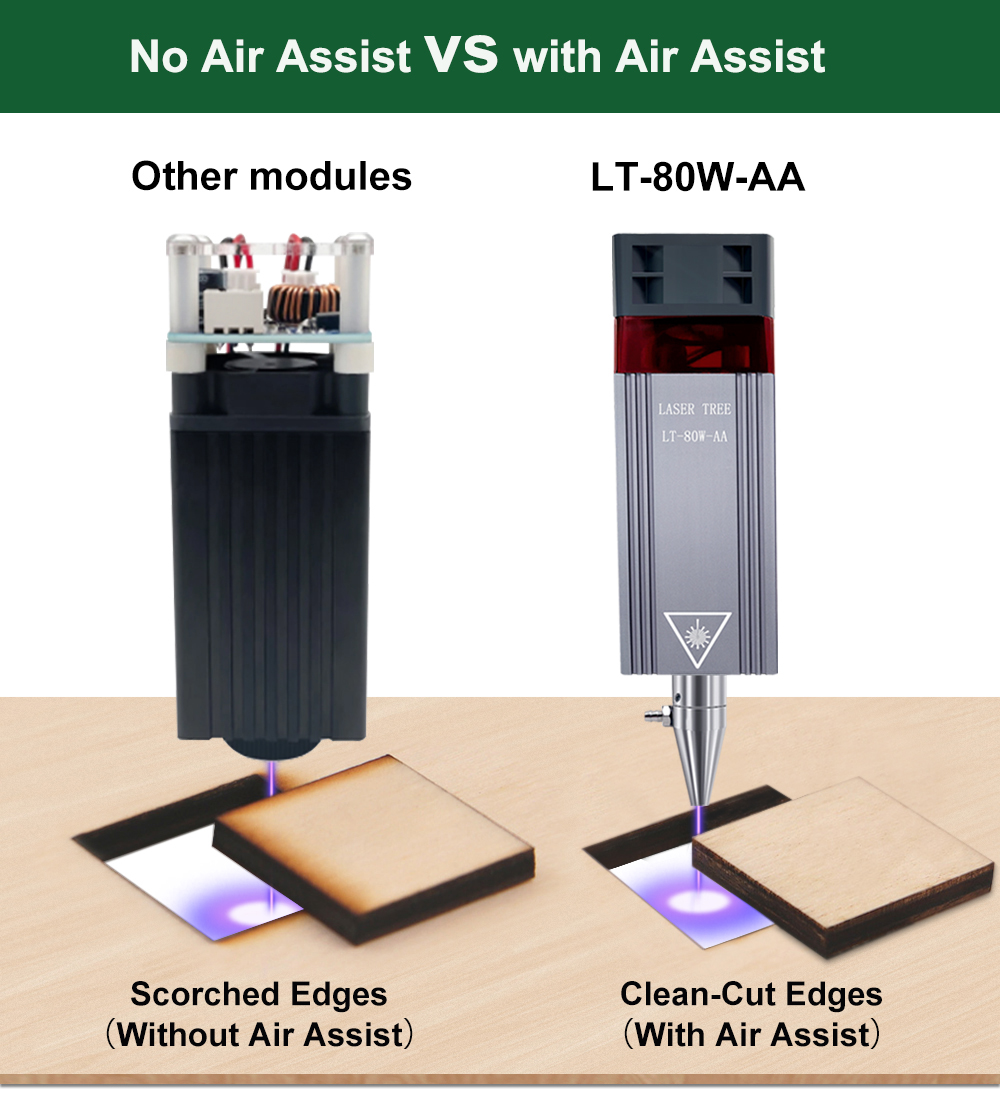

Air-assist— Blowing through the air nozzle, which improves cutting performance and reduces burn marks

Two Ways to use LT-80W-AA:

Way1: with the air asssit nozzle
The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks. To make full use of the air assist, please prepare an assist pump and air tubing by yourself.
Recommended Air Tubing inner diameter: Φ2.5-3mm
Recommended air pump pressure: 150kPa

Way2：with the laser protective cover
When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.

Specification:

Effect output power: 80W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

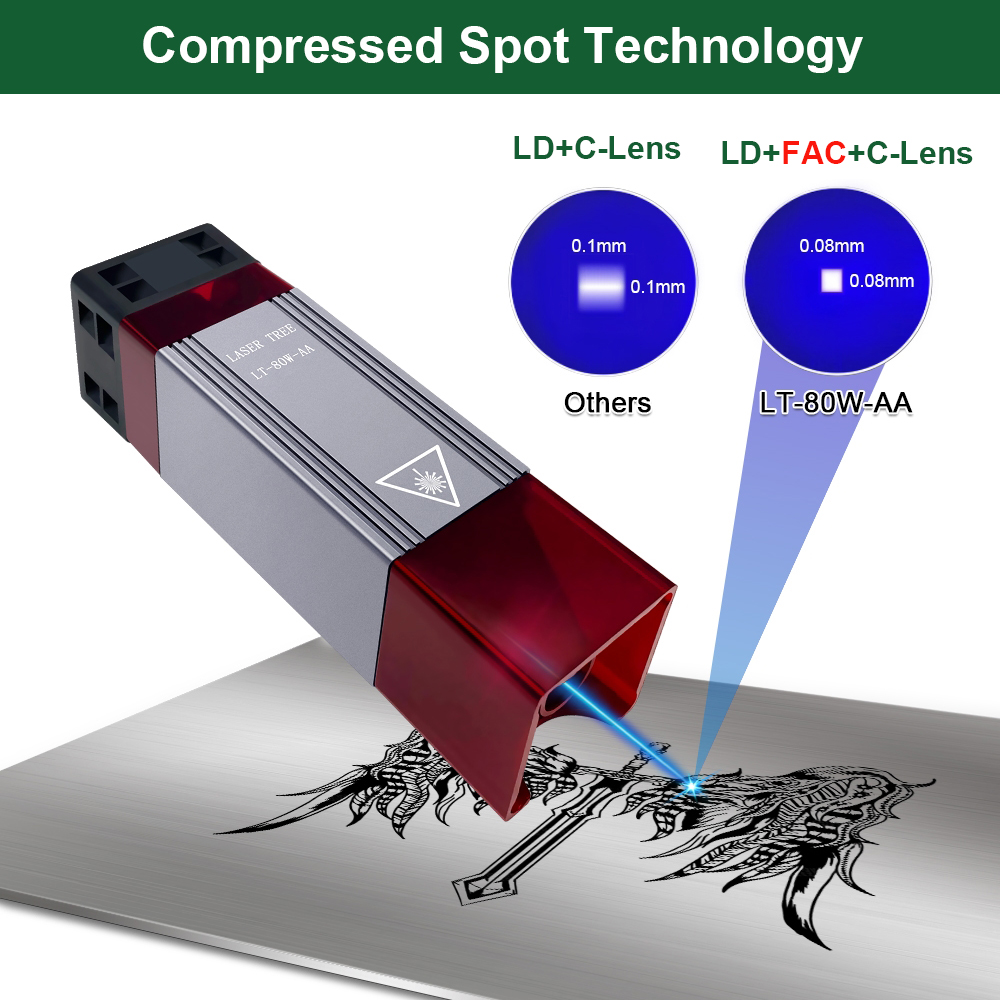

Spot form: Punctiform, fixed focus

Input voltage: 12V 3.2A

Input port: XH2.54-3P socket

Interface parameters: support TTL signal control power

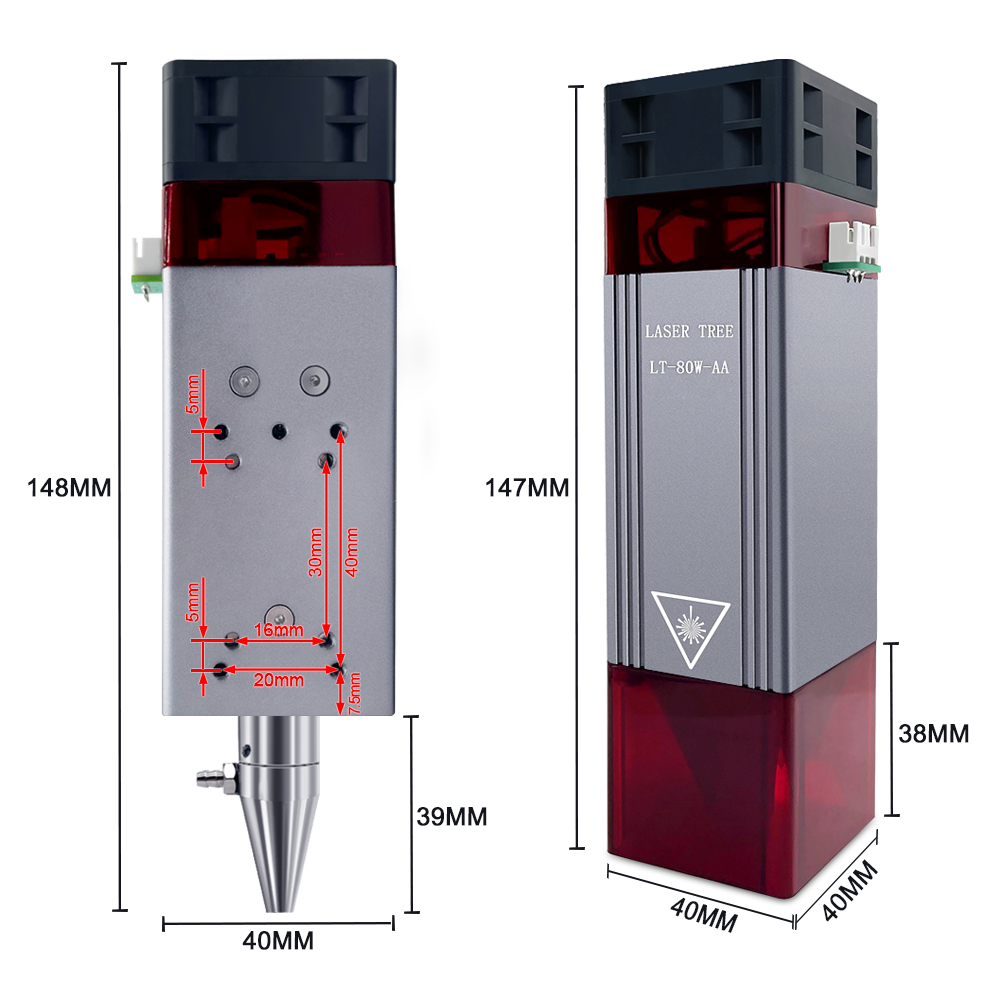

Item size: 15 * 4 * 4cm

Packing size: 20 * 12 * 8cm
