LASER TREE 80W High Power Laser Module with Dual Fans Air Assist Laser Kit TTL Module for CNC Laser Engraver Cutter Wood Tools
- Brand Name: Laser Tree
- Model Number: 80W Laser Module with Air Assist
- CNC or Not: CNC
- Condition: New
- Certification: CE
- Type: 80W Powerful Laser Head with Air Assist
- Material: Aluminum alloy
- Effect Output Power: 80W
- Output Optical Power: 10W
- Wavelength: 450nm
- Electric Power: 12V 3.2A(3A-3.5A)
- Focus Length: 45mm
- Modulation: 0/5-12V 0-5kHz TTL/PWM
- Interface: XH2.54-3P socket
- Fan Speed: 10000rpm
- Operating Temperature: 0-60℃
- Cable: 3PIN, 80cm
- Module Size: 60 * 40 * 40mm
- Module weight: 125g
- Application: Engraving/Cutting
- Service: Dropping Shipping Service
- SKU: LT-80W-Pro
![](https://www.laserse.com/wp-content/uploads/2022/09/S6723829b595b4de7823f4d93c62a5759W.jpg)
80W High Power Laser Module with Air Assist Dual Fans
By LASER TREE
Features:
1. 2-beam Compressed Technology: 10W optical power laser module
2. Dual Fans Cooling: Fan speed 10000rpm, good heat dissipation, suitable for long-term work
3. With Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks
4. 45mm Fixed Focus: Suitable for three-axis engraving machine, easy to install
5. Widely Compatibility: 12V 3.2A laser head, compatible with kinds of laser engraving machines
6. Super fast engraving speed: 304 stainless steel, ultra-fast engraving on stainless steel-30mm/s
7. Remarkable cutting ability: cutting through 8mm plywood and 5mm MDF by one pass at speed of 1.5mm/s
Specification:
Effect output power: 80W
Output optical power: 10W
Material: Aluminum alloy
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Electric Power: 12V 3.2A(3A-3.5A)
Modulation: support 0/5-12V 0-5kHz TTL/PWM
Interface: XH2.54-3P socket
Module size: 60 * 40 * 40mm
Module weight: 125g
Product List:
1* Laser Module
1* Laser driver
1* Air nozzle
1* 3pin cable
3* Focus fixing plate
![](https://www.laserse.com/wp-content/uploads/2022/09/Sb8910f34a51c4cd9b274feb852d56e63w.jpg)

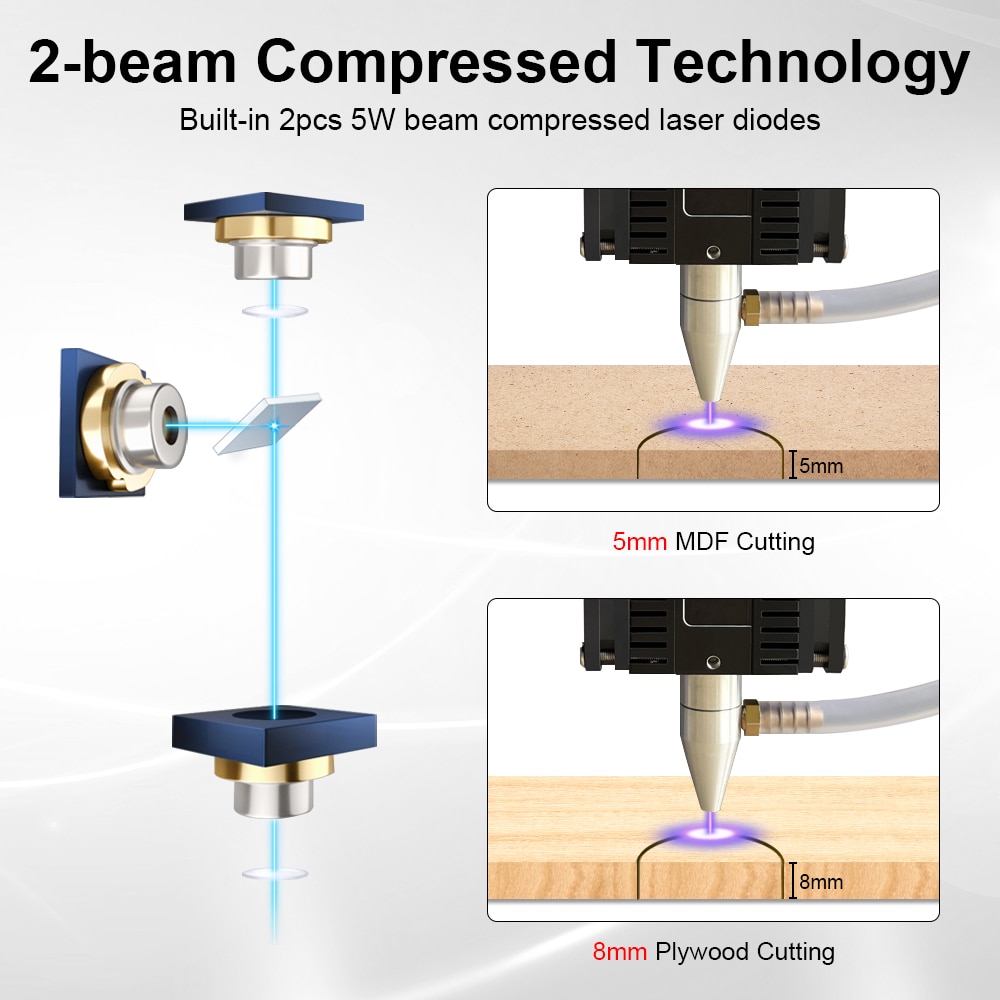

2-beam compressed Technology
Built-in 2pcs 5W beam compressed laser diodes, 10W optical power laser module
![](https://www.laserse.com/wp-content/uploads/2022/09/S44475fa8673045c0879860a7cabb7516v.jpg)

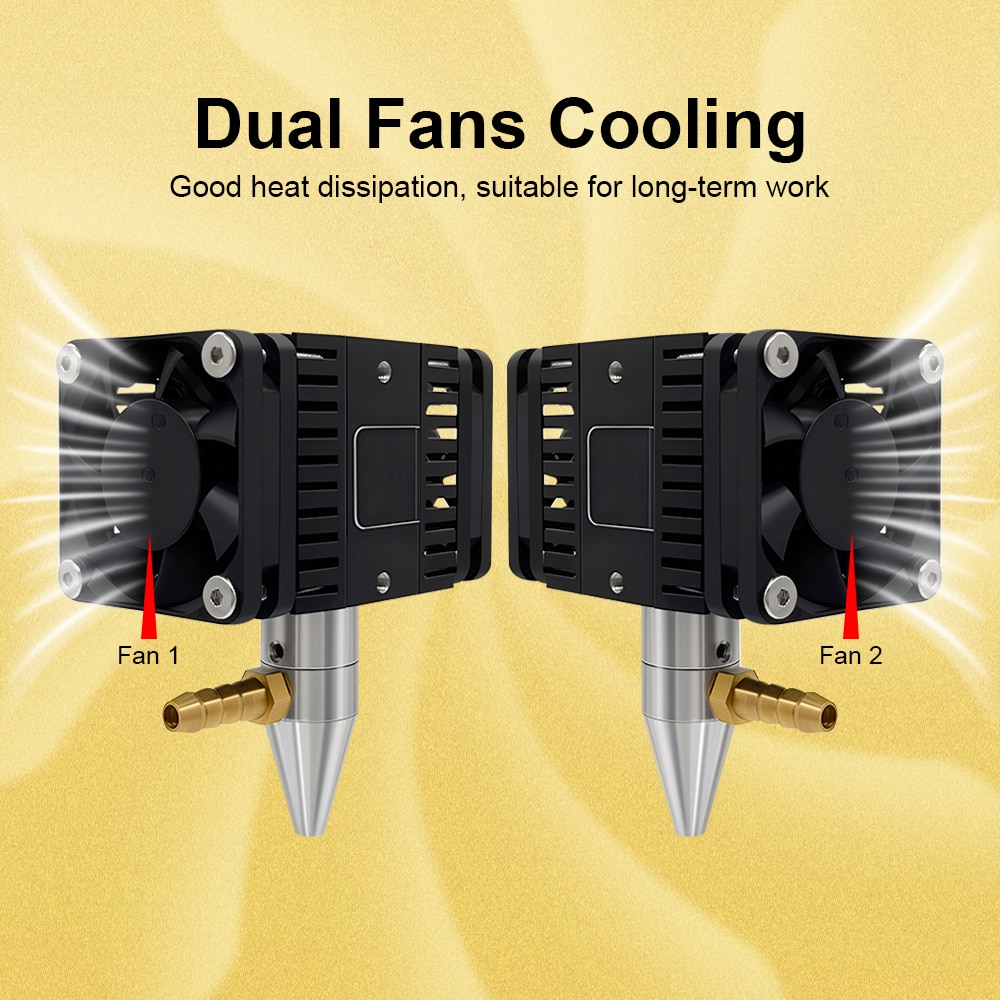

Dual Fans Cooling
Fan speed 10000rpm, good heat dissipation, suitable for long-term work
![](https://www.laserse.com/wp-content/uploads/2022/09/S7a79fb8630d341e5b873c2d111ac2fbdT.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/09/S064a4565b86d4e6bbc4692da1f36a2d99.jpg)

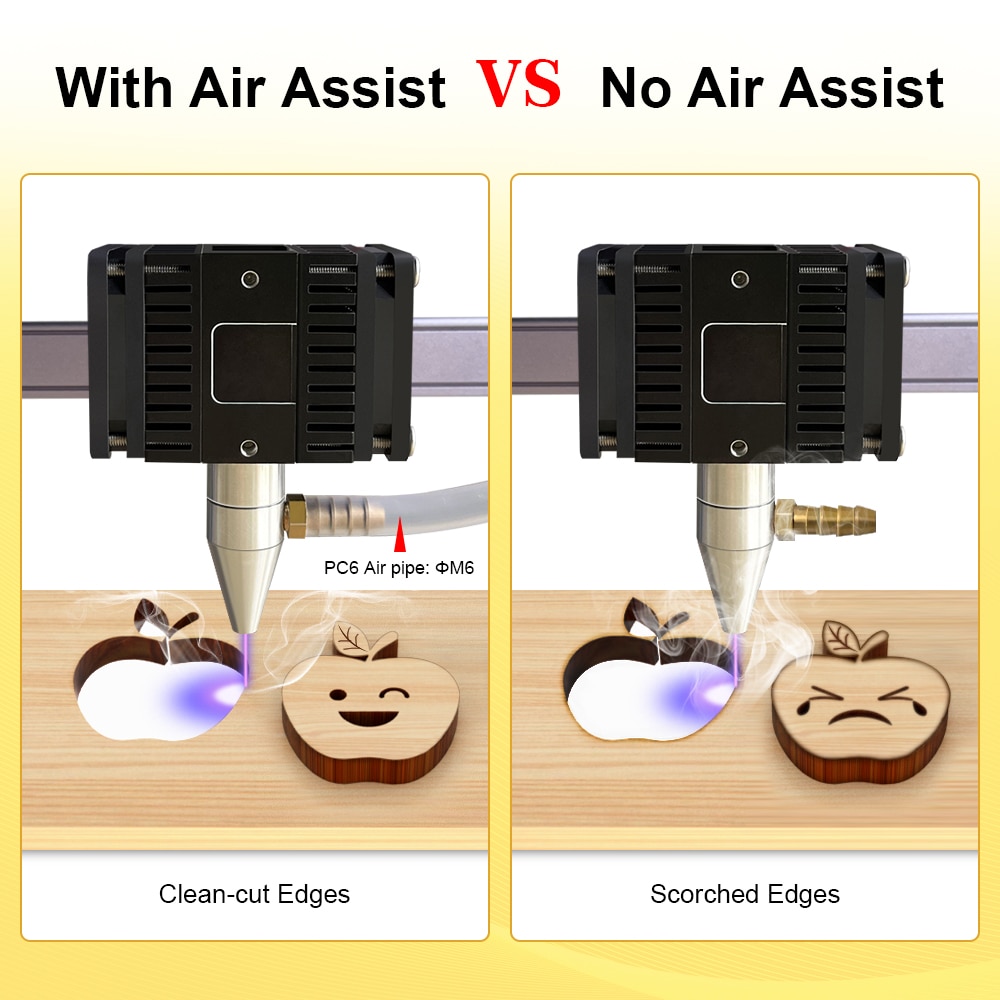

With Air-assist Laser Module
Blowing through the air nozzle, which improves cutting performance and reduces burn marks
![](https://www.laserse.com/wp-content/uploads/2022/09/Sa221512a6b8a45d9b46386c0351ea8b3n.jpg)
Note:
Please ensure that the air pump is turned on before you start cutting. If not, the smoke will contaminate the lens.

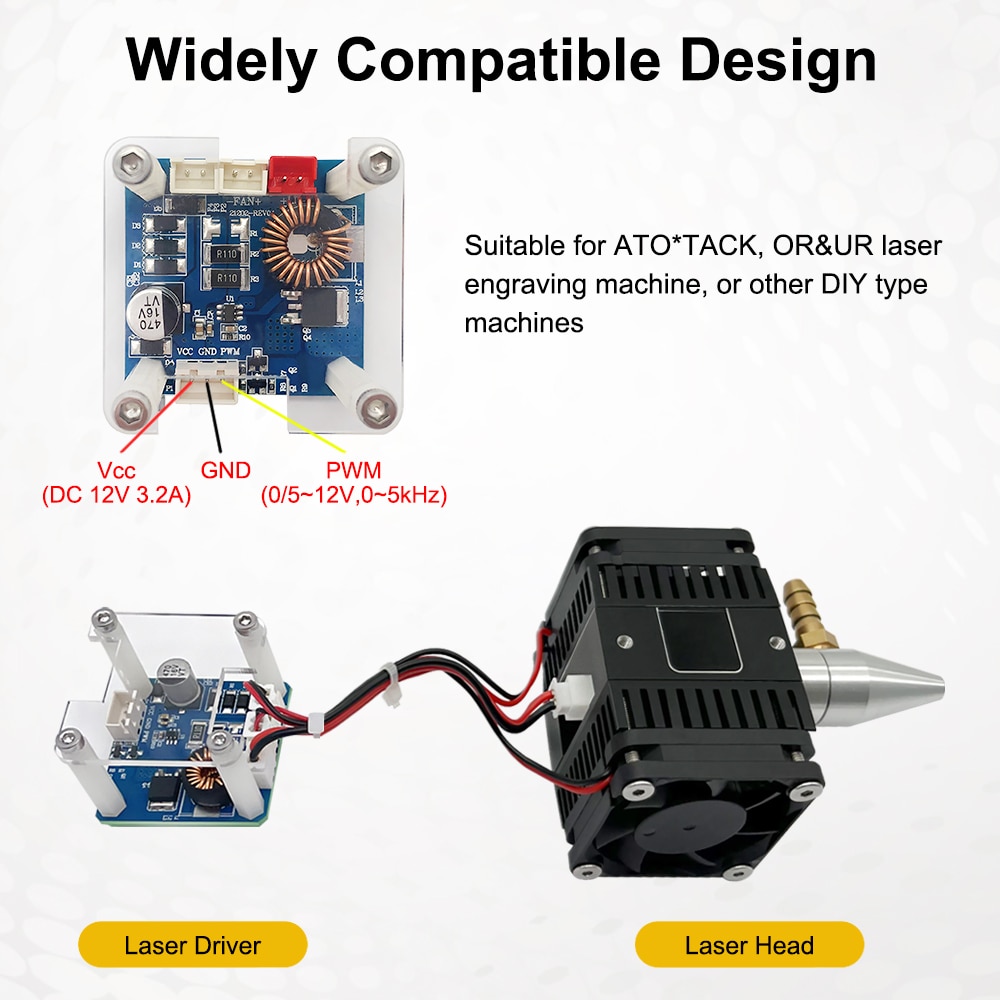

Widely Compatible Design
Suitable for ATO*TACK, OR&UR laser engraving machine, or other DIY type machines
![](https://www.laserse.com/wp-content/uploads/2022/09/Sd8c321e4099649fc9d1210f9841d6b14g.jpg)
Reference Settings for Cutting
![](https://www.laserse.com/wp-content/uploads/2022/09/S66659ad3064242f2b462e9ce67e77c47d.jpg)
Product Parameters
![](https://www.laserse.com/wp-content/uploads/2022/09/Sd3bba2e67af1421699b75ccaf68c0d721.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/09/S58054e2d1be146488768d01221a8d6cd3.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/09/Se8da8b4d62f448ba8acd0bd04741a7ebd.jpg)
Air Pump:
Description
The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges.
In addition, it can improve the efficiency of laser processing and thus save your time.
Features:
1. High-quality materials: metal nozzle, resisting high temperature
2. Large and steady air output: 27 L/min, blowing away smoke and residue produced during laser processing
3. Super silent: little noise and vibration in operation
4. Small in size: can be placed on desktop
5. Easy installation: can be easily transformed and upgraded
![](https://www.laserse.com/wp-content/uploads/2022/09/Sf0a6df20e6c64441ae96a9dbc45af0c3X.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/09/S02e50d6c49414a39849f748cd9d77235p.jpg)
More Creative Display
Various available materials: Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.
![](https://www.laserse.com/wp-content/uploads/2022/09/Sad53edef9452497091d8fda1582fca86a.jpg)
