LASER TREE 80W High Power Laser Module with Dual Fans Air Assist Laser Kit CNC TTL Module for Laser Cutting Machine Wood Tools

$217.80$437.80

SKU: 1005004740833577 Category:

Description

  • Brand Name: Laser Tree
  • Origin: Mainland China
  • Model Number: 80W Laser Head with Air Assist
  • CNC or Not: CNC
  • Condition: New
  • Certification: CE
  • Type: 80W Powerful Laser Head with Air Assist
  • Material: Aluminum alloy
  • Effect Output Power: 80W
  • Output Optical Power: 10W
  • Wavelength: 450nm
  • Electric Power: 12V 3.2A(3A-3.5A)
  • Focus Length: 45mm
  • Modulation: 0/5-12V 0-5kHz TTL/PWM
  • Interface: XH2.54-3P socket
  • Fan Speed: 10000rpm
  • Operating Temperature: 0-60℃
  • Cable: 3PIN, 80cm
  • Module Size: 60 * 40 * 40mm
  • Module weight: 125g
  • Application: Engraving/Cutting
  • Service: Dropping Shipping Service
  • SKU: LT-80W-Pro

80W Powerful Laser Module with Air Assist Dual Fans

By LASER TREE

Features:

1. 2-beam Compressed Technology: 10W optical power laser module

2. Dual Fans Cooling: Fan speed 10000rpm, good heat dissipation, suitable for long-term work

3. With Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks

4. 45mm Fixed Focus: Suitable for three-axis engraving machine, easy to install

5. Widely Compatibility: 12V 3.2A laser head, compatible with kinds of laser engraving machines

6. Super fast engraving speed: 304 stainless steel, ultra-fast engraving on stainless steel-30mm/s

7. Remarkable cutting ability: cutting through 8mm plywood and 5mm MDF by one pass at speed of 1.5mm/s

Specification:

Effect output power: 80W

Output optical power: 10W

Material: Aluminum alloy

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Electric Power: 12V 3.2A(3A-3.5A)

Modulation: support 0/5-12V 0-5kHz TTL/PWM

Interface: XH2.54-3P socket

Module size: 60 * 40 * 40mm

Module weight: 125g

Product List:

1* Laser Module

1* Laser driver

1* Air nozzle

1* 3pin cable

3* Focus fixing plate

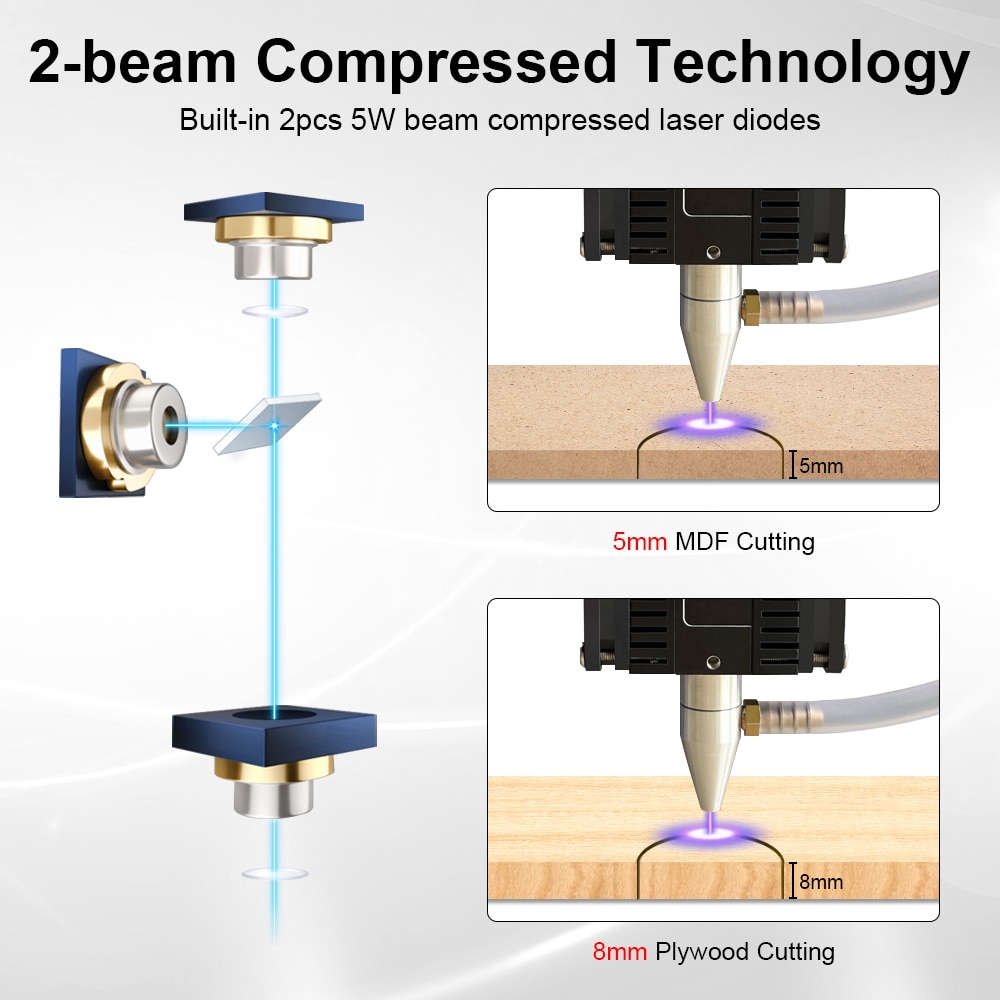

2-beam compressed Technology

Built-in 2pcs 5W beam compressed laser diodes, 10W optical power laser module

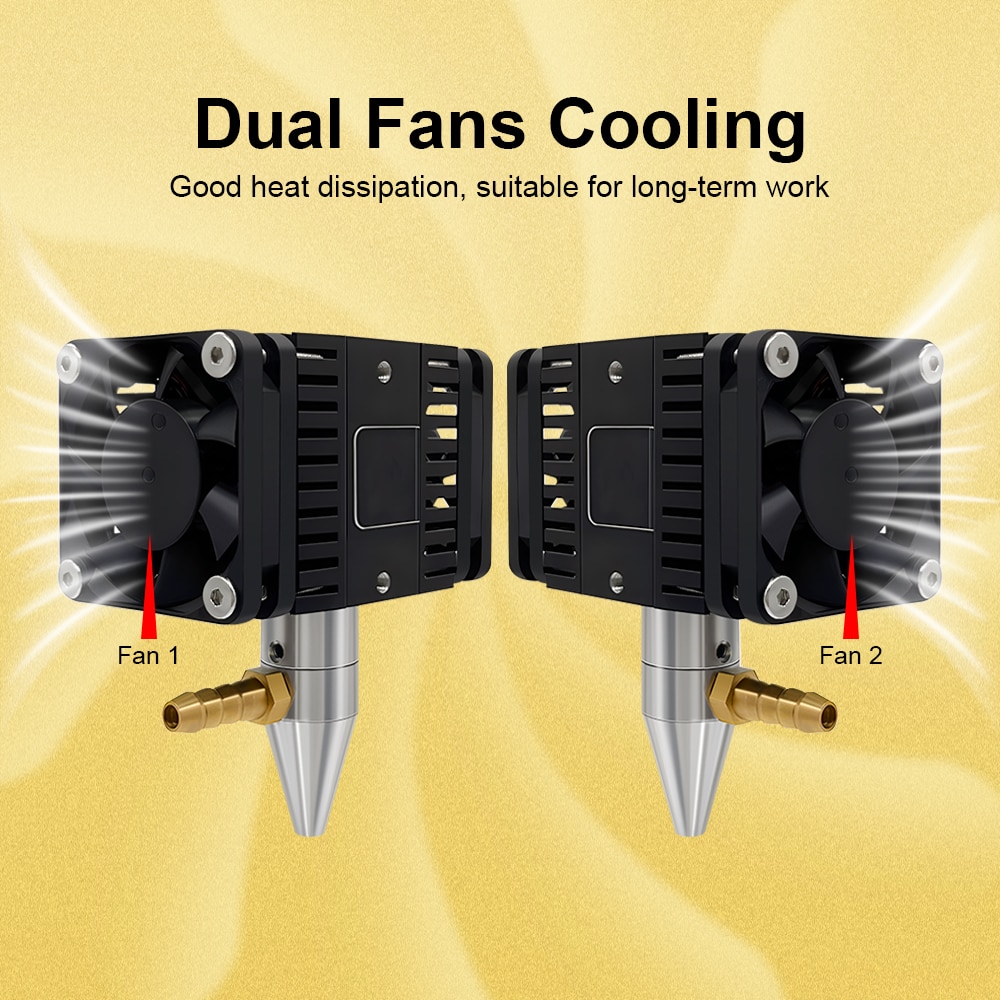

Dual Fans Cooling

Fan speed 10000rpm, good heat dissipation, suitable for long-term work

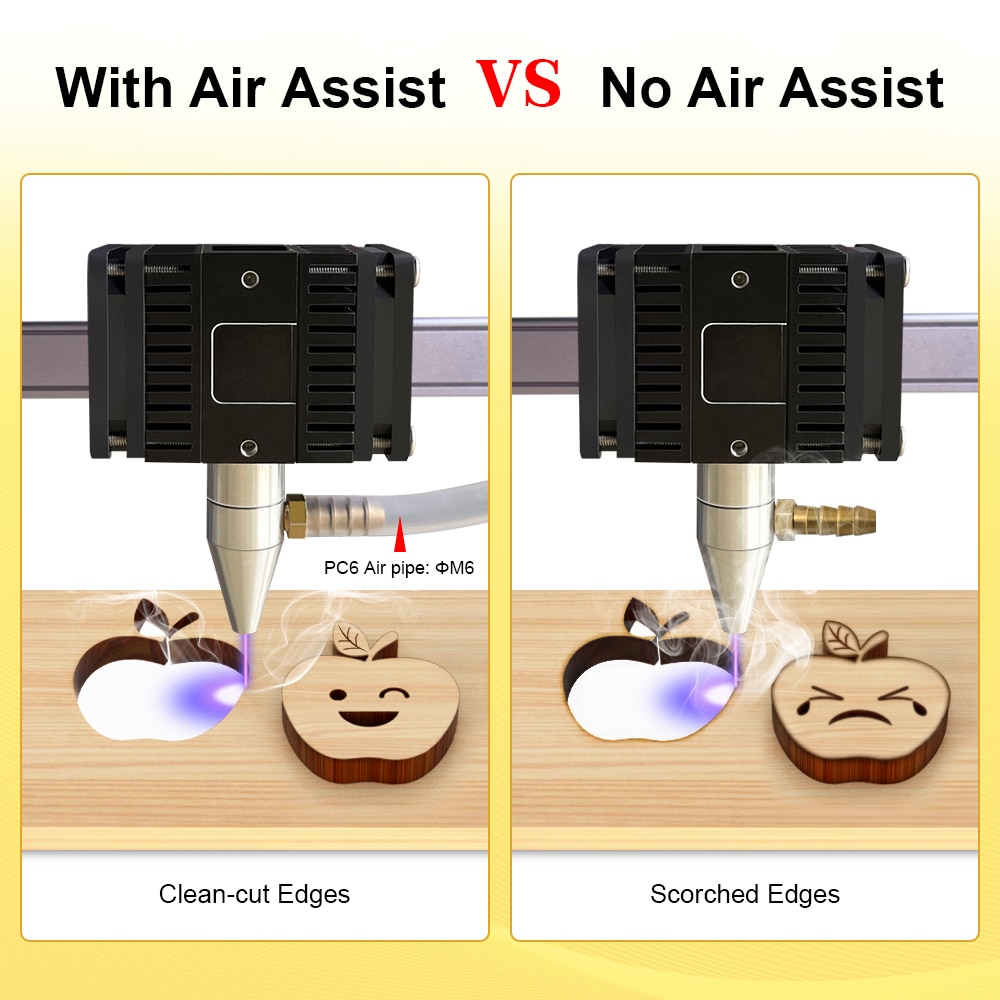

With Air-assist Laser Module

Blowing through the air nozzle, which improves cutting performance and reduces burn marks

Note:

Please ensure that the air pump is turned on before you start cutting. If not, the smoke will contaminate the lens.

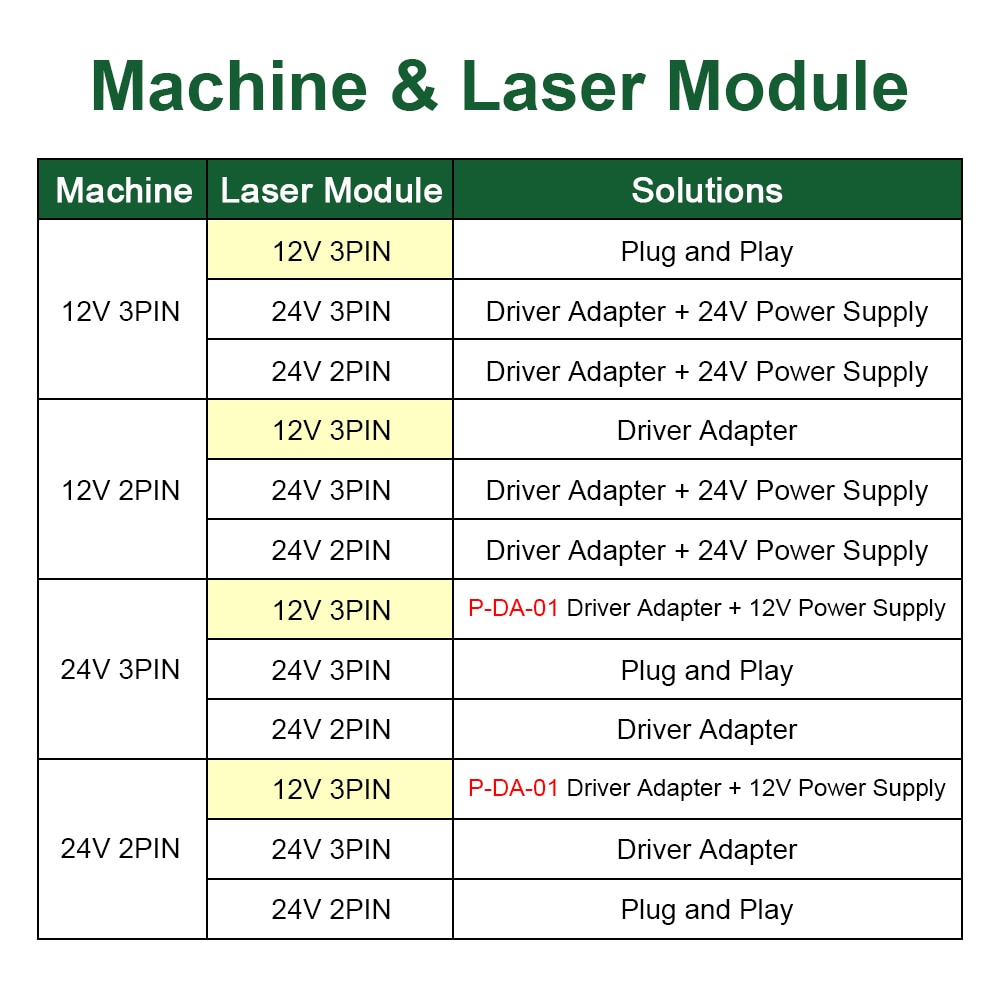

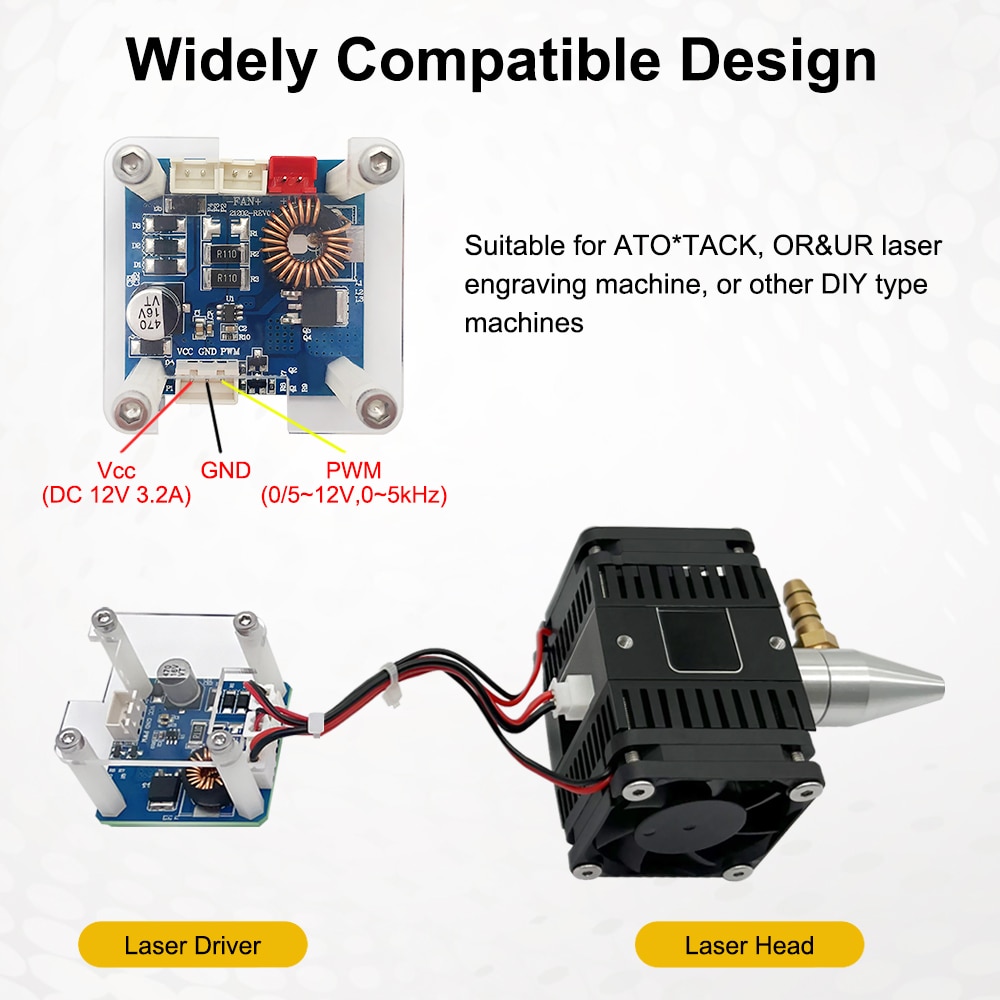

Widely Compatible Design

Suitable for ATO*TACK, OR&UR laser engraving machine, or other DIY type machines

Reference Settings for Cutting

Product Parameters

Air Pump:

Description

The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges.
In addition, it can improve the efficiency of laser processing and thus save your time.

Features:

1. High-quality materials: metal nozzle, resisting high temperature

2. Large and steady air output: 27 L/min, blowing away smoke and residue produced during laser processing

3. Super silent: little noise and vibration in operation

4. Small in size: can be placed on desktop

5. Easy installation: can be easily transformed and upgraded

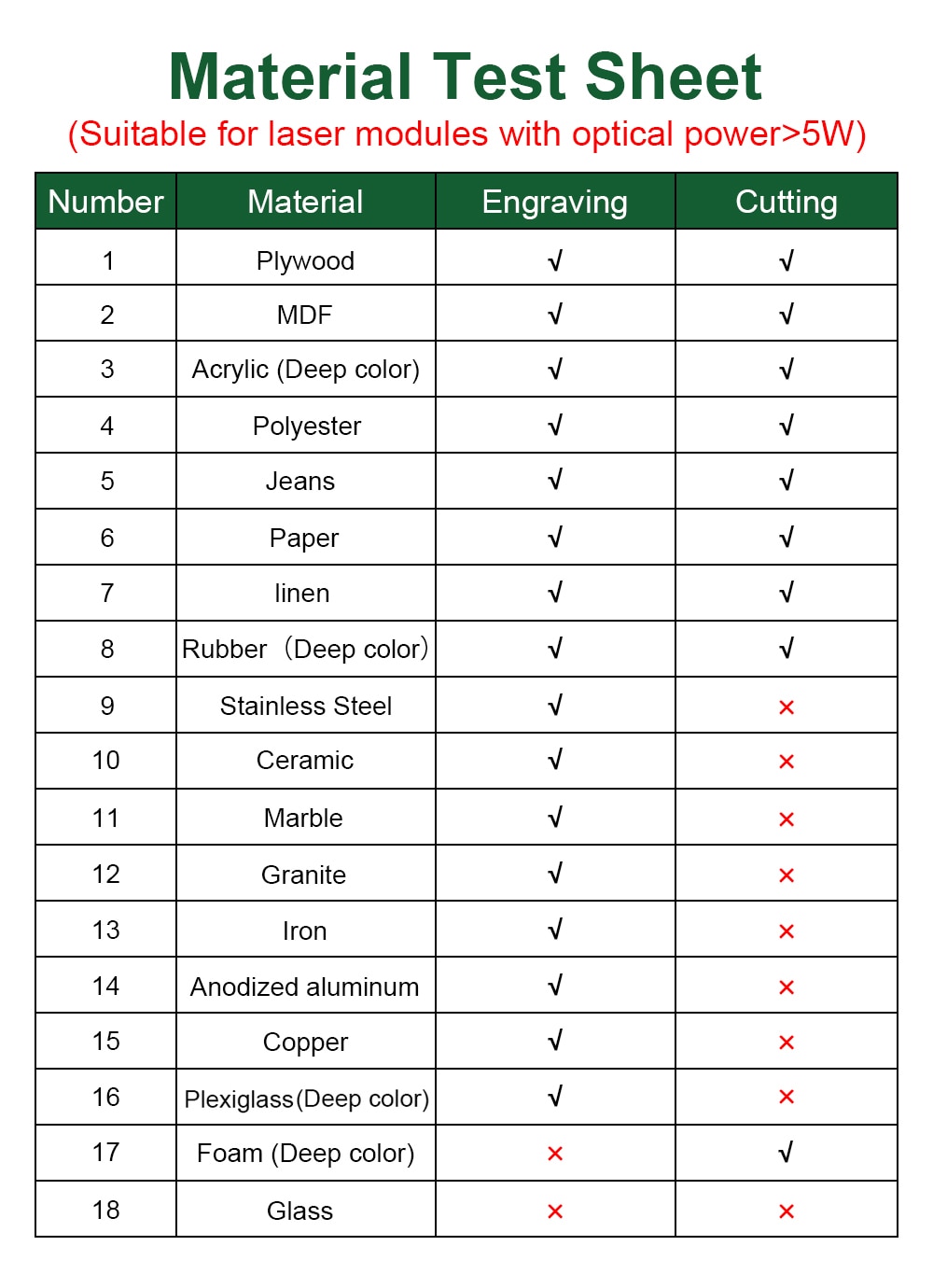

More Creative Display

Various available materials: Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc
