Description

Brand Name: Laser Tree
Certification: NONE
Origin: CN(Origin)
Model Number: LT-80W-AA
Model Number: LT-80W-AA(12V)/LT-80W-AA(24V)
Modulation: 0/5-12V TTL/PWM
Effect Laser Power: 80W

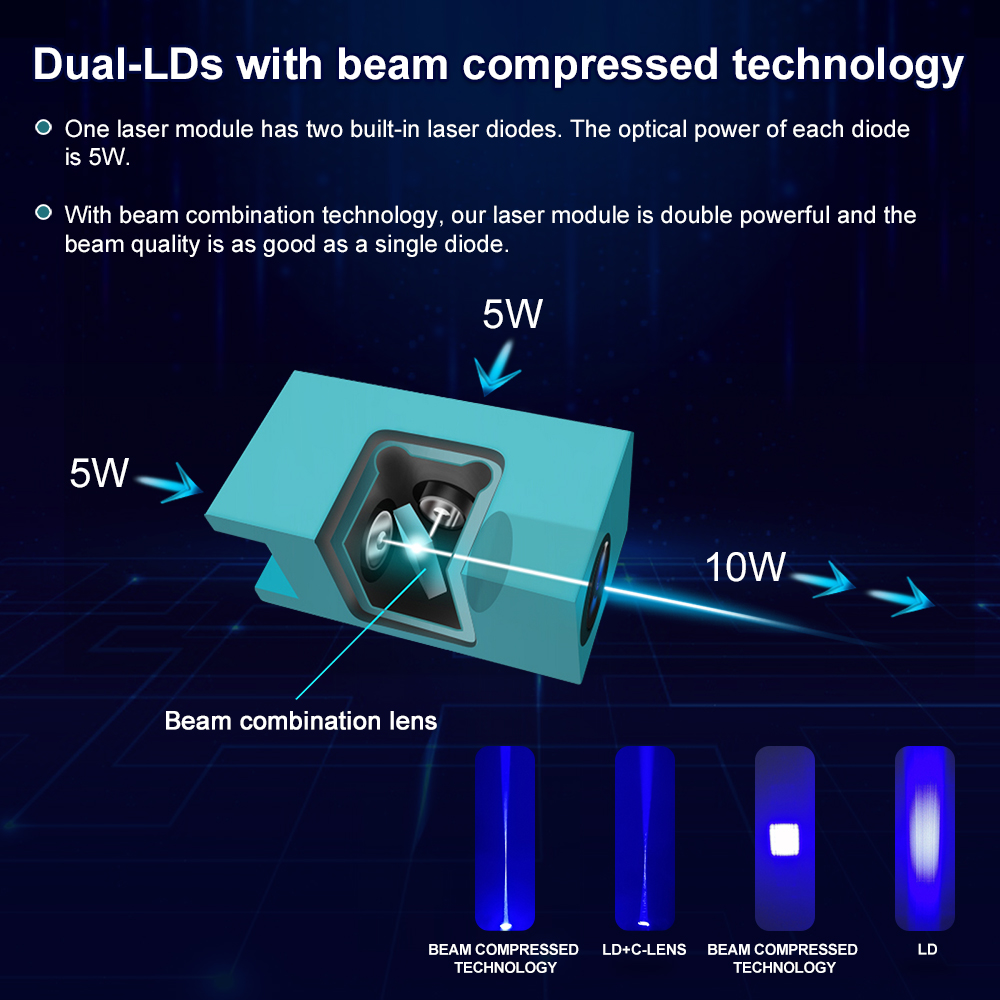

Output Optical Power: 10W
Electrical Power: 48W
Operating Voltage: 12V/24V
Operating Current: 12V 3.2A/ 24V 1.7A

LASER TREE 450nm 80W High Power Laser Head with Air Assist, Metal Nozzle, TTL / PWM Cutting Engraving Laser Module

Product Description

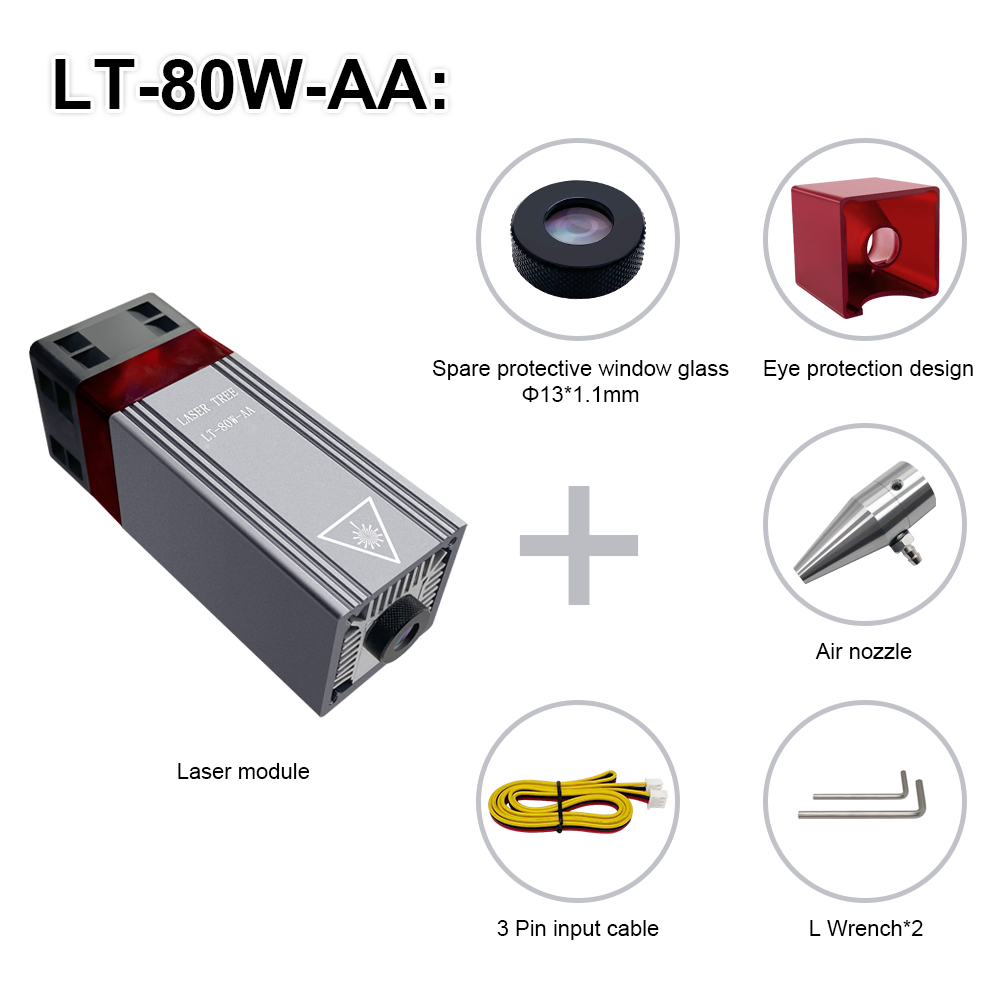

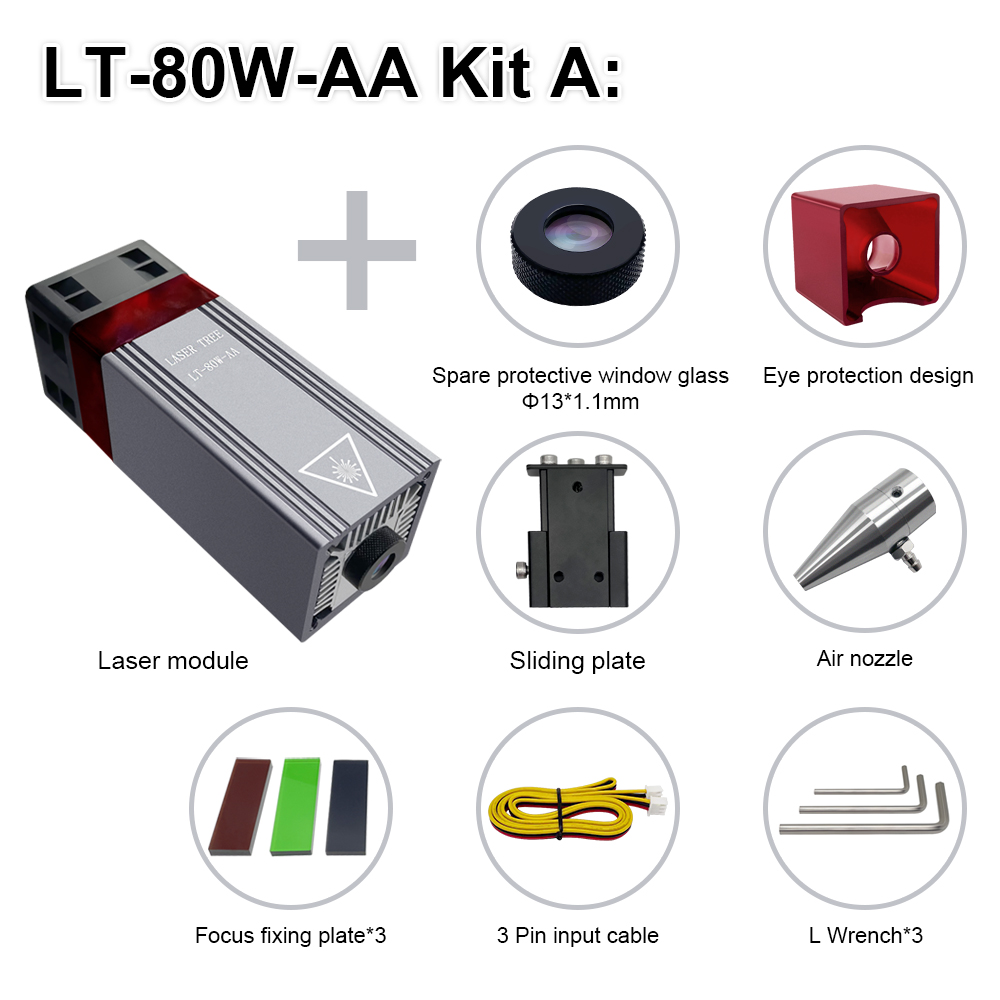

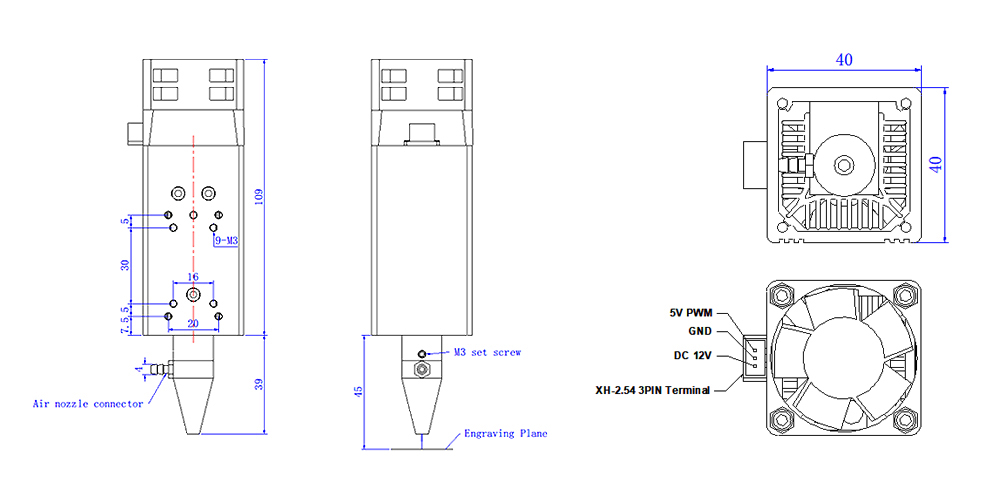

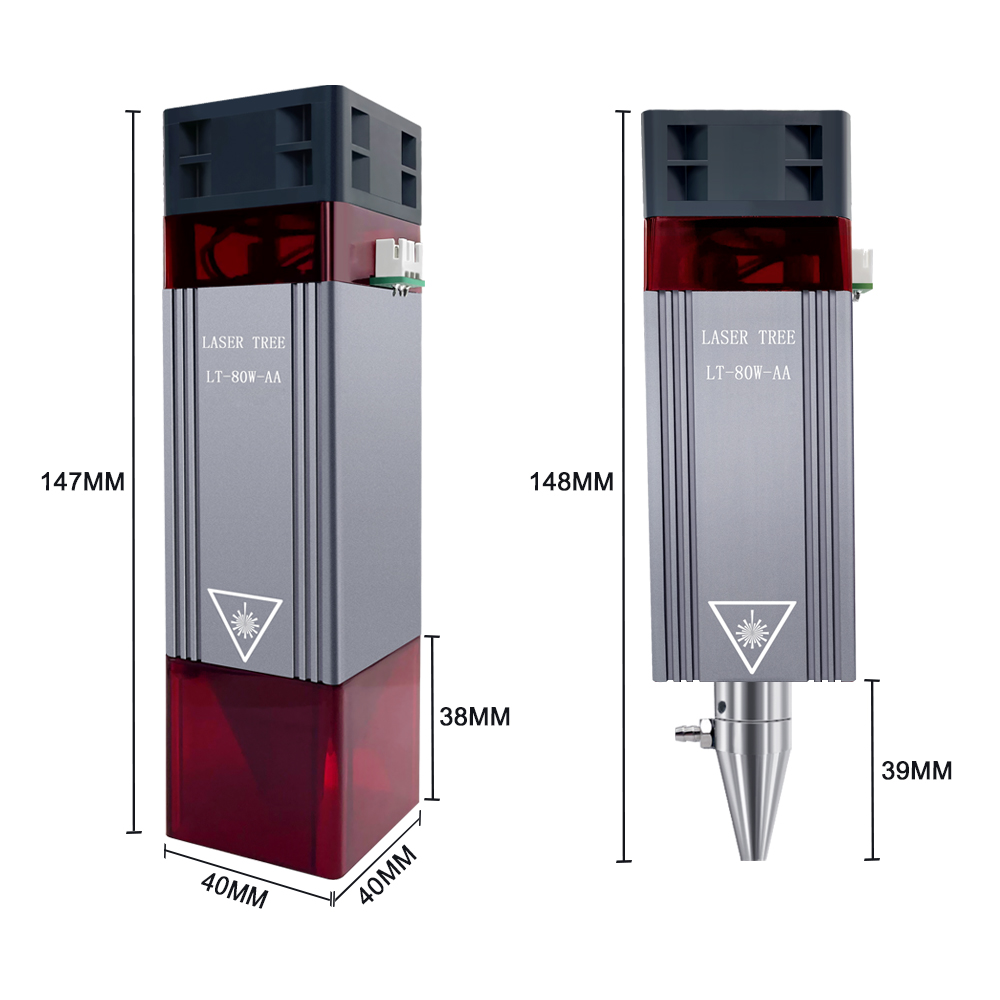

LT-80W-AA has 2 forms:

Forms 1:

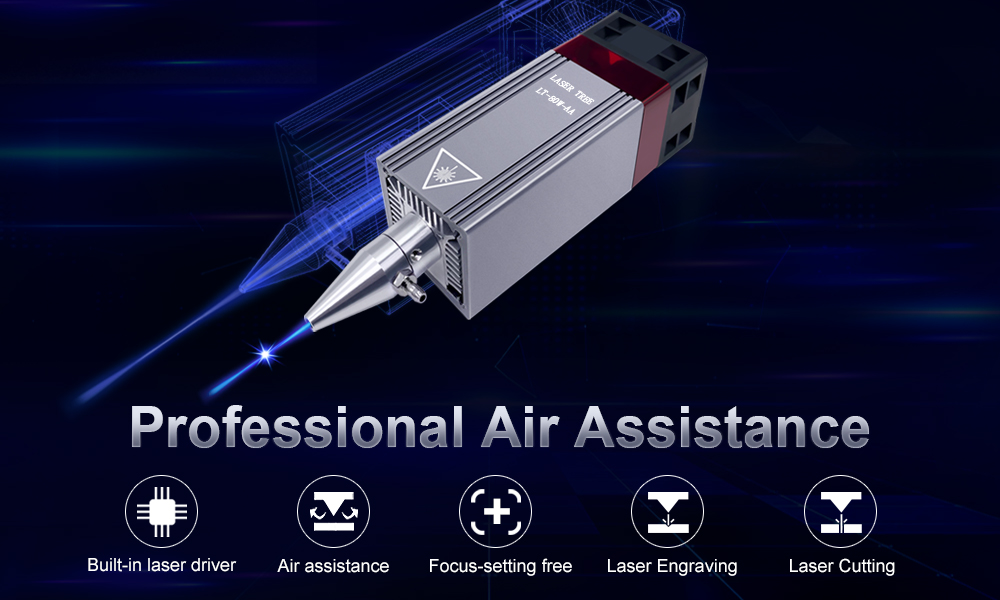

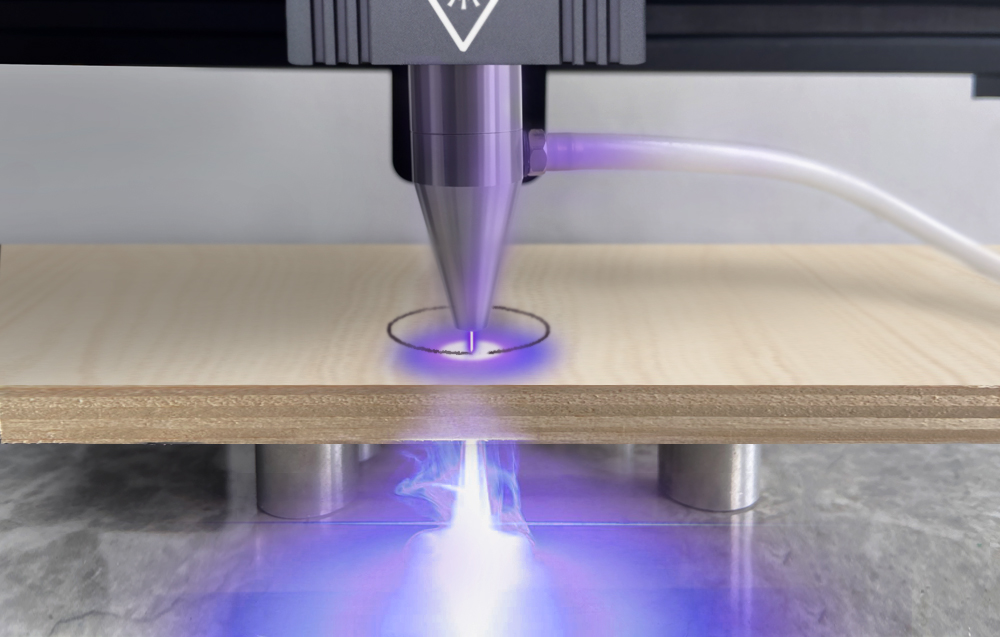

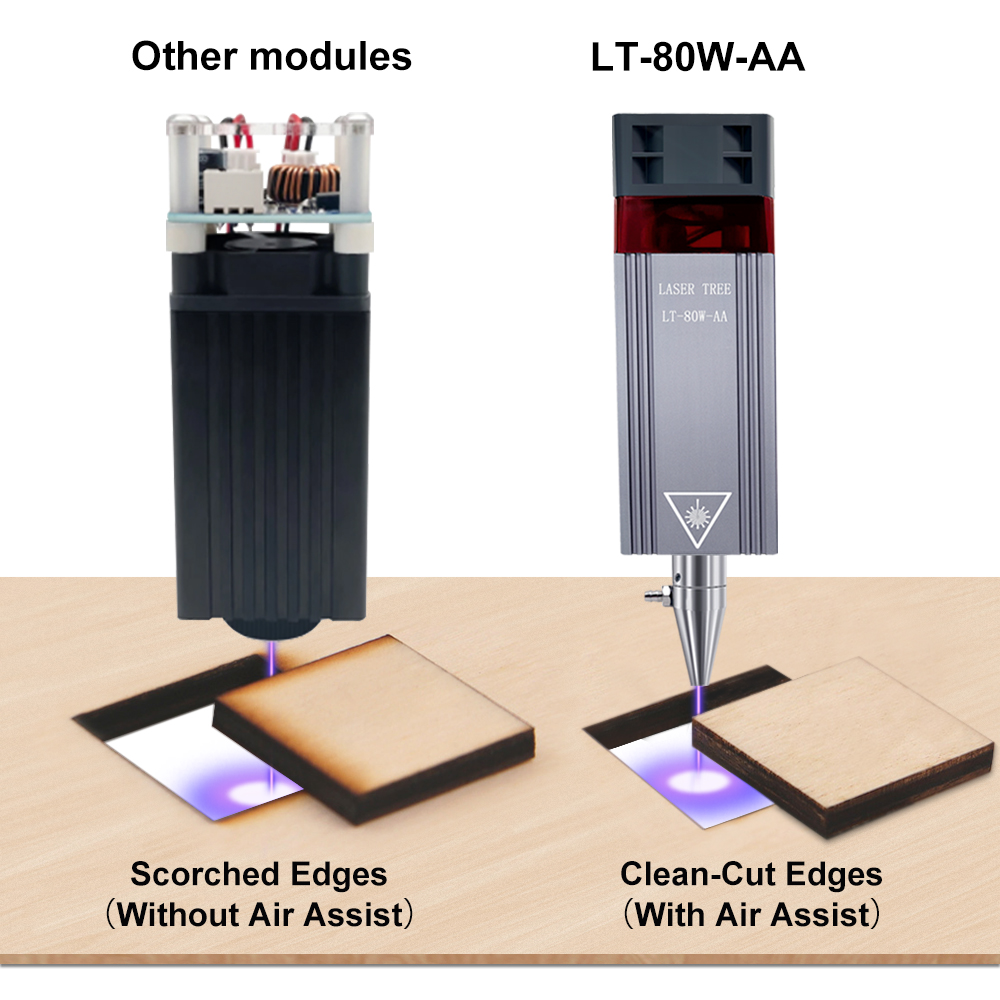

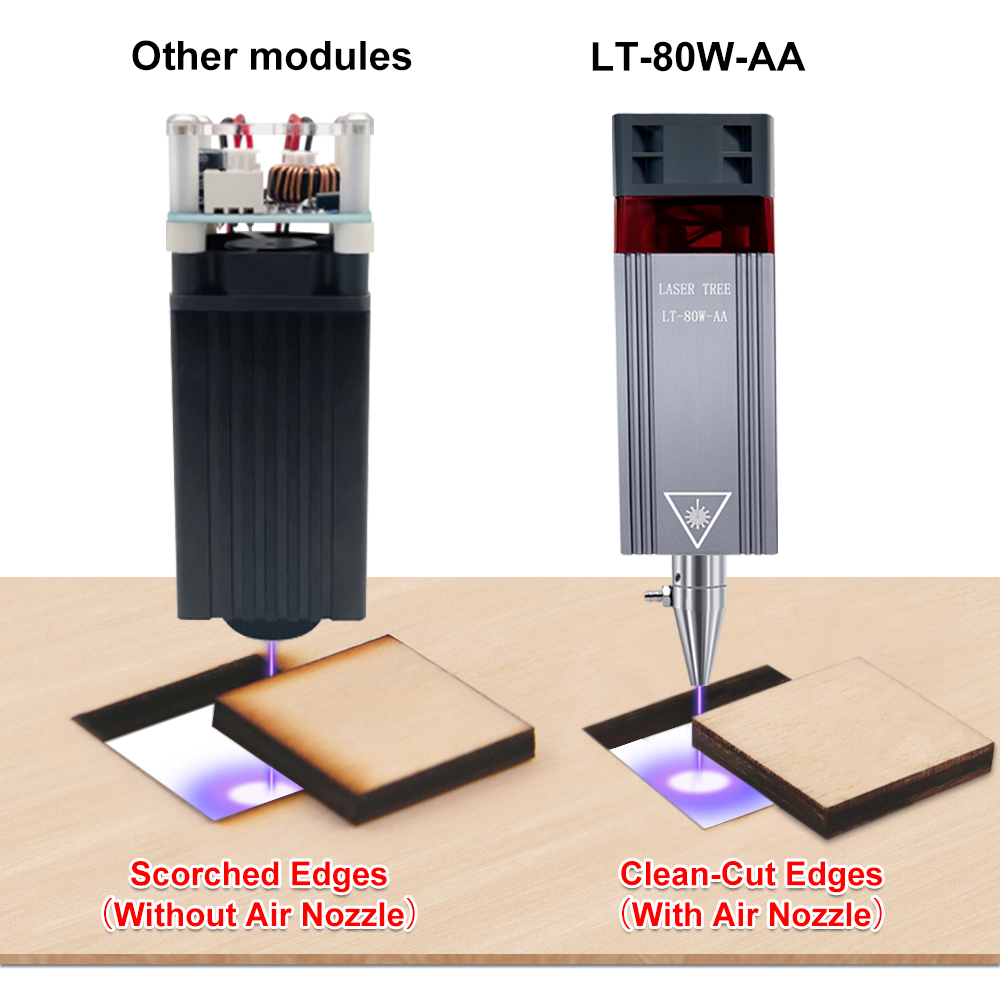

Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs.This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself.

Recommended Air Tubing:inner diameterΦ2.5-3mm

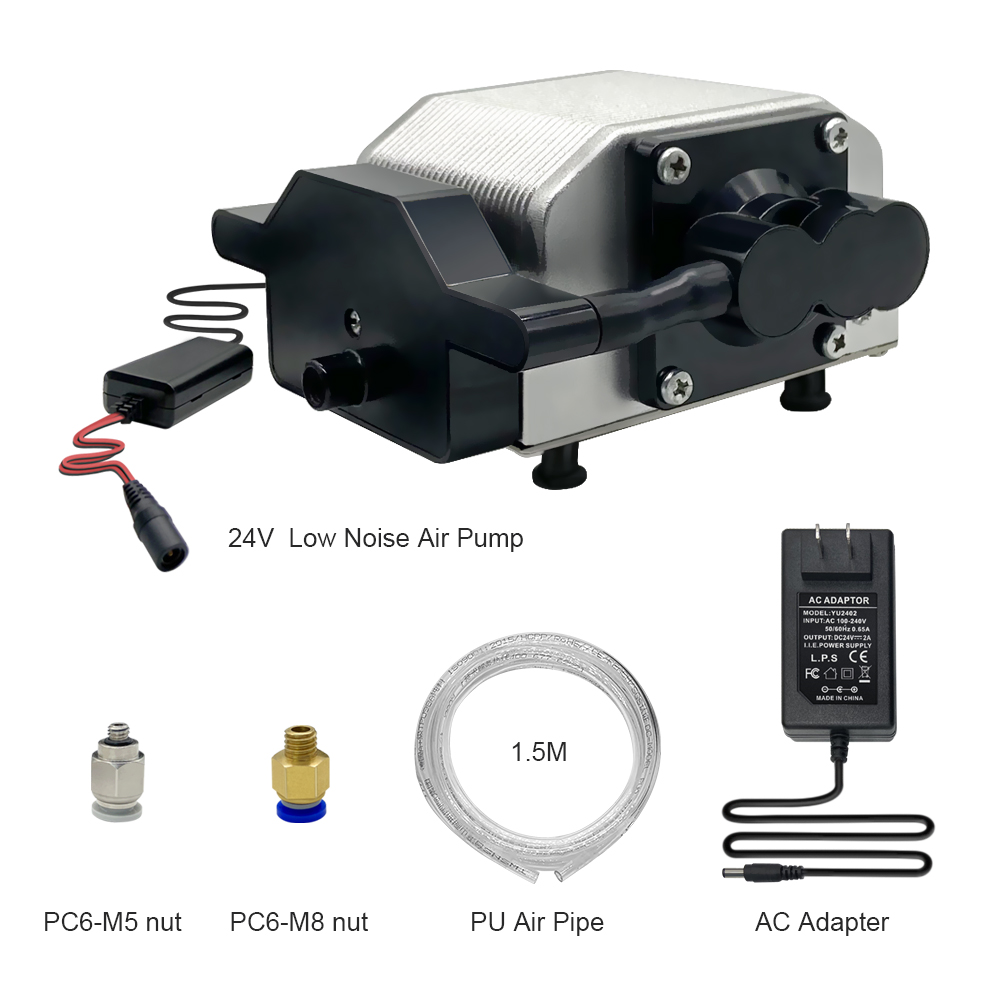

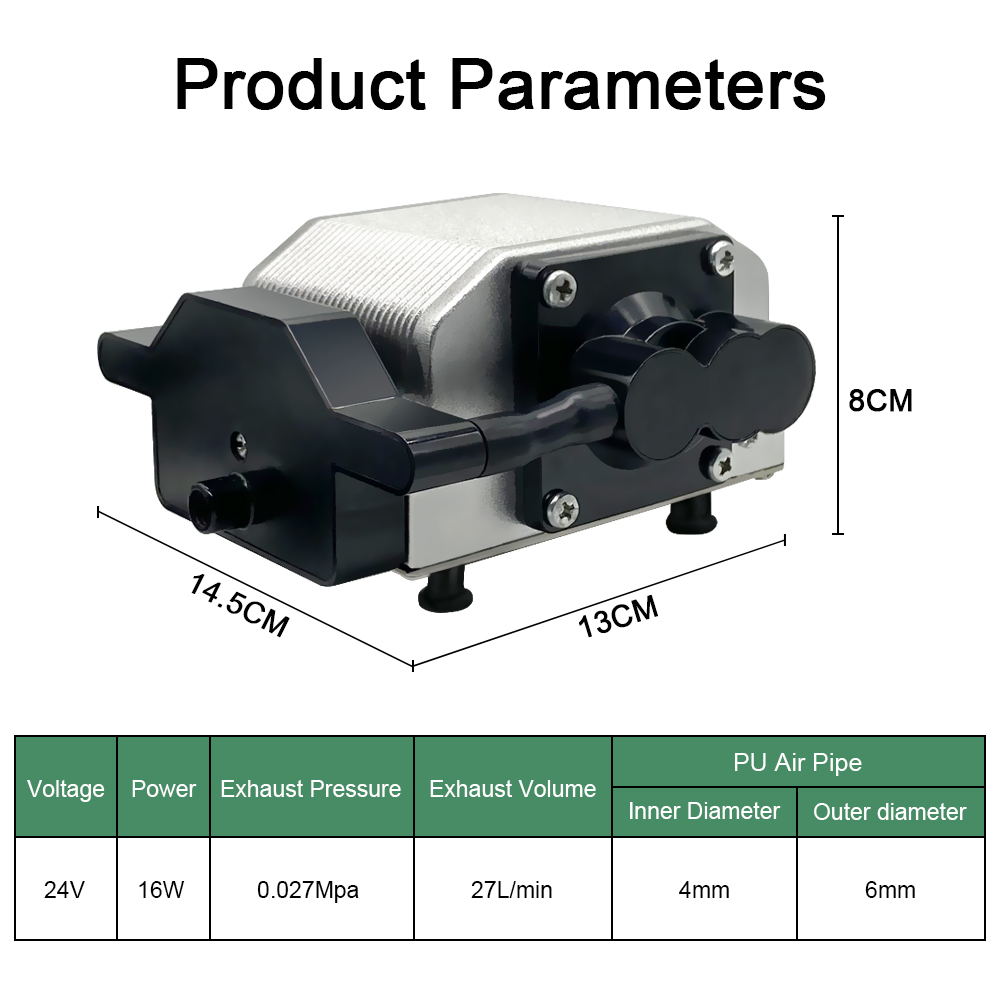

Recommended air pump:150kPa

Forms 2:

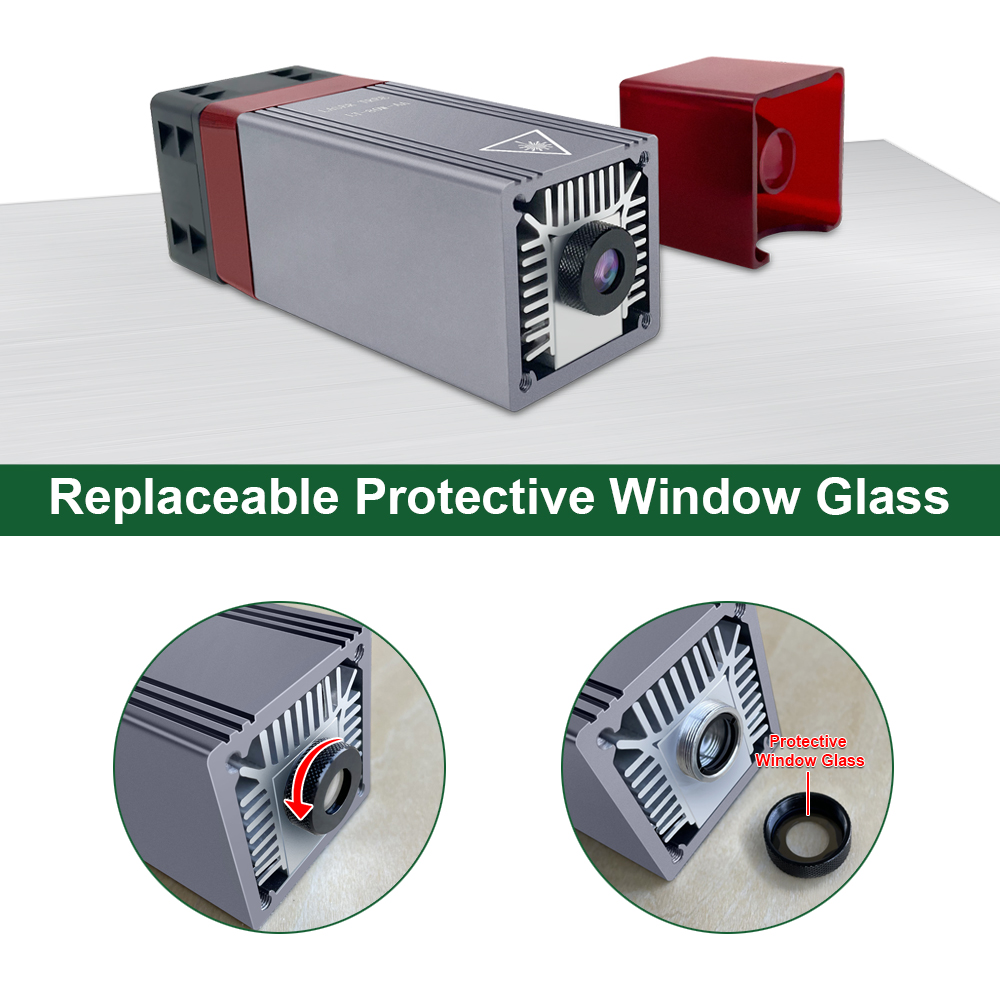

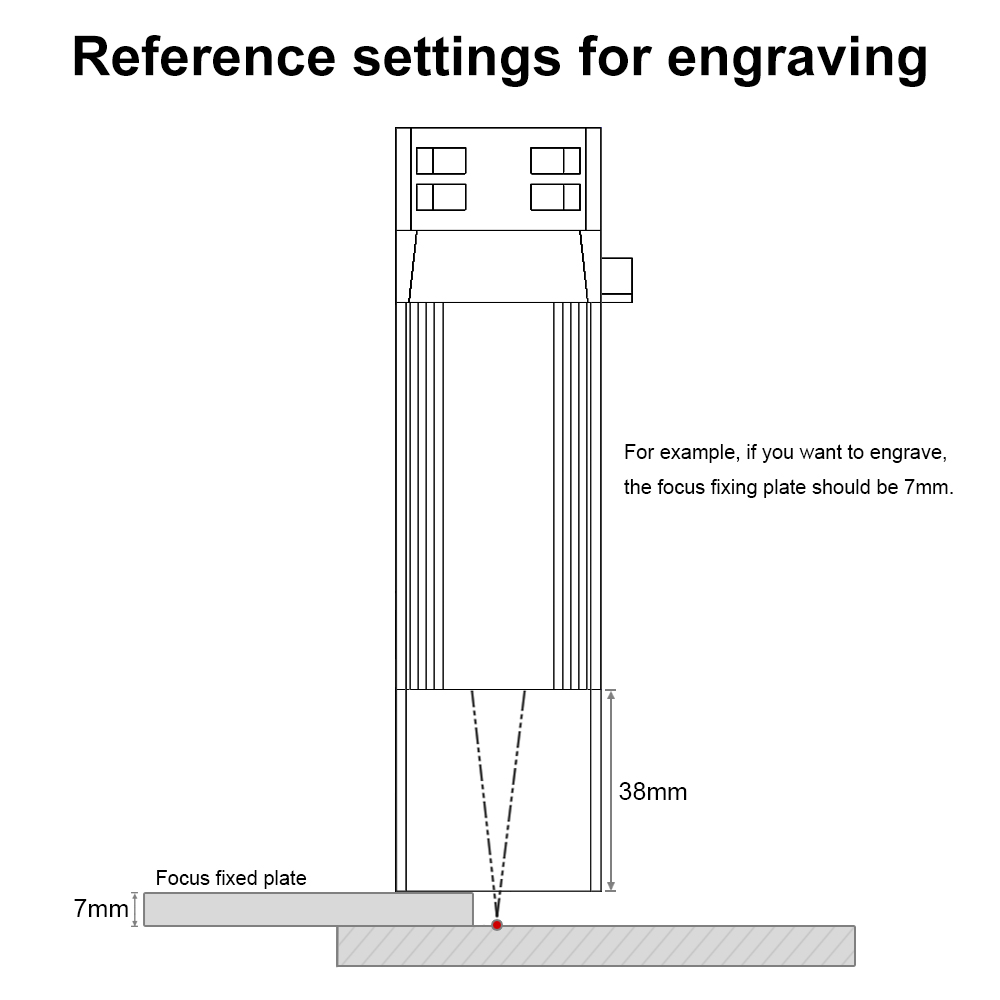

Laser protective cover: It can effectively filter blue light and can work without wearing goggles. We recommend using this form for engraving

[Main performance]

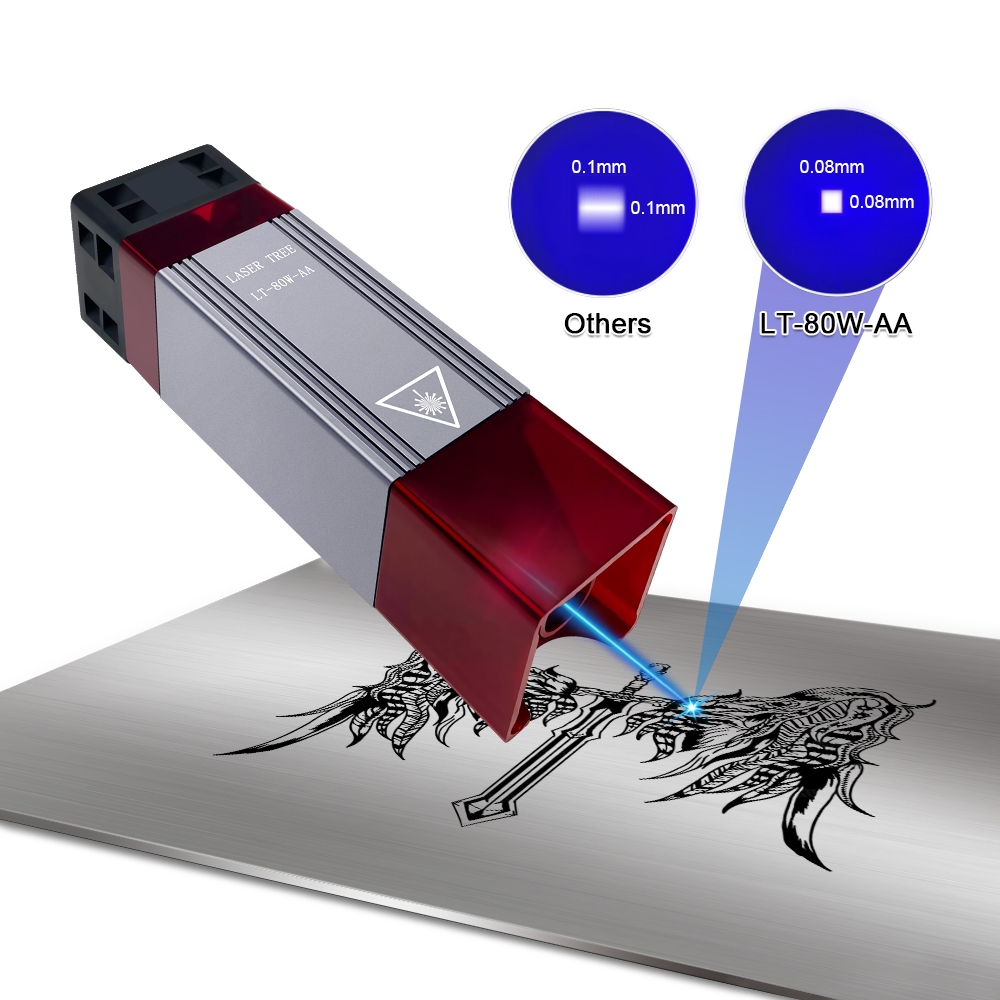

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 45mm focus length;

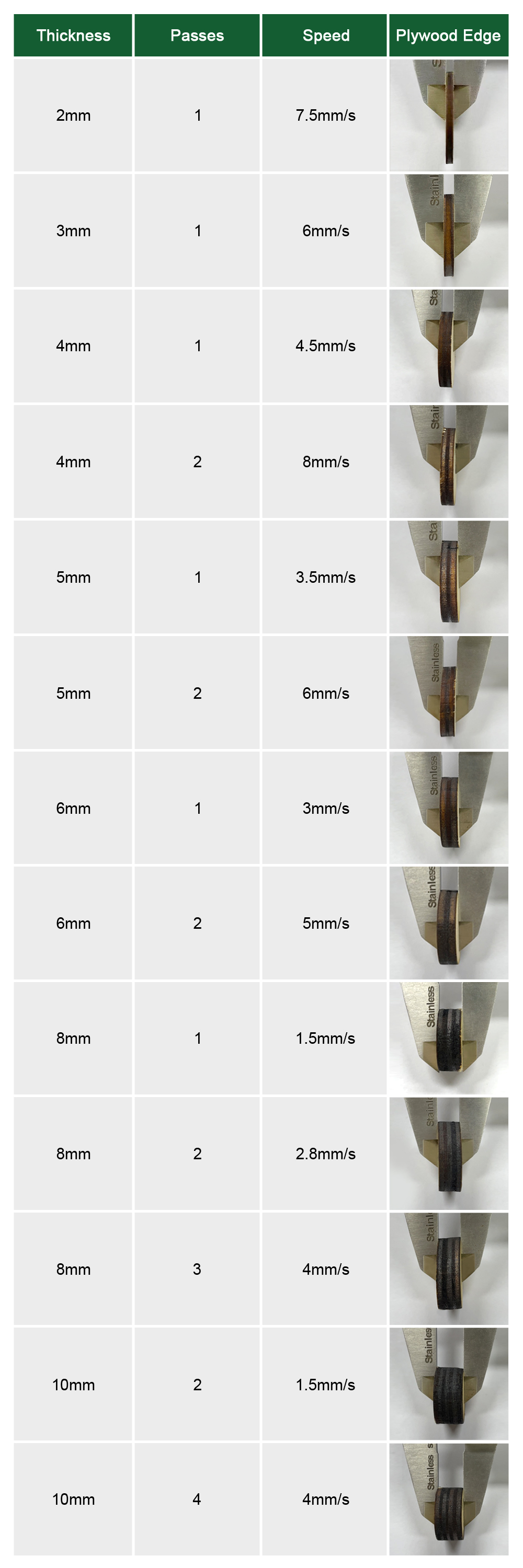

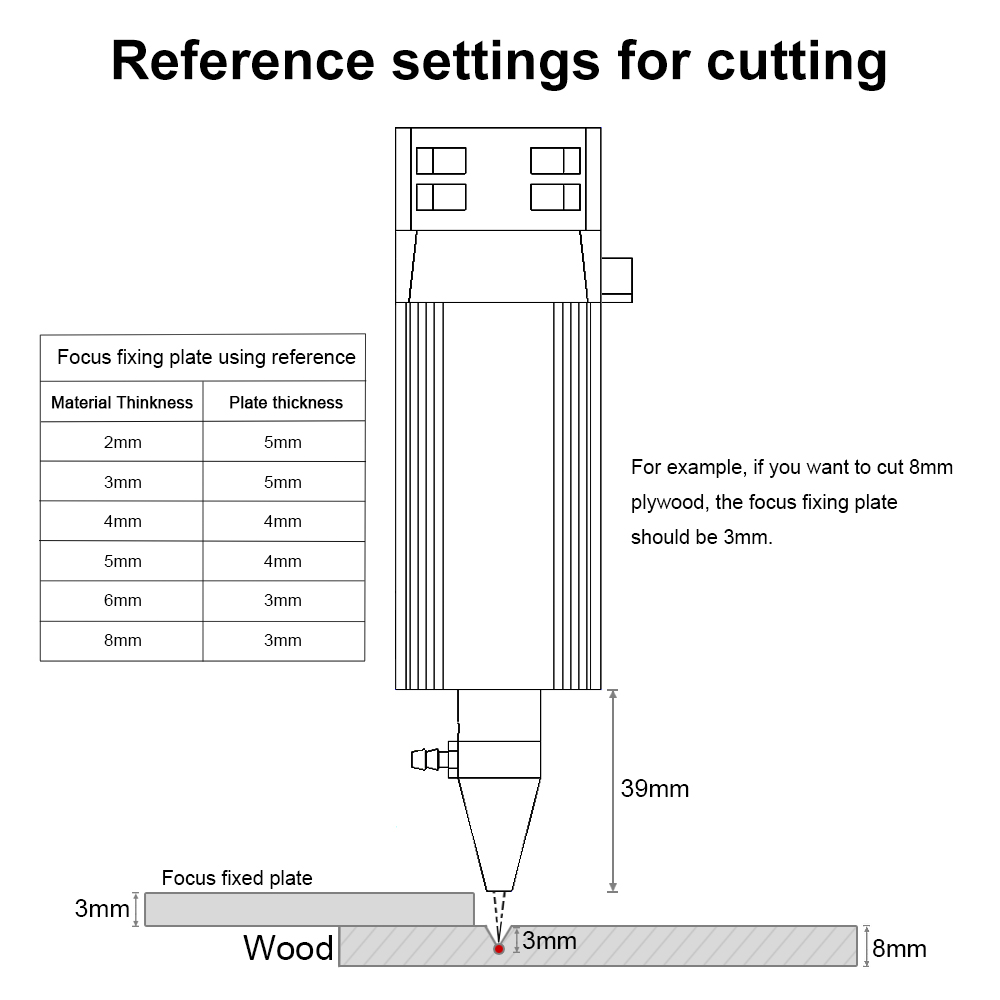

c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s with 45mm foucs length.

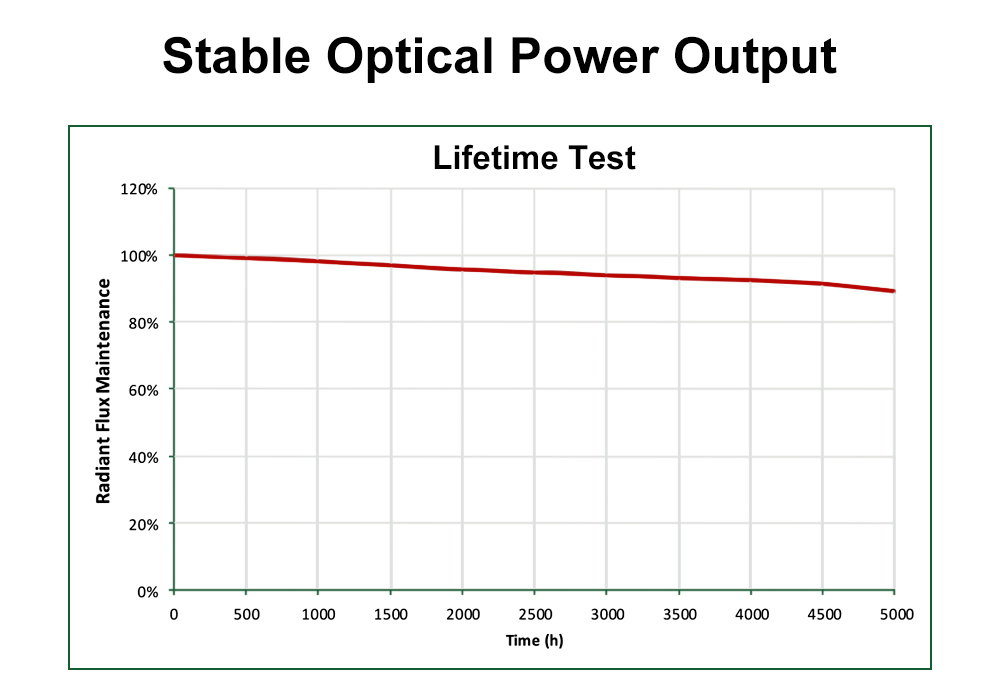

[Original diode] Original diode, high quality,20,000 hours lifetime!

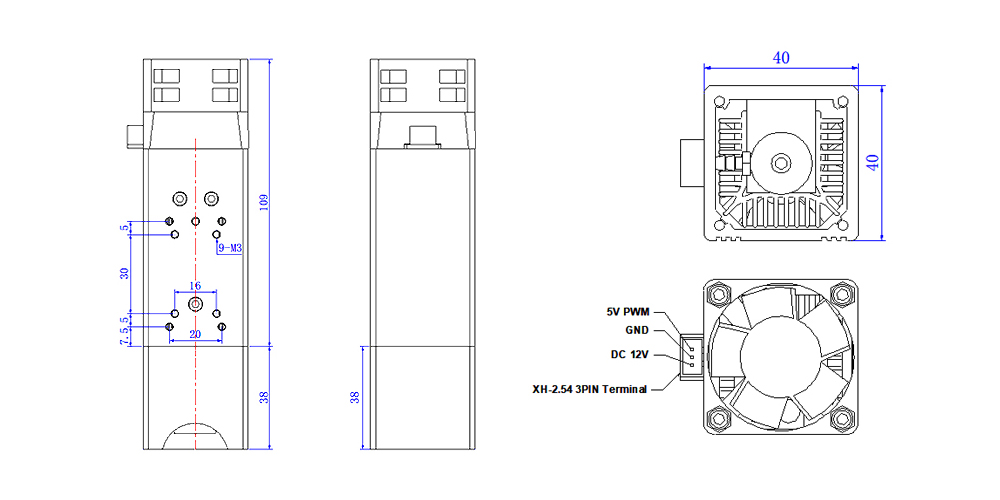

[Easy to use] Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.

[Applicable materials] Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel,Stone,Bamboo,Leather,Rubber,Alumina,Solid wood, etc.

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

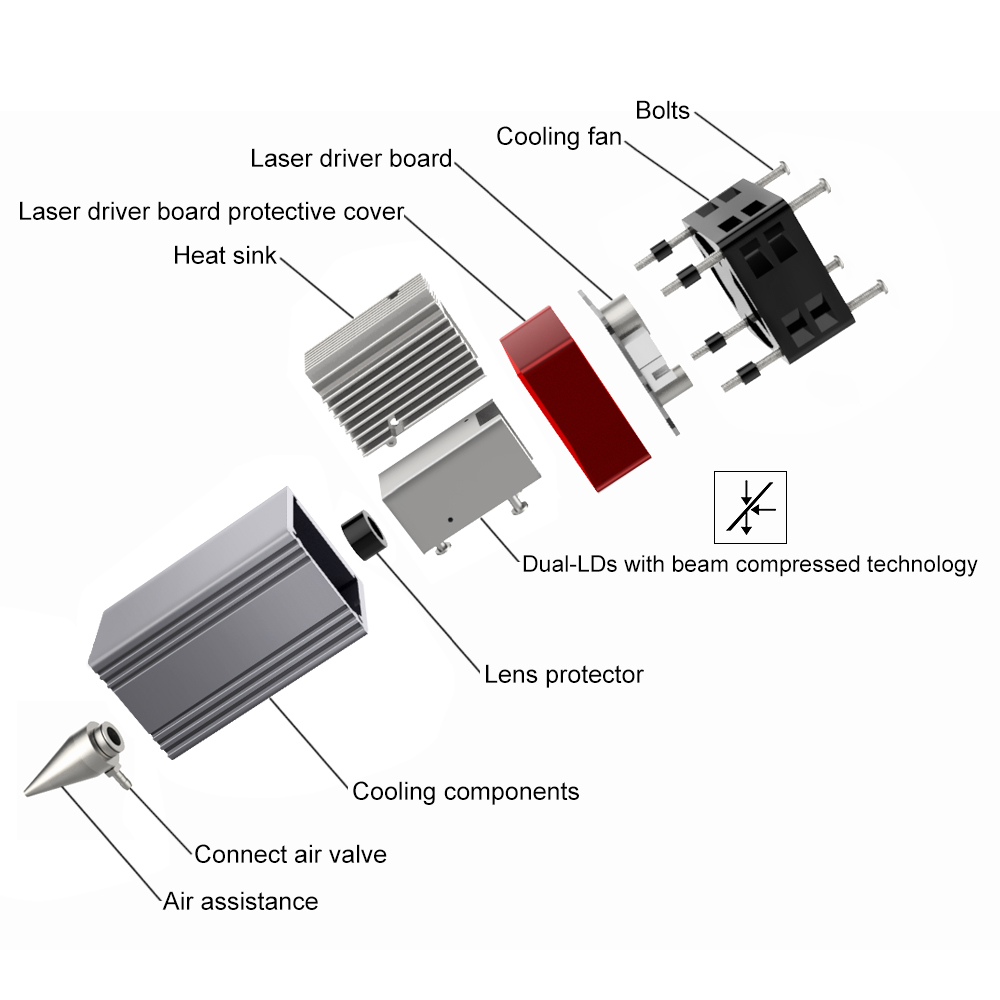

Feature:

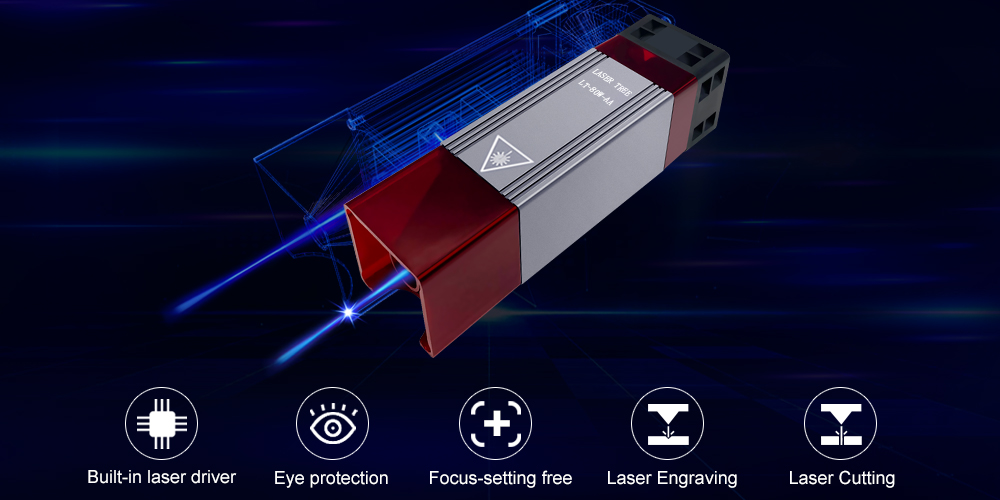

Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

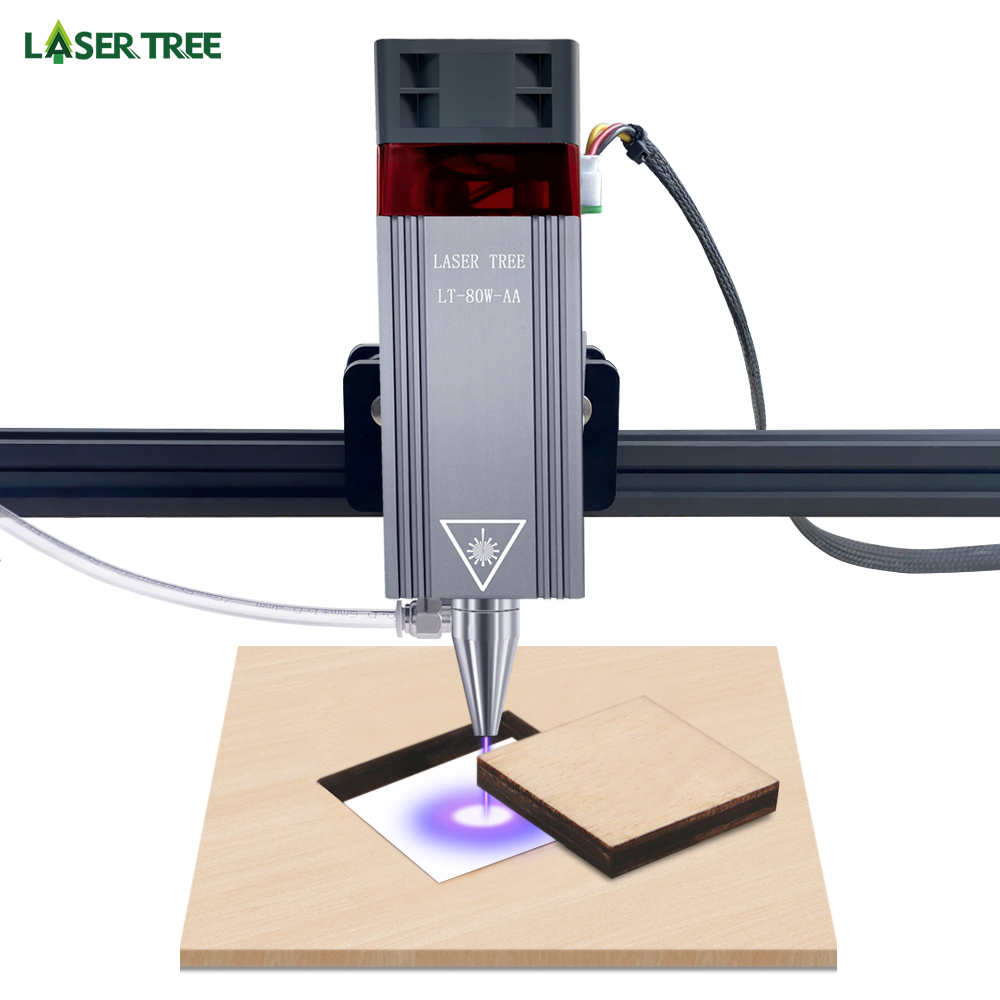

Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

Easy to assemble—small, compact, convenient and easy to install.

Specification:

Effect output power: 80W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 3.2A
