LASER TREE 40W Laser Engraving Module 450nm Focusable Head

$199.00

[Main performance] a.Directly engrave mirror stainless steel: no need painting black; b. Super fast engraving speed: 304 stainless steel, up to 300mm/s with 20mm focus length c. Remarkable cutting ability: cutting through 5mm thickness plywood by one pass at speed of 1mm/s with 35~38mm foucs lenght.

[Original diode with FAC] Original diode, high quality,10,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

[Easy to use] Wavelength: 450nm, Input: DC 12V 2.5A , Power adjustable: Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Adjustable laser head, easy to adjust, suitable for DIY engraving machine.

[Applicable Engraving Materials] MDF, wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

SKU: B091YZ71D2 Category:

Description


LASER TREE 40W Laser Engraving Module,450nm Focusable Laser Head for Laser Engraver/Laser Cutting Machine,Laser Engraving Tool for DIY on Wood,Paper,etc

Product Description

450nm 30W-Std 450nm 30W-Std
450nm 40W-Pro

Light Source Scheme

LD+C-Lens

LD+C-Lens

LD+FAC+C-Lens

Service Life

1,000hrs

1,000hrs

10,000hrs

Light Efficiency

About 80%

About 80%

About 97%

Focus Spot Size

0.15×0.1mm

0.15×0.1mm

0.08×0.08mm

Focus Power Density

About 260W/mm^2

About 260W/mm^2

About 780W/mm^2

Beam taper angle (fixed focus 20mm)

6°×10°

6°×10°

8°×8°

Is it possible to engrave mirror stainless steel?

No

No

Yes

Is it possible to engrave brushed stainless steel?

Yes

Yes

Yes

Maximum speed of engraving brushed stainless steel

100mm/s

100mm/s

300mm/s

Maximum thickness of cutting plywood (cutting speed 2mm/s)

3mm

3mm

5mm
450nm 30W-Std 450nm 30W-Std 450nm 40W-Pro

Carving material

Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc.

Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc.

Wood, paper, leather, bamboo, plastic, rubber, alumina, copper, mirror finish stainless steel, etc.

Cutting material

Cutting Through 2-3mm Plywood By One Pass.

Cutting Through 2-3mm Plywood By One Pass.

Cutting Through 4-5mm Plywood By One Pass.

1

2

3
Solution A Solution B OURS Solution

Solution

Solution A

Solution B

OURS Solution

Recap

NG

Yes

Yes

Coating

NG

AR coating@440-660nm >=98%

AR coating @450mm >=99.5%

Processing Technic

NG

Simple

Complicated

Protection gas

NG

Protection gas:N2

Protection gas:Special

Life Time

12h

1,000h

10,000h

11

Product Description

The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a Variety of materials.

Features:

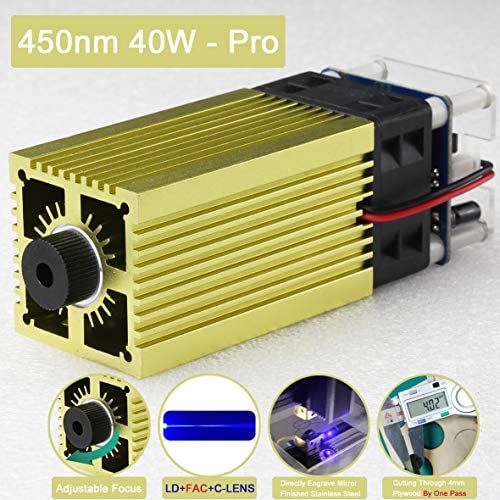

Blue Laser Module — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focus — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to Assemble — Small and compact, Carving Material —Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, copper,etc.

Specifications:

Effect Laser Power: 40W-Pro

Material: Aluminum Alloy+Plastic

Light Color: Blue-violet

Focal Form: Adjustable Focus

Input Voltage: 12V 2.5A

Interface Parameter: Support TTL signal controls power

Package List:

1 * Laser Head

11

44

44

Additional information

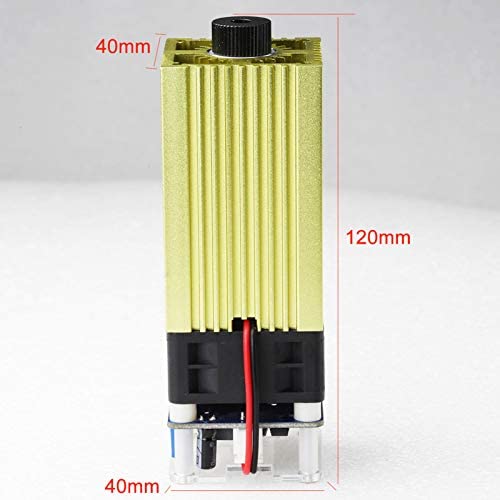

Product Dimensions

4.72 x 2.36 x 2.36 inches

ASIN

B091YZ71D2
