Description
- Brand Name: Laser Tree
- Origin: Mainland China
- Model Number: 40W 20mm Fixed Focus Laser Module
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE
- Material: Aluminum Alloy
- Wavelength: 450nm
- Fixed Focus: 20mm
- Modulation: 0/5-12V TTL/PWM
- Interface: XH2.54-3P socket
- Electric Power: 12V 1.8A(1.5A-2A)
- Laser Color: Blue
- Application: Engraving / Cutting

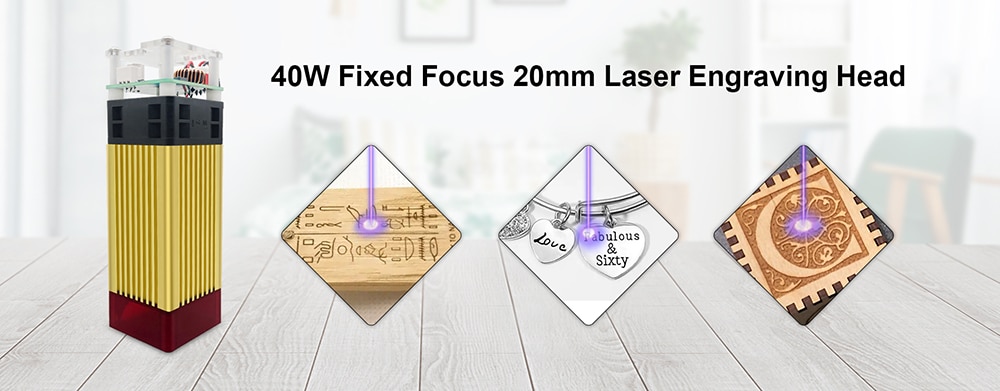

450nm 40W 20mm Fixed Focus Laser Head DIY Engraving Laser Module
By LASER TREE
Product Description
[Product Features]
1.Blue laser module, a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

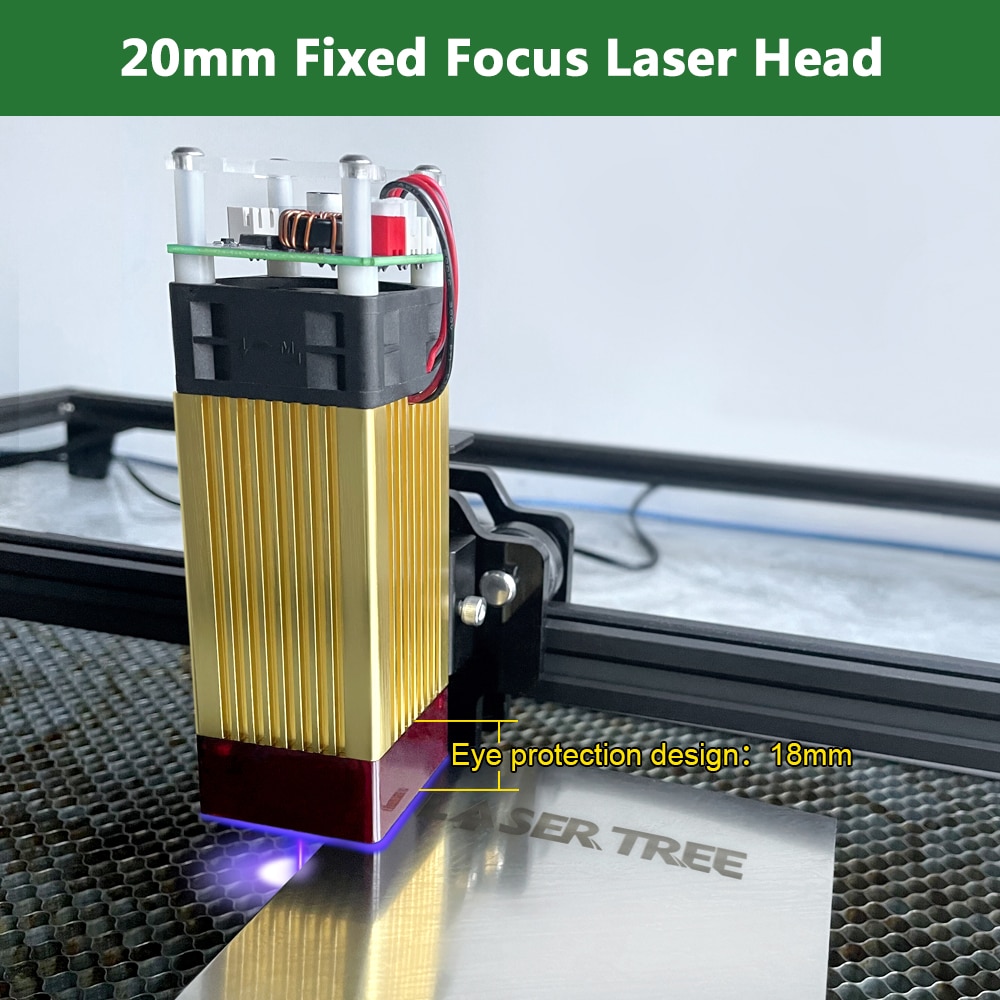

2.Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

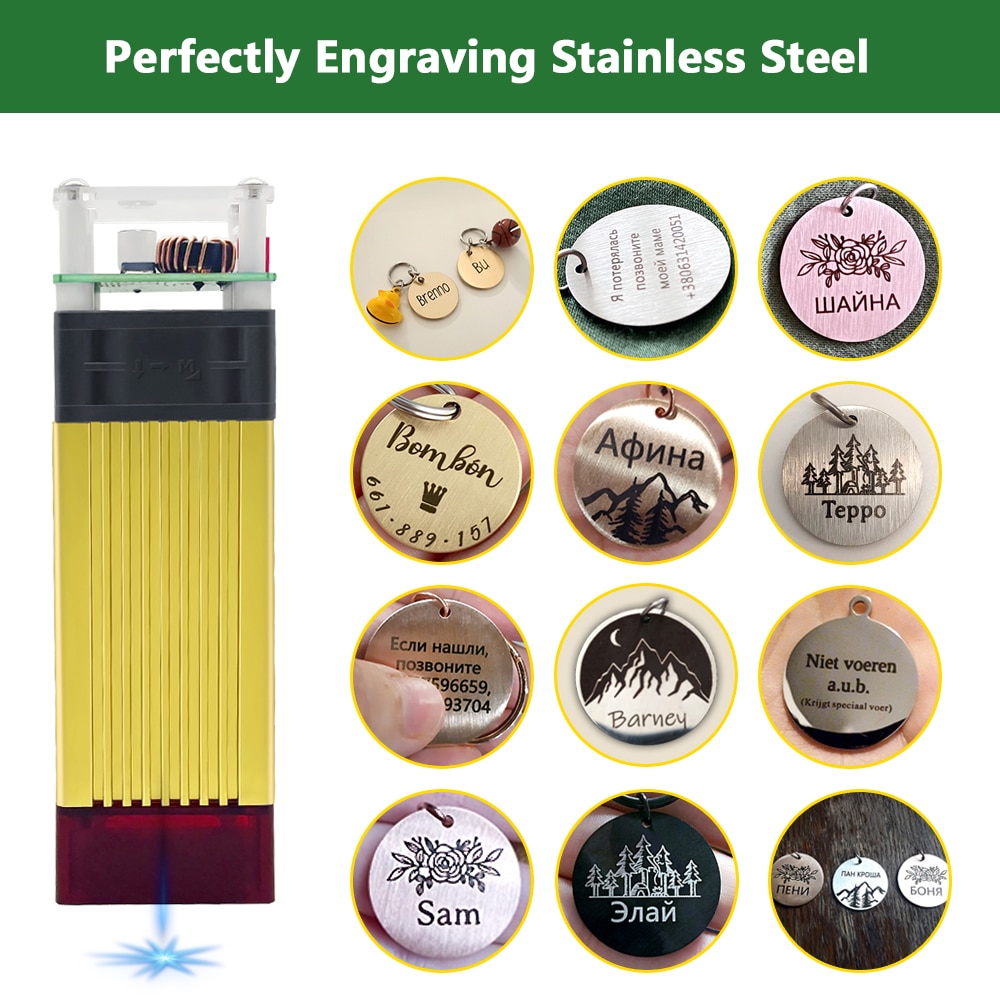

3.Directly engrave mirror stainless steel: no need painting black;
4. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;
5. Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm foucs length.
[Original diode with FAC] Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

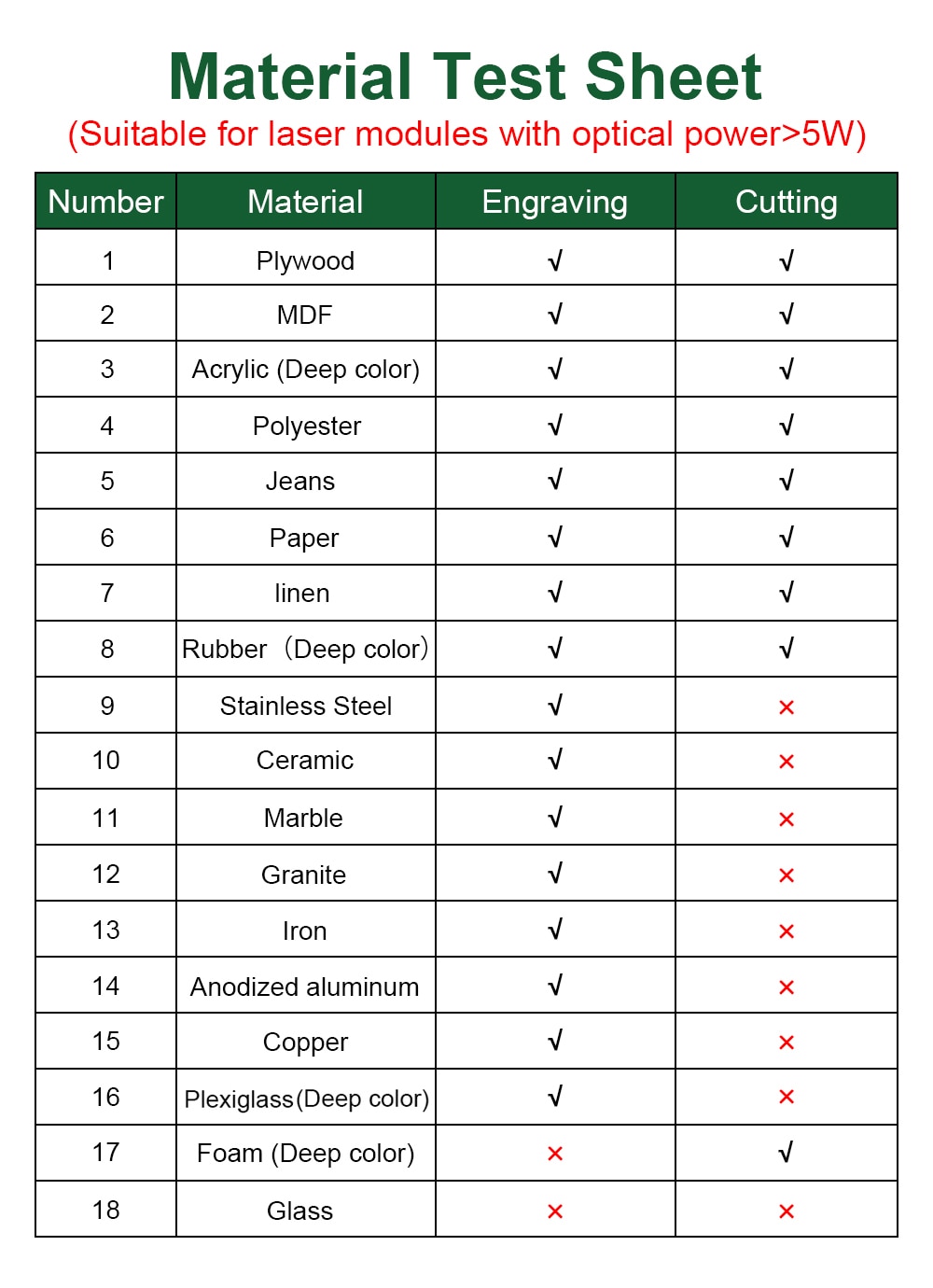

[Applicable Materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Mirror stainless steel, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Specification:
Effect output power: 40W
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V
Interface: XH2.54-3PIN socket
Interface parameters: support TTL signal control power
Item size: 12 * 4 * 4cm
Packing size: 14 * 6.2 * 6.2cm
Product weight: 300g
Packing List:
1 *Laser head
1*Eye protection cover

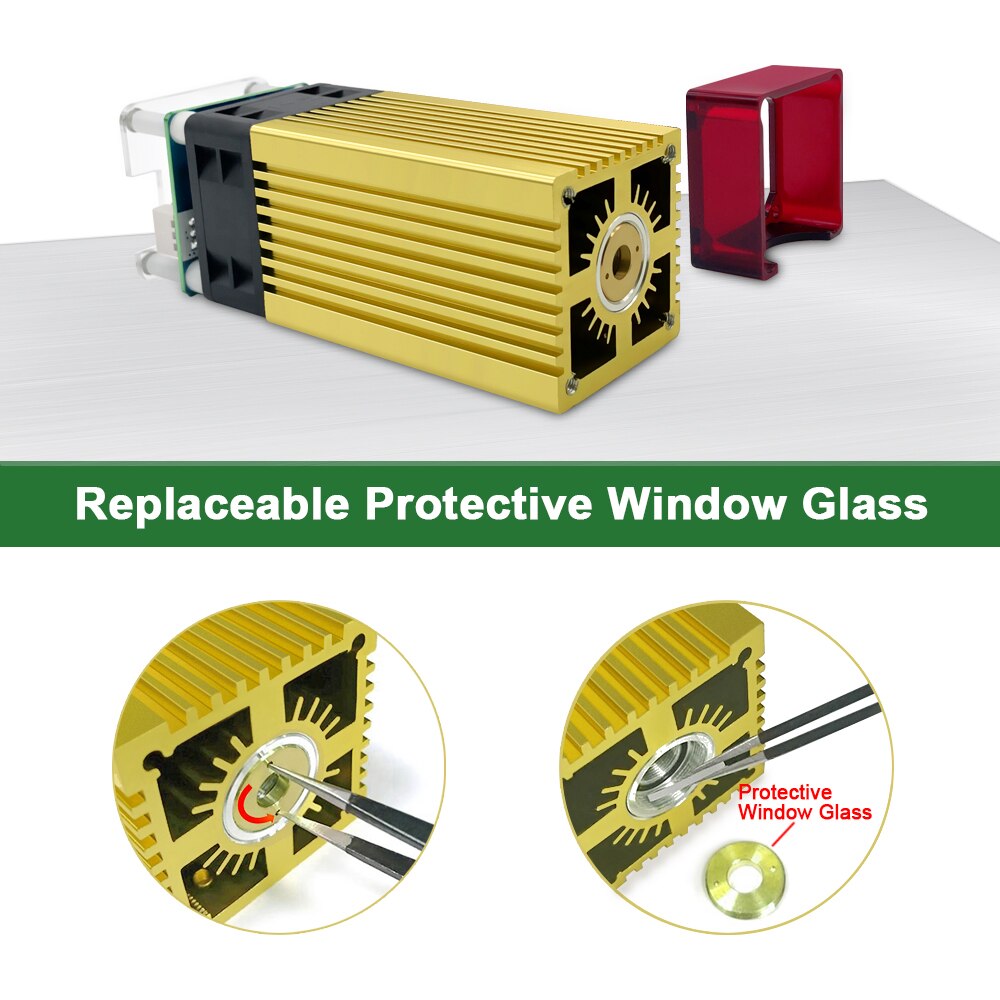

1*Spare protective window glass
1*3-Pin cable
