Description
- Brand Name: Laser Tree
- Origin: CN(Origin)
- Model Number: 450nm 30W 40W 80W Laser Module
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE
- Type: Laser Head
- Wavelength: 450nm
- Material: Aluminum alloy Plastic
- Effect Laser Power: 80W 40W 30W
- Output Optical Power: 5W
- Modulation: 0/5-12V TTL/PWM
- Interface: X2.54-3P Socket
- Working Frequency: 0-1000Hz
- Features: Adjustable focus
- Application: Engraving / Cutting
- Service: Dropping Shipping Service
30W 40W 80W Laser Head for Laser Engraver Cutter
by LASER TREE
LT-40W-A-GOLD:
Product Description
The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variety of materials.
Features:
Blue Laser Module — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving

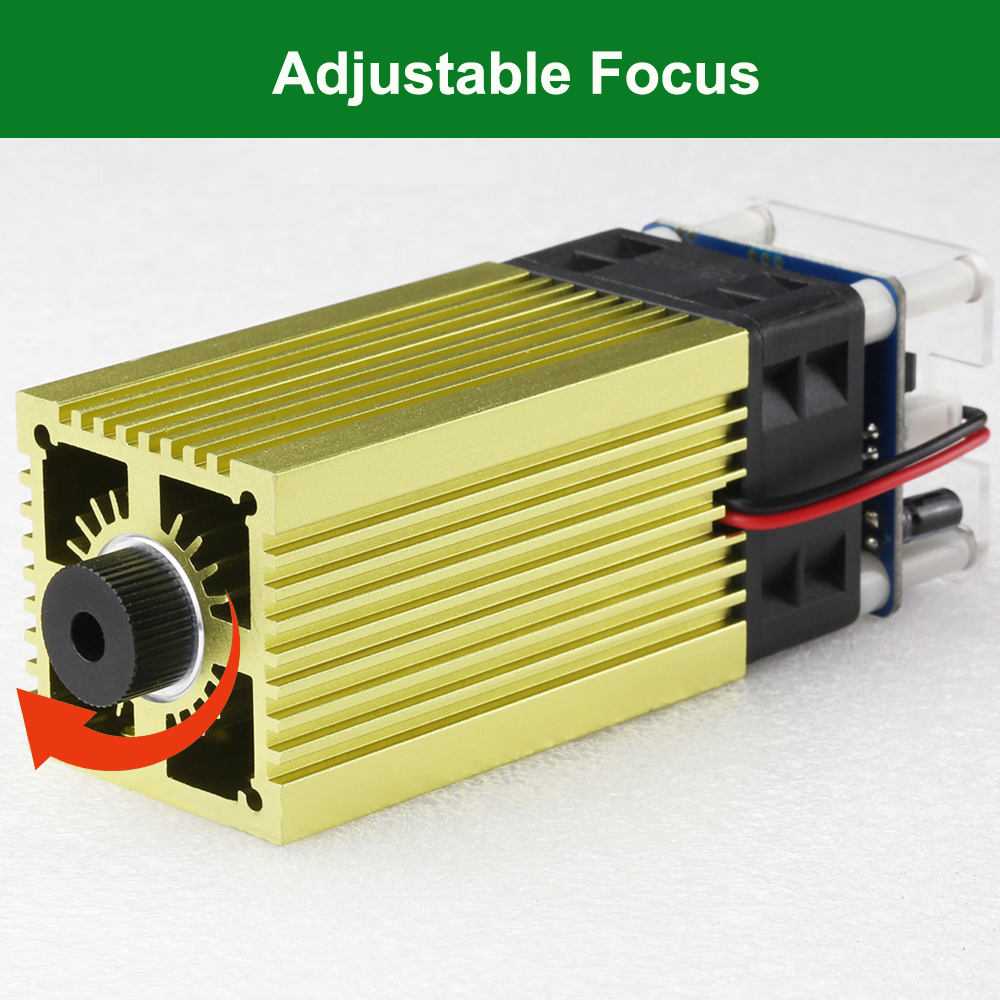

Adjustable Focus — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency
Easy to Assemble — More mounting holes design, small and compact
Widely Compatibility— 12V laser head, compatible with kinds of laser engraving machines

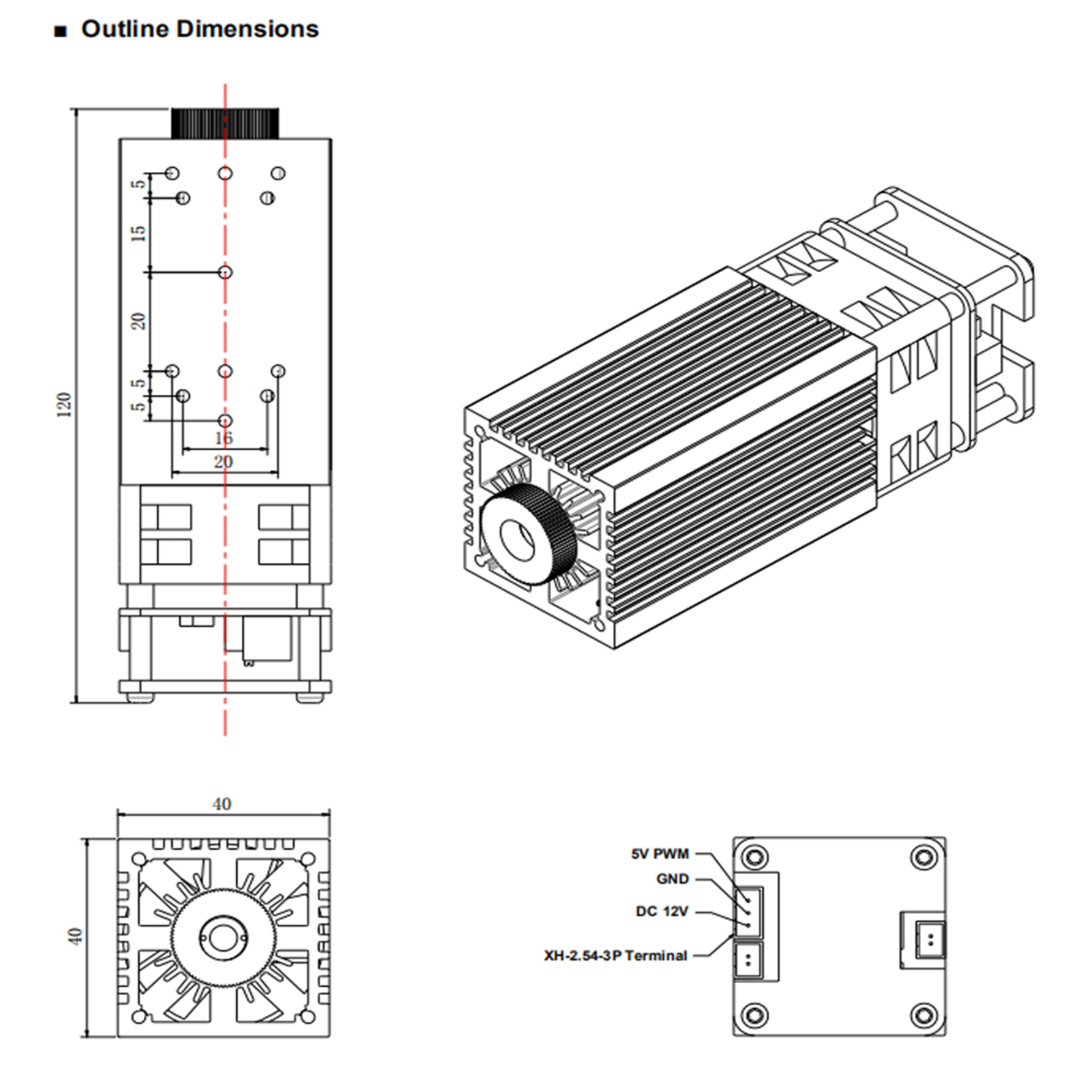

Specifications:
Effect output power: 40W
Output optical power: 5W
Material: Aluminum Alloy + Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V
Interface: X2.54-3P Socket
Interface Parameter: Support TTL signal controls power
Item Size: 12*4*4cm
Package Size: 14*6.2*6.2cm
Item Weight: 300g
Package List:
1 * Laser Head
1 * Cable
![](https://www.laserse.com/wp-content/uploads/2022/06/Se8d6f4c56f534497811f22451f58b249q.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S06c3e20e962a49308e6124b05cb483c0N.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S44080f441af5441090bd7f4e91e9ba5cz.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sda7b617408634325a2431c38318996cdA.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H038ee370fffd4667ab15294f07d0a440l.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Hf8e467a3a31f476a841472bef4c77f81s.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Scc53162d87ee4154a480e217a2a2e079C.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/H36cf4c9a74054f49b56b14449e6c569eR.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/He7a945f4aa434fb99de59ff8a82e5143c.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S6deeff96c7c04067a9e3acd287c469de3.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S0819579c1beb40a4a16c79c41c4e5526L.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sec1e98ea11a14acba1ab95943b77ab339.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S889649bea2484144adfd3598814f4980K.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Saf6c4bd2cb594f6bb7acba63bb7e719bP.jpg)
LT-30W-A-BLUE:
Product Description:
The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variety of materials.
Features:
Blue Laser Module — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving
Adjustable Focus — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency
Easy to Assemble — More mounting holes design, small and compact
Carving Material —Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, copper,etc.
Specifications:
Effect output power: 40W
Output optical power: 5W
Material: Aluminum Alloy + Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V
Interface: X2.54-3P Socket
Interface Parameter: Support TTL signal controls power
Item Size: 12*4*4cm
Package Size: 14*6.2*6.2cm
Item Weight: 300g
Package List:
1 * Laser Head
1 * 3-Pin Cable
![](https://www.laserse.com/wp-content/uploads/2022/06/Seafe1ef85e8242d29e35efc2ddd5de39y.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S639031bf979b4934a45abaf43bfa6c099.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sb61f4dea49704d50a326766d90680594a.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S78f0191284fa4f2cab75eb995073d3684.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S1b63190c69c340f49dab815f2d13e5bdk.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S5e5c6c2e7b4f470d950b335c035c6877P.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sc44ef67907ca4ab1a7ac521c6a777092J.jpg)
LT-80W:
Product Description:
The blue laser module is specially designed for CNC milling machine and DIY cutting. The wavelength is 450nm, the fixed focus is 45mm, which is an effective tool for laser cutting. They can engrave and cut various materials.
Features:
1. Dual-LDs Compression Technology— 10W strong optical power laser module
2. Two Fans Design—Good heat dissipation, suitable for long-term work
3. 45mm Fixed Focus —Suitable for three-axis engraving machine, easy to install
4. Widely Compatibility— 12V 4A laser head, compatible with kinds of laser engraving machines
Specification:
Effect output power: 80W
Output optical power: 10W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 3.2A
Interface parameters: support TTL signal control power
Interface: XH2.54-3P socket
Module size: 6 * 4 * 4cm
Packing size: 18 * 6.5 * 7cm
Product net weight: 125g
Product List:
1* Laser Module
1 * 3-Pin Cable
![](https://www.laserse.com/wp-content/uploads/2022/06/S2a04134457784387b8c14e2e27579b35Z.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S31d5957dec4e4d6986343fd8c156be8bt.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S5f4805346f2946ce8ea58bfc7797f93cf.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S391bea2594f744678321e9e28937d9b8L.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sfd88e51c2b054f6483374ef822dc2afdH.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S3841026f38804640a4b3c4febd6390b42.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S997fd04f52fb40389999f3c44ca67f0aT.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Scb62c1c94a1b4d4f9ac710e711a68e71Q.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S360735f2dd1a44c38296a73810d750a2F.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S3b01c09ca87b44f3a08f97caf39471eaE.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S4a9665556e914416a8b293d2e6a9e80fd.jpg)
LT-80W-LE-MINI:
Product Description:
The blue laser module is specially designed for CNC milling machine and DIY engraving. The wavelength is 450nm, which is an effective tool for laser engraving and cutting. They can engrave and cut various materials.
Features:
Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
Fixed focus laser head—suitable for three-axis engraving machine, easy to install.
Easy to assemble—small, compact, convenient and easy to install.
80W carving material—wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, copper, etc.
Specification:
Effect output power: 80W
Output optical power: 10W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 4A
Interface: XH2.54-3P socket
Interface parameters: support TTL signal control power
Module size: 12.5 * 4 * 4cm
Packing size: 18 * 6.5 * 7cm
Net Weight: 200g
![](https://www.laserse.com/wp-content/uploads/2022/06/S7cd8b1992fde463198e2d7852efd1f76Y.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S0426a1d5d9ed476a85d5a6c7ea261475s.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S2d5fd60eaef74b61b55a73b24b7def7bv.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sea57596776384f50aa2f7638cdbbbd4cd.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S996c4ea5ad3a4ea0a41a3631ad343a16t.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S7de73492443d420481cef12c6c62ed086.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S6f13228dee2141a79258908e3320b0eeQ.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sf9f5e3e3e2564e3e98b5cc3cff02bfc6V.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/Sa52f48a9595041a69074c6c689b043c6v.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S444bab978d47467b99e250dac82b3f12W.jpg)
![](https://www.laserse.com/wp-content/uploads/2022/06/S6e3346a9795d400c99eb546674bca093I.jpg)
LT-80W-AA:
Product Description
Blue laser module with air assist, high speed, high stability, excellent cutting effect, bright blue light, easy positioning when engraving.
Features:
1. With Air-assist: with air nozzle to get clean-cut edges, and improve cutting performance
2. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s
3. Remarkable cutting ability: Cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s
4. Fixed focus laser head: Suitable for three-axis engraving machine, easy to install
5. Original diode: Original diode, high quality, 20,000 hours life time
6.Strong compatibility: Suitable for various types of laser cutting machines and engraving machines
Two Forms of LT-80W-AA:
Form 1: Equipped with specially designed air-assisted nozzles for cutting
Form 2: Equipped with a protective cover that can effectively filter blue light, suitable for engraving
Specification:
Effect output power: 80W
Output optical power: 10W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 3.2A / 24V 1.7A
Input port: XH2.54-3P socket
Interface parameters: support TTL signal control power
Item size: 15 * 4 * 4cm
Packing size: 20 * 12 * 8cm
Laser module net weight: 250g
