Description
LASER TREE 20W Optical Power Laser Module with Air Assist 455nm Blue Light TTL Laser Head for Laser Engraving Wood Working Tools
- Certification: CE
- Model Number: LT-4LDS-V1
- Material: Aluminum alloy
- Output Optical Power: 20W (17~21W)
- Electric Power: 24V 4A
- Wavelength: 455nm
- Air Assistance: Built-in
- Focus Length: 20mm
- Power Adjustable: TTL/PWM/Analog Modulation
- Interface: 2EDG-3.81
- Cable: 3PIN 80CM
- Fan Speed: 10000rpm
- Module Size: 56*56*132.5mm
- Function: Engraving/Cutting
- Operating Temperature: 0~60℃
- Module Net Weight: 460g
- SKU: LT-4LDS-V1
20W Optical Power Laser Module with Air Assist
By LASER TREE
Achieve Creative Freedom

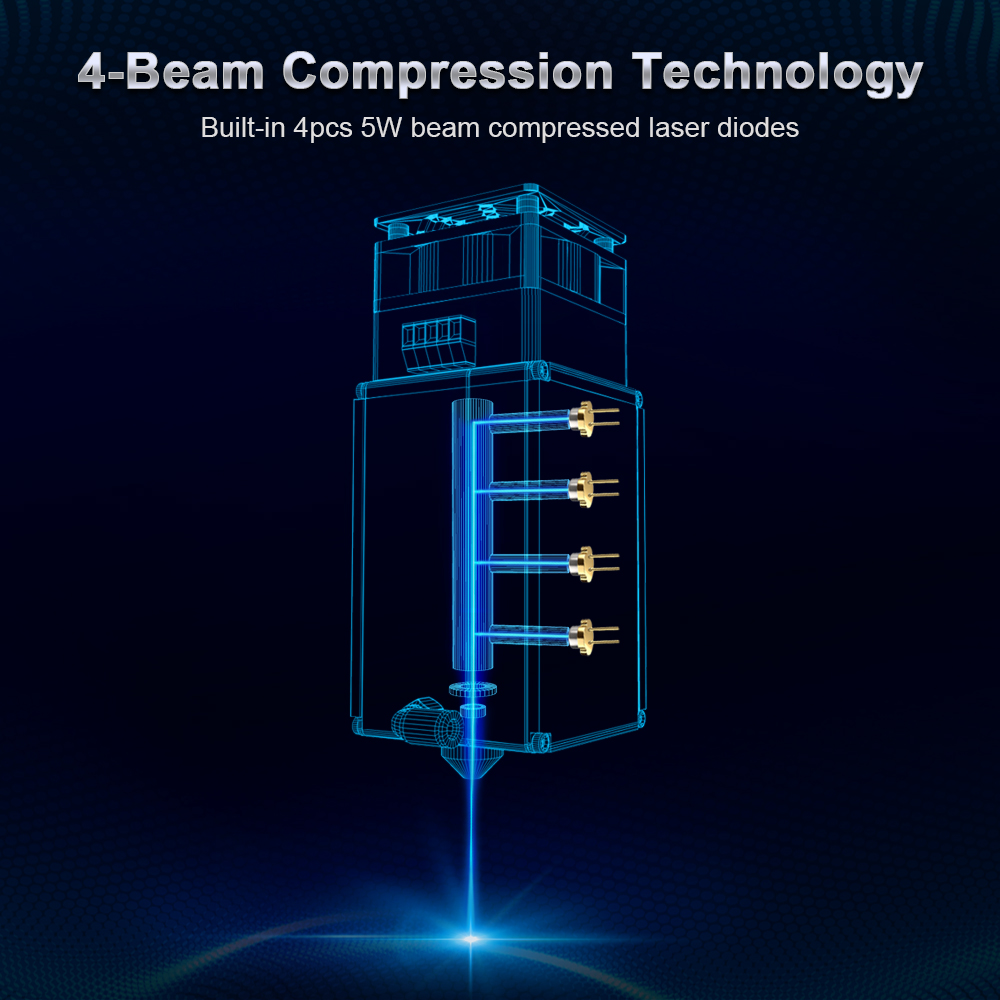

1. 4-Beam compression technology, 20W ultra-strong optical power laser module

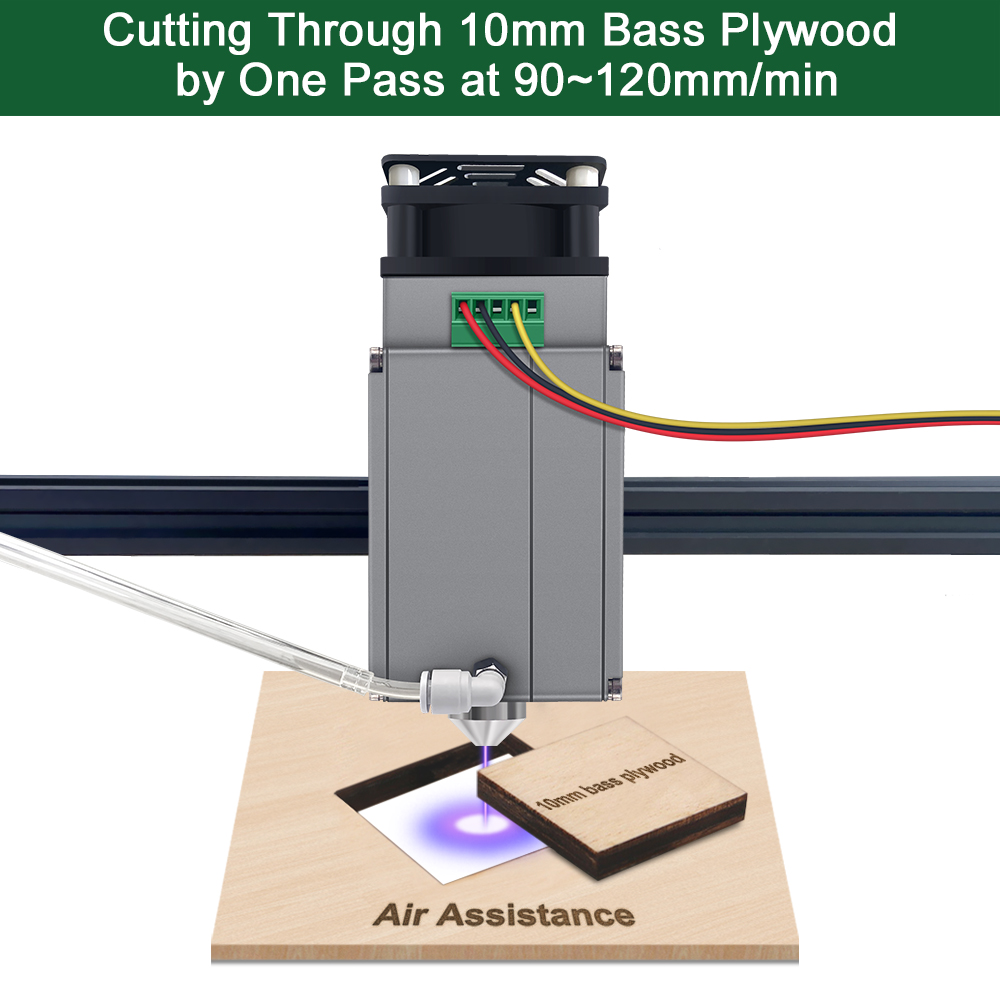

2. With air nozzle to get clean-cut edges, improve cutting performance

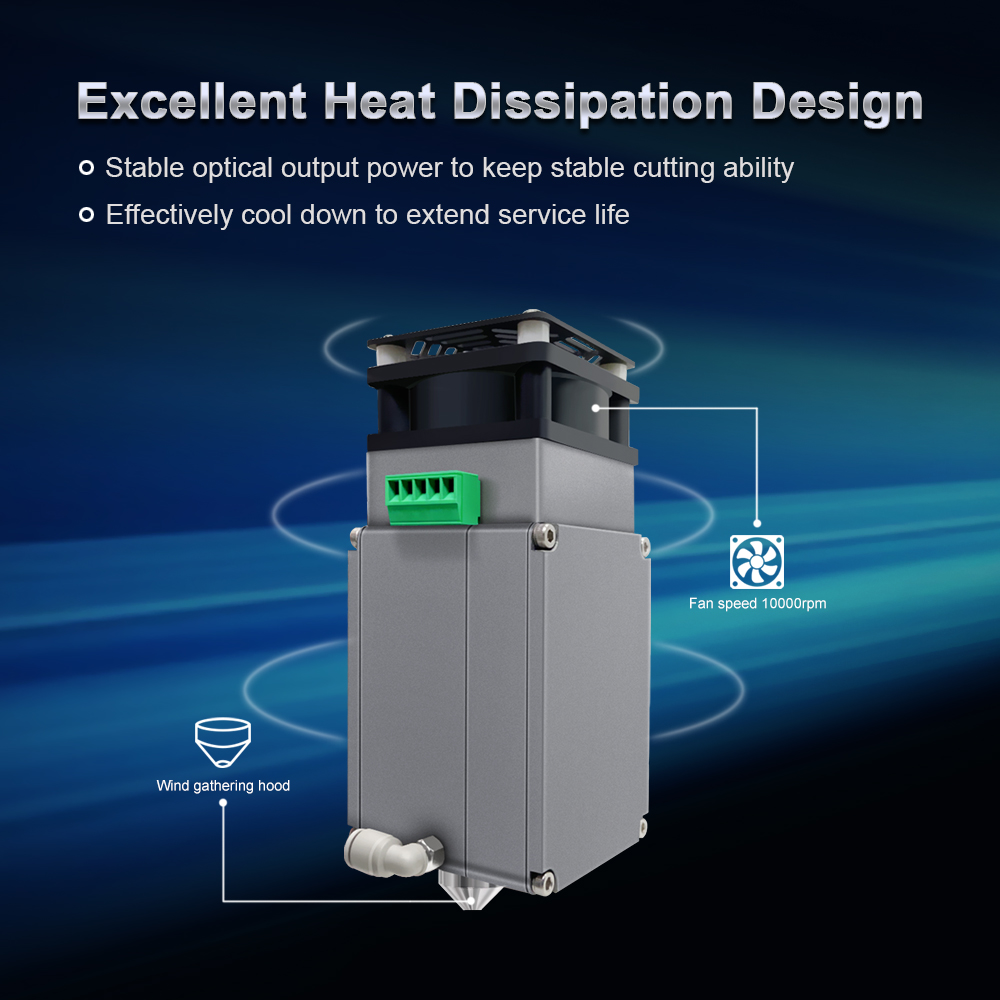

3. Excellent heat dissipation design, keep stable cutting ability and extend service life

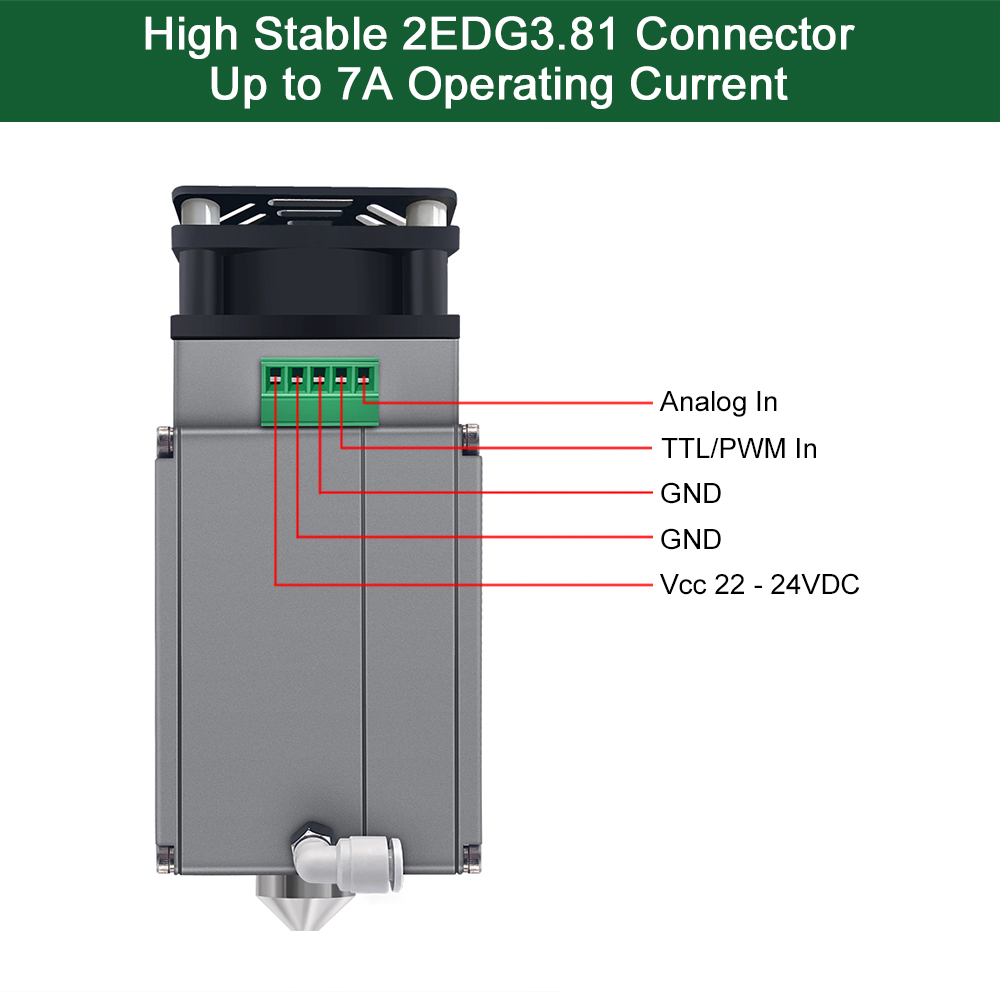

4. High stable 2EDG3.81 connector, up to 7A operating current
5. Only 300~400mw power decrease with 100% power output in 30mins
6. Support digital（TTL/PWM）and analog modulation
