LASER TREE 20W 40W Laser Head 80W Laser Module with Air Assist 450nm Blue Light TTL Smarter Tool for Laser Engraver Wood Cutting

LASER TREE 20W 40W Laser Head 80W Laser Module with Air Assist 450nm Blue Light TTL Smarter Tool for Laser Engraver Wood Cutting

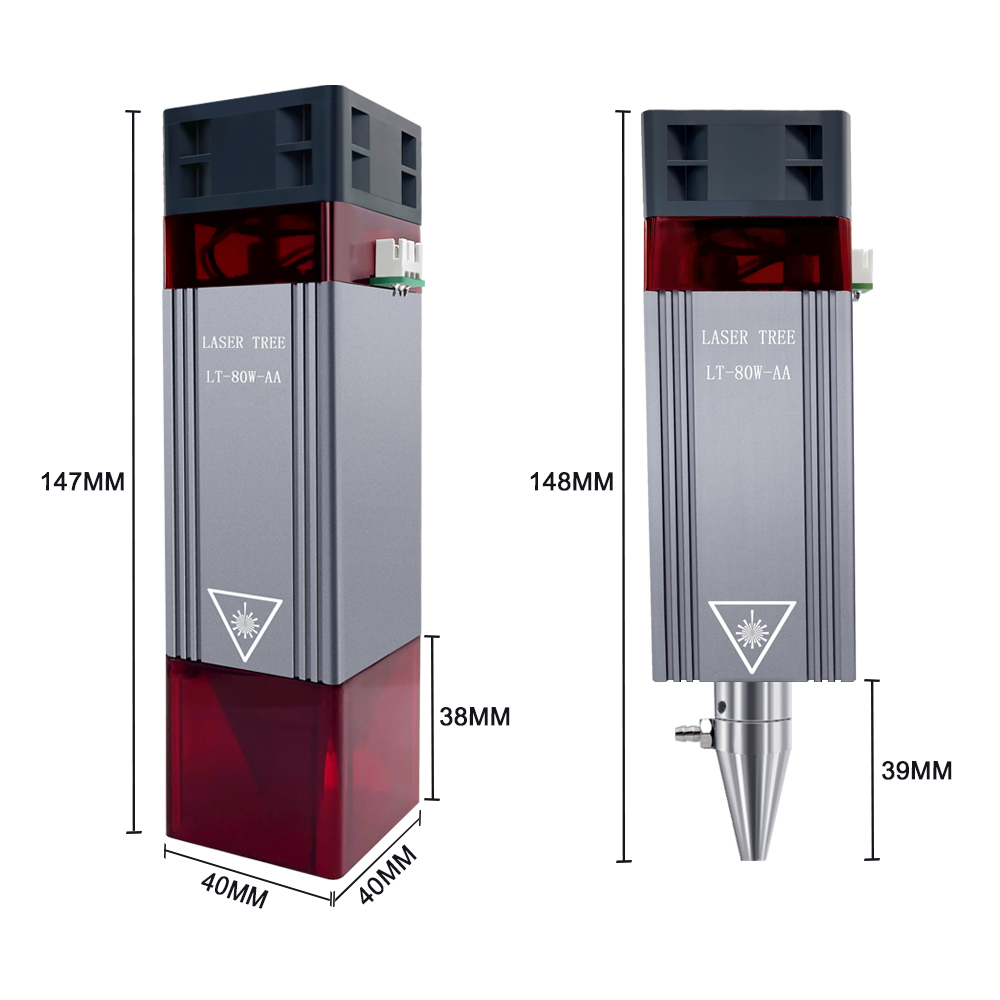

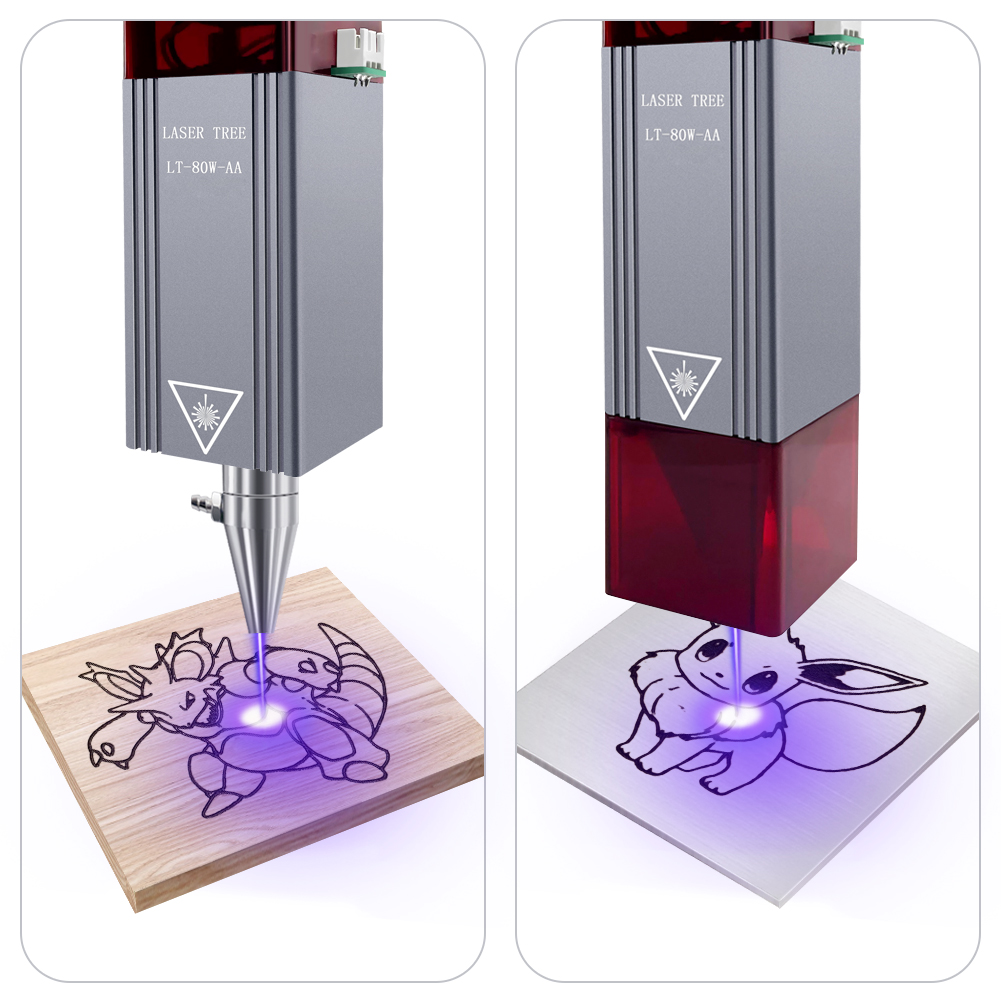

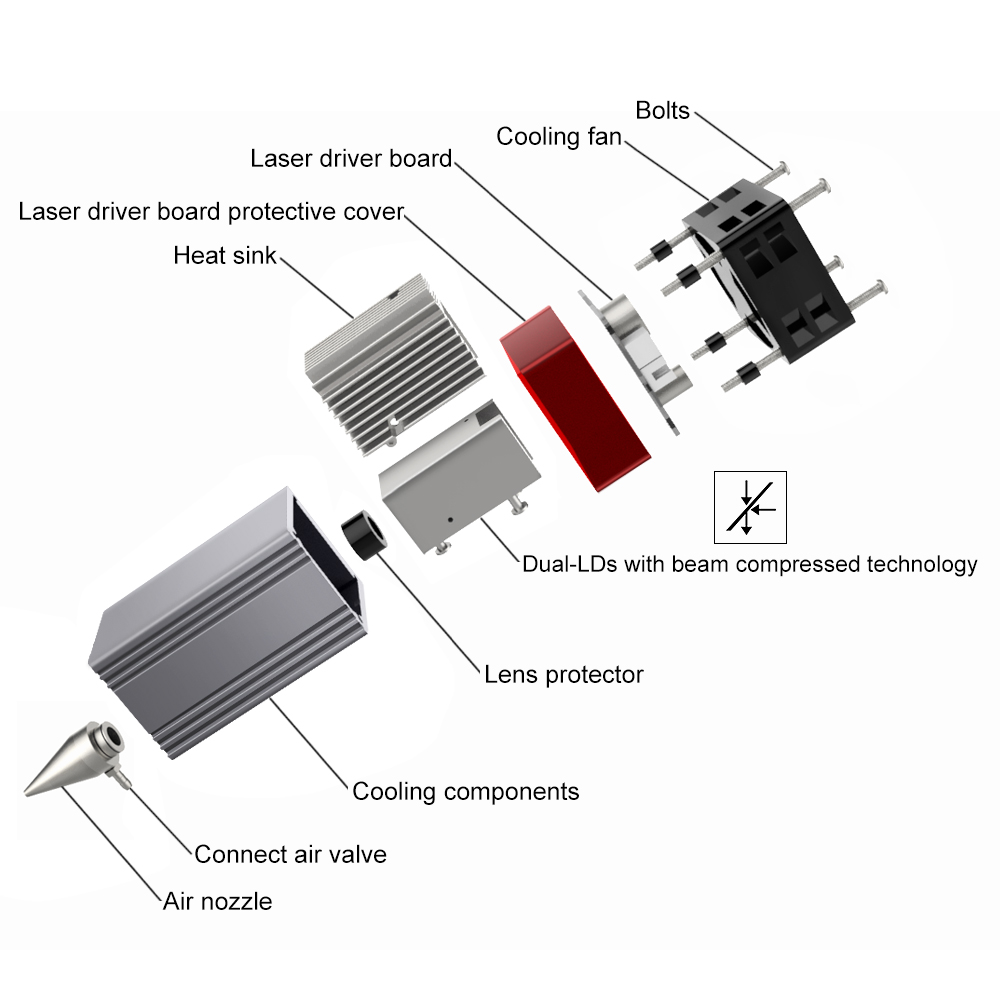

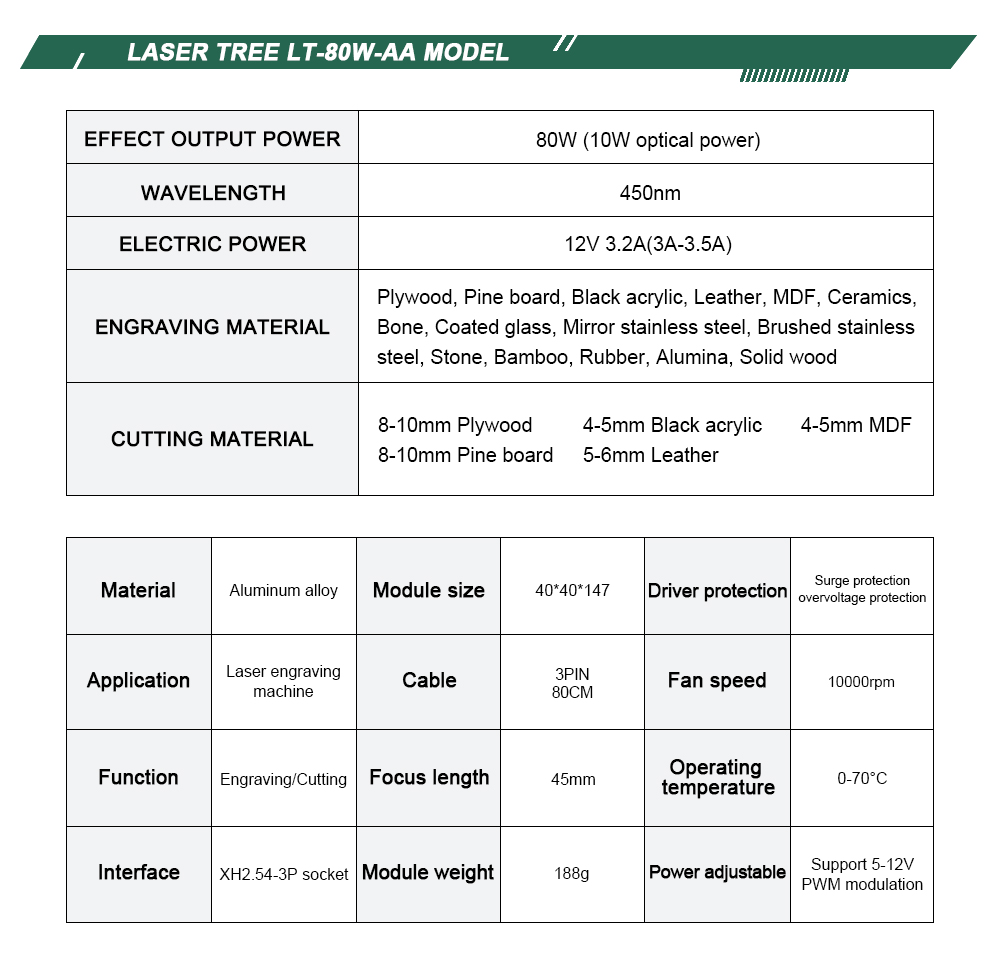

Two Ways to use LT-80W-AA:

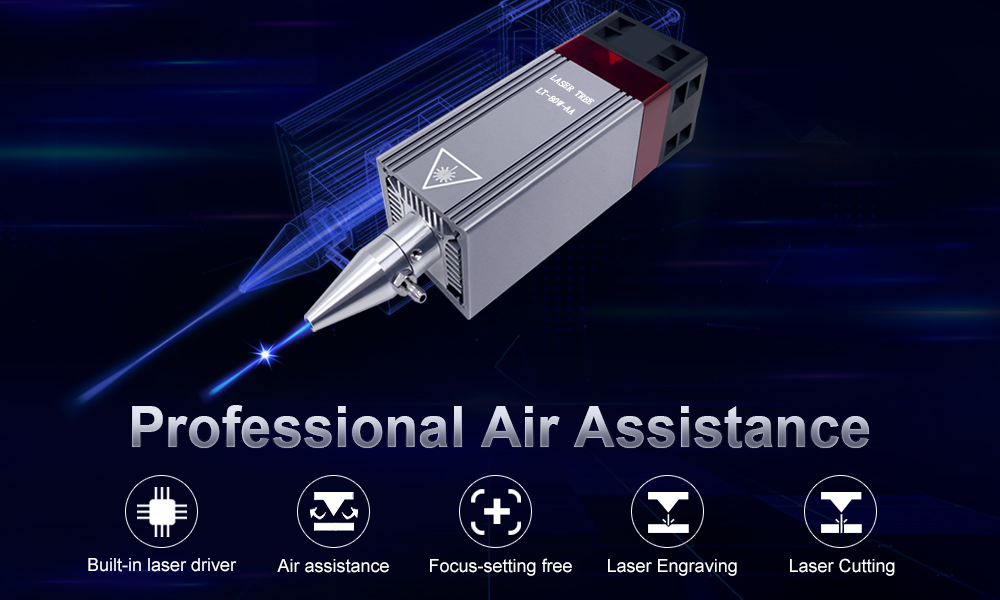

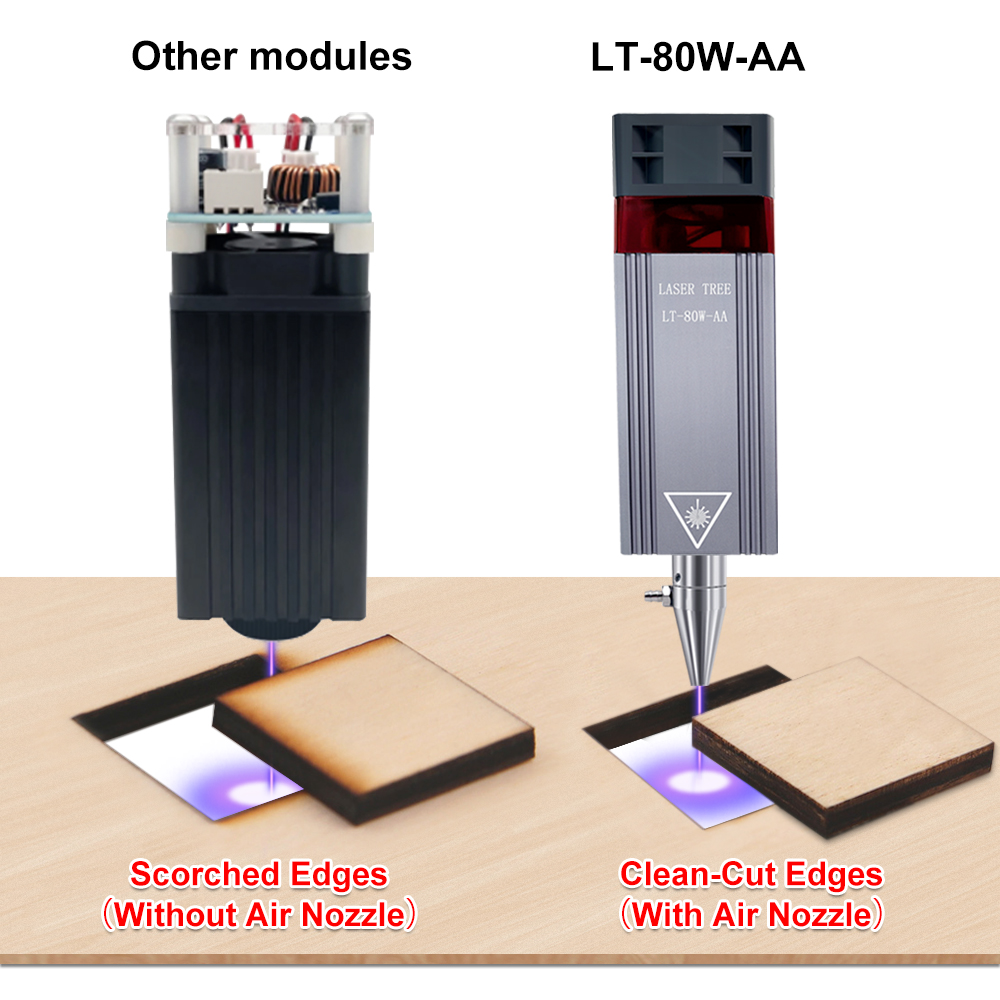

Way1: with the air asssit nozzleThe laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.





Way2：with the laser protective cover When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.



LT-40W-A-Gold



【 40W Cutting Engraving Module】

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length

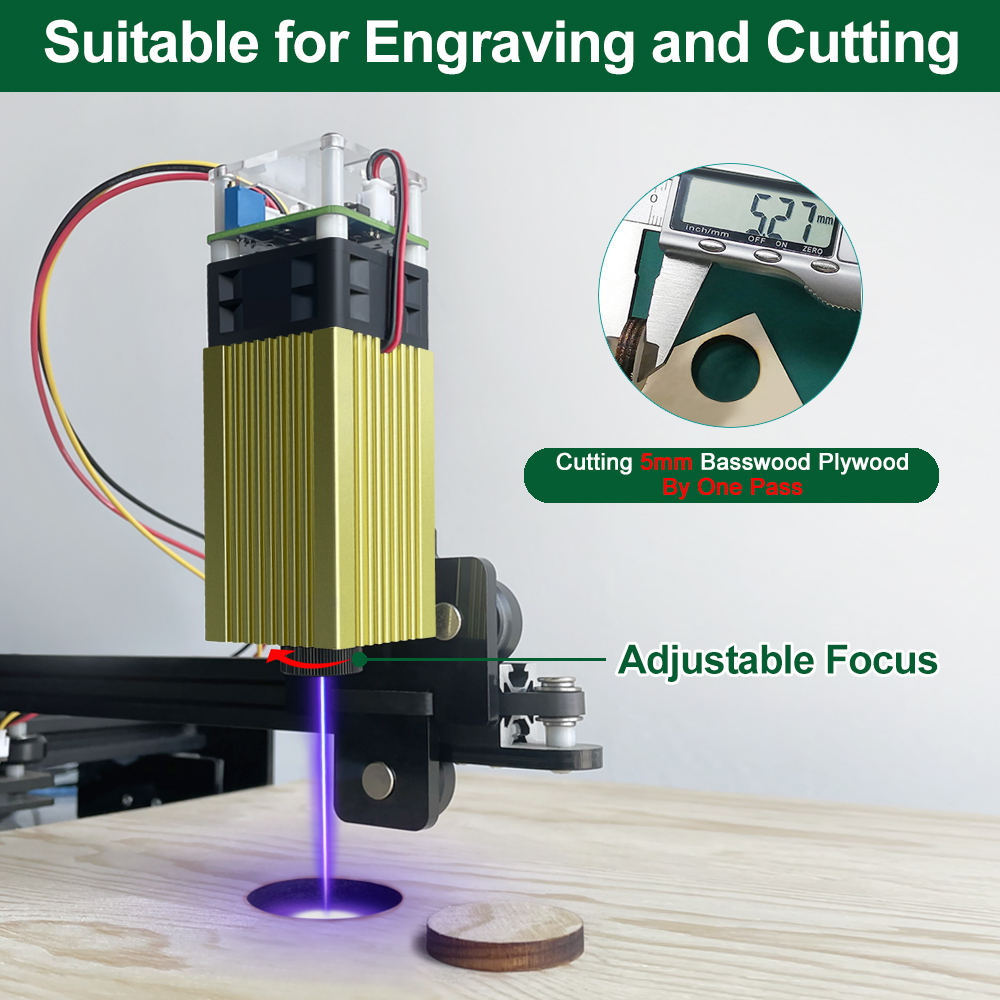

c. Remarkable cutting ability: cutting through 5mm thickness plywood by one pass at speed of 1mm/s with 35~38mm foucs lenght.



【Original Diode with FAC】

Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.



【Easy to Use】

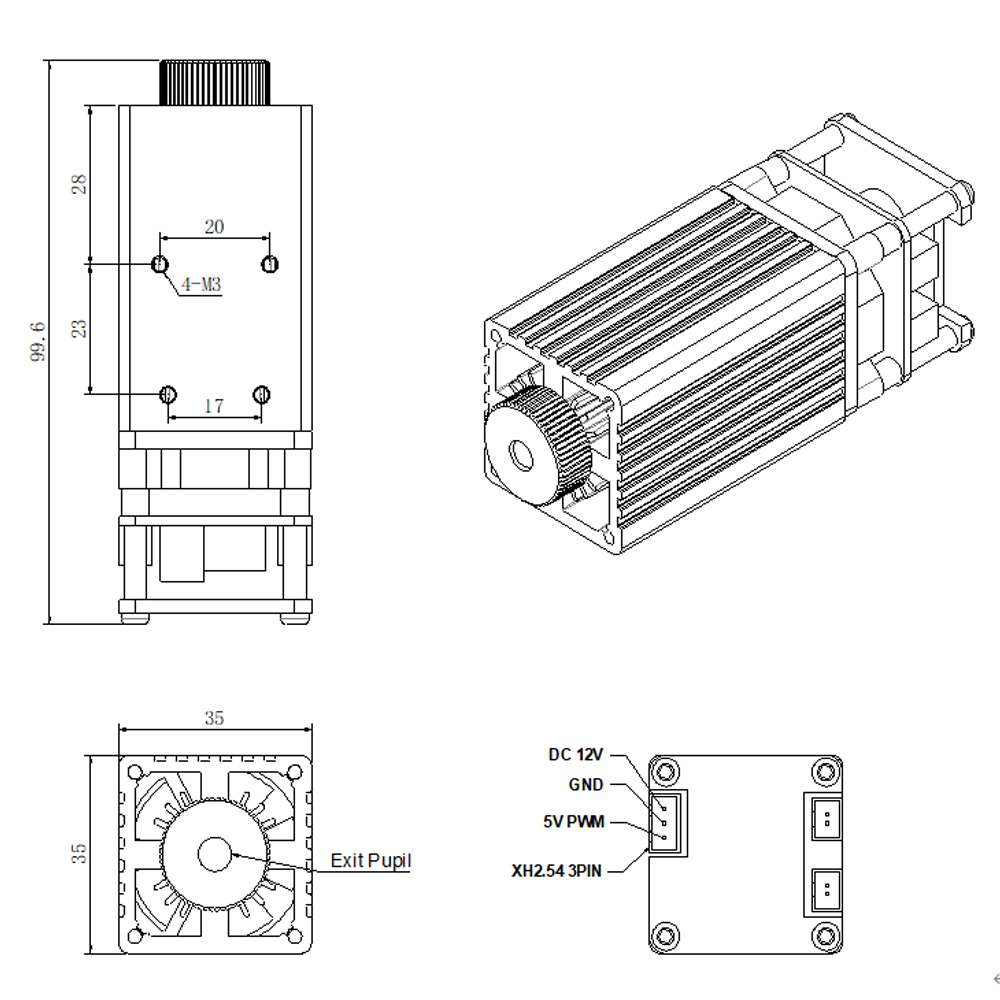

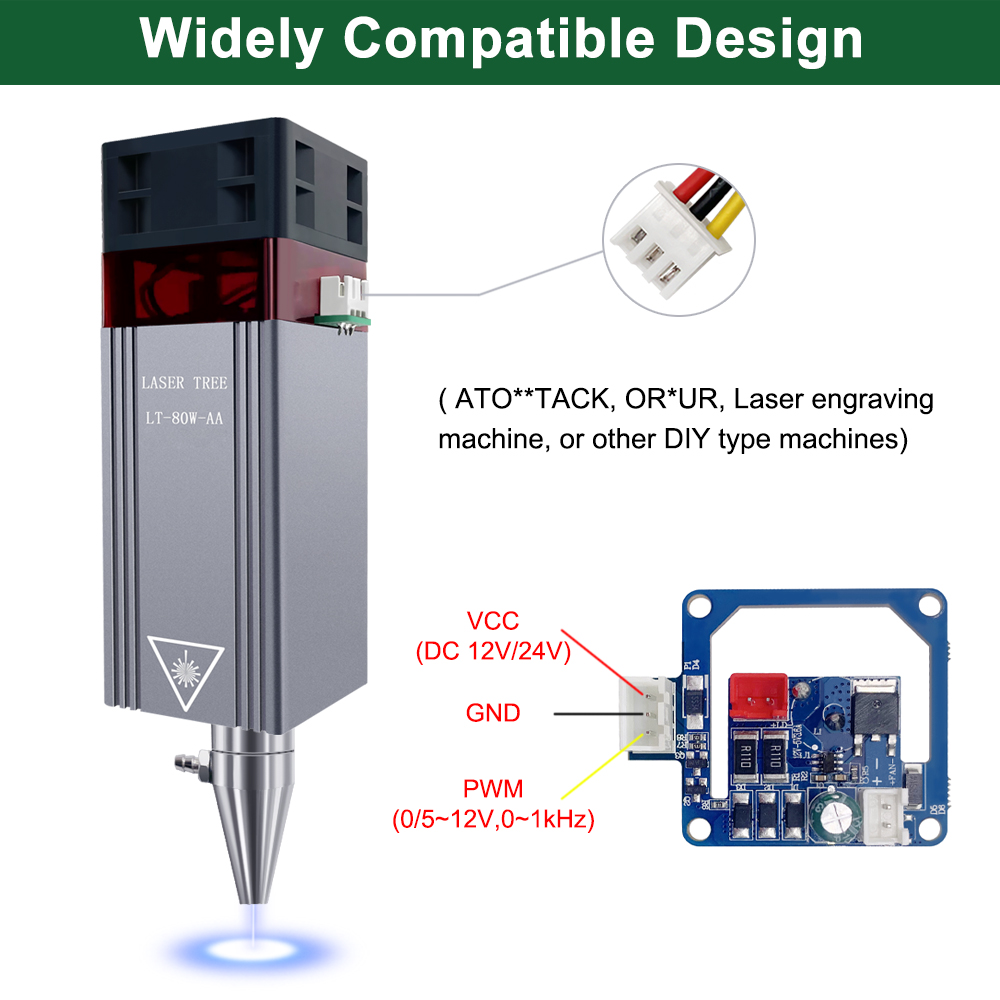

Wavelength: 450nm; Input: DC 12V 1.8A(1.5A-2A); Power adjustable: Support 5V PWM modulation; Input port: XH2.54-3P socket; control line installation method: Pluggable, Adjustable laser head, easy to adjust, connection is convenient; suitable for DIY engraving machine. And excellent compatibility with most other brands engraver machine, CNC router and 3D printers machine.



【Widely Material Use】

A professional engraving tools,Engraving materials: MDF,rubber, wood, paper, plastic,plywood, PCB board, aluminum, stainless steel, ceramic, stone, etc. Cutting material: wood, acrylic, bamboo,MDF etc. Give you more creative works to cutting and engraving on DIY dog tags, labels, greeting cards, mini-models, engraving children drawings etc. As a meaningful gift for family, friends (⚡Unable to engrave with blue/purple/white/transparent material, aluminum without oxide layer)

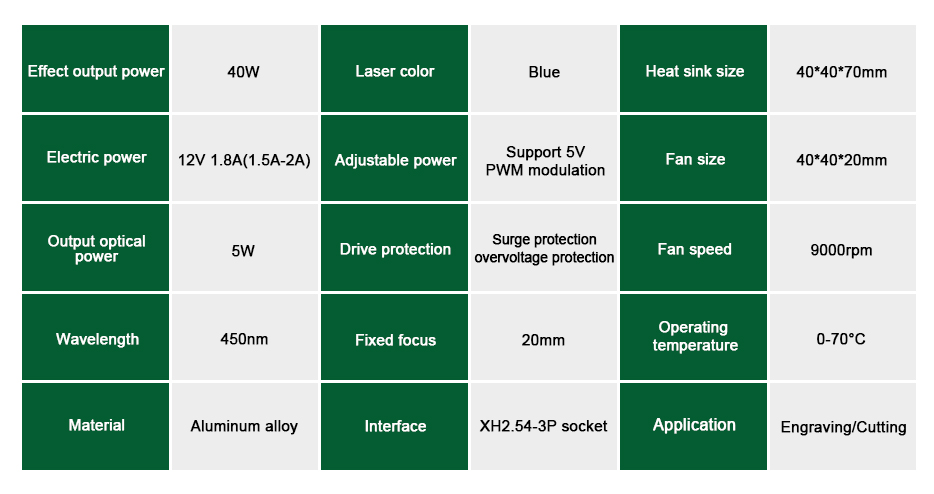

Specifications:

Effect Laser Power: LT-40W-A-Gold(Optical power: 5W)
Material: Aluminum Alloy+Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 2A
Interface Parameter: Support TTL signal controls power
Item Size: 12*4*4cm
Package Size: 14*6.2*6.2cm
Item Weight: 300g

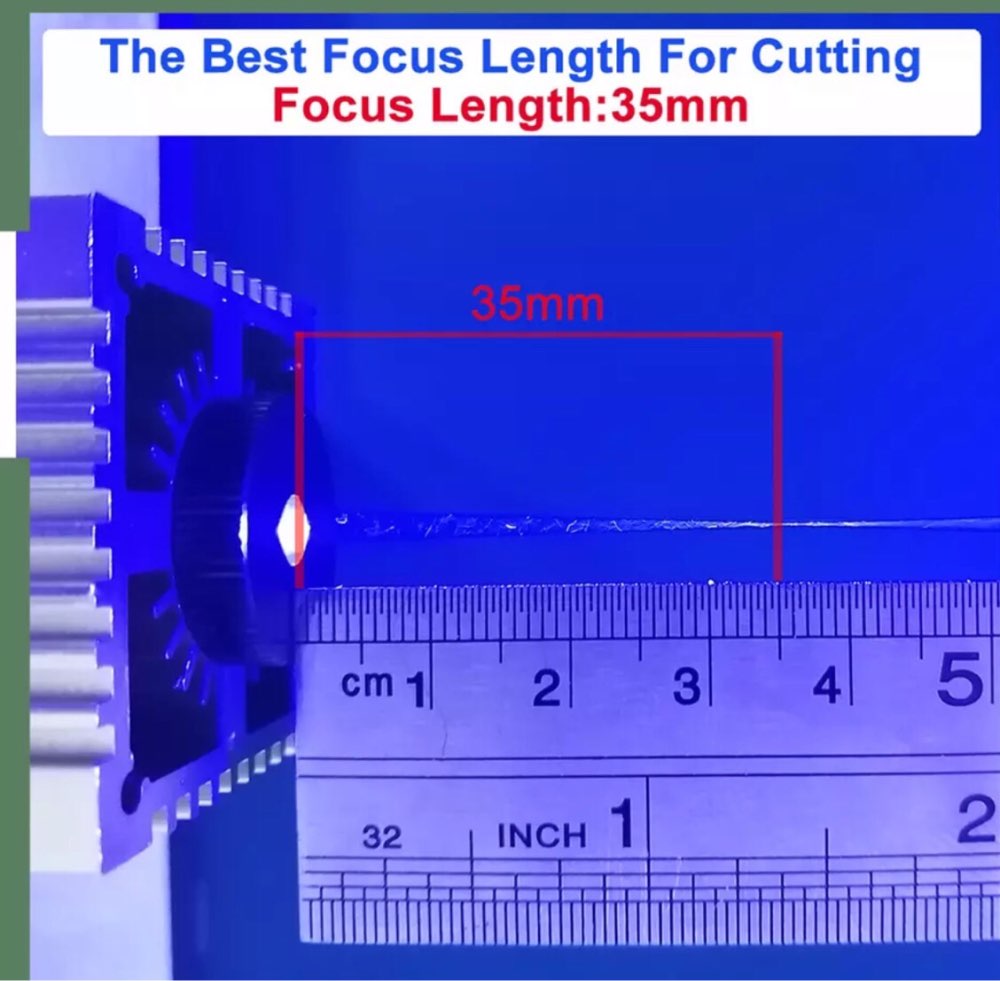

The best focus length for cutting

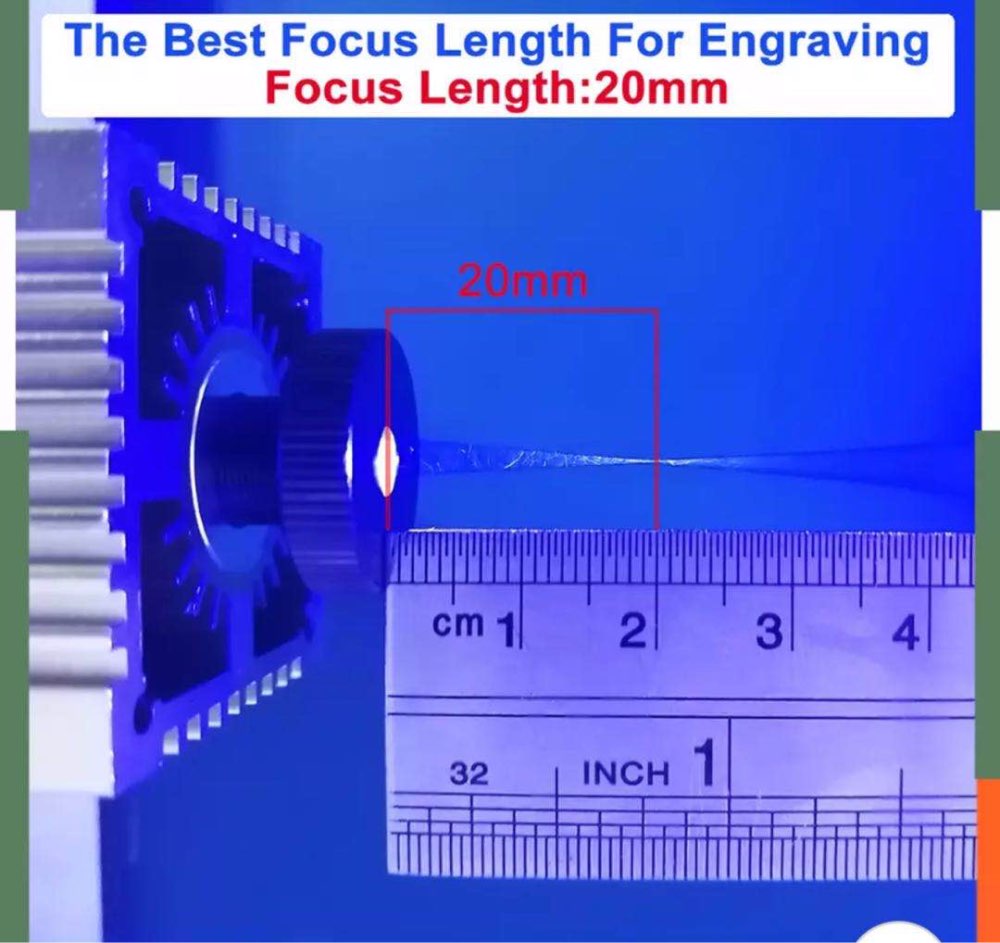

The best focus length for engraving

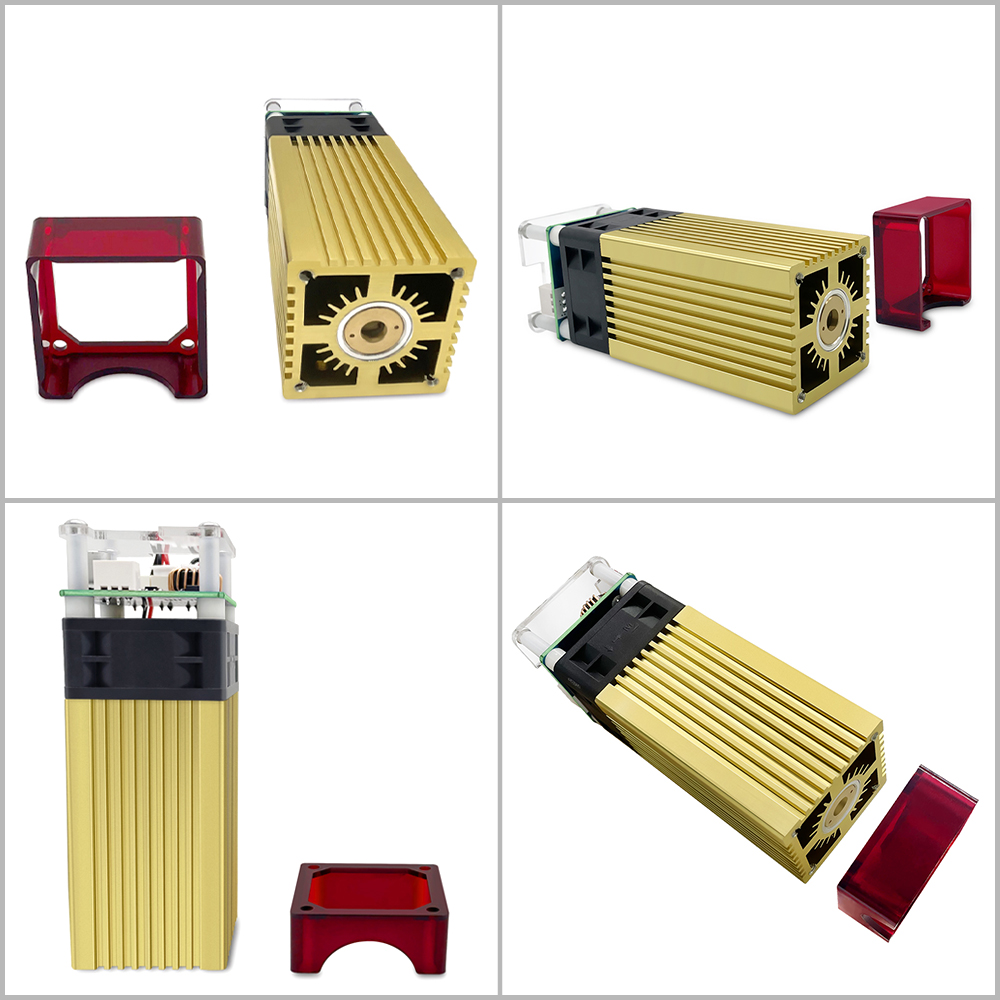

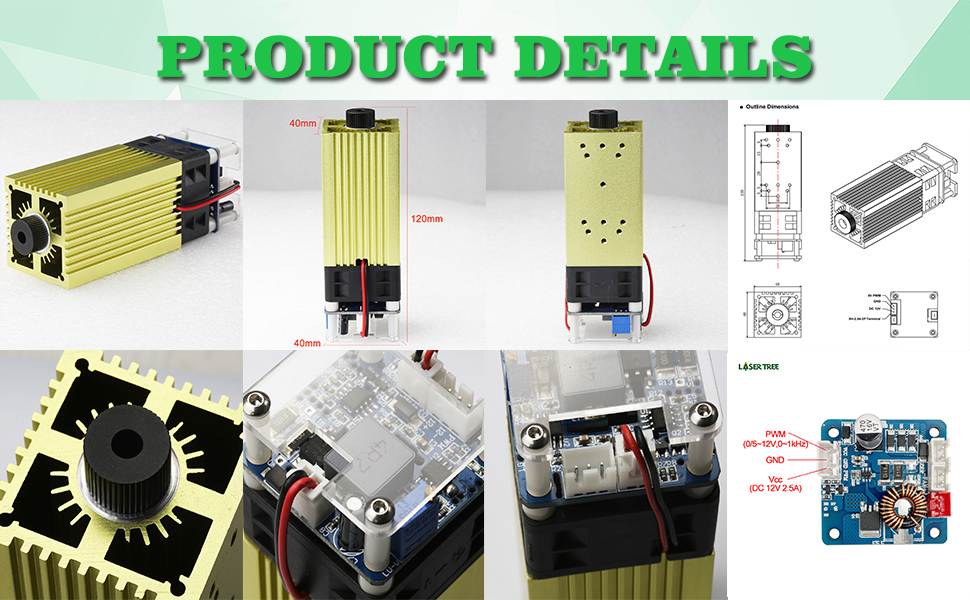

LT-40W-F20-Gold

[Main performance]

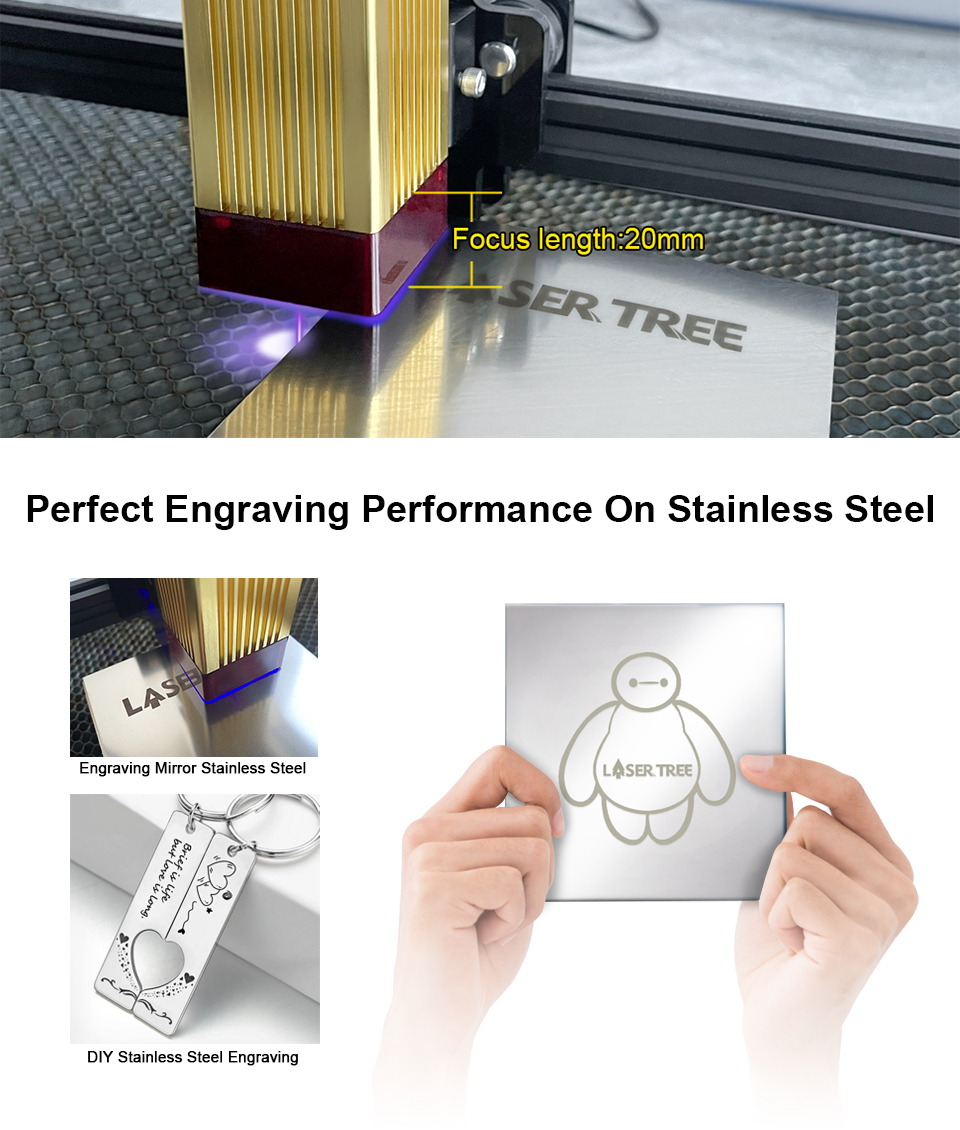

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;

c. Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm foucs length.

[Original diode with FAC]

Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

[Easy to use]

Wavelength: 450nm, Input: DC 12V 2.5A , Power adjustable: Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Adjustable laser head, easy to adjust, suitable for DIY engraving machine.

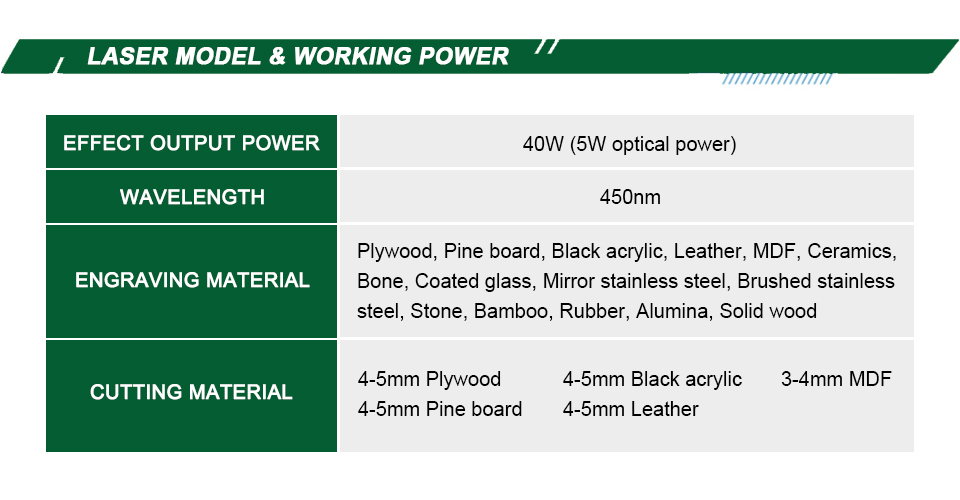

[Applicable materials]

 Ceramics,Bone,MDF,Coated glass,Black acrylic,Mirror stainless steel,Plywood,Brushed stainless steel,Stone,Bamboo,Leather,Rubber,Alumina,Solid wood, etc.

[Precautions]

Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.



Feature:

Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when engraving.

Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

Easy to assemble—small, compact, convenient and easy to install.

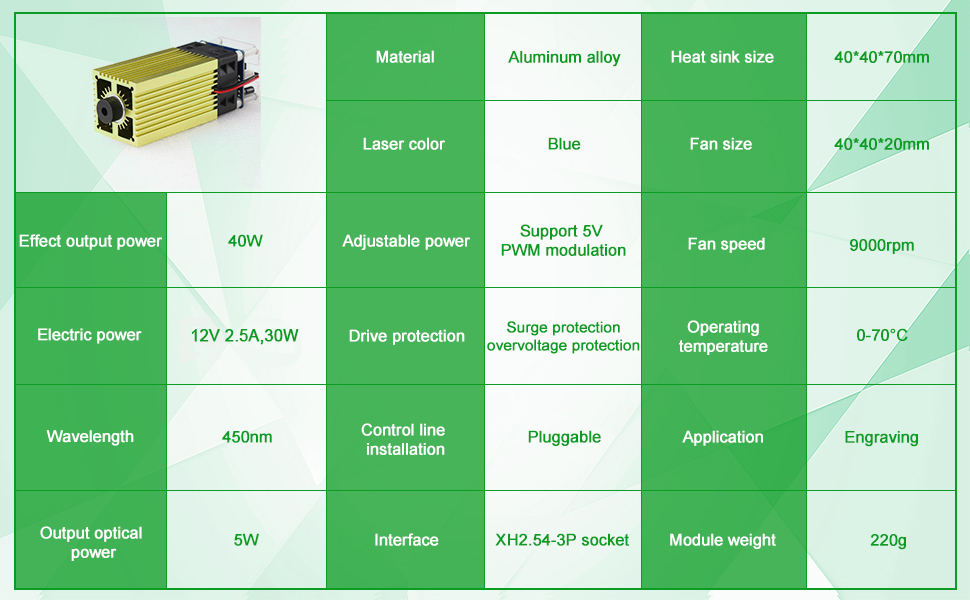

Specification:



Effect output power: 40W(Optical power: 5W)

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 2A

Interface parameters: support TTL signal control power

Item size: 12 * 4 * 4cm

Packing size: 14 * 6.2 * 6.2cm

Product weight: 300g

Packing list:

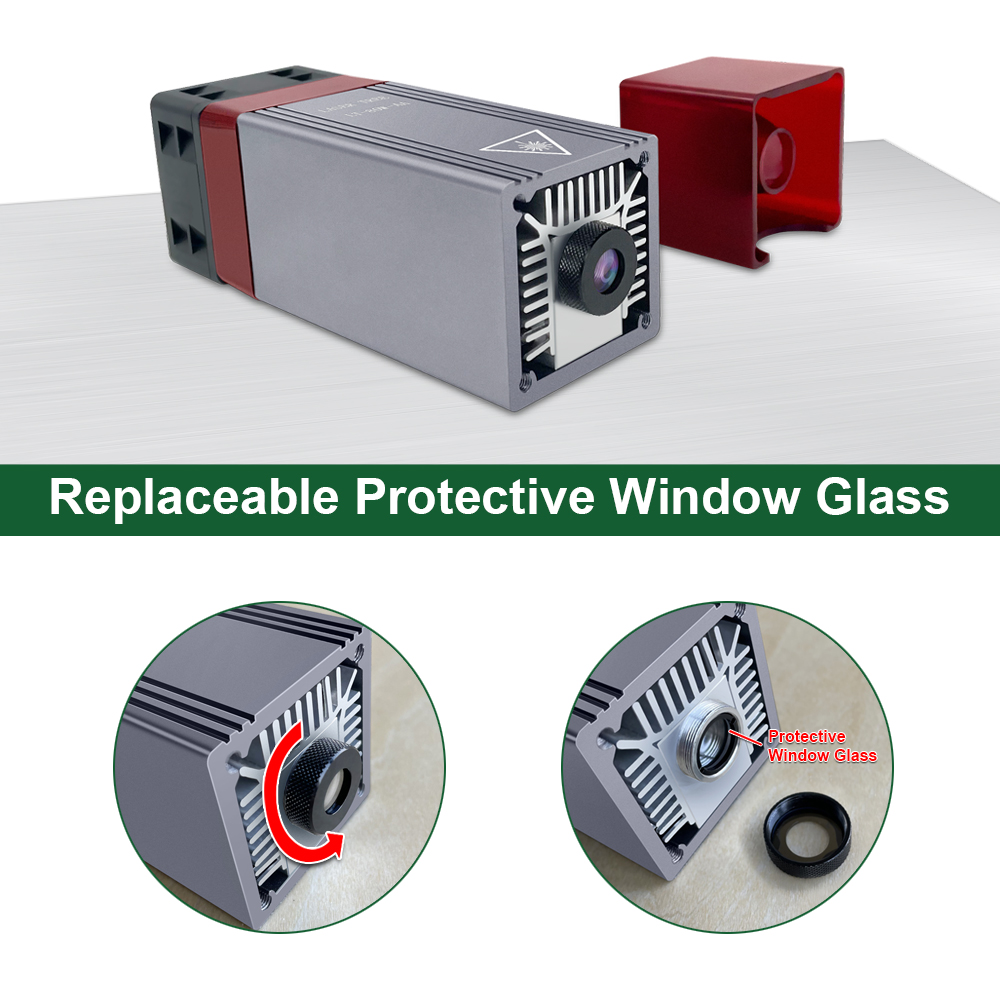

1 *Laser head   1*Eye protection design  1*Spare protective window glass  1*3 Pin input cable

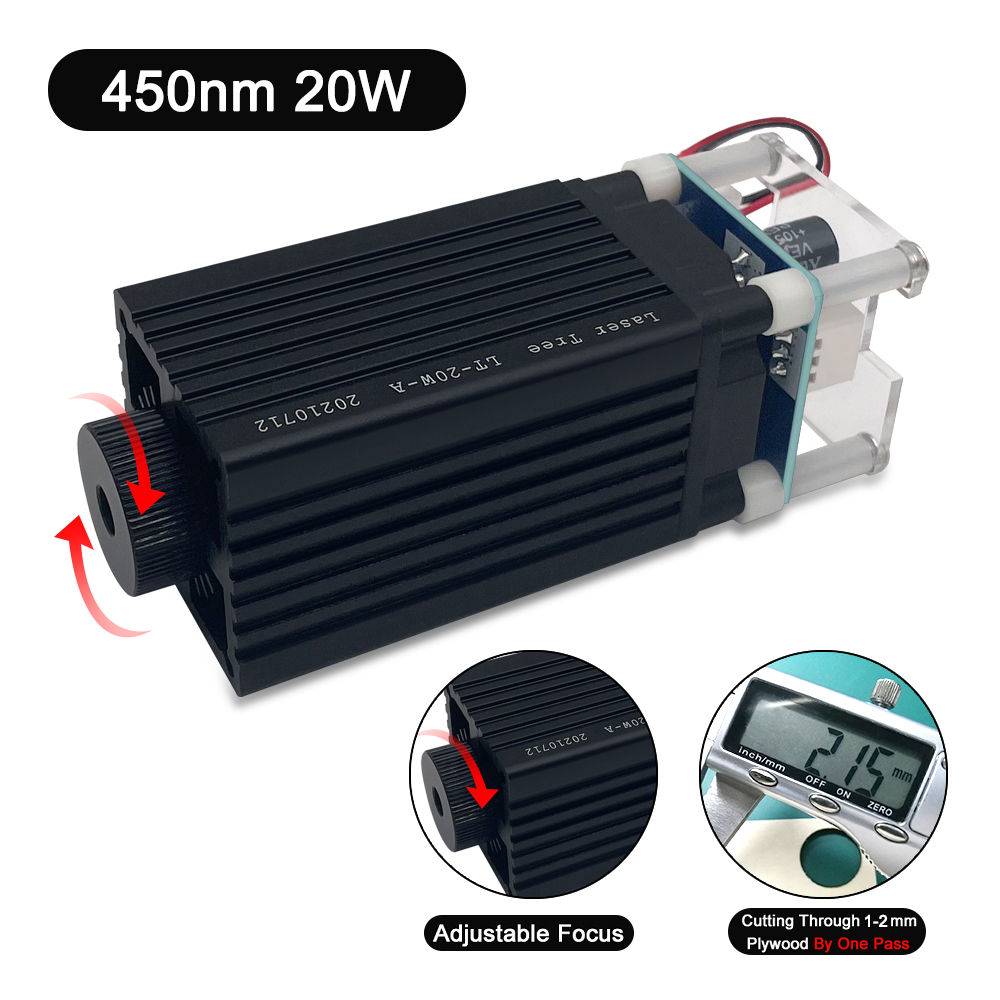

LT-20W-A



Features:



Blue Laser Modual — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focuse — Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to Assemble — Small and compact, engraving material —Wood, leather, bamboo, rubber, stainless steel,etc.

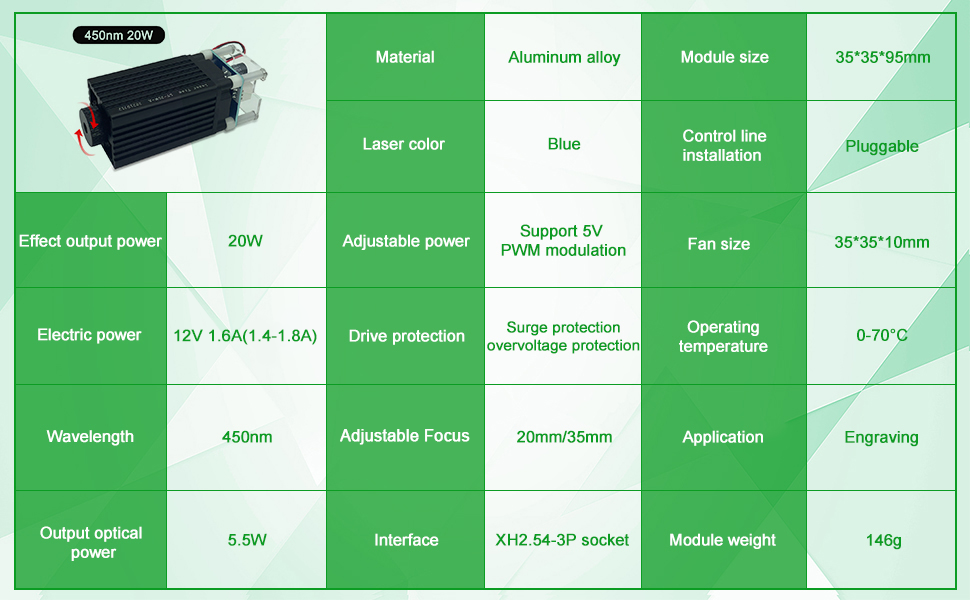

Specifications:



Effect Laser Power: 20W

Material: Aluminum Alloy+Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power

Item Size: 9.5*3.5*3.5cm

Package Size: 14*6.2*6.2cm

Item Weight: 146g
