Description
- Measuring Range: .
- Sensor Type: Photoelectric
- Sensitivity: .
- Repeatability: .
- Resolution: .
- Hysteresis: .
- Linear: .
Dear customers, welcome to our shop. If the price is not suitable or the correct model can not be found, please feel free to contact. I wish you all a pleasant shopping.
The main technical parameters:
Output mode TTL or RS485
Wavelength 850nm
Supply voltage 5V

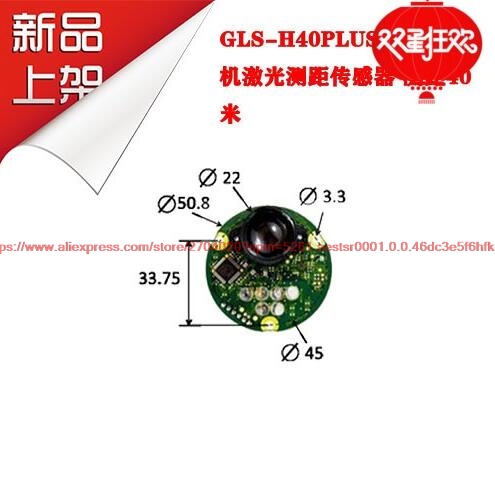

Module diameter 50.8mm
Weight 14g
Measuring distance 0 to 40 meters
Accuracy 5cm
Data refresh rate 70hz
Working temperature -35 degrees Celsius ~ 45 degrees Celsius
Resolution 5mm
Power 1.3W
