Description
- Brand Name: CRONOS
- Certification: CE
- Origin: CN(Origin)
- Model Number: 15W
450nm 15000mW 12V Fixed Focus Laser Module Diode TTL /PWM Marking Stainless Steel /Engrave On Stone DIY Laser Engraver Cutter 15W
- Made of high quality hard aluminum and brass material, the surface is by anodized and sandblasting ,not easy rust,very durable.
- One of the most powerful diodes available, upgrade your Wood engraver to a Metal Marking Machine.
- It can mark metal and stone, cut wood, foam and other materials easily.
- With heat dissipation fan,make it with longer service life.
Friendly Reminder:
- Please wear the protective glass when you use the laser module.
- Do not touching the laser light directly in case that hurt the body and skin.
- Keep children and pets away from the laser module when it working.
- The Laser dot could not be adjusted, please make sure the distance between bottom of the laser module and engraving material is 16mm(Use the plastic column to do it). Or it will influence the result.

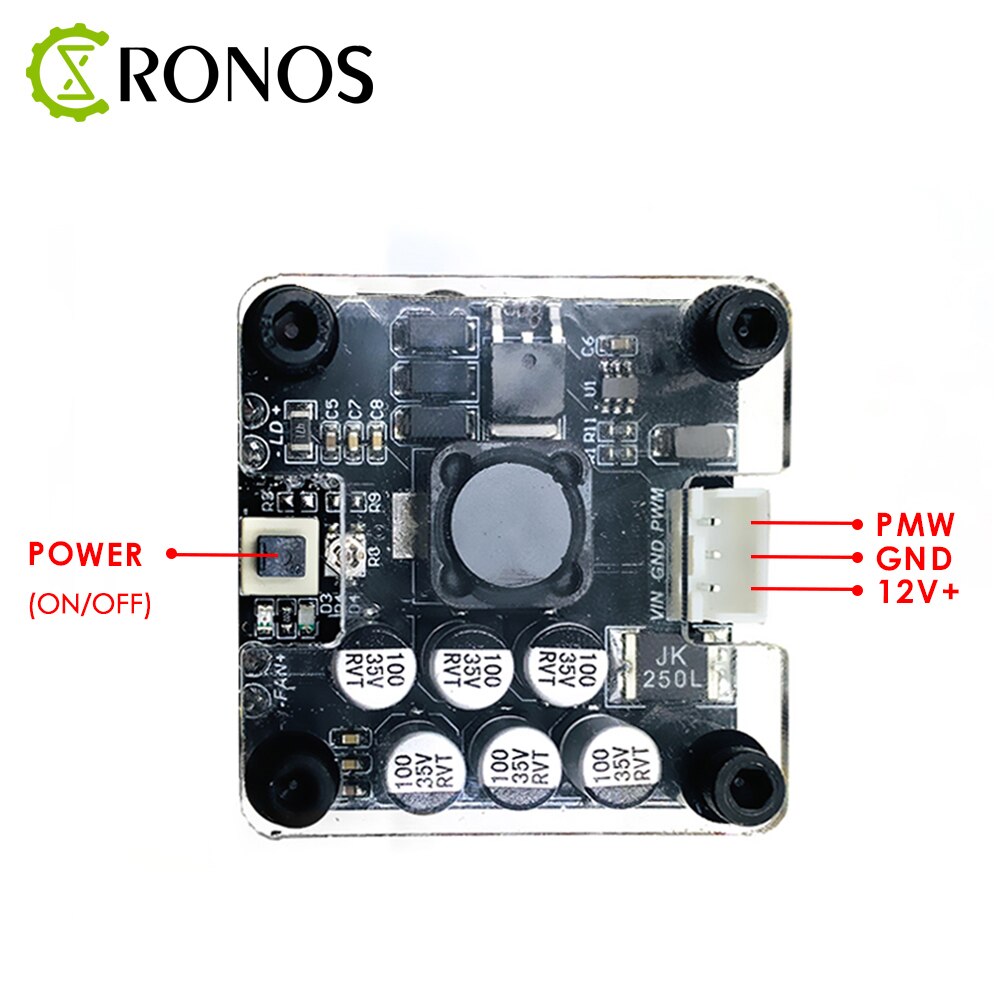

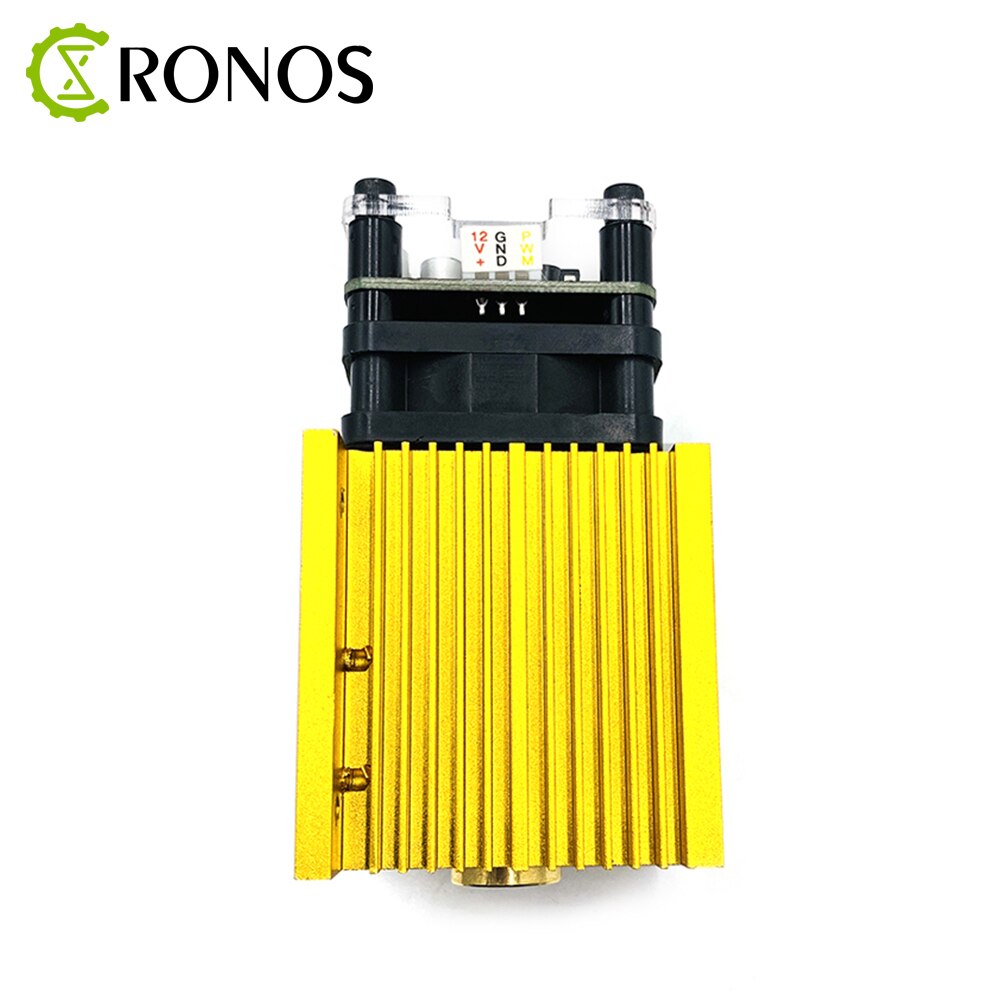

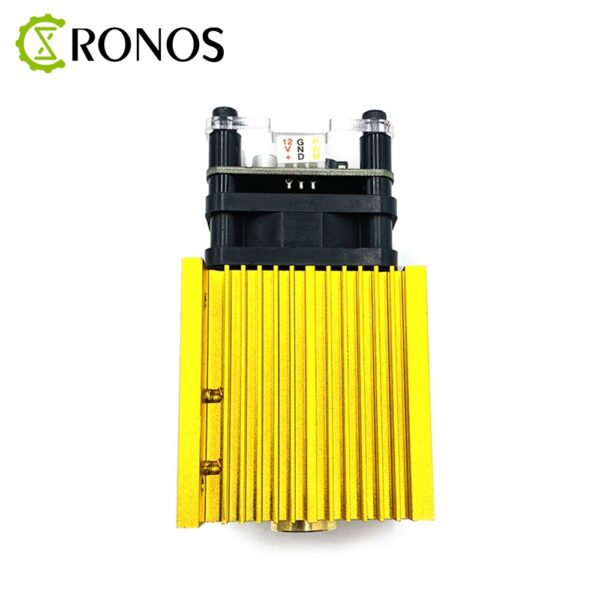

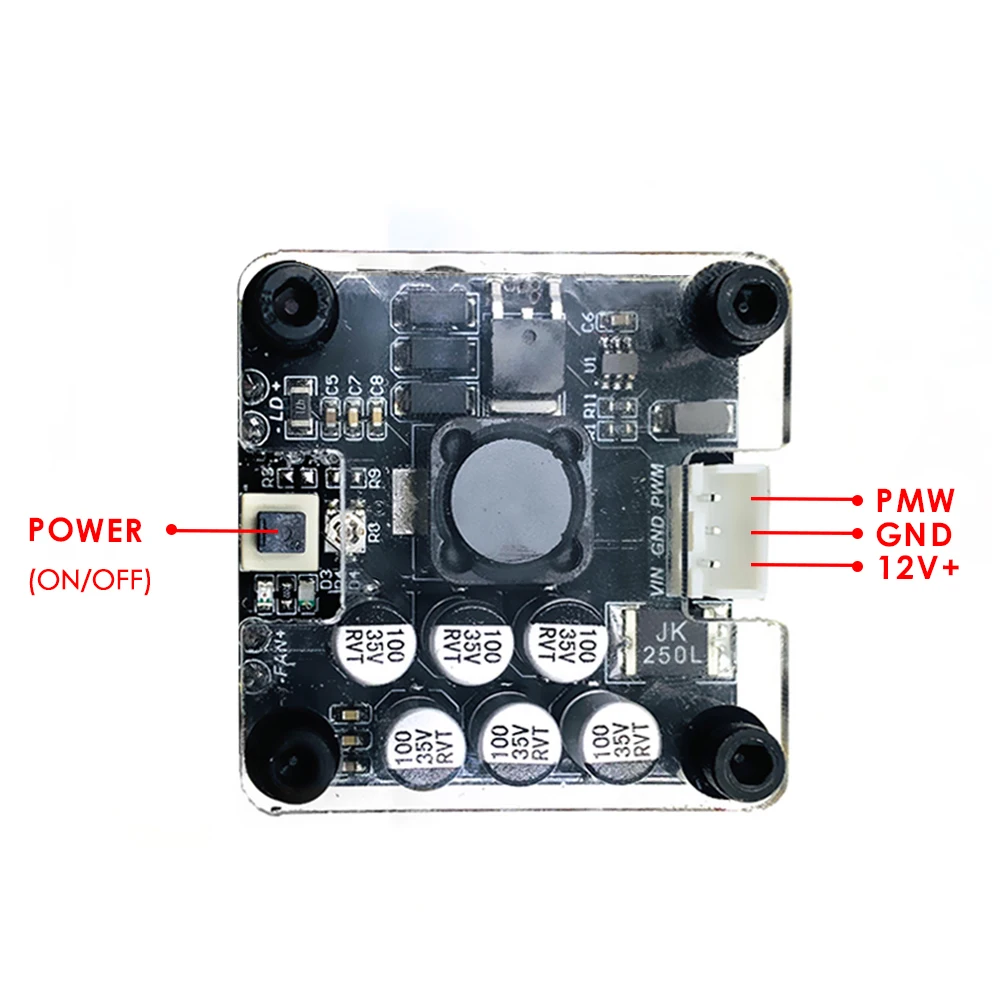

- Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,the yellow cord is Signal(S). Please make sure you know how to connect it,Otherwise it might damage the laser module!
-
Laser Power:Measured power 8W, electric power 15W
-
laser Wavelength:450nM
-
Beam Shape:0.1mm Point
-
Focal Length: Fixed focal lengh
-
Material:Aircraft Aluminum,Copper
-
Power Prot Input Voltage: DC 12V
-
PWM Prot Input Voltage: DC 5V
-
Power Supply Interface :XH2.54*3P
-
Driving mode:External ACC Constant Current Drive

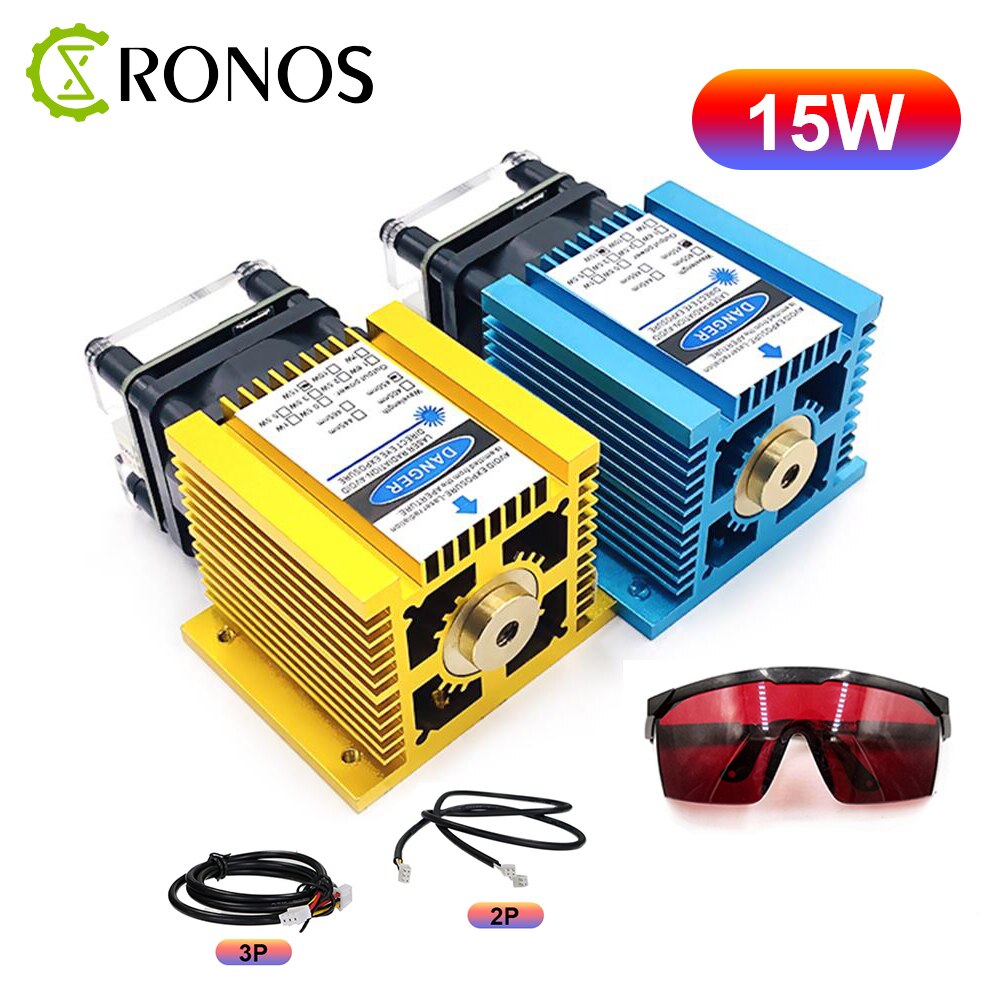

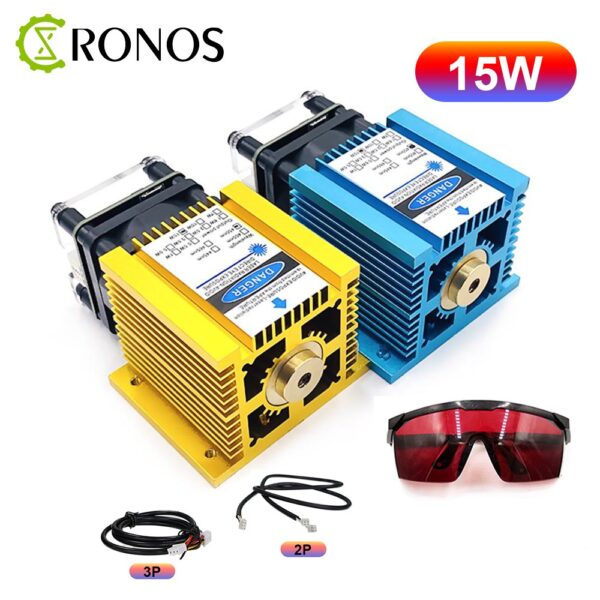

PACKING LIST:
- Laser*1
- Cable*2
- Glasses*1(Random Color)
Dear customers,Please take a look:
- If you received laser have any quality problem, please send a detailed video to us with a problem description in the first time!
- Please DO NOT disassemble the laser module without our permission,it might cause the damage.
Application:
Provide free software:
FAQ:
Q:Where is the TTL port? I can only see the PWM?
A:TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module's PWM port
to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
Q:How can I connect this module to the my engraver?
A:If you don't need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control
board and leave the PWM port unconnected.
User must read:
–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
–Do not use in flammable and gas atmospheres to avoid fire and explosion.
–Prohibit children from exposure to this laser product.
–Do not open the module to avoid damage.
