Laser Module 450nm 40W Built in FAC Laser Head TLL/PWM for CNC Laser Engraver Cutter Wood Tools Cutting Plywood by one pass

  • Home
  • Laser Module 450nm 40W Built in FAC Laser Head TLL/PWM for CNC Laser Engraver Cutter Wood Tools Cutting Plywood by one pass
Sale!

Laser Module 450nm 40W Built in FAC Laser Head TLL/PWM for CNC Laser Engraver Cutter Wood Tools Cutting Plywood by one pass

$44.00$253.00

SKU: 1005003918514714 Category:

Description

  • Brand Name: ZBAITU
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Origin: CN(Origin)
  • Model Number: Laser module
  • Output Optical power: 5~6W
  • Wavelength: 450nm
  • Size: 4*4*12cm
  • Spot size: 0.08*0.08mm
  • FAC compression technology: YES
  • Focal length: 20~40mm
  • Service life: 10000 hours

Professional laser module, suitable for cutting and engraving DIY, can be installed on the engraving machine. More precision, more power, faster efficiency

With the FAC technology the spot size is 0.08mm, which is high efficiency & precision than normal module

●Cutting Thought 5mm Plywood By One Pass!!

Welcome To ZBAITU Store, Please Note:

a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too

b. Usually, we shipping out your order within 48 hours by AliExpress Standard Shipping

c. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT; Please contact us!

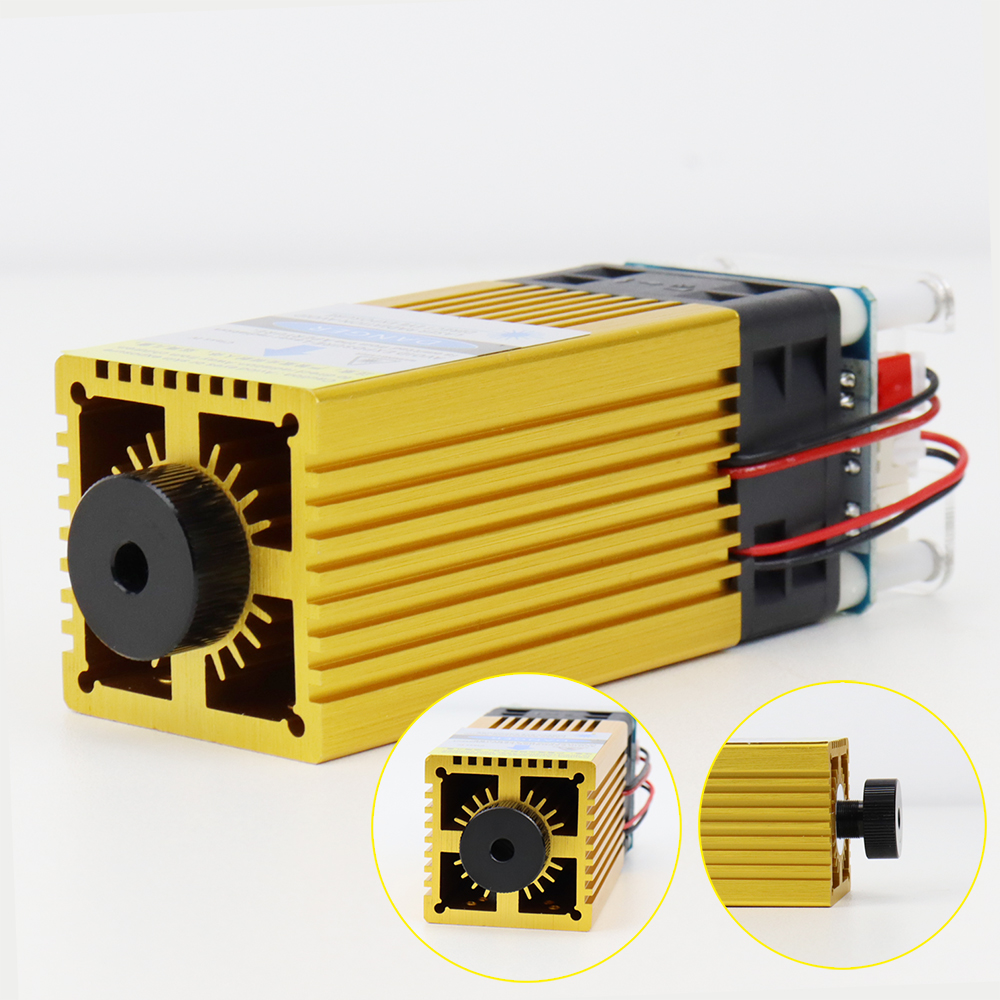

Laser Introduction:

●ZBAITU AF30 blue light laser module, standard laser head, designed for engraving machine, CNC machine, support cutting and engraving

●ZBAITU AF40 blue light laser module, with the second-generation FAC compression spot technology, specially designed for engraving machines and CNC machines, and supports faster cutting and engraving

Feature:

1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

2. Upgrade FAC compression spot technology, engraving and cutting faster

3. The module is made of aluminum, which is sturdy and durable.

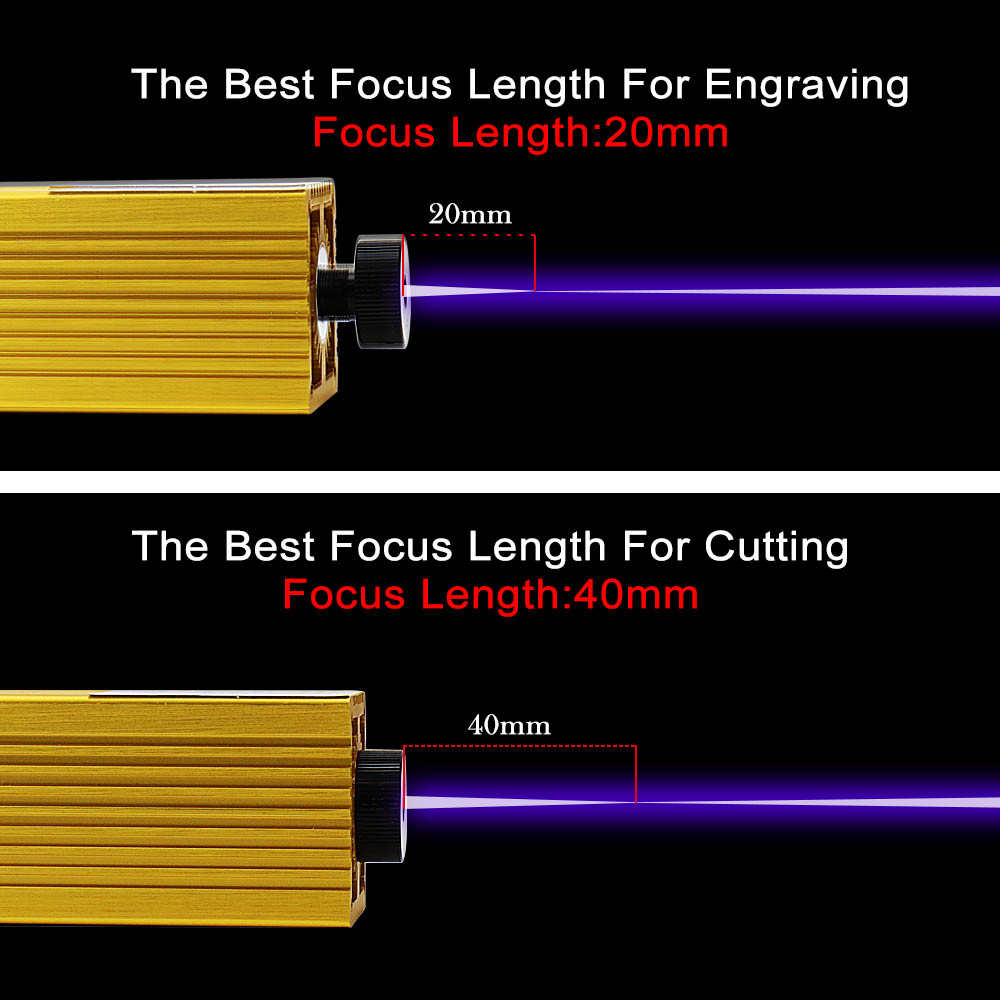

4. Adjustable focus lens, the longer the focal length is suitable for cutting, the shorter the focal length is suitable for engraving

5. Aviation aluminum TTL driver board with cooling fan to ensure continuous long-term work.

6. Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, stainless steel, non-reflective plating and lacquered metal, utility knife after blackening.

7. Cuttable materials: plywood, cardboard, non-woven, veneer, acrylic, some thin plastic sheets.

8. 0.08*0.08mm compression laser technology makes engraving more powerful and precise.

9. The engraving speed is 100% faster than other ordinary 5W lasers

10. High energy cuts 5 thick plywood by one pass.

11. The laser sintering temperature is 1100 degrees, and the engraving metal effect is better.

12. The adapter circuit board is compatible with 95% of laser engraving machines on the market, including Atomstack, ortur, Neje, twotree, etc.

ZBAITU AF40 Laser Parameters

Parameter

Unit

Minimum

Average

Maximum

Wavelength

nm

450

455

460

Output optical power

W

4.4

5

5.2

Focal length

mm

20

40

Focal spot size
(Focal length 20mm)

μm

70

80

90

Operating temperature

0

60

Storage temperature

-45

85

Input voltage (DC)

V

9

12

15

Input current (12V CW)

A

1.7

2

Adjustment method

5V PWM

Warranty period

1 year

Items

Parameter

Items

Parameter

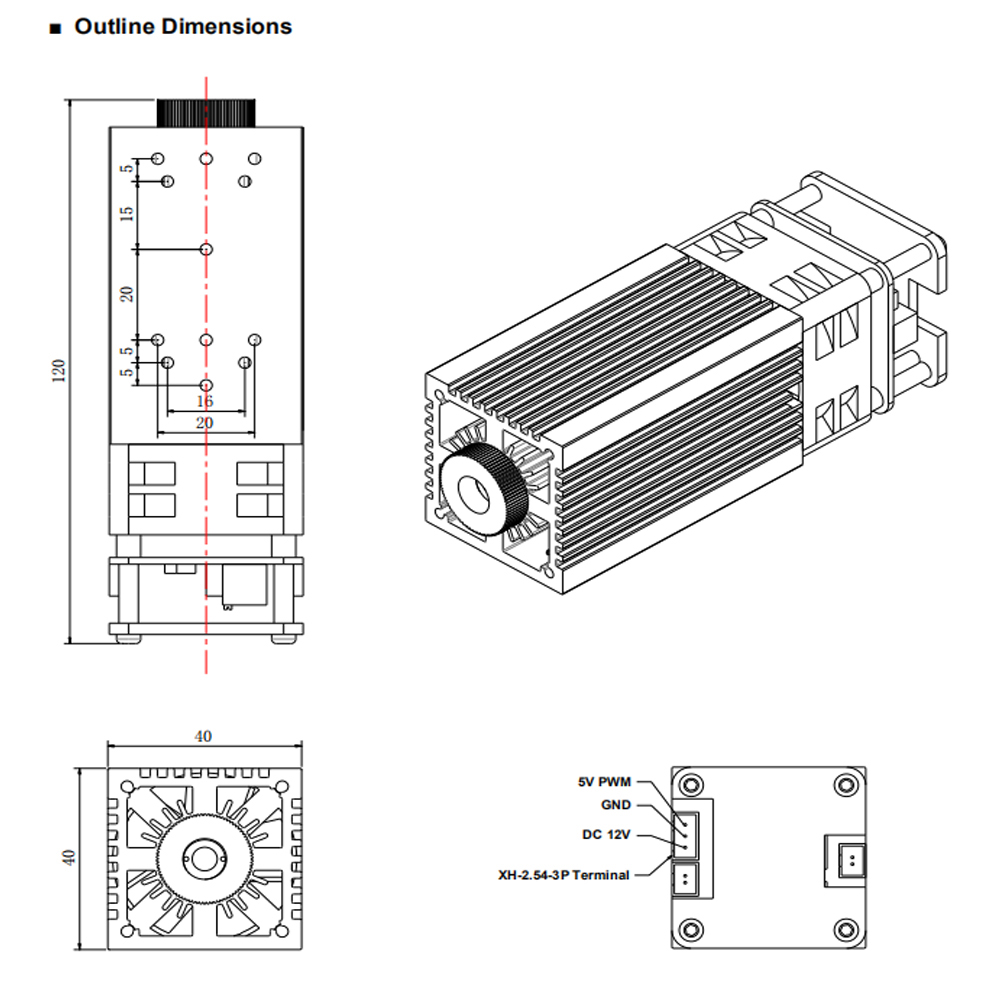

Module size

40*40*123mm

Optical Lens

φ6/glass

Circuit Board Size

40*40mm

Fan

9000rpm

Circuit Board

5V PWM

Product Material

Aluminum 6061 anode

input port

XH2.54-3pin socket

Product Net Weight

0.24kg

Package size

18*7*7mm

Package weight

0.3kg

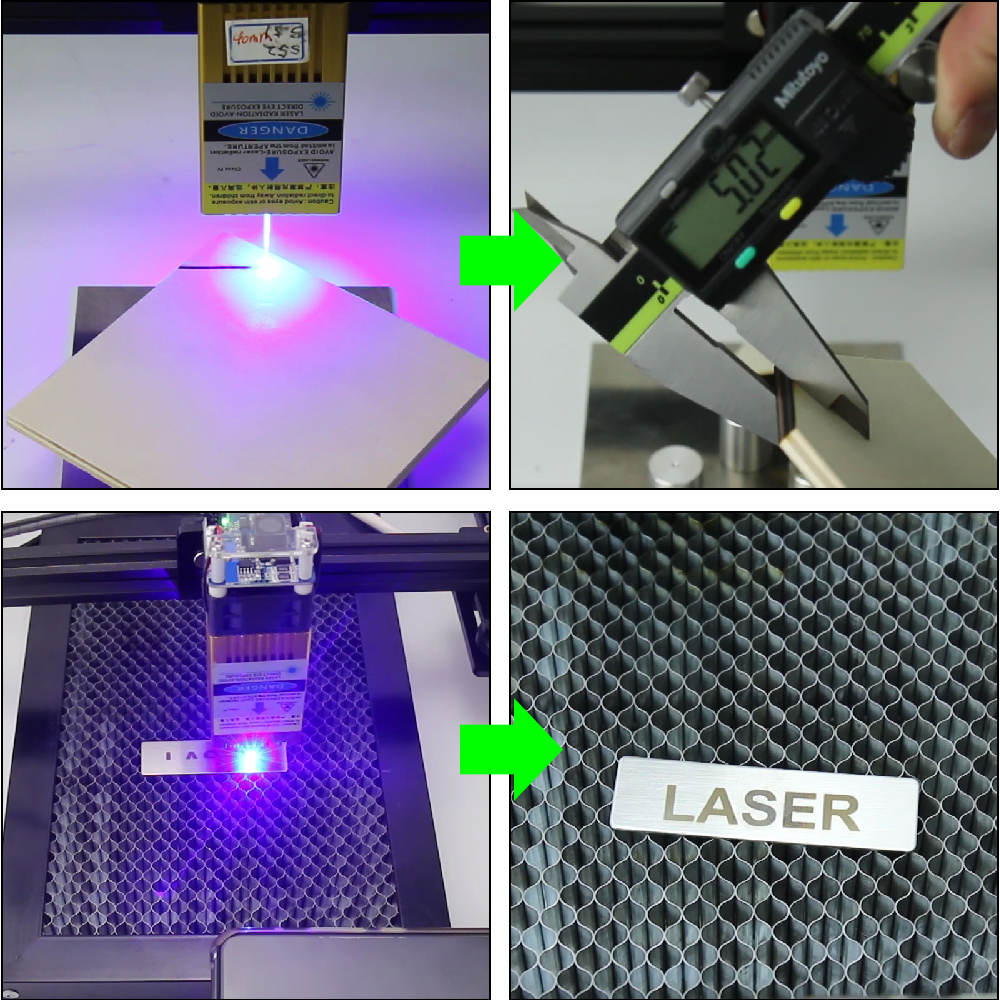

Cutting Tools

Cutting 5mm plywood by one pass

Engraving Stainless steel
