Description
- Brand Name: CRONOS
- Certification: CE
- Origin: CN(Origin)
- Model Number: 40W

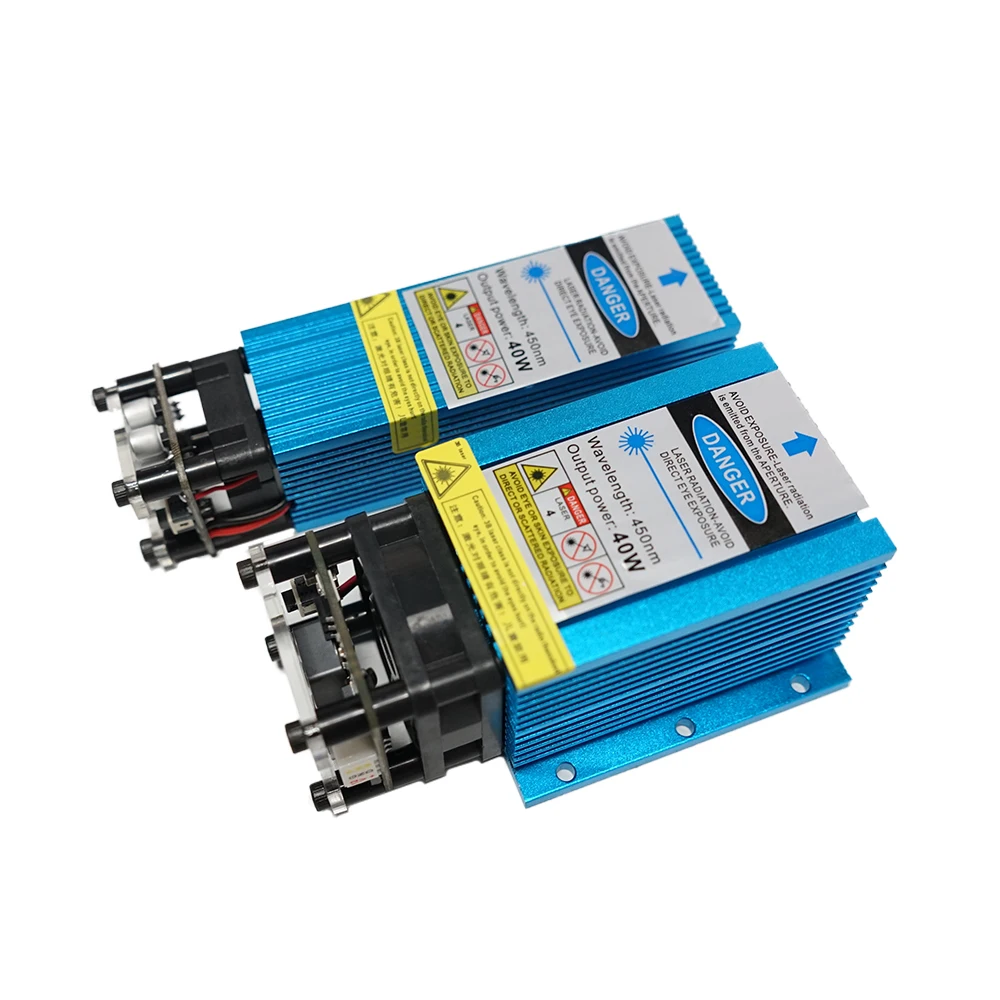

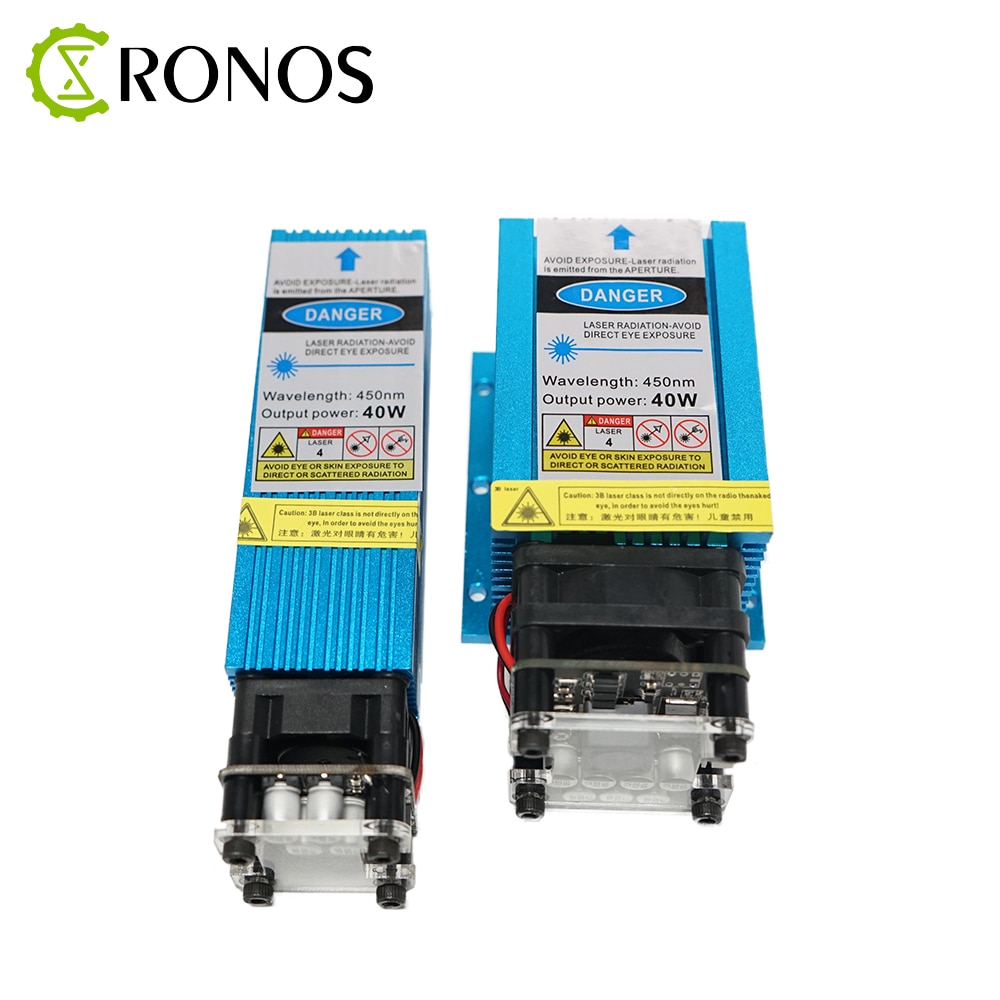

40W Laser Module Laser Head 450nm Blue Laser TTL Module Set for Laser Engraving Machine Wood Marking Cutting Tool
40W Laser Module Feature:
-
Designed for Laser Engraver, 3D printer, CNC mill, arduino project.
-
15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, needn't focus adjustment.
-
More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
-
More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
-

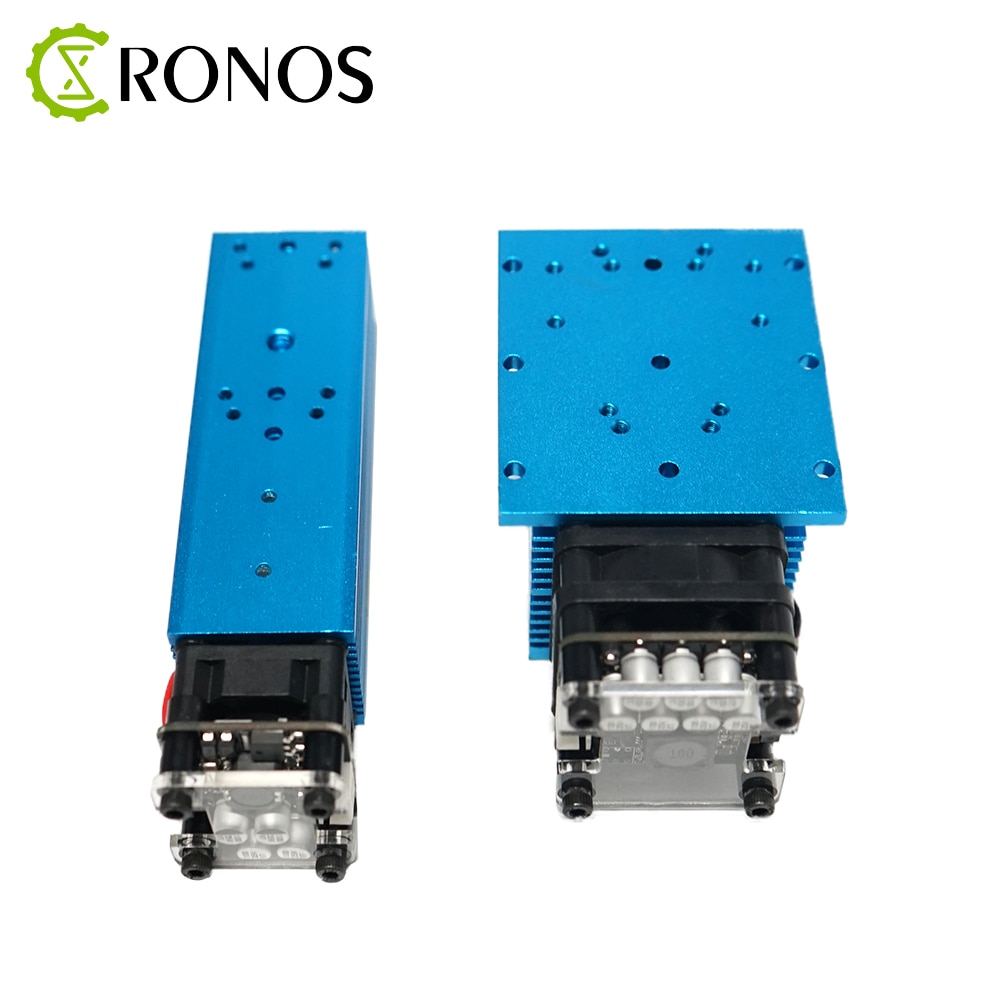

Slidable mounting fixture is provided for easy adjustment of focus.
40W General Specification:
-
Heatsink Material:Aircraft Aluminum +Blue Shell
-
Luminous Color:Blue
-
Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
-
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Stone/Ceramics/ Stainless Steel
-
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material
Technical Parameters:
-
Module Input:40W
-
Optical power output:15W
-
Wavelength:450nm
-
Beam Shape:Dot(fixed focues)
-
Working Voltage:DC 12V
-
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
-
Input Voltage:DC12V 3-4A
-
PWM/TTL Input:DC 5V
-
Input Interface:3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
-
Safe temperature range:<60 ℃
-
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
-
Life Time:10000-20,000 hours

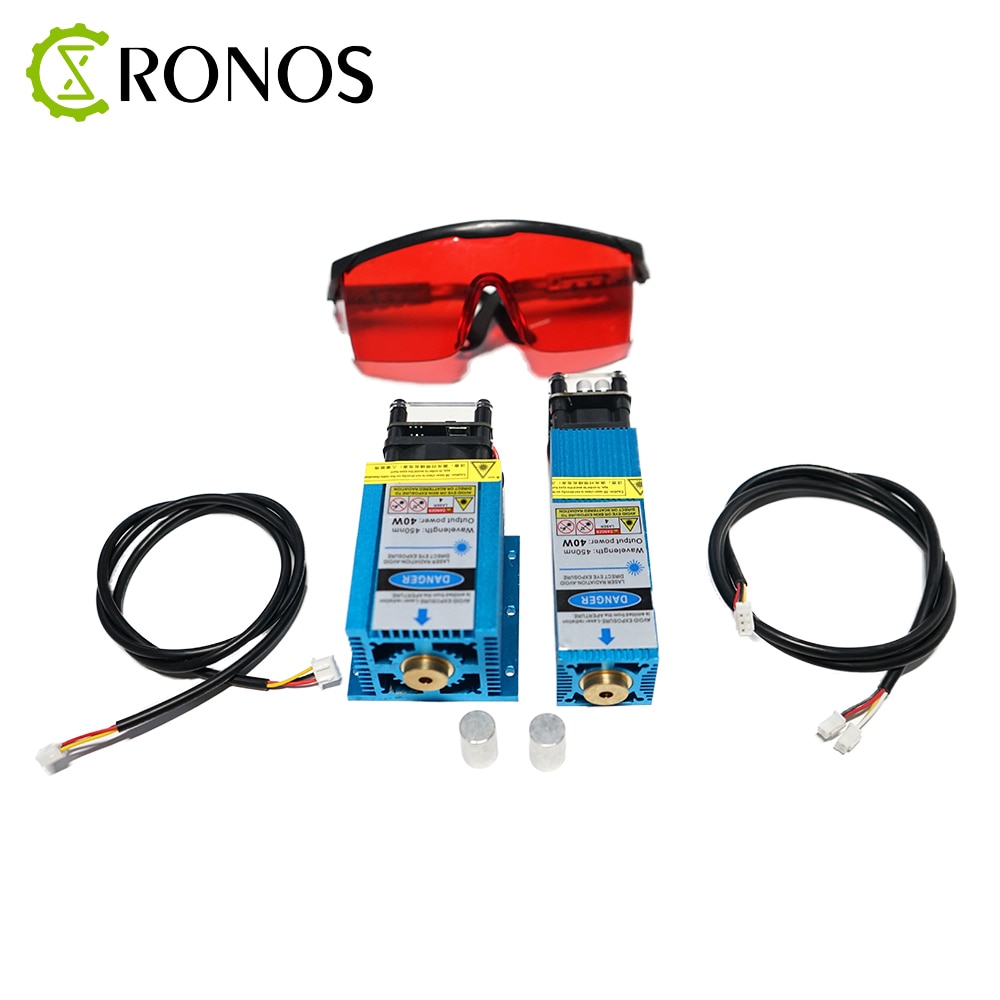

Packing List :40W laser module +Goggles+2pin-2pin cable +3pin cable+ Focusing column
Engraving distance 2cm

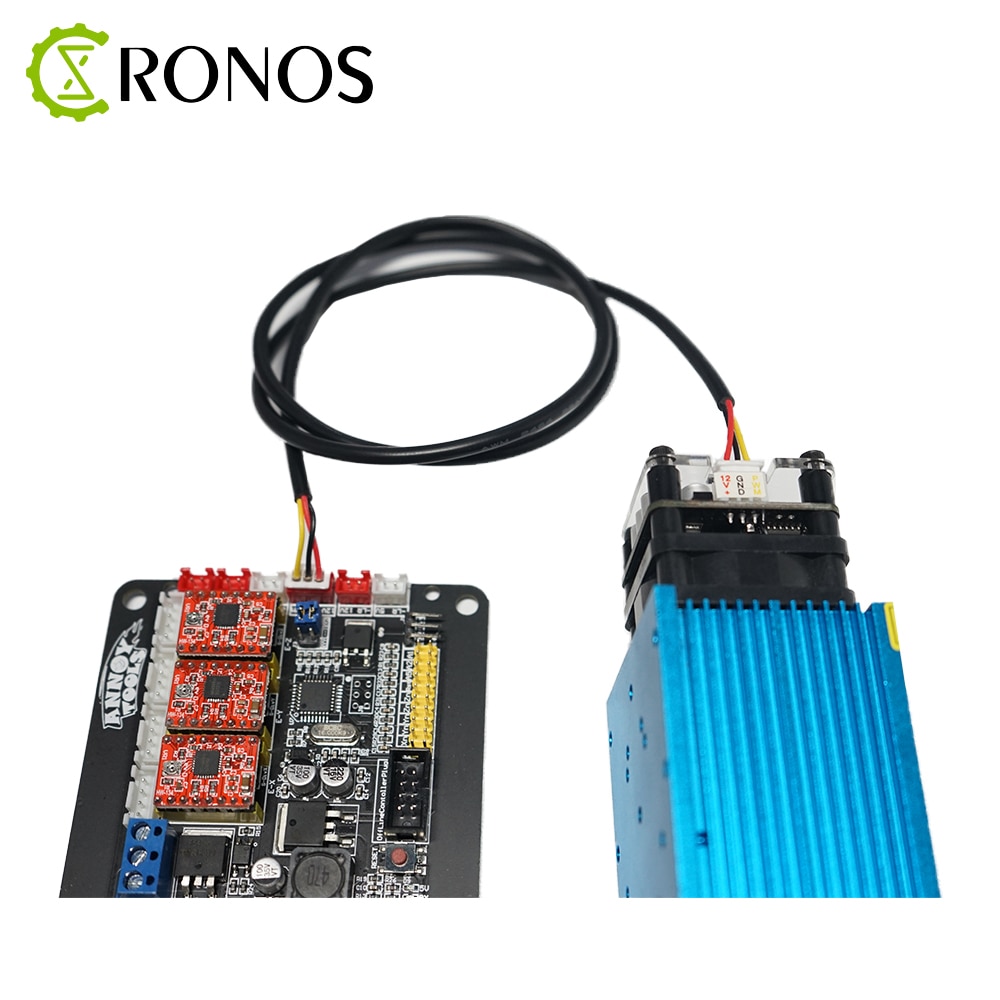

2Pin-2Pin laser connection diagram:
3Pin laser connection diagram:
Free software:
