Laser Module 30W 51mm 450nm Blue Light Fixed Focus DIY Carving Engraving Machine Engraver Accessory DIY Tools Laser Module Head

$462.27$775.74

SKU: 1005001572604159 Category:

Description

  • Brand Name: CRONOS
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: 30W

Laser Module 30W/40mm Laser Head 450nm Blue Laser TTL Module Set for Laser Engraving Machine Wood Marking Cutting Tool

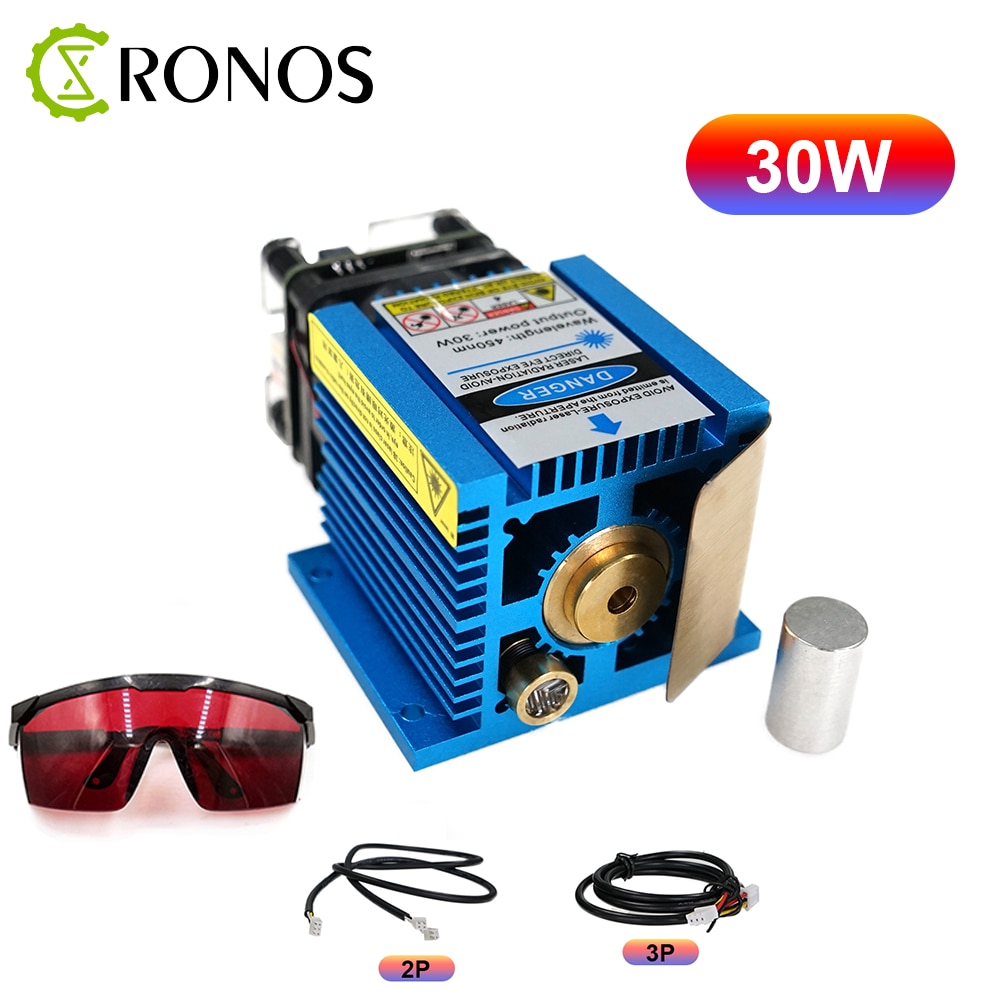

Free Gift:Glasses+1pcs 3pin cable+1pcs 2pin cable+20mm Focal length column(Suitable for all control panels in our shop!)

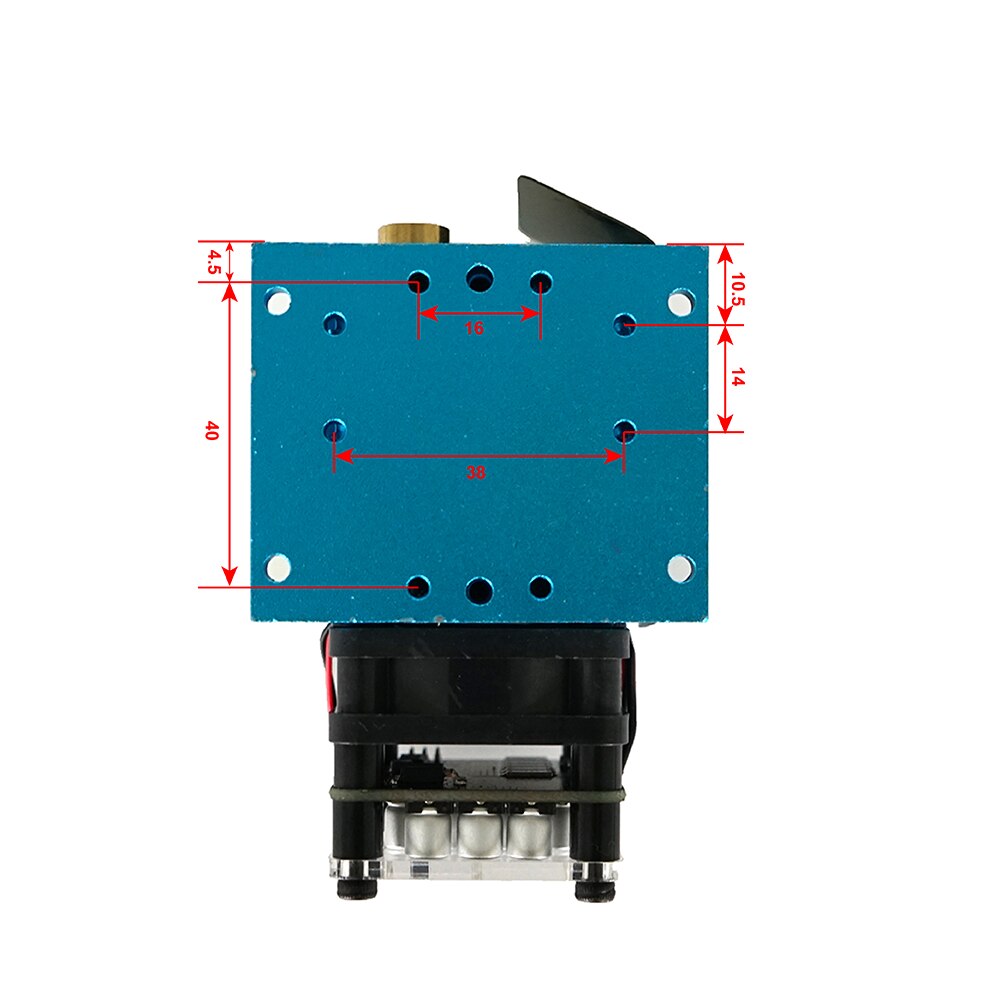

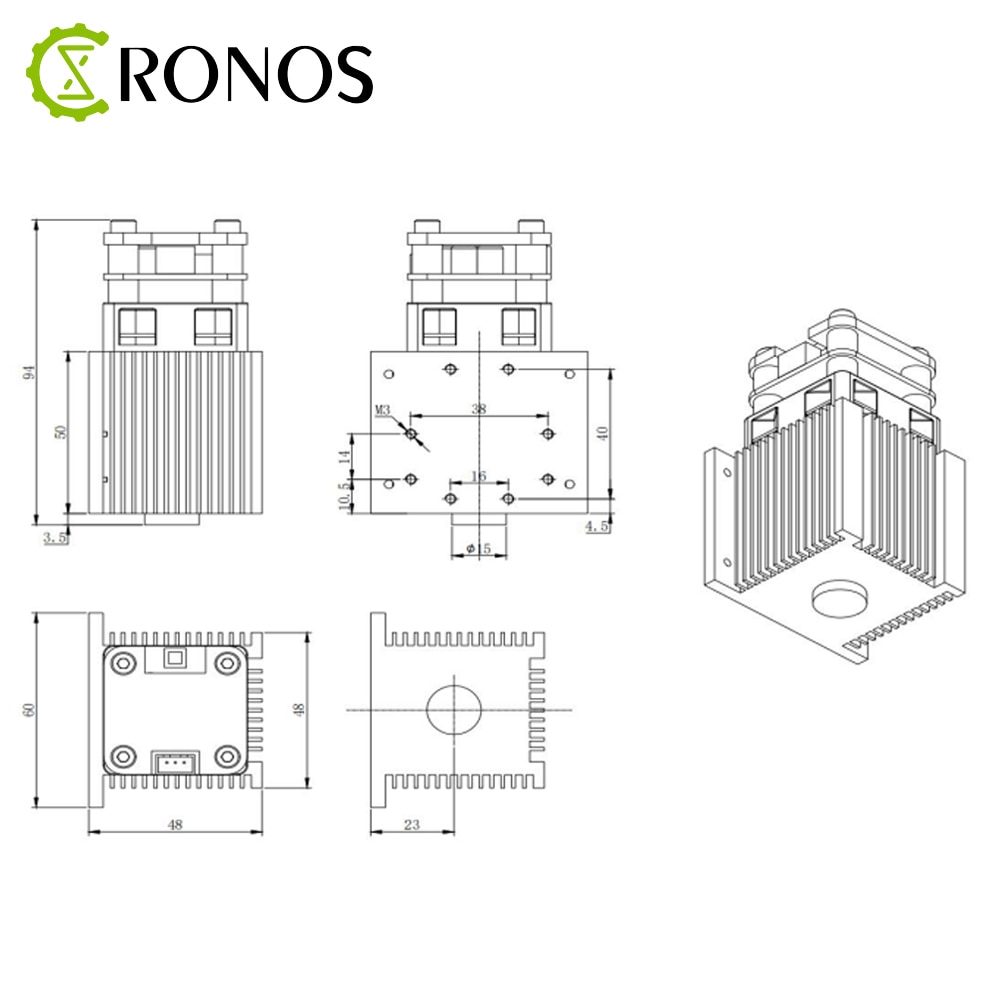

Laser size:

The new laser adds an iron sheet, which is good for heat dissipation:

Engraving distance 2cm:

Laser feature:

15W fixed focus laser module:

  • Optical Lens:φ6 glass

  • Fan:12V

  • Service life:10000 hours

  • Radiator size:48MM*60MM*94MM

  • Weight:202g

  • lutput:12V 2.5A

  • Optical Output Power:7.5W

  • Electric Power:15W

  • Wavelength:450NM

  • Precision:0.01MM

  • Lens focallength:20MM

  • Speed of the Fan:15000RPM

  • Interface:3Pin

  • Product metarial:Aluminum 6061 anode/copper H59

  • Cooling copper core:60mm copper with screw thread

  • Cutting depth:Max 5MM (repeatedly)

  • Quality assurance:1Years

  • Laser Beam Module:Dot

  • PWM:5V,0-20Hz

  • Working Temperature:0℃ -60℃

30W fixed focus laser module:

  • Optical Lens:φ6 glass

  • Fan:12V

  • Service life:10000 hours

  • Radiator size:40MM*40MM*70MM

  • Weight:202g

  • lutput:12V 2.5A

  • Optical Output Power:15W

  • Electric Power:30W

  • Wavelength:445NM

  • Precision:0.01MM

  • Lens focallength:20MM

  • Speed of the Fan:15000RPM

  • Interface:3Pin

  • Product metarial:Aluminum 6061 anode/copper H59

  • Cooling copper core:60mm copper with screw thread

  • Cutting depth:Max 5MM (once)

  • Quality assurance:1Years

  • Laser Beam Module:Dot

  • PWM:5V,0-20Hz

  • Working Temperature:0 ℃-60℃

40W fixed focus laser module:

  • Optical Lens:φ6 glass

  • Fan:12V

  • Service life:10000 hours

  • Radiator size:48MM*60MM*94MM

  • Weight:202g

  • lutput:12V 2.5A

  • Optical Output Power:15W

  • Electric Power:40W

  • Wavelength:450NM

  • Precision:0.01MM

  • Lens focallength:20MM

  • Speed of the Fan:15000RPM

  • Interface:3Pin

  • Product metarial:Aluminum 6061 anode/copper H59

  • Cooling copper core:60mm copper with screw thread

  • Cutting depth:Max 5MM(once)

  • Quality assurance:1Years

  • Laser Beam Module:Dot

  • PWM:5V,0-20Hz

  • Working Temperature:0 ℃-60℃

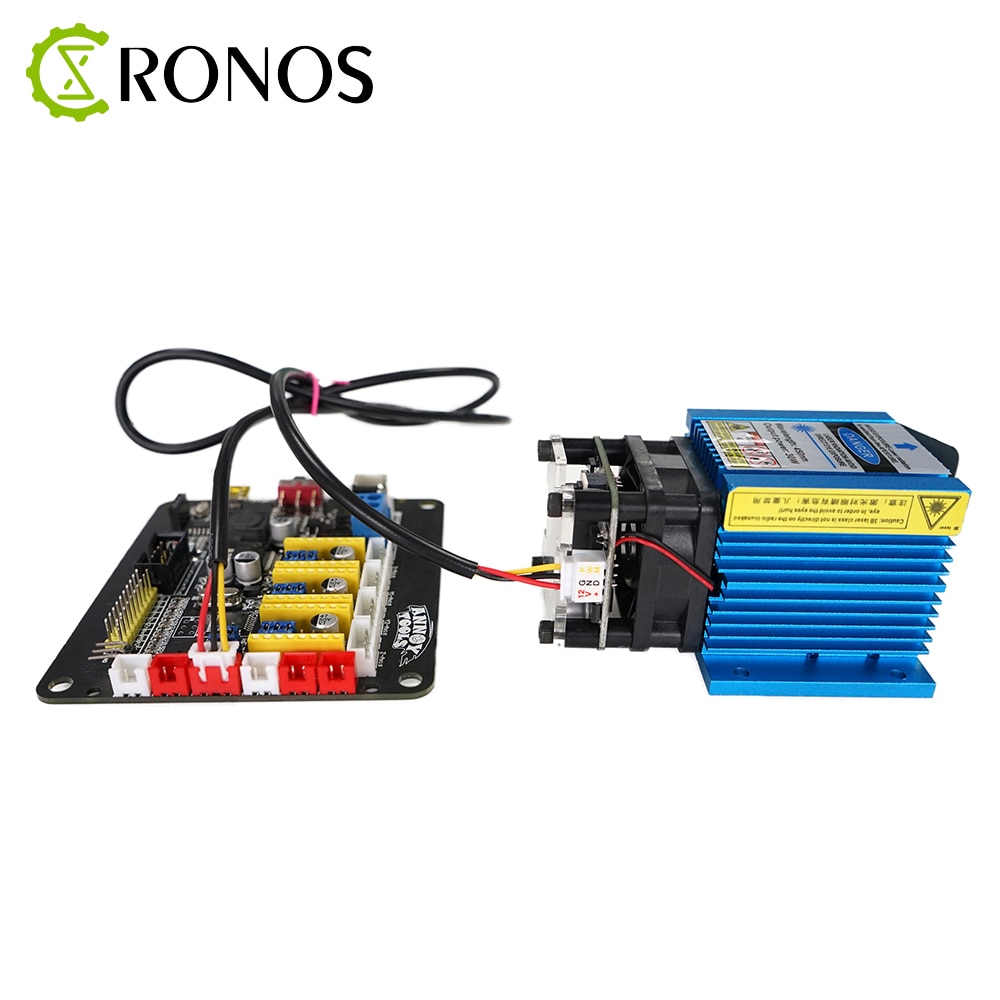

Connect 3pin cable :

Free software,contact us,get link:

CAUTIONS!!

1.The laser light emitted by the laser module is likely to injure persons'eye, so do not directly

gaze its endsurface and wear appropriate safety glasses to prevent laser light when it is

working.

2.Laser module needs an appropriate laser driver(PCB). When the laser module connects

with power supply,please set the output voltage to zero. The adjustment of the current

shouldbe slowlyincreased or decreaseto avoid damaging the device.

3.Keep the device working or storing in a dry environment. The anti-dust grade is over one

million, in orderto prevent dust inside the lens to affect the laser dot shape.

4.Working at high temperatures will increase the threshold current, reduce conversion

efficiency and speedup the aging of the device.

5.When output power is higher than it's specific parameter of operation, it willaccelerate

the aging of thedevice.

6.When the operation temperature of the laser diode is over 70degree, please do well heat

dissipation ofit.This laser module is an electrostatic sensitive device.Please make

sure ground yourself orwear anantistatic wrist strap before you take it.
