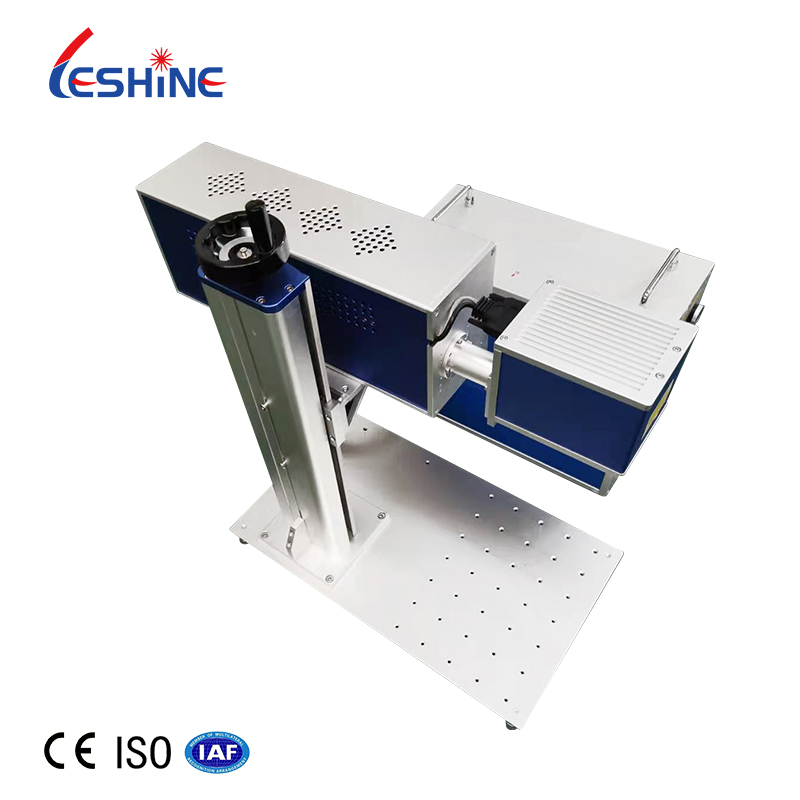

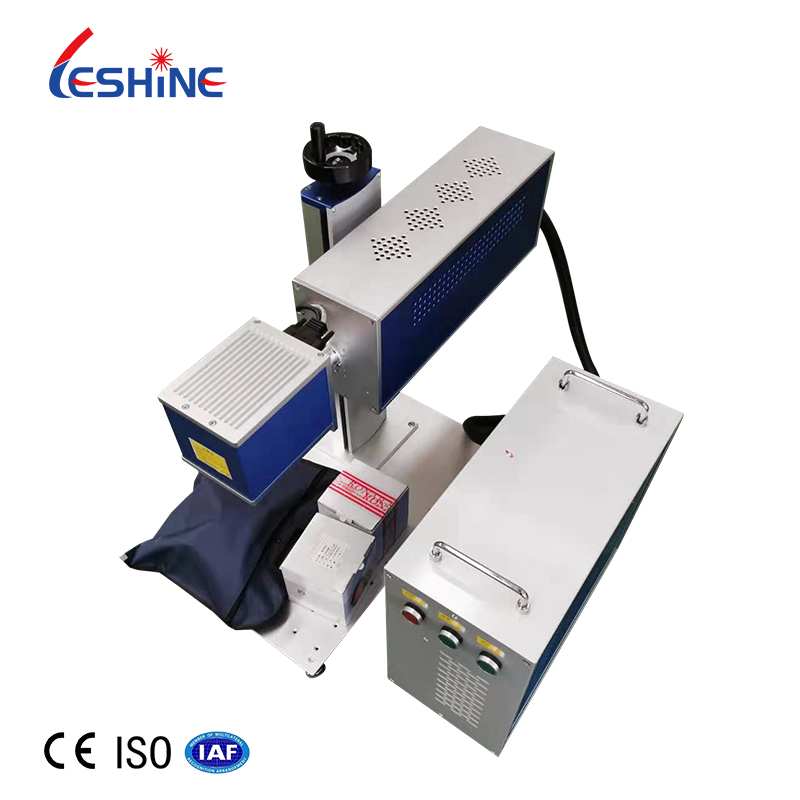

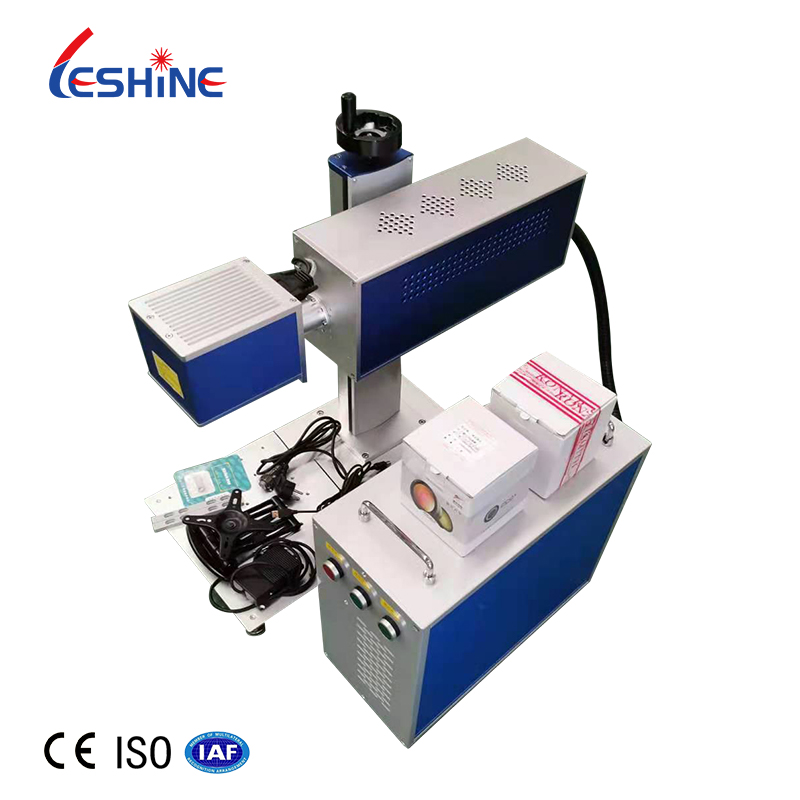

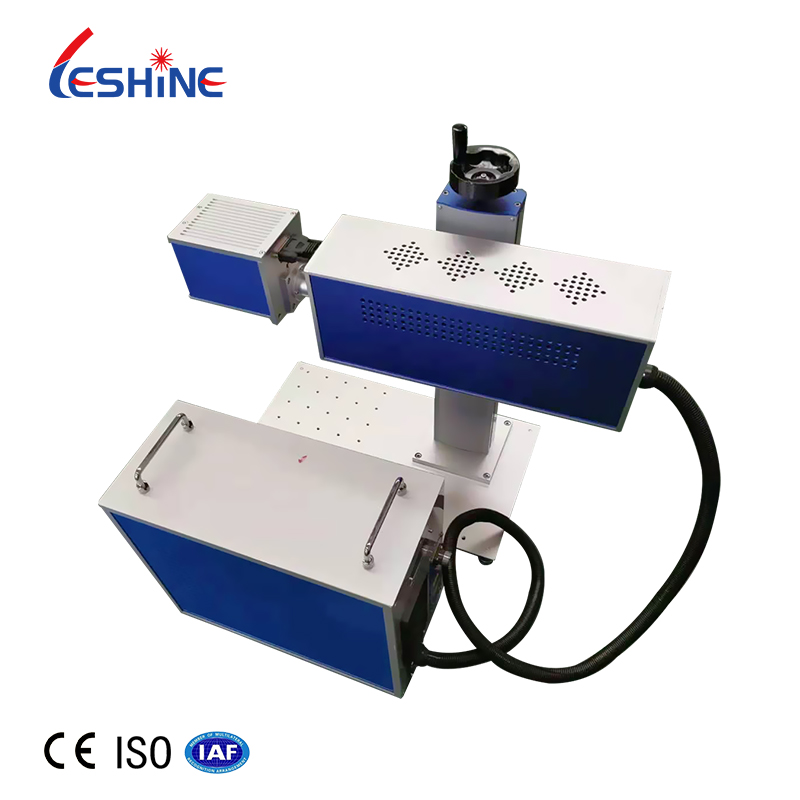

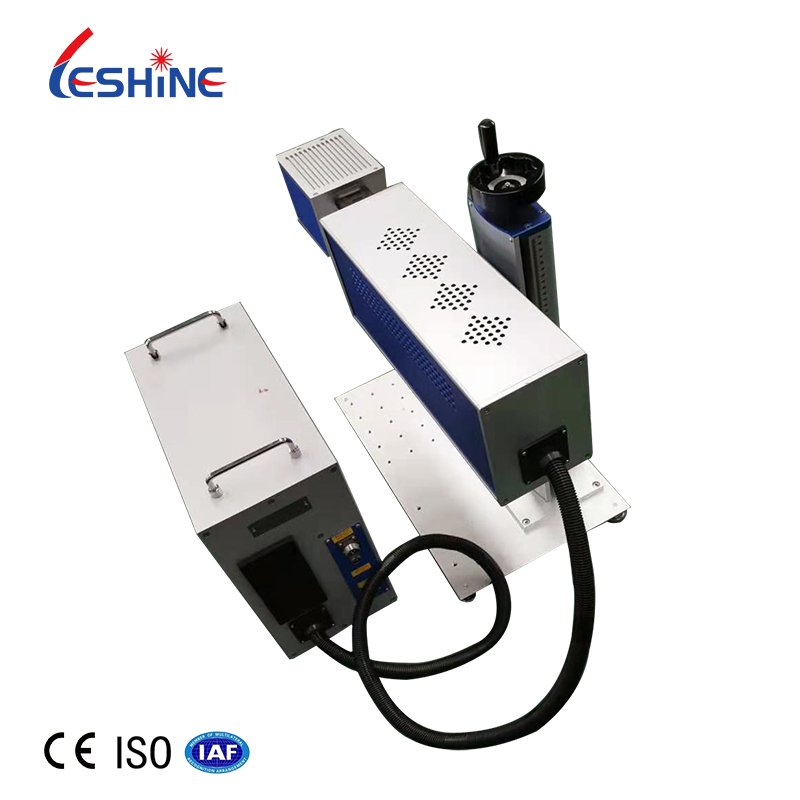

30W CO2 Laser Marking Engraving Machine for Wood Acrylic Leather Cotton Cloth
1.–Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.
2.–Focus Mirror>> Singapore famous “Wavelength” brand, Fast speed, high transparent rate
3.–Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.
4.–Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.
5.–3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
6.–Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.
7.–Portable Handle>>Easy to held the machine by hand.
8.–Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.
9.–Key Switch>> Using key swith to control the power of the machine.
10.–Main Switch>> It is designed as a easy button, safe and efficient.
2.–Focus Mirror>> Singapore famous “Wavelength” brand, Fast speed, high transparent rate
3.–Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.
4.–Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.
5.–3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
6.–Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.
7.–Portable Handle>>Easy to held the machine by hand.
8.–Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.
9.–Key Switch>> Using key swith to control the power of the machine.
10.–Main Switch>> It is designed as a easy button, safe and efficient.
Product Paramenters
|
Laser wavelength
|
10.6um
|
||||||
|
Output power
|
30W
|
||||||
|
Marking range
|
Standard marking area:150x150mm
|
||||||
|
Minimum line width
|
0.1mm
|
||||||
|
Character height
|
0.4-70mm
|
||||||
|
Marking content
|
text, graphics, barcode, two-dimensional code, dynamic serial number, real-time clock, TXT file, RS232 communication data, etc.
|
||||||
|
Operating language
|
Chinese, English (other languages can be supported)
|
||||||
|
Protection level
|
IP55
|
||||||
|
Cooling
|
air cooling
|
||||||
|
Humidity
|
10%-90%, non-condensing
|
||||||
|
Electrical requirements
|
100-240VAC, 50/60Hz, 0.7KW
|
||||||
Product configuration
Sample
