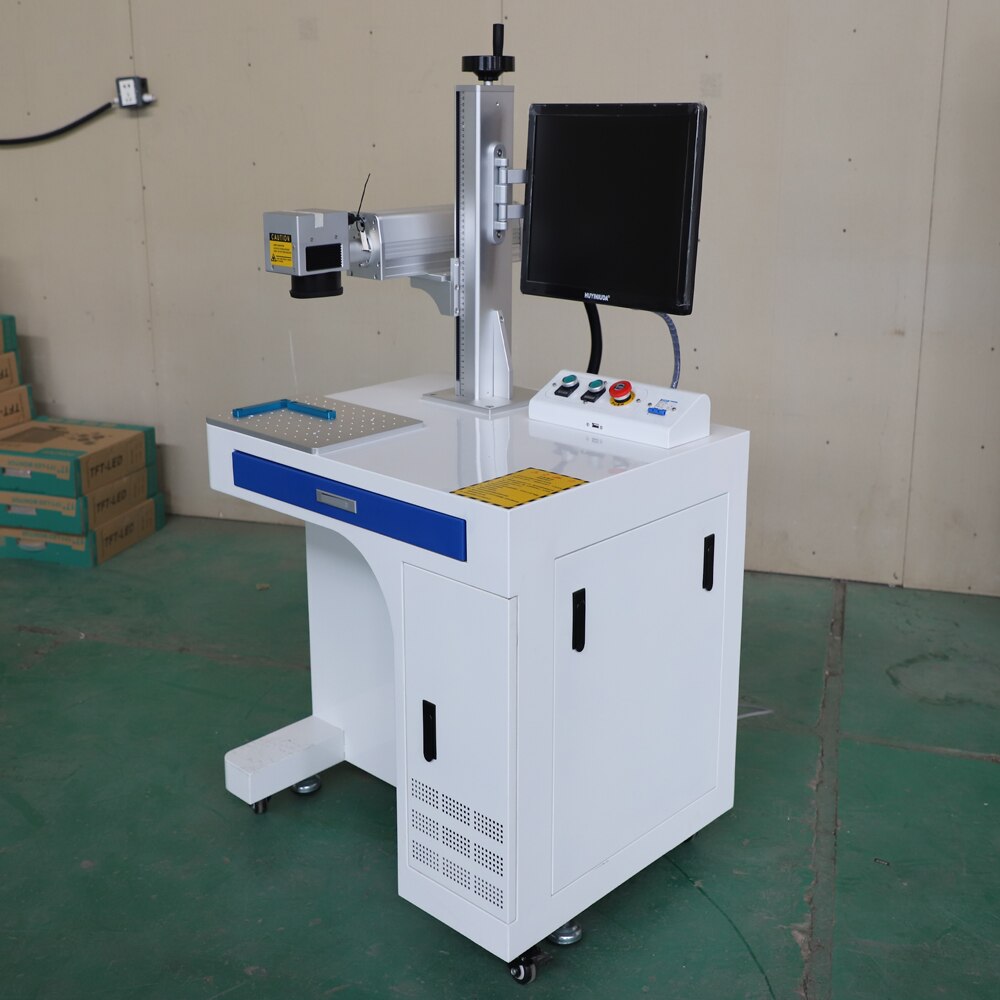

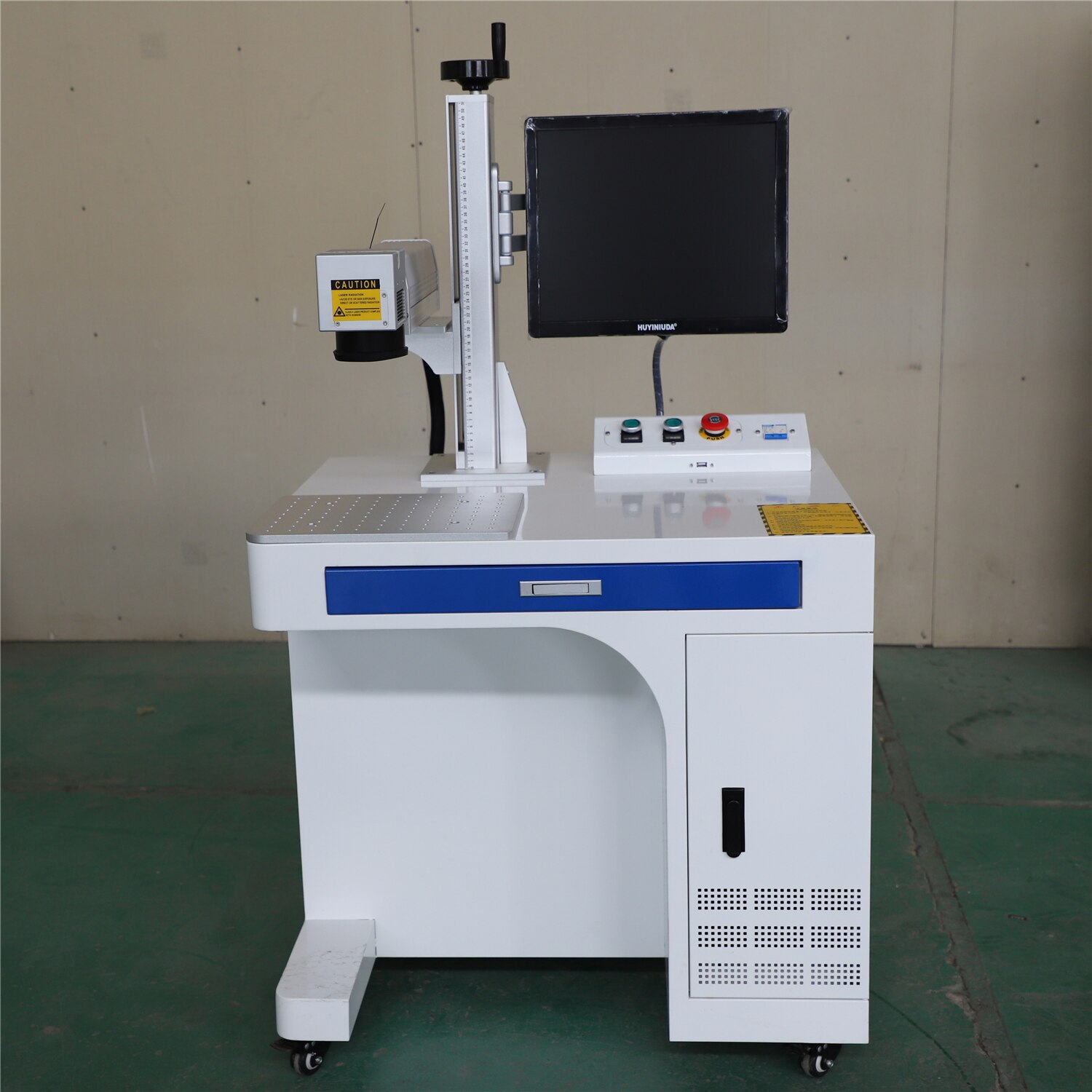

Laser Marker 10W 20W 30W 50W CNC Mini Color Fiber Laser Marking Machine For Metal/Mini Fiber Laser Engraver
- Brand Name: Rabotec
- Certification: CE
- Certification: FDA
- Condition: New
- Model Number: RTP-20202-vp
- CNC or Not: CNC
- Is Smart Device: YES
- Item: laser marking machine
- Working size: 110*110mm/200*200mm/300*300mm
- Laser power: 20W 30W 50W
- Table: Aluminum
- Laser: Raycus/MAX/JPT/IPG
- Function: Red pointer
- Option: Rotary device
- Warranty: 2 years
|
Item / Model |
RTJ-1010/2020/3030 |
|
Laser source |
Raycus,CAS,MAX,IPG |
|
Laser power |
10w, 20w, 30w, 50w |
|
Laser type |
CO2 sealed laser tube,water-cooled,10.6um |
|
Graphic Format Supported |
PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
|
Marking speed |
≤8000mm/S |
|
Max.Marking Depth |
≤0.4mm |
|
Laser Wavelength |
1064nm |
|
Marking lines |
1-10 marking lines(in the marking area) |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.15mm |
|
Resolution ratio |
0.01mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, AI |
|
Software supported |
TAJIMA, CorelDraw, Photoshop, AutoCAD |
|
Driving system |
stepper motor |
|
Cooling mode |
Water-cooling and protection system |
|
Equipment Dimensions |
420*320*800mm |
|
Net Weight: |
120kg |
|
Unit Power |
≤500W |
|
Optional Spare Parts |
Rotary System |
|
|
Fiber Laser Marking Machine Parts:
>> Fiber Laser Marking Machine features:
Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
High Precision: Re-position precision is 0.002mm
High Speed: Imported scanning system makes the scanning speed is up to 7m/s
Easily Operating:Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the specific coding software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
High Reliability: MTBF>100,000 hours
Energy Saving: The efficiency of optic-electrical converting is up to 30%
Low Running Cost: No wearing part. Free maintaining.
>>Fiber Laser Marking Machine Applicable Material:
All metal,engineering plastics,electroplat coating materials,coating ,aterials,spraying materials,plastic rubber,epoxy resin,ceramics etc
>>Fiber Laser Marking Machine Applicable Industry:
Phone key,light penetration key,electronic parts and components,integrated circuit(IC),electrician electric appliance,communication products,sanitary wares,tool accessories,gasses and watches,jewellry,auto parts,buckles,kitchenware and stainless steel products industries.
