Laser Machin Cut Fiber Cnc Fiber Laser 2000w Laser Fiber Tube 1000w Fiber Laser Rotating

$84,017.27$131,717.27

SKU: 1005002263903817 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New

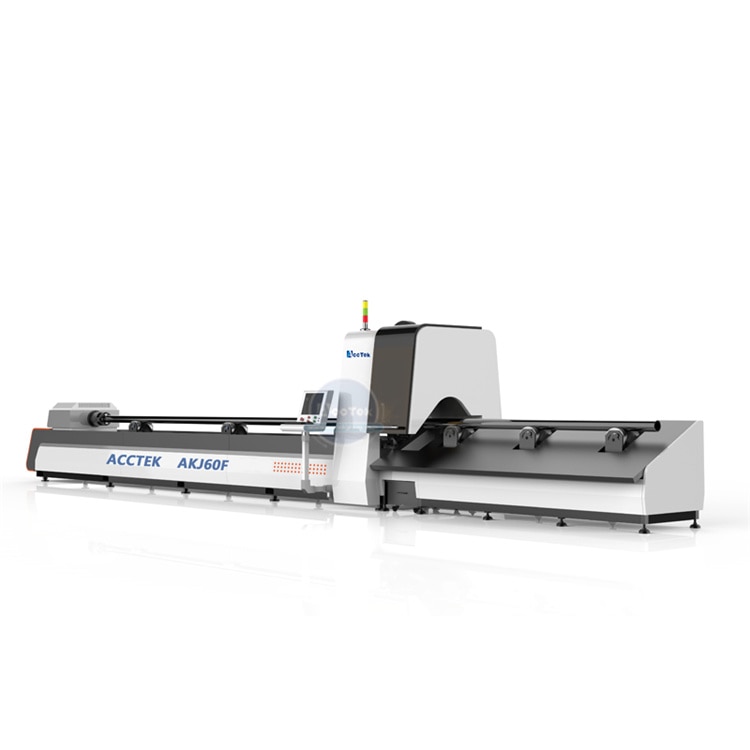

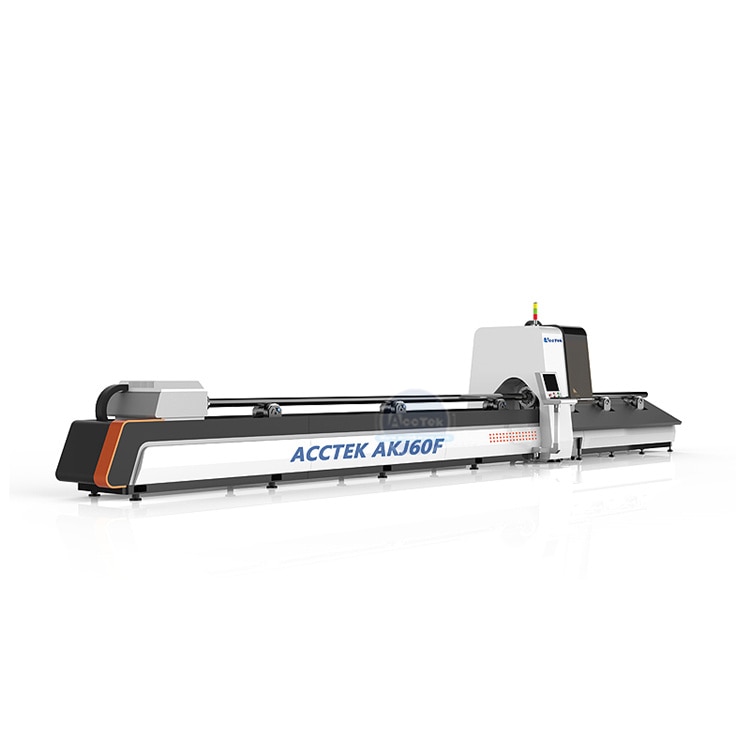

  • Model Number: AKJ60F
  • CNC or Not: CNC
  • Product name: 1000w Fiber Laser Rotating
  • Key words: Laser Machin Cut Fiber
  • MOQ: 1 set
  • Laser Type: FIBER LASER
  • Cooling Mode: WATER COOLING
  • Engraving Area: 220mm*6000mm
  • Motor: all axis Yaskawa servo motor
  • Control system: Cypcut
  • Transmission: Rack and pinion
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Machin Cut Fiber Cnc Fiber Laser 2000w Laser Fiber Tube 1000w Fiber Laser Rotating

Product Description:

Main features:

1) Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2) High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3). High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4) The laser maintenance free;
5) The cutting edge looks perfect and the appearance is smooth and beautiful;
6) Imported the transmission mechanism and servo motor, and high cutting accuracy;
7) Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.

Application:

1). Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself,

leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement.


2). Professional tube fiber laser cutting machine-AKJ60F is used for cutting square tube, rectangular tube, oval tube, waist type tube,

hexagonal tube; square tube  20 * 20- 150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

Working area

(Φ20mm-Φ220mm)* 6000mm

Control System

Cypcut

Guide rail

Taiwan HIWIN linear guide rail

Transmission

Taiwan TBI Grinding precision screw drive anddual gear drive

Electronic Components

French Schneider

Motor

Yaskawa servo motor

Max Speed

40m/min

Repeat positioning accuracy

±0.02mm/m

Maximum Acceleration

0.5G

Min line width

0.1mm

Power Requirements

380V, 50/60Hz

Cooling Way

Water Cooling

Machine Operating temperature

0 ℃ -40 ℃

Graphic Format Supported

AI, BMP, DST, DXF, DXP, PLT

Dimensions after package

Machine: 11900*1590*2280mm

Gross Weight

5200KG

Details of fiber laser cutting machine:

1). Cutting system:

Raytools brand  laser cutting head.

2). Control system:

Cypcut FSCUT3000S controller system. Cypcut software.

3). Cooling system:

When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts.

4). Laser source:

With Raycus brand 500w fiber laser device. Lifetime for normal laser come out is 100,000 hours.

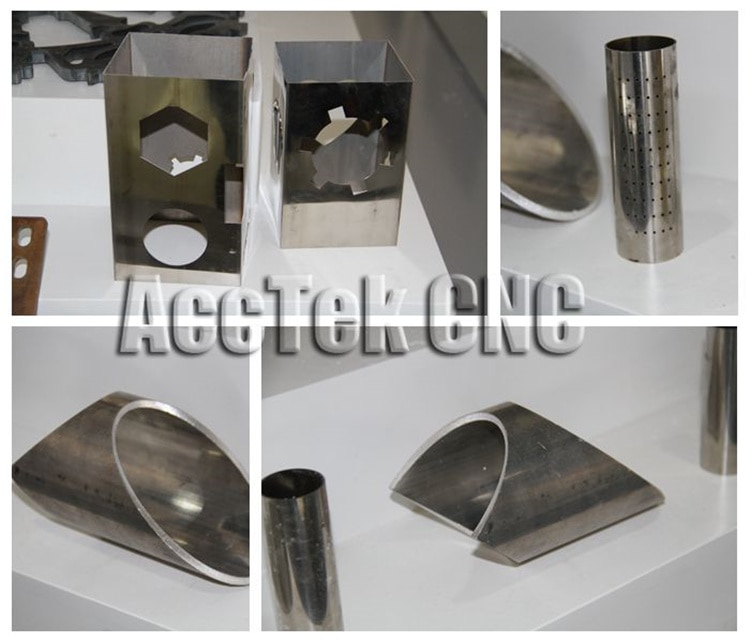

Samples:

Aftersale Service :

1. 24 months guarantee of the whole machine, including fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.

About us:

FAQ:
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF, etc?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.


Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.


Q3. How long is the delivery time?
For standard machines, it would be 10-15 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 20 days.


Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, already exported to more than 100 Countries.


Q5. Do you arrange shipment for the machines?
Yes. For CIF or DDU DAp price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

Contact us:
Name :  Winnie Xu
Mob&Whatsapp: +86-19862191443
Wechat: 13165291807

Skype:export37@acctekgroup.com
E-mail:export37(at)acctekgroup.com
