Description

Main applications: grayscale engraving, drawing, simple depth engraving, simple cutting, etc.

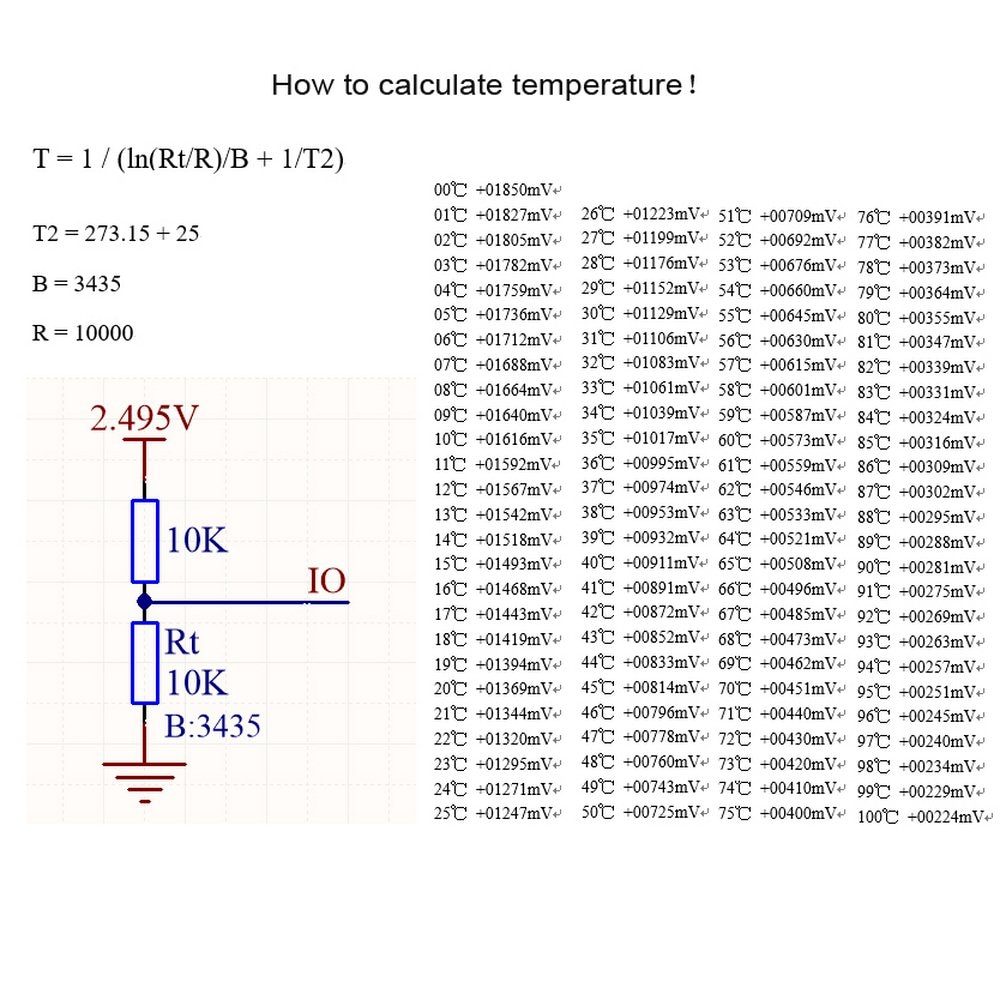

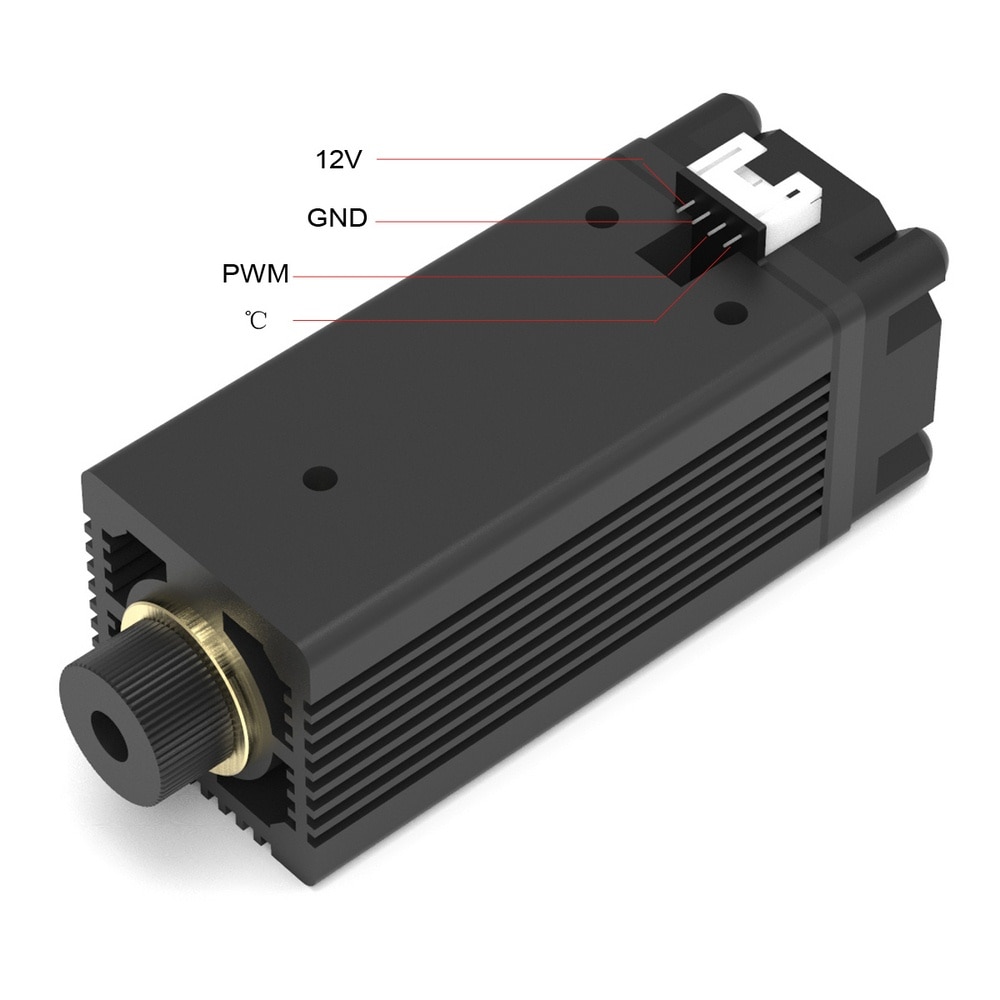

Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Wavelength: 405nm
Radiator size: 30*60mm
Material: copper + aluminum
Weight: 121g
Drive position: built-in

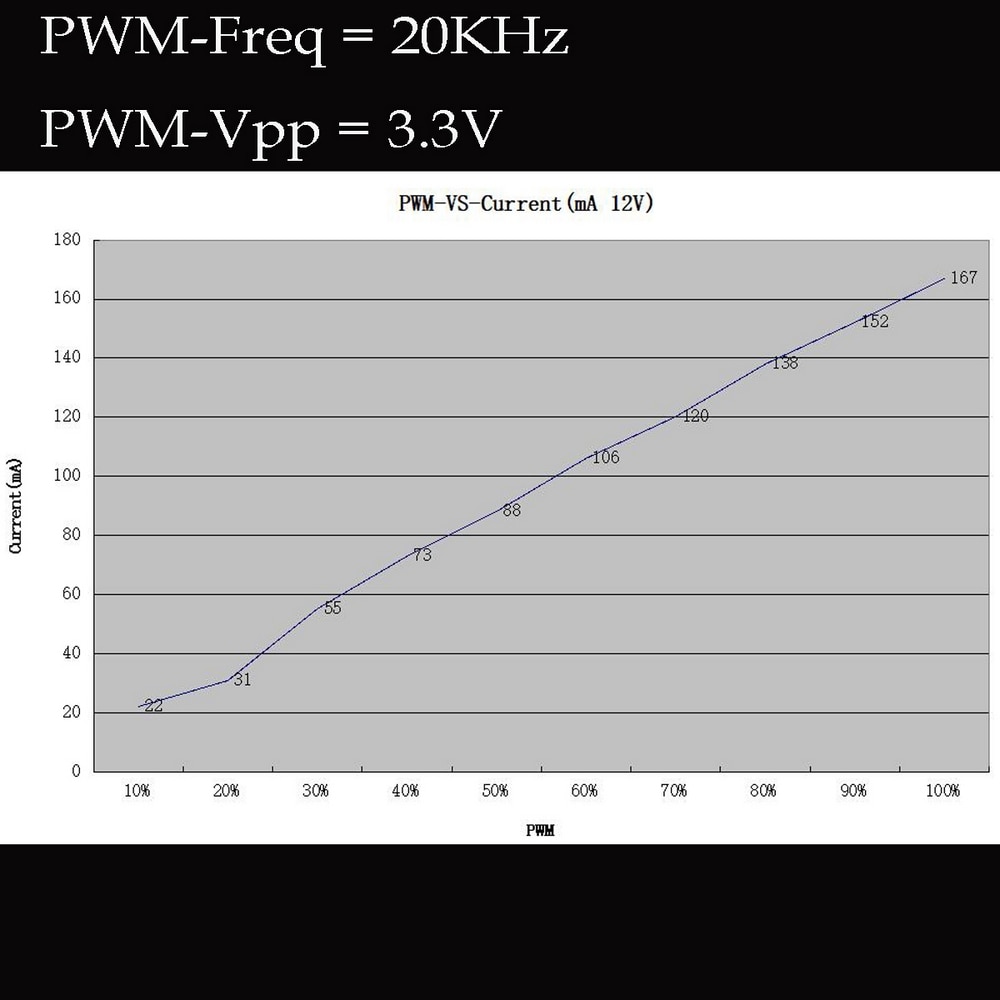

Is the power adjustable: PWM can be adjusted
Drive protection: surge protection, overvoltage protection
Input power: approx. 12V280ma (including fan power)
Line length: 300mm
Control line installation method: integrated
Fan size: 30*10mm
Fan speed: 10,000 rpm
Controllable temperature: less than 60 degrees Celsius
Focus range: 10-100mm
Best focal length: 50mm from the light exit
Safety Warning: Please apply this module under the premise of safety protection!
Recommended application machine: NEJE Master

packing list:
1 x module
2 x screw
2 x gasket
