Description

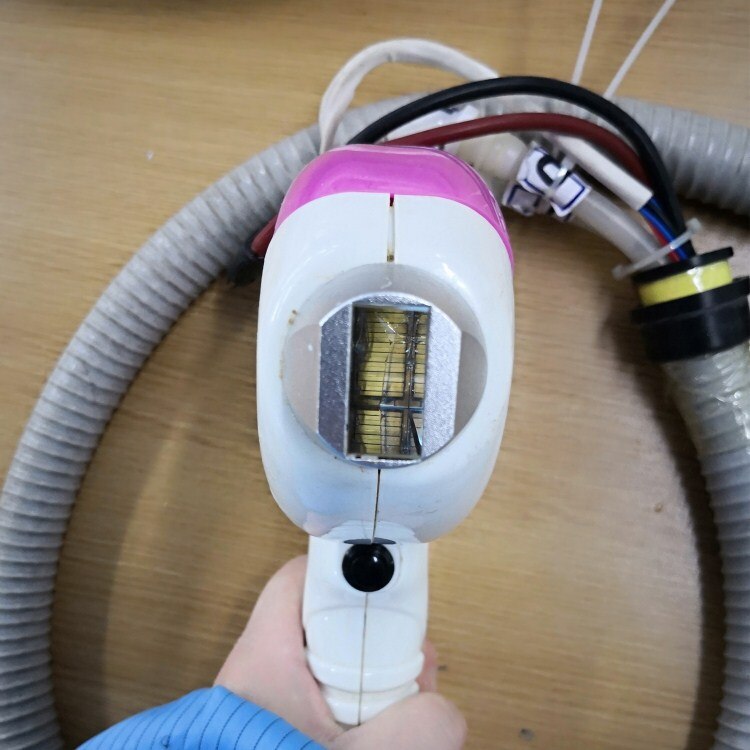

laser hair removal new laser diode 10bars 500w 808nm laser hair removal handpiece repair and refurbish

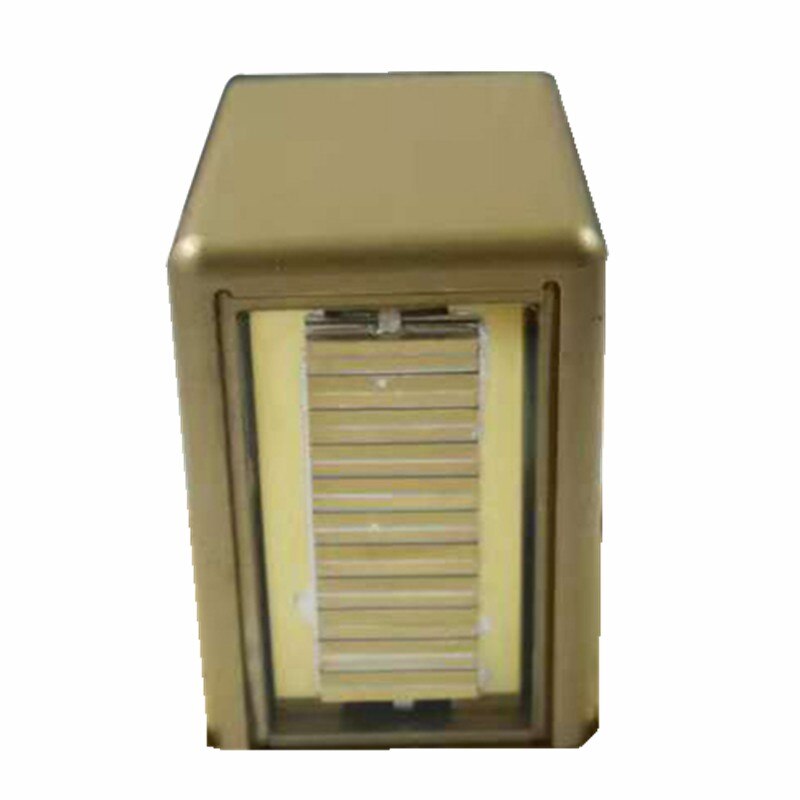

This 10bars 500w 808nm hair removal handpiece model I is made of 10bars laser stack with 500W optic power. The laser bars in this handpiece is VS-MA-50-10 Model C/GTHM-500 without bottom plate.

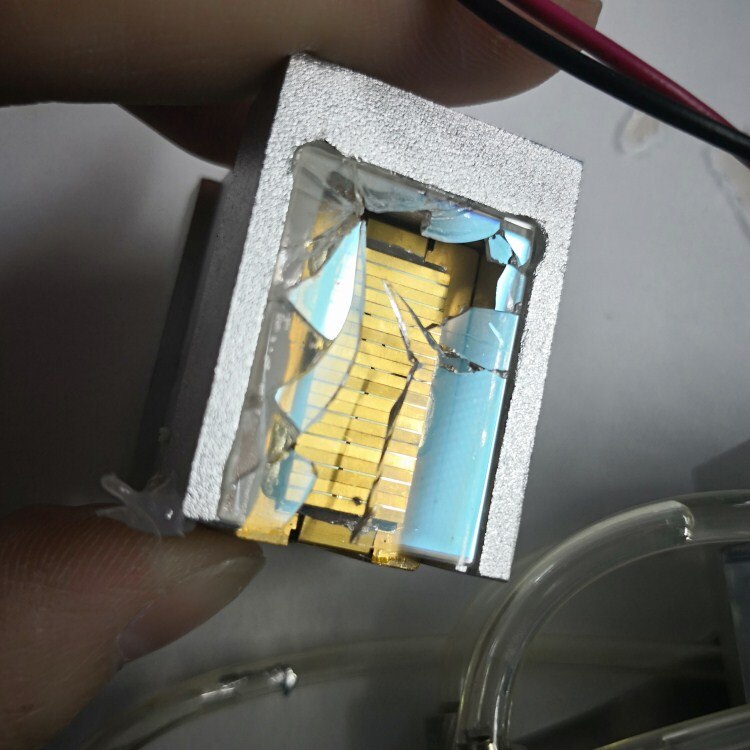

Most of this handpiece will be broken after 1-2 millions shots. then the laser stack which is in it will burt out.

We remove the old burnt bar and replace with new bar. After that, the handpiece will become as a new one.

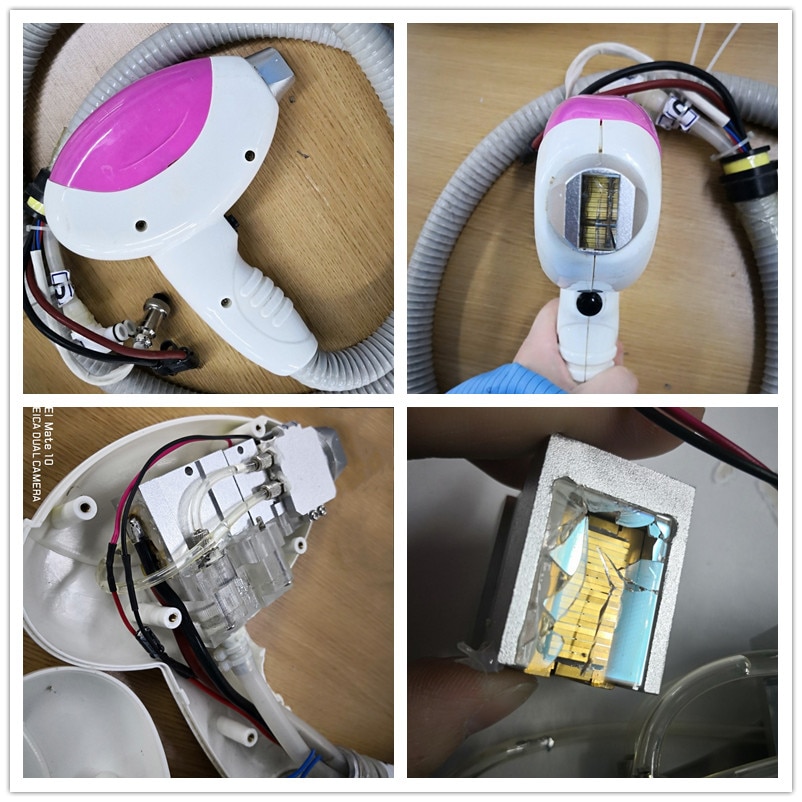

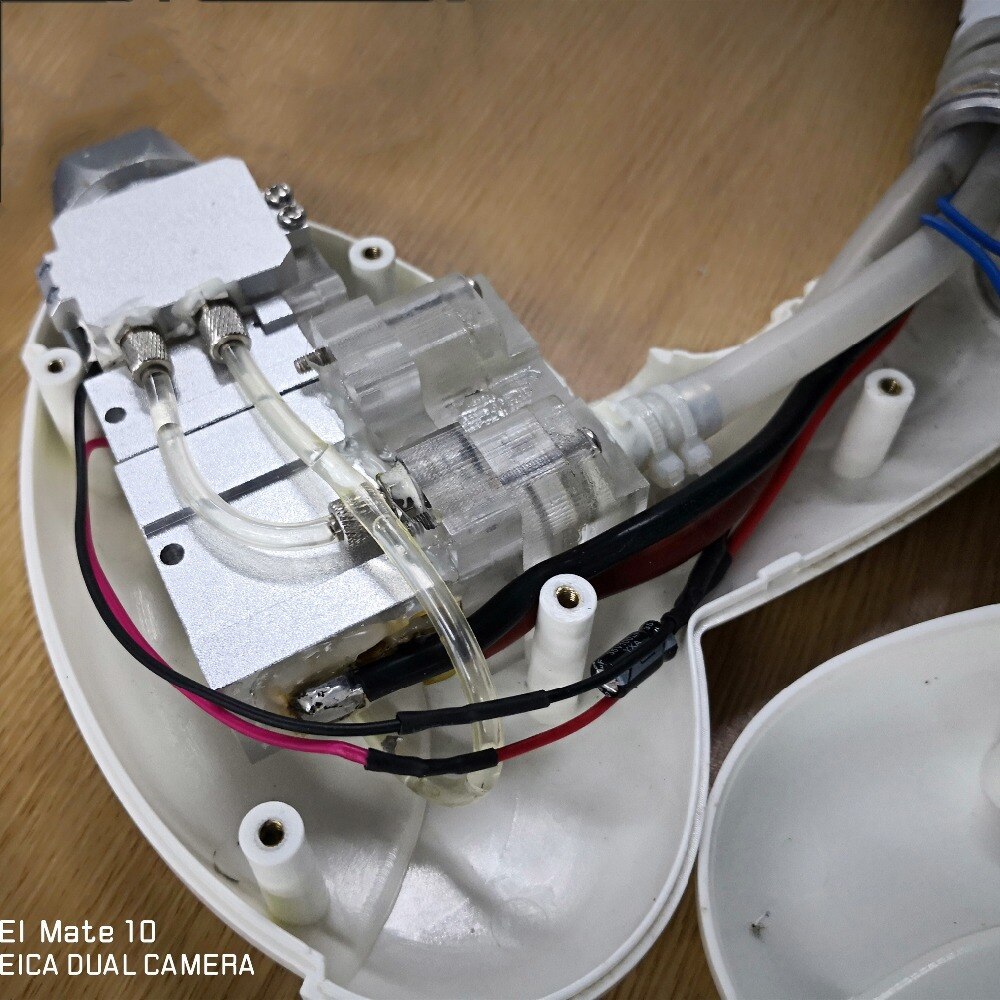

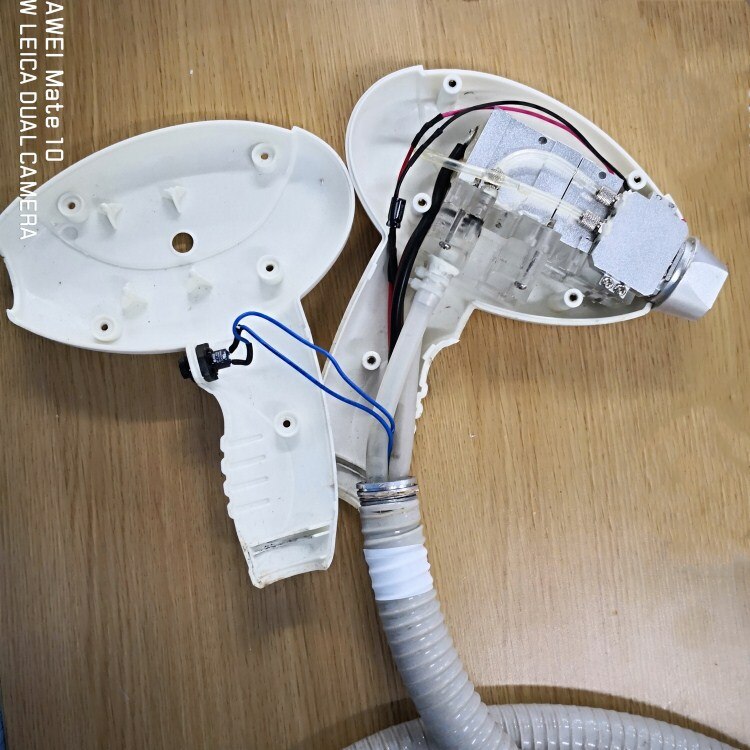

laser hair removal handle Repairing procedure

>Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.

>Choice B:  if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.

>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old handpiece.

laser hair removal handle Repairing Advantages

>Save Money. Replace the broken diode stack only. Low cost and convenient

>Long lifetime.  we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. lifetime is much longer than before

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.

808nm laser diode Specification

Model No	808 handpiece model I repair only
Application	808nm diode laser hair removal machine which is made in china
Operation Mode	CW
Optic Power per handpiece	500W
Optic Power per submounts	50W
Number of submounts in one stack	10bars
Maximum Operating current	50A
Typical Operation current	40A
Typical Threshold current	15A
Number of submounts in one stack	808 ± 5nm
Maximum Operating Voltage	<20V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Expected lifetime	10 millions shots
Typical pitch per bar	2mm
Cooling
Flow rate	3.6L/min +-10%
Water Temperature	25+-3°C
Water Quality	Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
cooling system	Do not use any material that combination with copper would form galvanic elements

We will use total new laser diode to repair your broken laser hair removal handpiece
