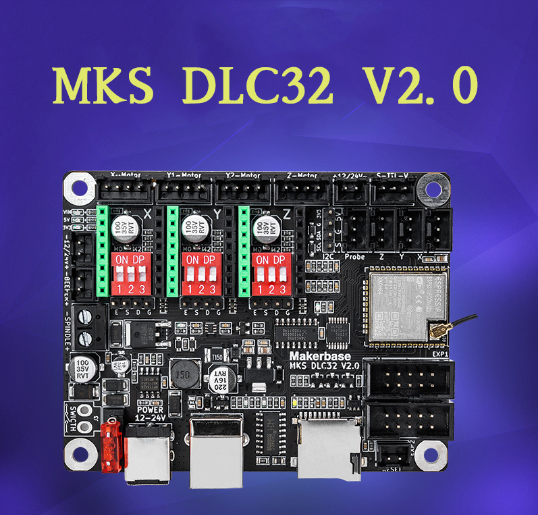

• Model Number: MKS DLC32 V2.0
• Laser Engraver Motherboard
• MKS DLC32 V2.0
• 32Bit Control Board
• Laser Module

MKS DLC32 Mainboard Offline Controller 32bits ESP32 WIFI for Engraving Machine
Features: 100% brand new and high quality

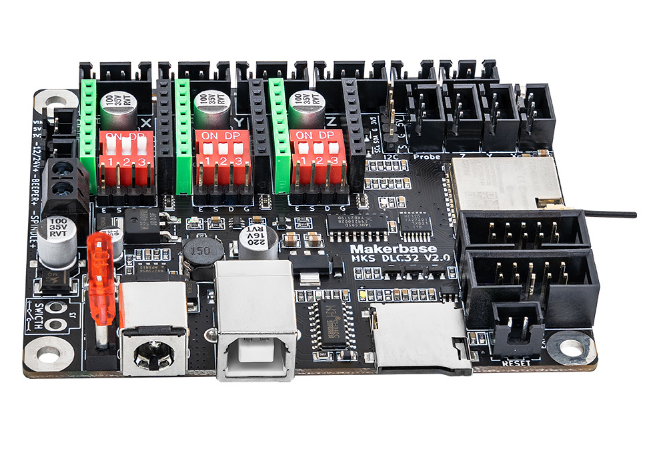

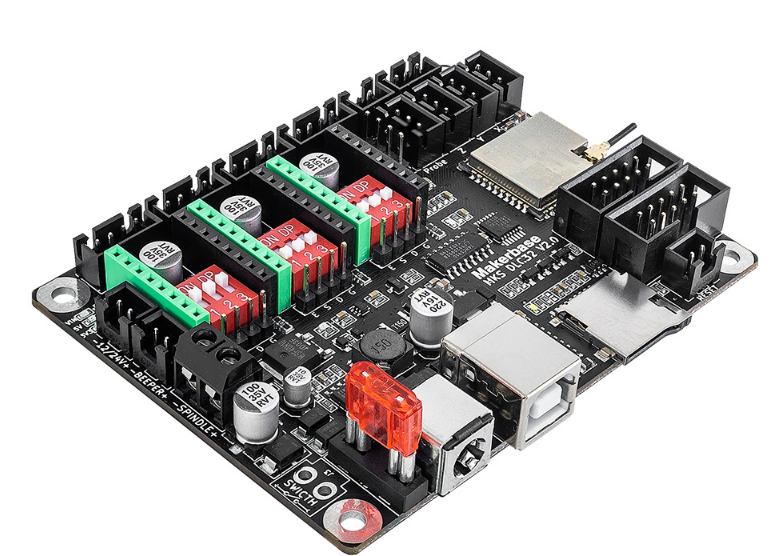

MKS DLC32 motherboard kit, is an offline engraving master control kit developed for desktop engraving machine.

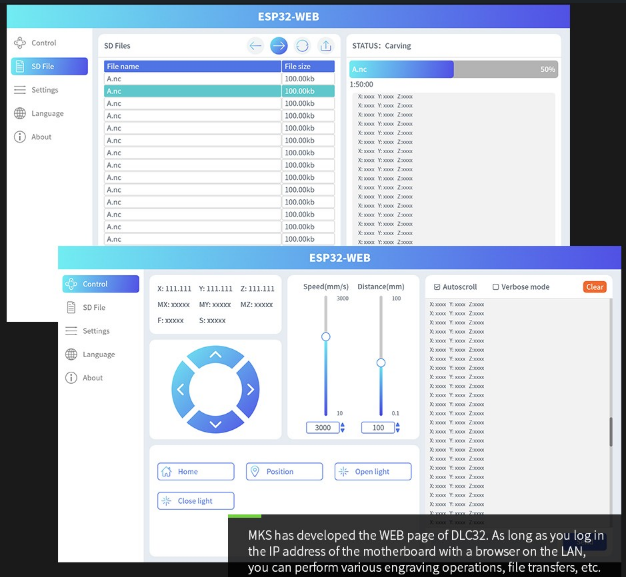

The hardware is equipped with 32 bit high-speed ESP32 module, integrated WIFI function, and directly drives a 3.5in touch color screen.

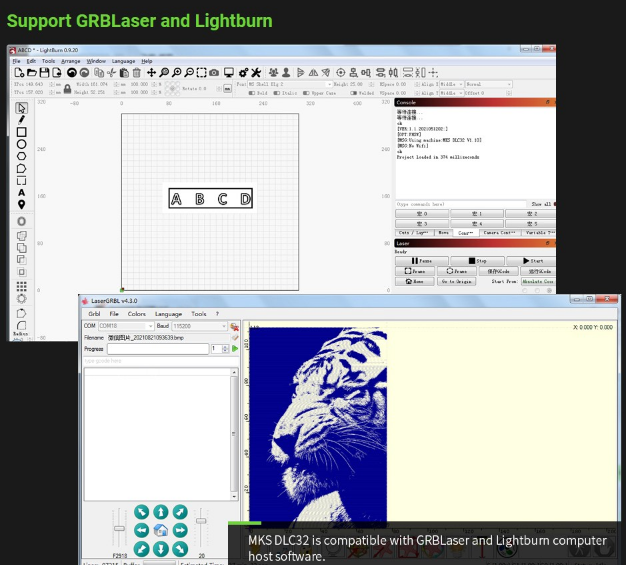

The mounting holes and board size of MKS DLC32 are conpatible with MKS Dlc and it can also used with GRBlaser and Lightburn PC software.
Available to adjust the power, movement speed and engraving speed.
Border preview; Super grayscale carving function.
Precise positioning and high precision carving. Repeatable circular engraving

Specification: Size: approx 9x7cm/3.54×2.75in
Material：PCB
Module：ESP32-Wroom-32U（8M Flash）
Flash Memory: 8192Kybts
RAM-: 520Kbytes
MCU: Dual Core 32 Bit
Chipset : ESP32-D0WD-V3
Stepper Driver: A4988
Aolt:12V-24V
Machine Available：for Laser- Engraving Machine
Optional Package :Type A DLC32 Controller Board / Type A DLC32 Controller Cover Case

Package Includes: Type A: 1PC x DLC32 Controller Board
Type B: 1PC x DLC32 Controller Cover Case (Only Case)
