Main Feature:

●Upgraded High-Performance Fixed-Focus Laser:
No need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, Compared with ATOM STACK A5 laser, the laser power of up to 5W can cut thick wood, acrylic and rubber materials; at the same time, it’s able to engrave stainless steel and ceramic materials(Should be painted black).
●Wide Compatibility:
The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support IOS system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
●Precise Scale Lines Axis:
There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
●Integrated Stepper motor And Shaft:
The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser movement more precise and the coupling more durabl
●New Eye Protection Design:
Can watch laser engraving without wearing goggles.
●Solid And Easy Installation Structure Design:
Quick Assembly, generally be completed within 10-20 minutes.

Product Description:

Item model number: ATOMSTACK A5 20W
Print Size: Recommend Print Size 410*400mm
Carving Objects:All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal,ceramics（Should be painted black）
Cutting Objects:Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Laser power: 20W
Laser output power: 4.5-5W
Working time:1000 hours
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Equipment net weight: 4.0kg
Package weight: 5.6kg
Equipment size: 570*600*270mm
Packing size: 618*342*129mm
Certification: CE FCC RoHS FDA

A5 20W Machine Package:

1 × X-axis assembly
2 × Section 57CM
2 × Section 48CM
1 × control box
3 × support legs
1 × Goggles
1 × laser
1 × 24V2A power adapter
1 × power cord
1 × USB cable
Step 1~5 installation package
1 × M5 wrench
10 × rolled belt
3 × small wood
1 × focal length film
1 × M3 wrench
1 × marker
1 × brush
3 × small acrylic

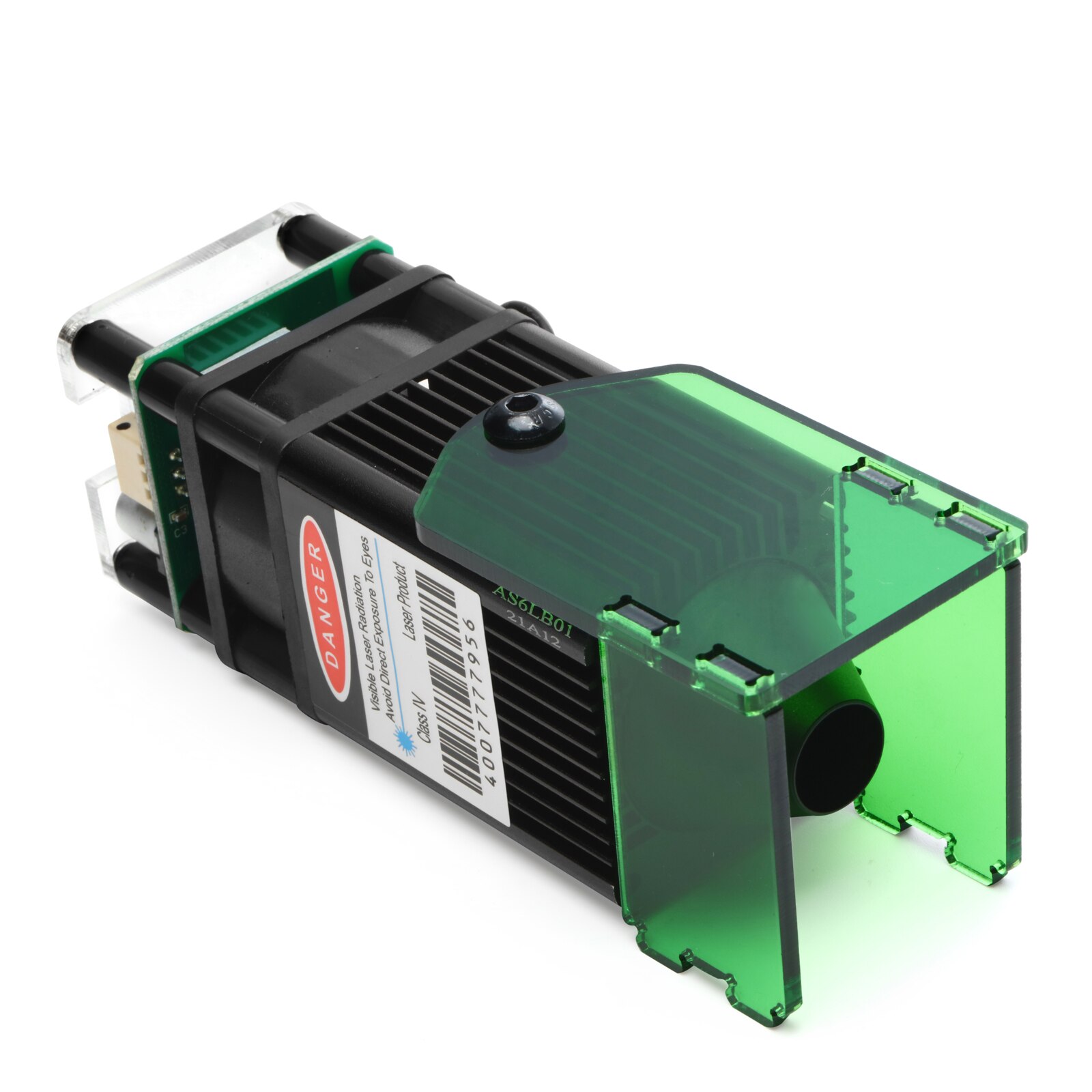

Module Specification:

*Product Parameter
Product Name:450 laser
Product Number:L20
Optical Output Power:4.5-5W
Electric Power:21.8W
Specification Model:40*40*102mm
Housing size:40*40*55mm
Circuit Board:Size:40*40mm
Circuit Board:12V/PWM modulation board
Wire Rod:22# 2P2.54 terminal reverse wire 80mm
Optical Lens:φ10/glass
Fan:12V
Working Time:1000h
Working Temperature:0℃~70℃
Storage Temperature:-40℃~85℃
Product Material:Aluminum 6061 anode/copper H59
Product Net Weight:203g

Package Included:

1 X Laser Module

Note:
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
