Description

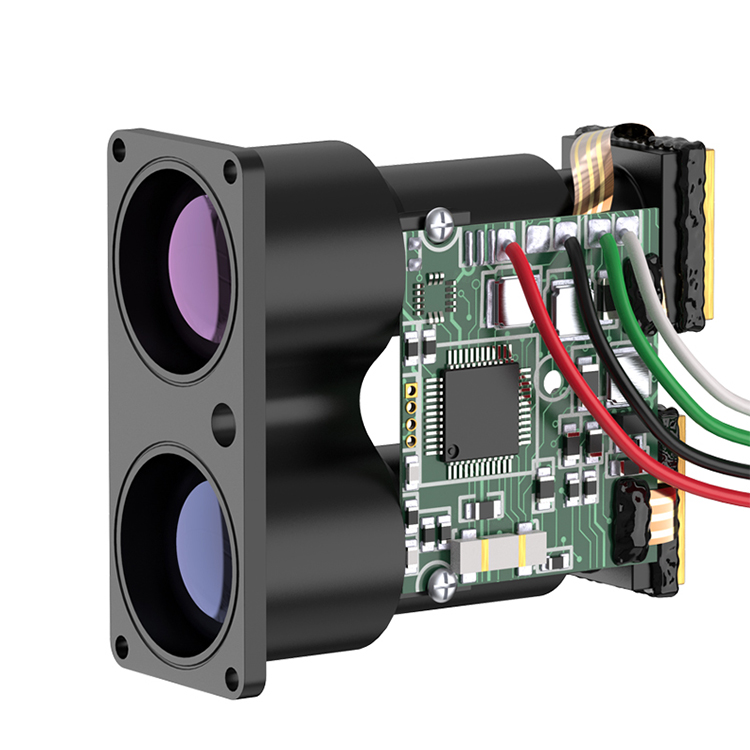

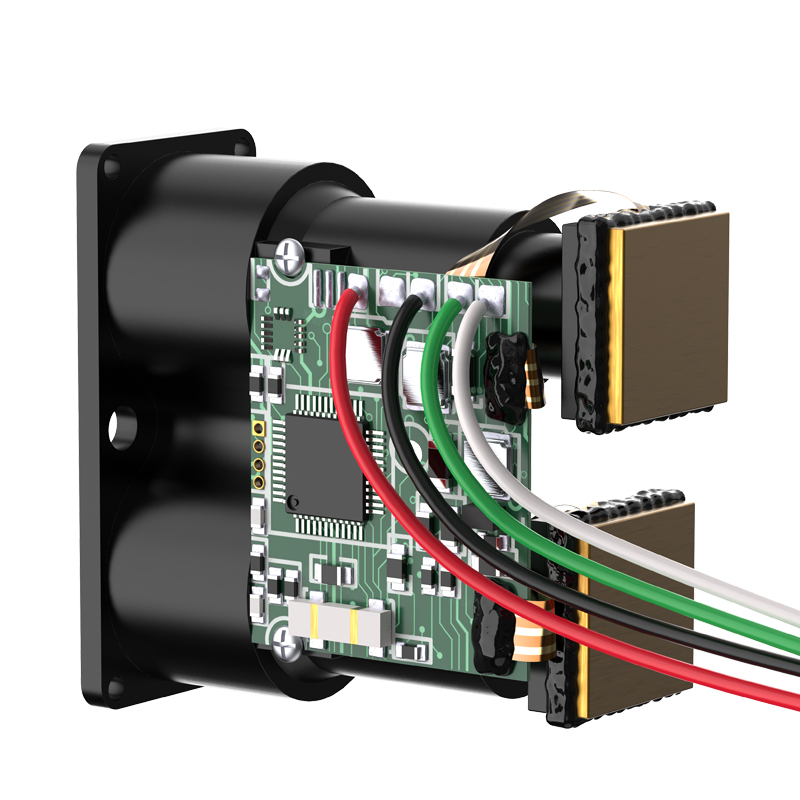

Laser distance module Measuring sensor UART TTL RS232 RS485 LRF Distance laser rangefinder module
- Brand Name: HKNA
- Certification: CE
- Warranty: 1 year
- Customized support: OEM, ODM
- Place of Origin: Tianjin, China
- Brand Name: Nohawk
- Model Number: NV7

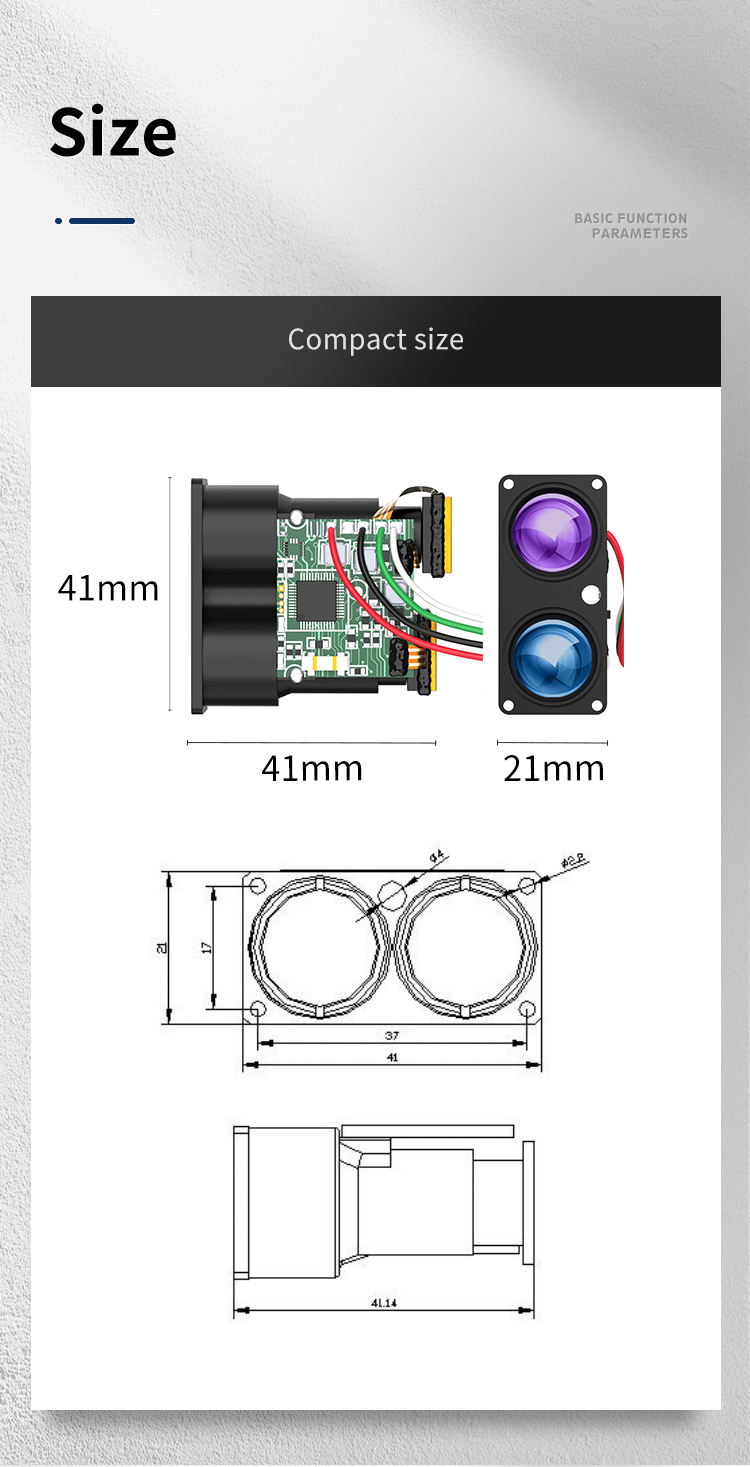

- Size: 41x21x41mm

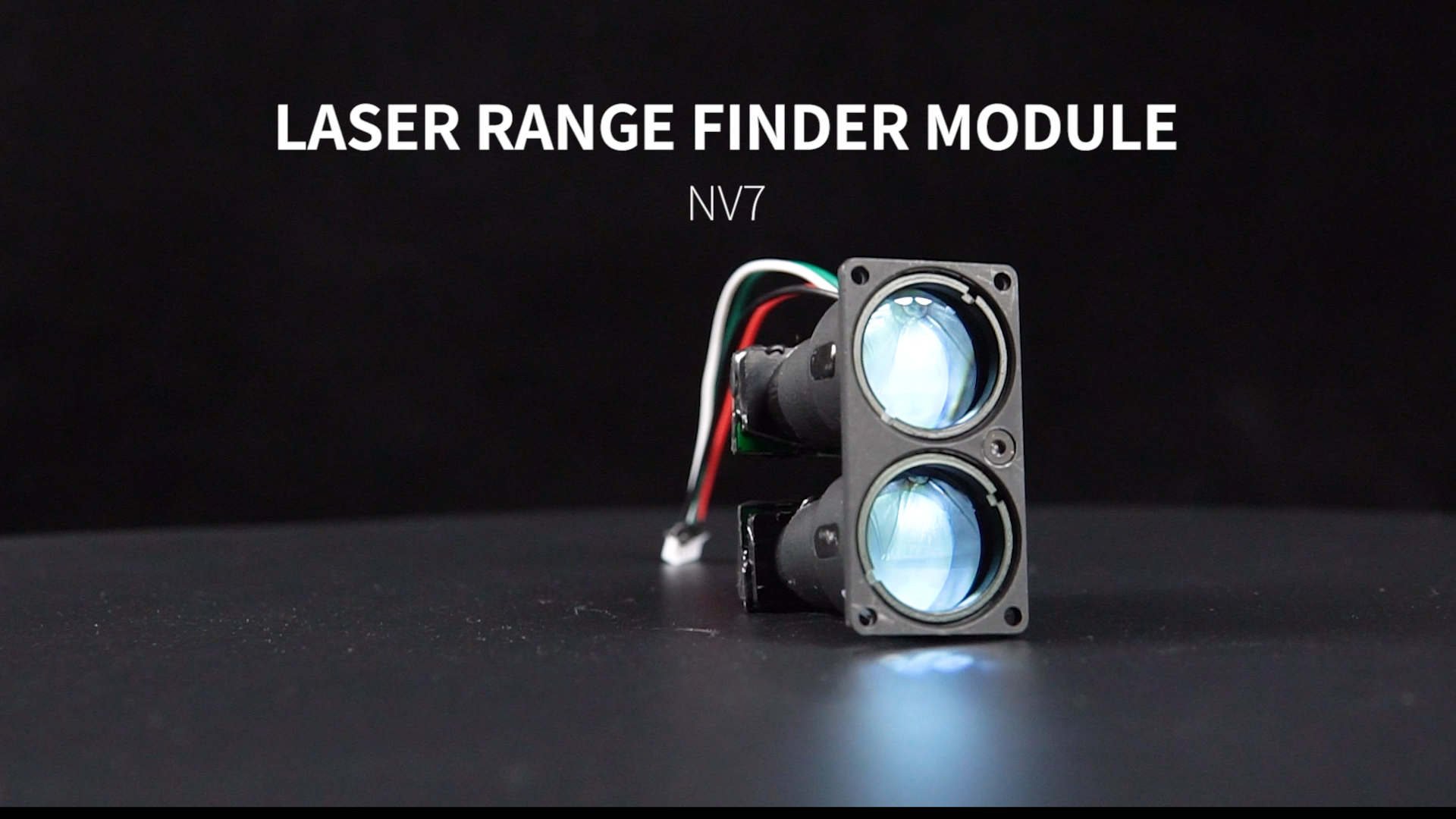

- Product Name: Laser Rangefinder Module
- Laser Type: LD (Laser Diode)
- Laser Wavelength: 905 nm/900-908 nm
- Ranging Resolution: 0.1m
- Power Supply: 3.3V±0.3V (Standard)
- Control Mode: Instruction set (standard)
- Communication Interface: UART (TTL 3.3V Standard)
- Laser Beams Divergence Angle: 4 mrad
- UART Baud: 9600 bps
- Weight: 38g±5g (42g±5g with Indicating Laser)
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:28px;padding:5px 10px;width:125px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:28px;padding:5px 10px;width:121px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-4{min-height:28px;padding:5px 10px;width:199px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:209px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{font-size:13px}#detail_decorate_root .magic-11{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-12{margin-bottom:0}#detail_decorate_root .magic-13{position:relative;width:100%}#detail_decorate_root .magic-14{margin-bottom:10px;overflow:hidden}

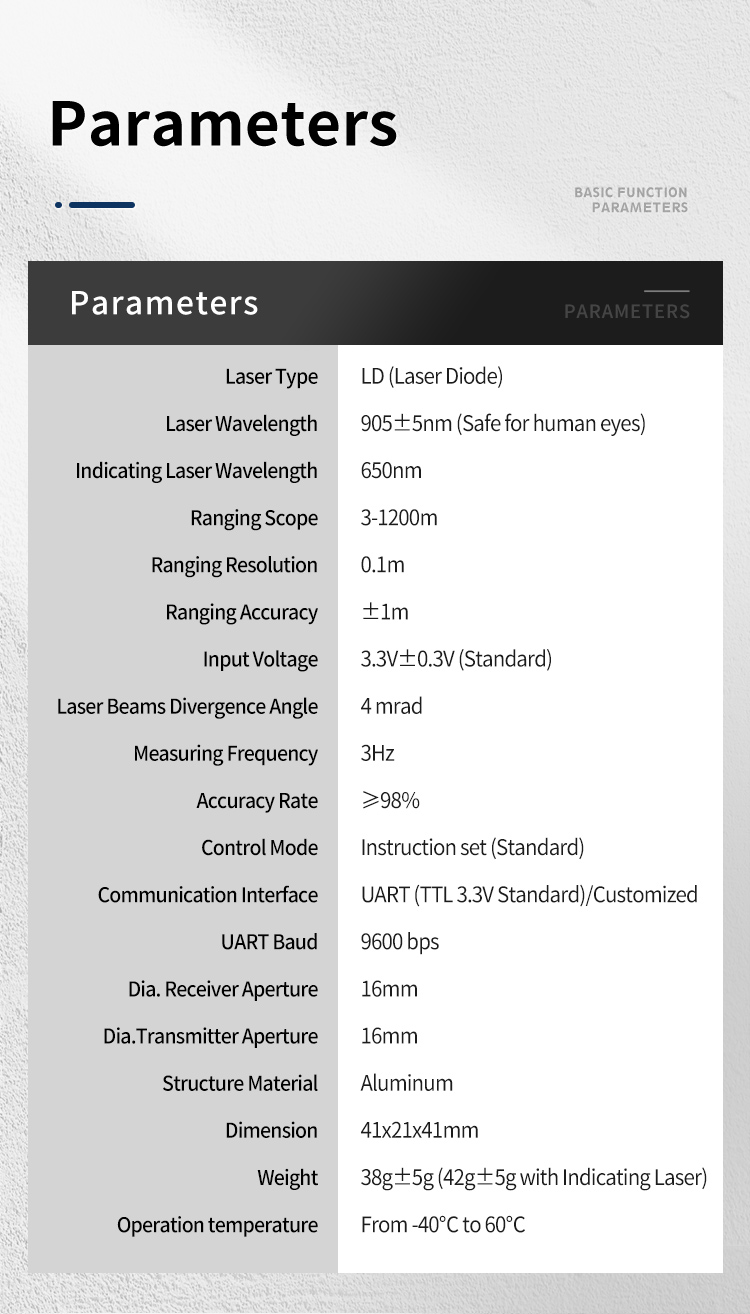

Specification
Product name
|
Laser Rangefinder sensor/Module
|
Ranging Accuracy
|
±1m
|
Model
|
NV7
|
Input Voltage
|
3.3V±0.3V (Standard)
|
Laser Type
|
LD (Laser Diode)
|
Laser Beams Divergence Angle
|
4 mrad
|
Laser Wavelength
|
905±5nm (Safe for human eyes)
|
Communication Interface
|
UART (TTL 3.3V Standard)/Customized
|
Indicating Laser Wavelength
|
650nm
|
UART Baud
|
9600 bps
|
Ranging Scope
|
3-600/800/1000/1200m
|
Dia.Transmitter Aperture
|
16mm
|
Ranging Resolution
|
0.1m
|
Weight
|
38g±5g (42g±5g with Indicating Laser)
|
Product Description

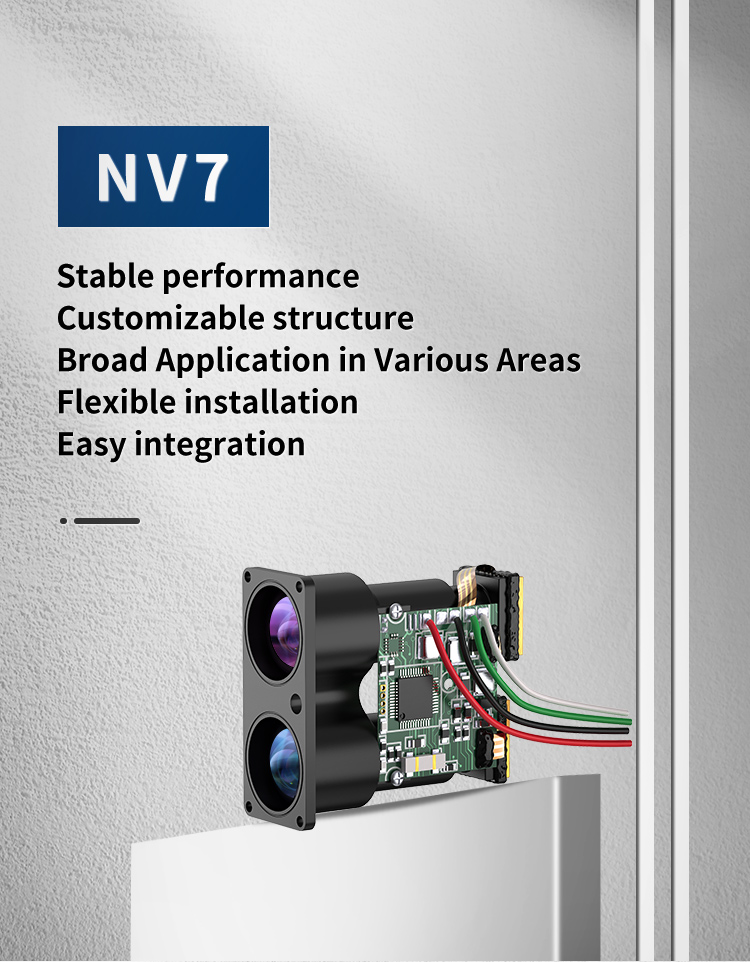

1. Features: Stable performance Broad Application in Various Areas Flexible installation Easy integration 2. Application: UAV/Night vision/Thermal imager/Anti-collision system, etc. Various distance measurement cases (Aviation, police, railway, electric power, water conservancy, communication, environment, geology, construction, fire station blasting, agriculture, forestry, outdoor sport etc.) 3. Customized items: a. Indicating Laser b. Ranging Scope c. Communication Interface d. Structure & Photoelectric system
