 laser diode macro channel diode laser  808nm 500w laser hair removal handle spare parts

808nm 500w laser diode handle repair details:

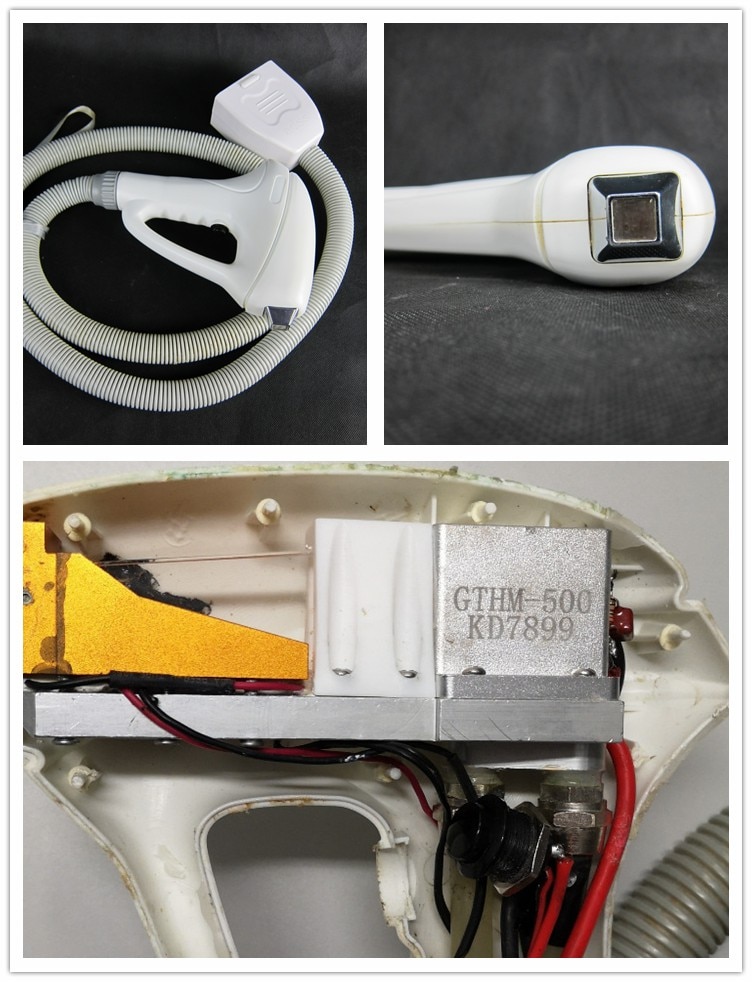

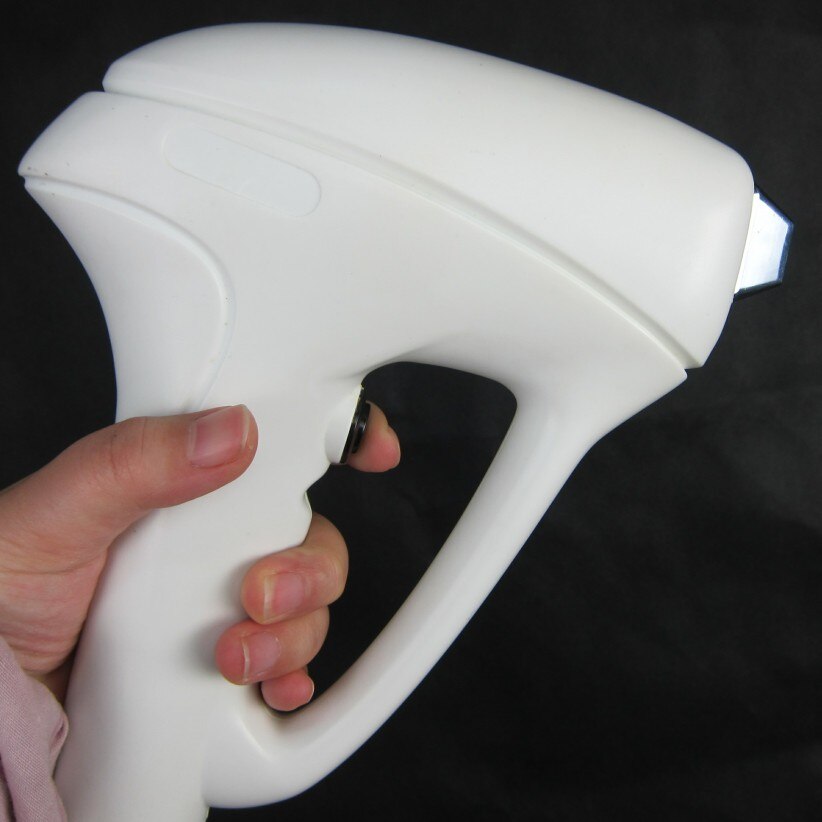

This 808nm macro channel hair removal handle piece model Z is made of 10bars laser stack with 500W optic power. The laser bars in this handle piece is VS-MA-50-10 Model C/GTHM-500 without bottom plate.

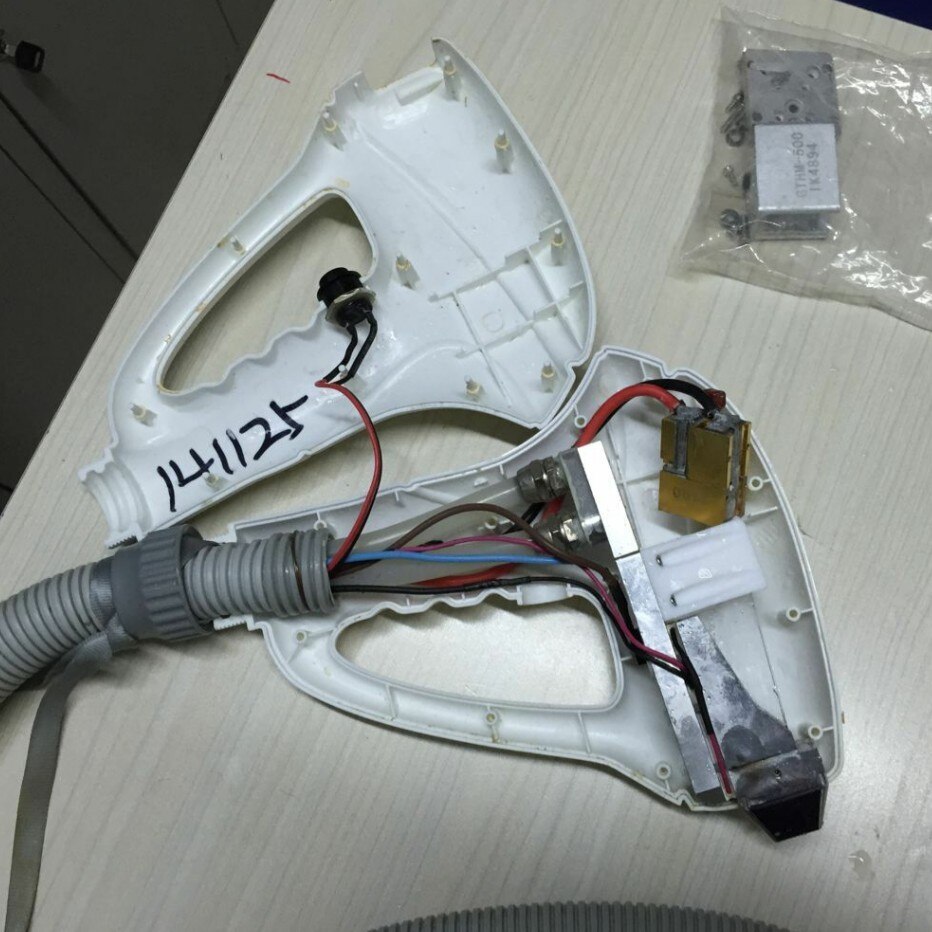

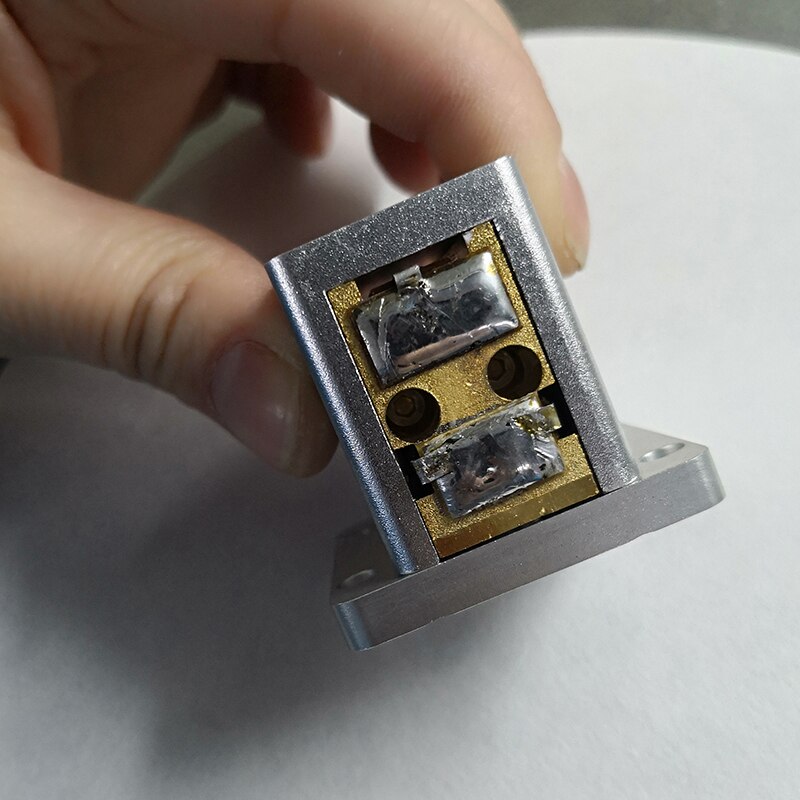

Most of this handpiece will be broken after 1-2 millions shots, then the laser stack in it will burt out. We remove the old burnt bars and replace them with new bars. After that, the handle will become as a new one.

500w macro channel laser handle repair procedure:

Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.

Choice B: if you have basic assambly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.

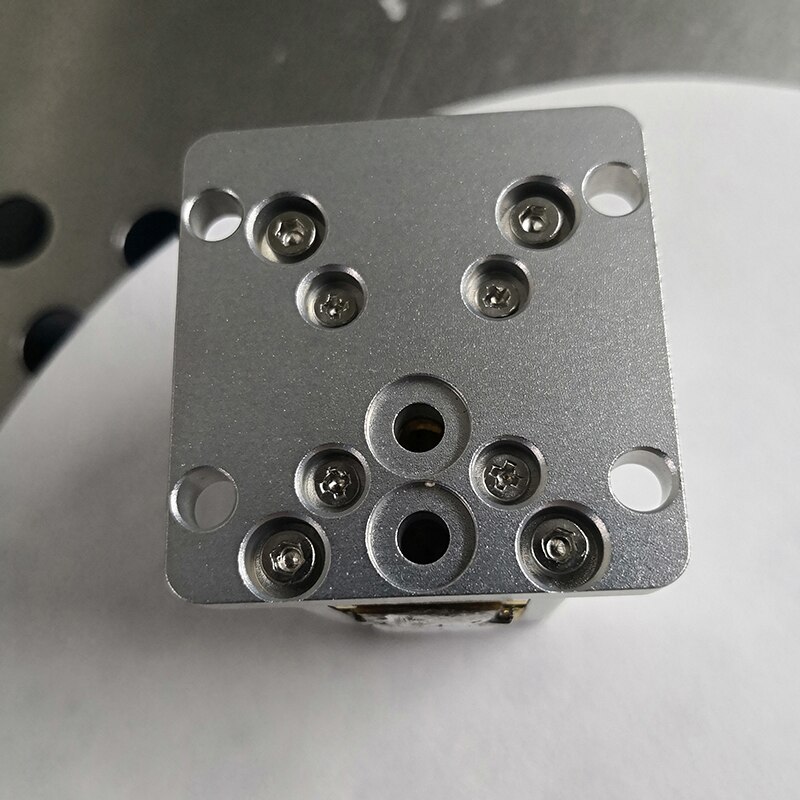

Choice C: Measure your stack and comfrim the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hadnpiece.

Our Advantages of handpiece repairing:

1.The newest Ausn mounting technology will be applied when repairing.

2.Diode laser bars are made in Germany

3.After repair. The handpiece will be as a new one. life time is much longer than before .

4.All technical support of hair removal machine is avaliable. Such as handpiece parts, electonic board, program, cooling and etc.

500w macro channel laser handle Specifications:



Model No.	808nm Diode laser hair removal handpiece model Z
Application	808 laser hair removal handpiece Repair And Replacement
Operation Mode	CW
Power per submounts	50W
Number of submounts in one stack	10bars
Central wavelength at 25℃	808 ± 5nm
Typical Operation current	40A
Maximum Operating current	50A
Typical Threshold current	8A
Maximum Operating Voltage	<20V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Operation Condition	non-condensing atmosphere, cleaning room
Expected lifetime	10 millions shots
Typical pitch per bar	2mm
Cooling requirement
Flow rate	>3.5L/min
Water Temperature	27+-3°C
Water Quality	pure water
cooling system	Do not use any material that combination with copper would form galvanic elements

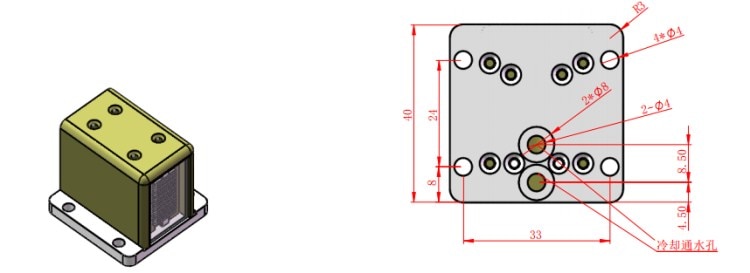

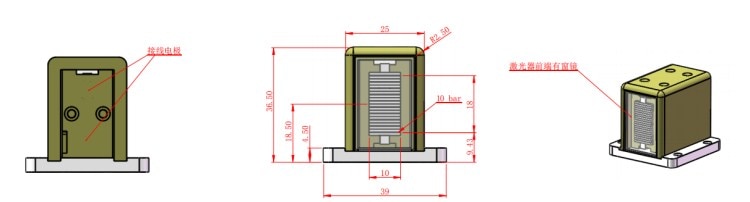

808nm laser diode drawing

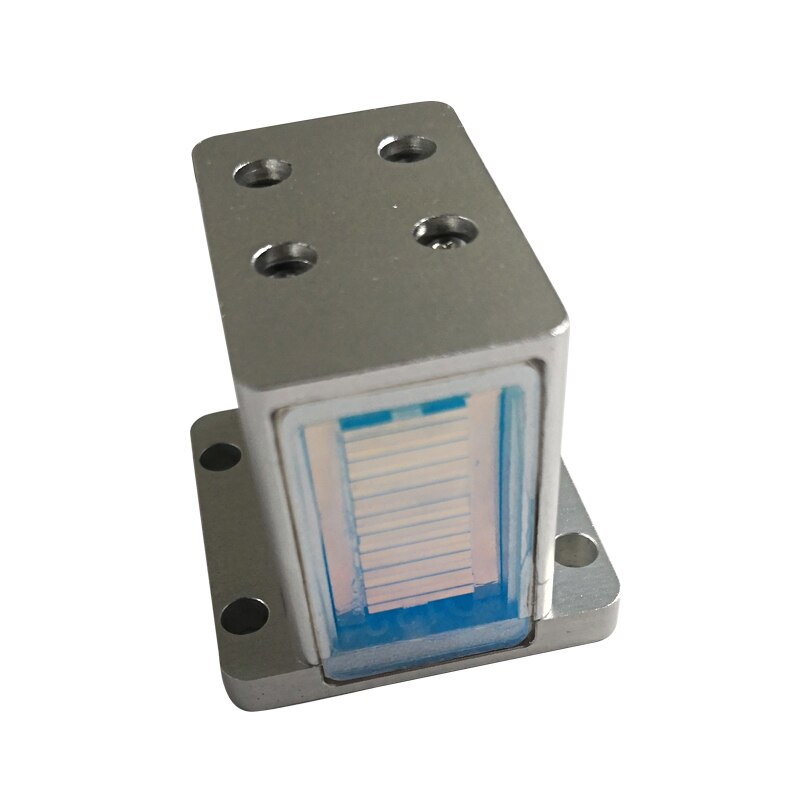

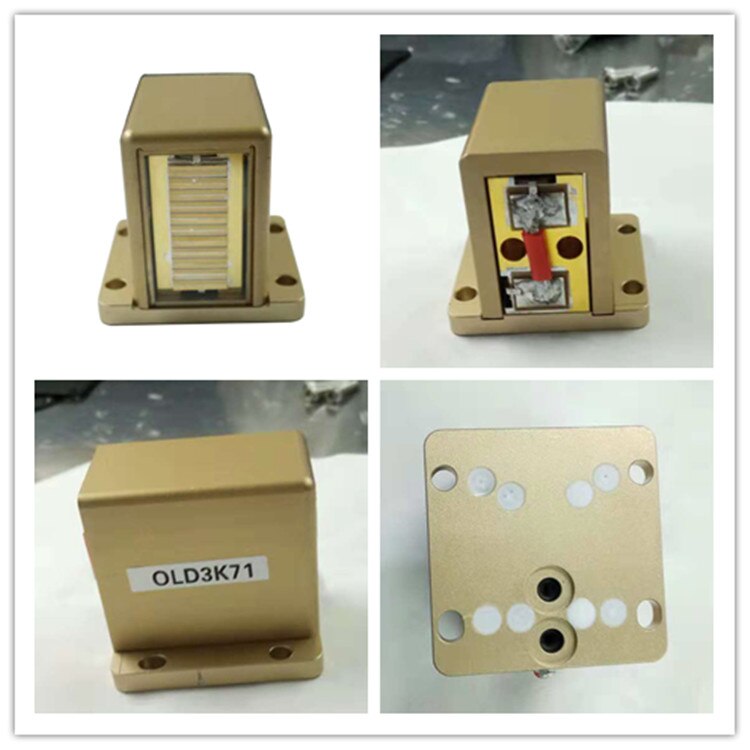

The new 808nm laser diode we use for laser hair removal handle repair:

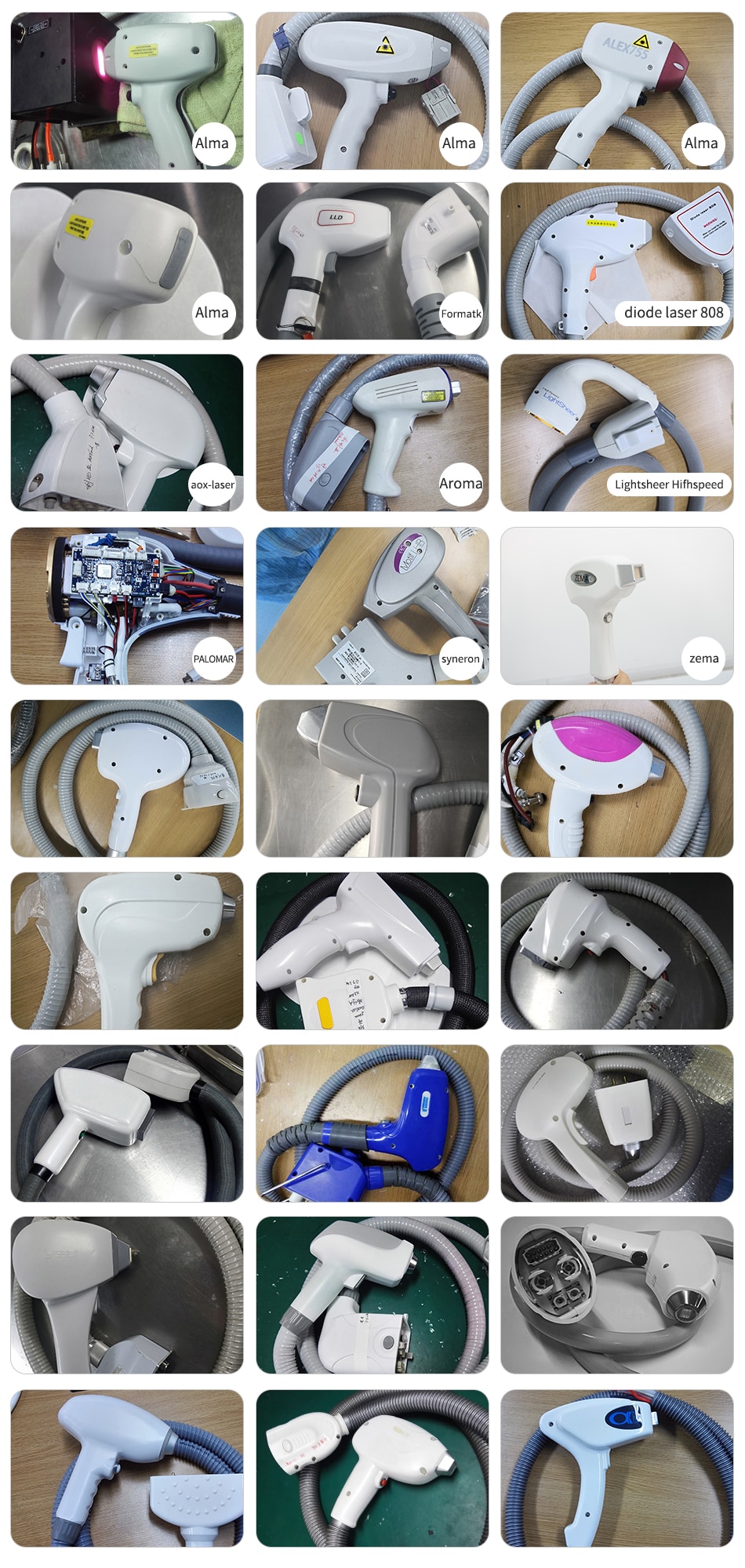

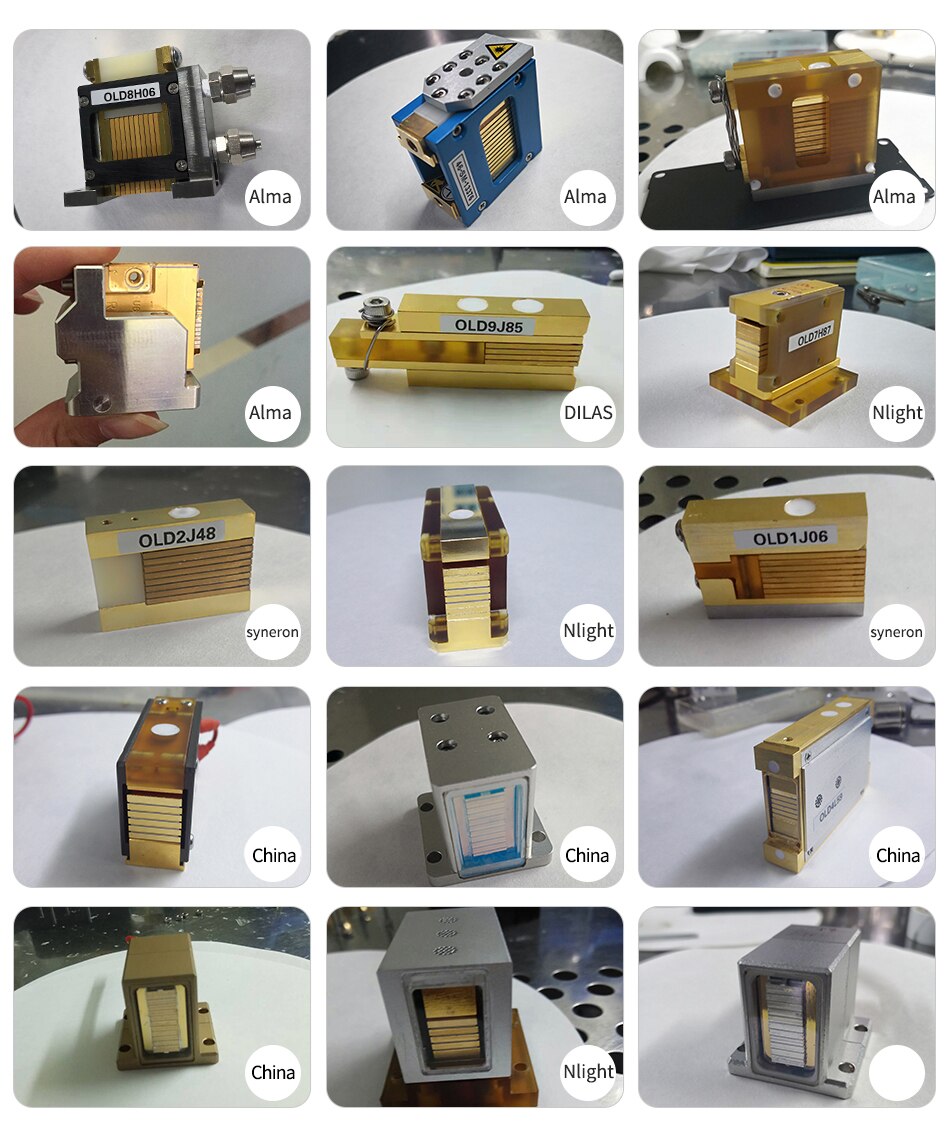

We can repair various brands of diode laser stack and laser handpiece
