Description
Laser Cutting Machine ZBAITU 80W/40W/30W Diode Engraver Wood
- Brand Name: ZBAITU
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Condition: New
- Model Number: M37
- CNC or Not: CNC
- Is Smart Device: YES
- Effect Power: 30W/40W/80W
- Output Optical Power: 5W/5W/10W
- Wavelength: 450nm
- Spot Size: 0.08*0.08mm
- Focal Length: 20~40mm
- Package Size: 64.5X24X13cm
- Machine Weight: 2.9kg
- Package Weight: 4kg
- Support Software: lightBurnlaser GRBL
- Connection Method: USB/WIFI
- 3 Motors: 1*X axis motor; 2*Y axis motors
- Machine Size: 54*50*15cm
- Engraving Area: 37X37cm
- Material: Aluminum Alloy Acrylic
- Offline Printing: YES
- Focus Adjust: NO
ZBAITU is a professional manufacturer that is concerned with the design, development and production of DIY Laser Engraving Cutting Machine.

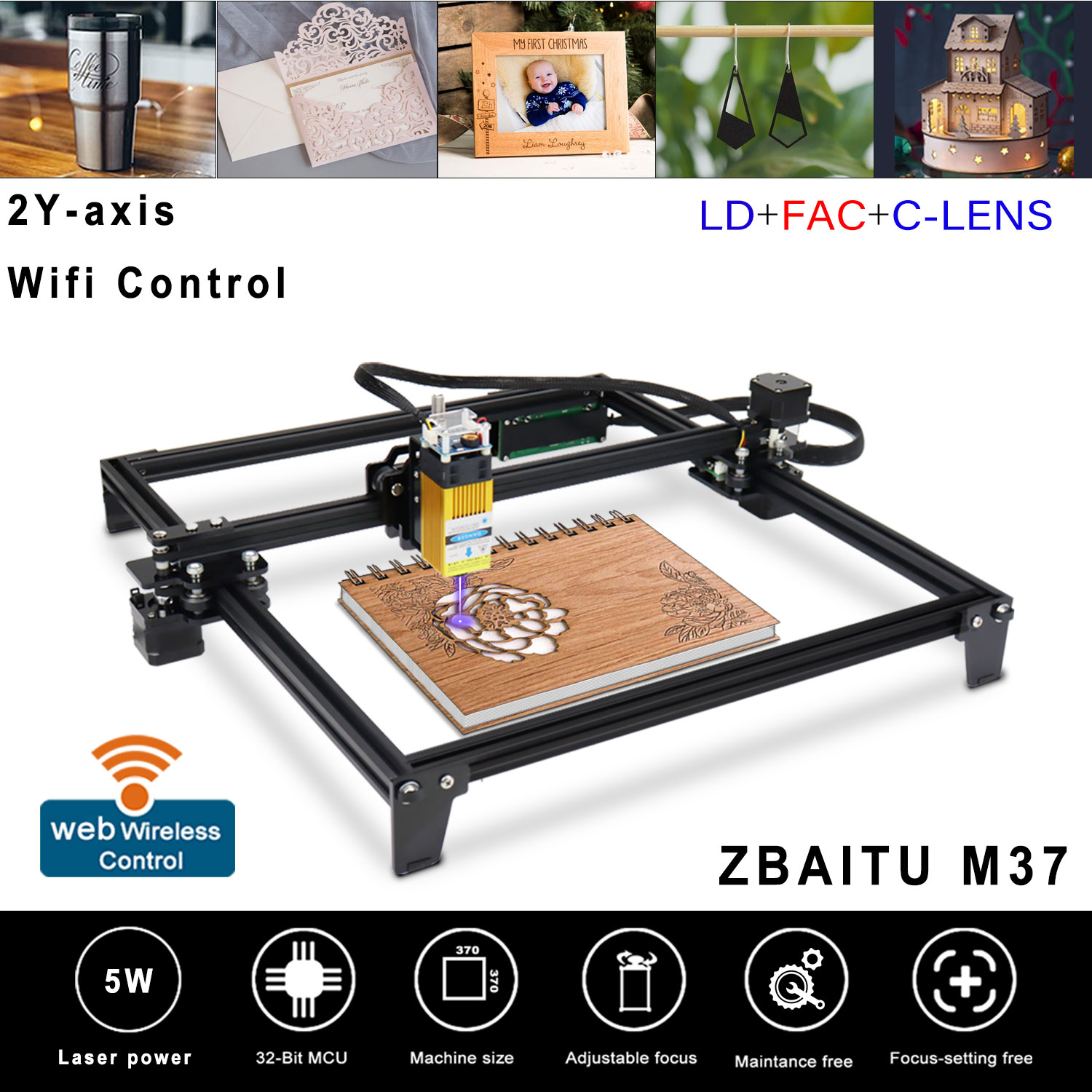

ZBAITU M37 CNC Laser Engraver Cutter Machine with 30W/40W/80W Laser Cutting Engraving Module
Our Laser Engraver Cutter Machines have 1 year warranty, 15 days free return, 24-hours online service!!!!
With FAC Techonolgy & 32-bit MCU
Diode 2 in 1 Technology
Have Protecitve Cover
Come with SD Card for Offline Work
Stable Frame & 2 Y axis Motor for Accurate Engraving
Long Service Life 15000 Hours

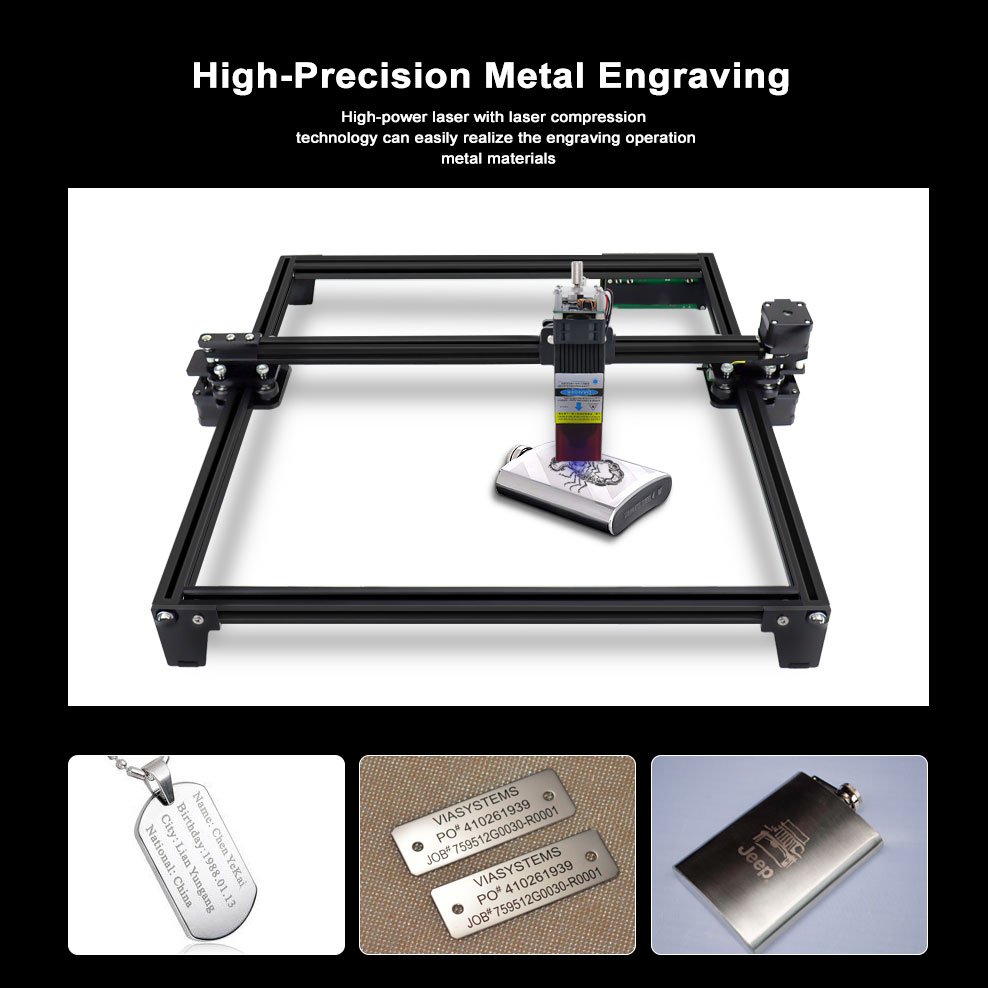

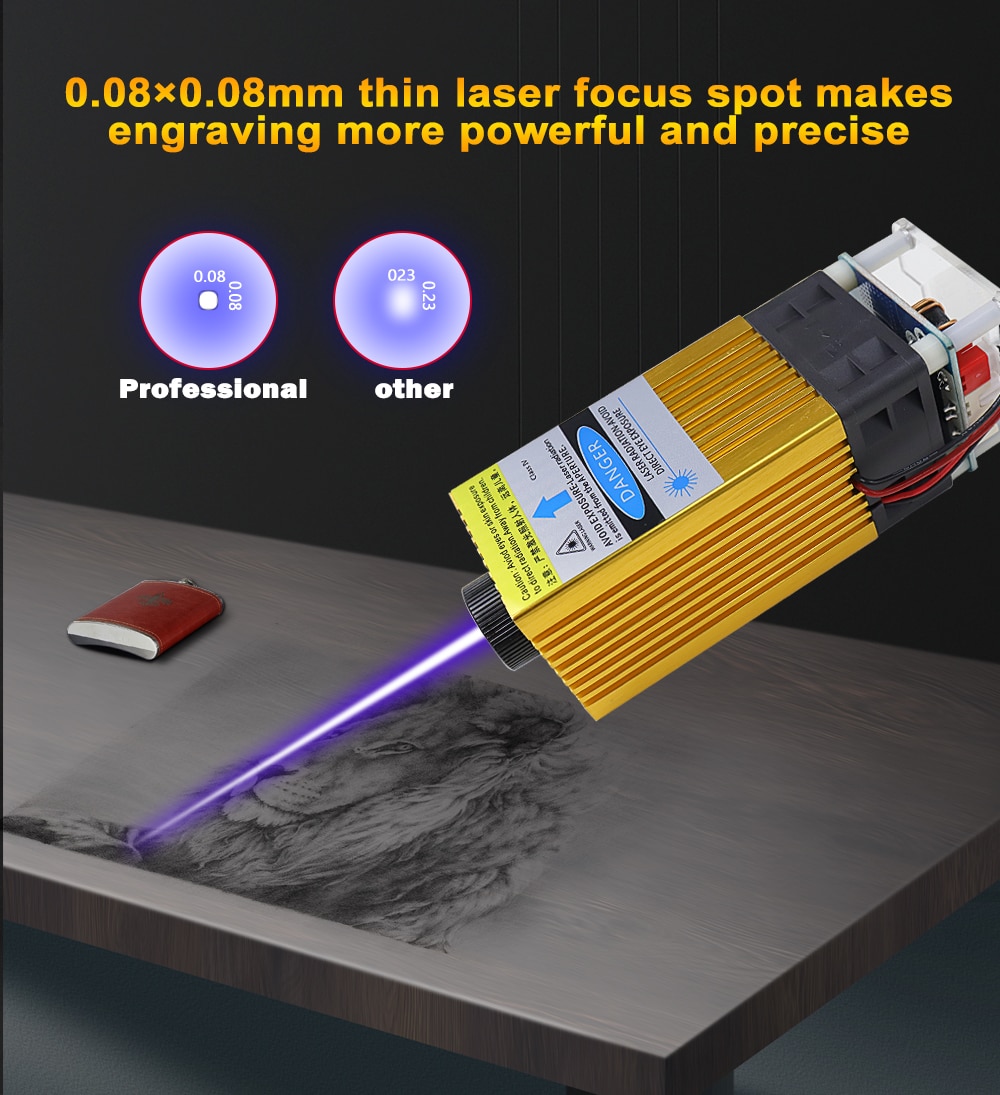

1. Newest Technology, High-energy, Ultra-fine Laser
Laser power can be 5W/10W according to the newest FAC and light refraction technology, the spot size is 0.08*0.08mm, can cut 5mm colorful acrylic & 8mm plywood, clearly engrave metal, ceramic, glass, stainless steel and so on.
2. Support Offline Working
Support SD card offine working is our engineer’s patent, drag file to the SD card, the machine start to work, then you can close the computer or cellphone, no worry about breaking off connection.
3. Solid & Easy Installation Structure
The full-metal frame design makes the machine more solid, it will reduce the vibration when working and improve the accuracy of engraving. The entire structure has been designed for quick assembly ( can generally be completed within 10-20 minutes ).The assembly link is here.
4. Large Engraving Size
The laser machine has large engraving area (37X37cm) can meet your various engraving and cutting needs.
We also have 81X46cm engraving area machine, pls look at our store!
5. Integrated Stepper Motor and Shaft
The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser movement more precise and the coupling more durable, service life can be 15000 hours.
6. Eye Protection Design
The protective cover on the leaer head, can protect your eye when watch the visible magical engraving process.
At the same time, a blower nozzle is added to the protective cover, and the laser blows away the smoke and debris when working, making your engraving work more perfect.

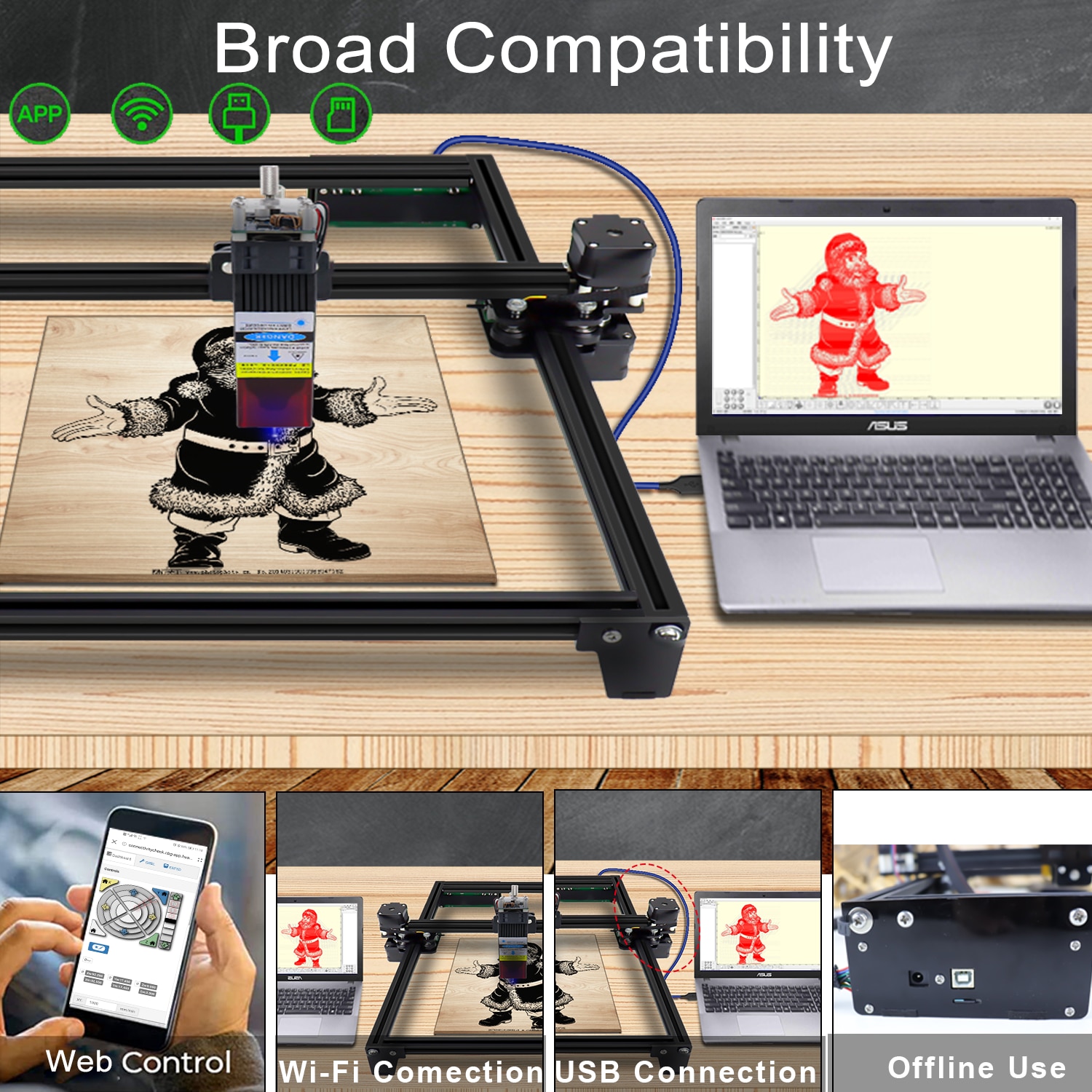

7. Wide Compatibility
The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAC system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

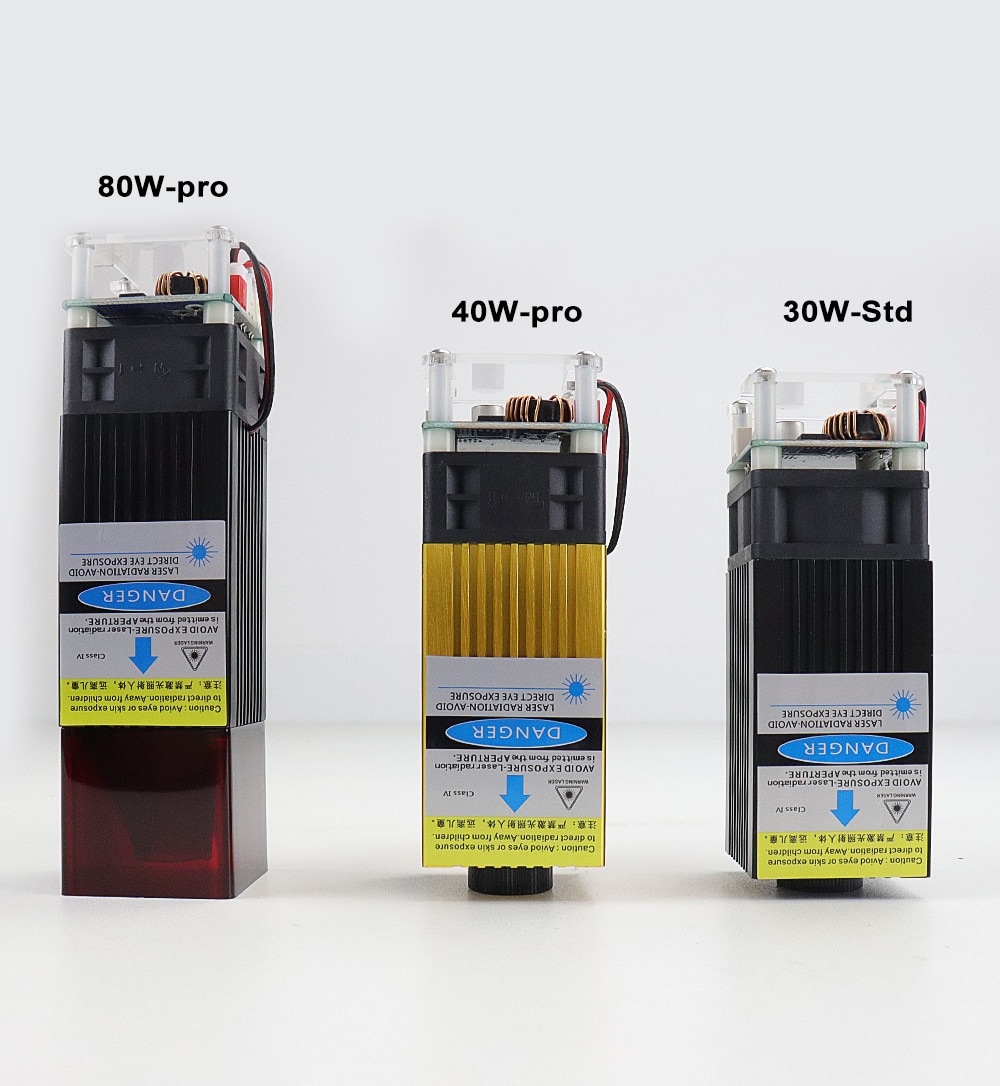

Make the best choice as you need……
30W Module: No FAC technology, price is the lowest, cut 3mm plywood/ black acrylic; carving wood, plastic, paper, bamboo, Ox Horn, leather, Sponge Paper, etc.
40W Module: With FAC technology, the engraving precision is higher, cut 4mm plywood/colorful acrylic; carving wood, plastic, paper, bamboo, Ox Horn, leather, sponge paper, stone, stainless steel, etc.

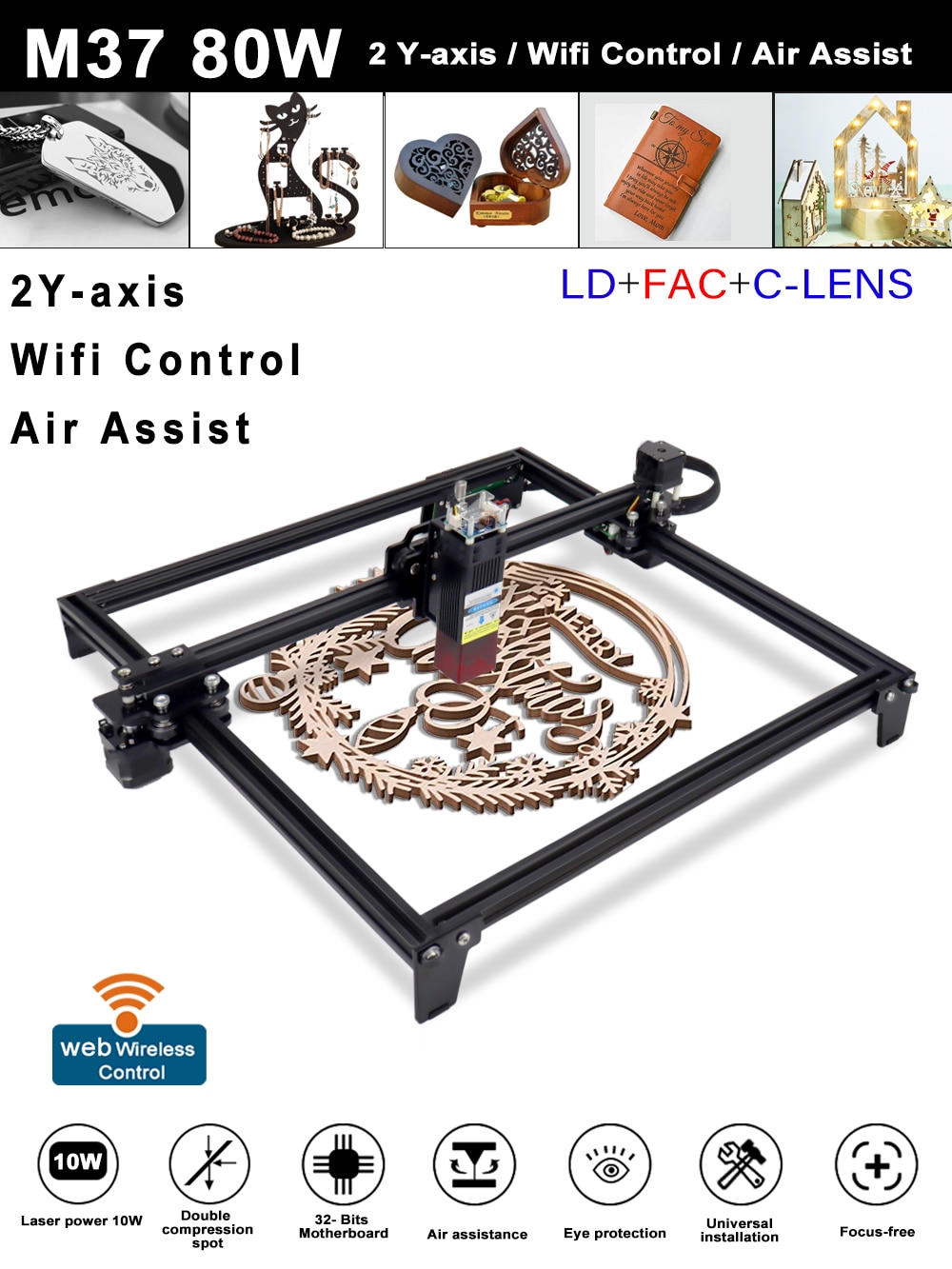

80W Module: With FAC technology & protective cover on the laser head, cut 8mm plywood/colorful acrylic; carving wood, plastic, paper, bamboo, Ox Horn, leather, sponge paper, stone, stainless steel, etc.
Please Note!!!!!
Usually, we shipping out your order within 48 hours by AliExpress Standard Shipping, if you need fast shipping, pls message us with your country and city, We will check and find an economy shiping way for you.
Kindly understand that the Customs Duties is out of our control, if you havedoubt about it, pls check with local customs.
