Description
- Brand Name: annoytools
- Certification: NONE
- Origin: CN(Origin)
- Model Number: 15W/30w/40W

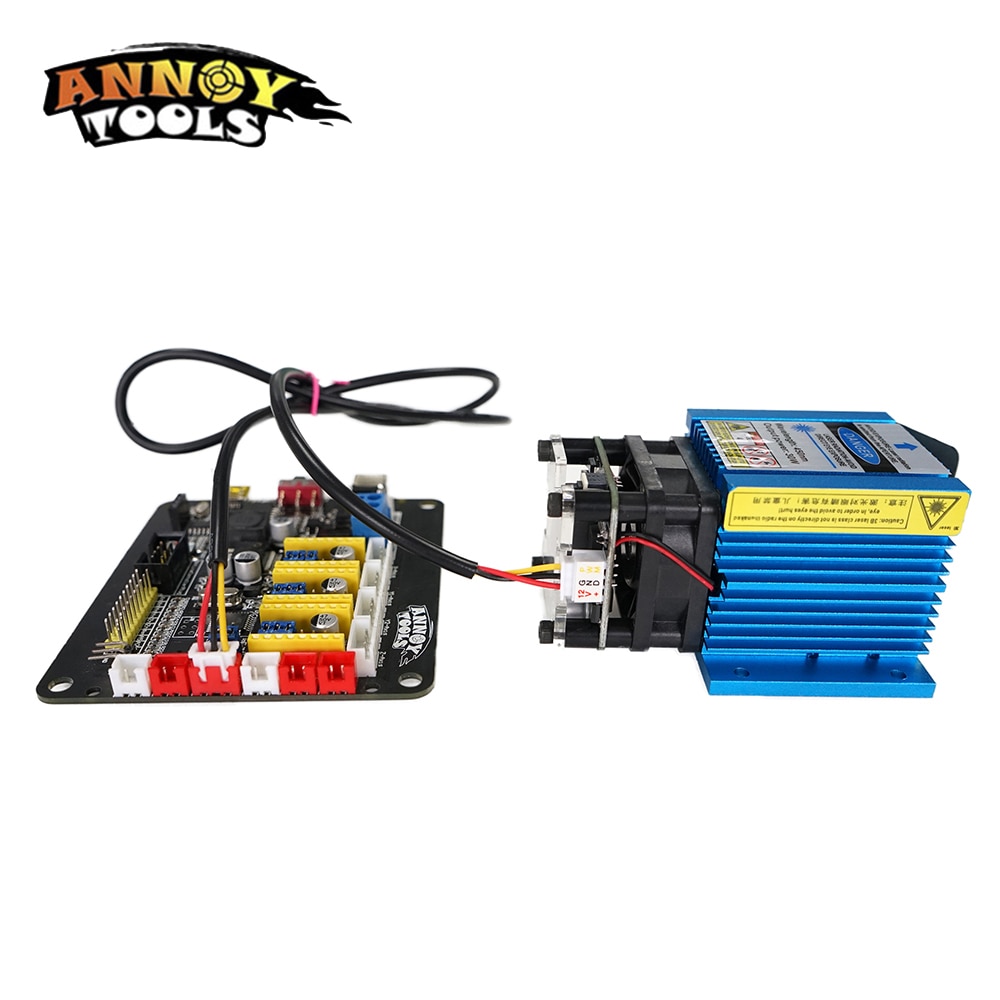

DIY bule laser head 15W/30W/40W with PWM
–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eye, otherwise it willcause permanent blindness, the consequences at your own risk.
–Do not use in flammable and gas atmospheres to avoid fire and explosion
–Prohibit children from exposure to this laser product.
–Do not open the module to avoid damage.
–Can't cut MDF 3mm, only the light wood.

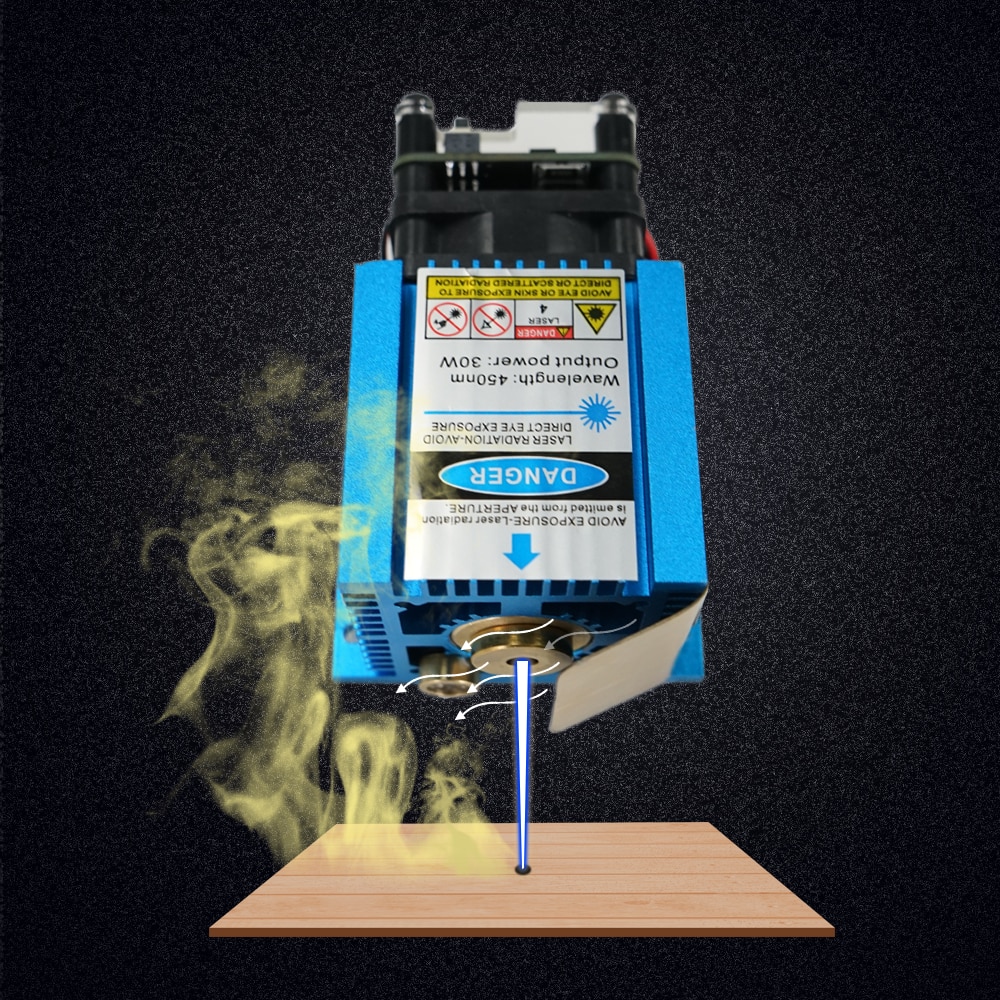

–Cutting: 40W cut 5mm cork wood1pass at speed 100mm/min;black acrylic 3mm1pass at speed 300mm/min
–Engraving: almost all combustible materials, stone, glass,ceramics
–We suggest to engraving on 201 stainless steel ,304 stainless steel ,Titanium steel and anodized aluminum. (It is better to confirm us before make the order)
To dear customer:
The laser can engraving on stainless steel but I suggest the stainless steel is better have coating!
–Laser wavelength: 450 nm (blue viole)
–Spot type: Dotted
–Focus: Fixed focus ( it can not be adjustable)
–Accuracy: 15W(0.3MM)30W/40W(0.08mm)
–Actual output power: 15W is 7W, 30W is 10Wmax, 40W is 15W max(It's said that the laser is 15W, but it has not reach 15w! While I can not fall behind other seller (7W, 10W, 15W) , we write as 15W and 30W/40W!
–Drive mode: external ACC constant current drive
–Cooling method: Forced Air Cooling
–Operating voltage: 12V DC
–power supply: 12V 5A
–Shell material: Aluminum, Surface Anodized
–Module material: Copper
–Life Time:12000hours(Theoretically)
–Working temperature:-40-75Celsius

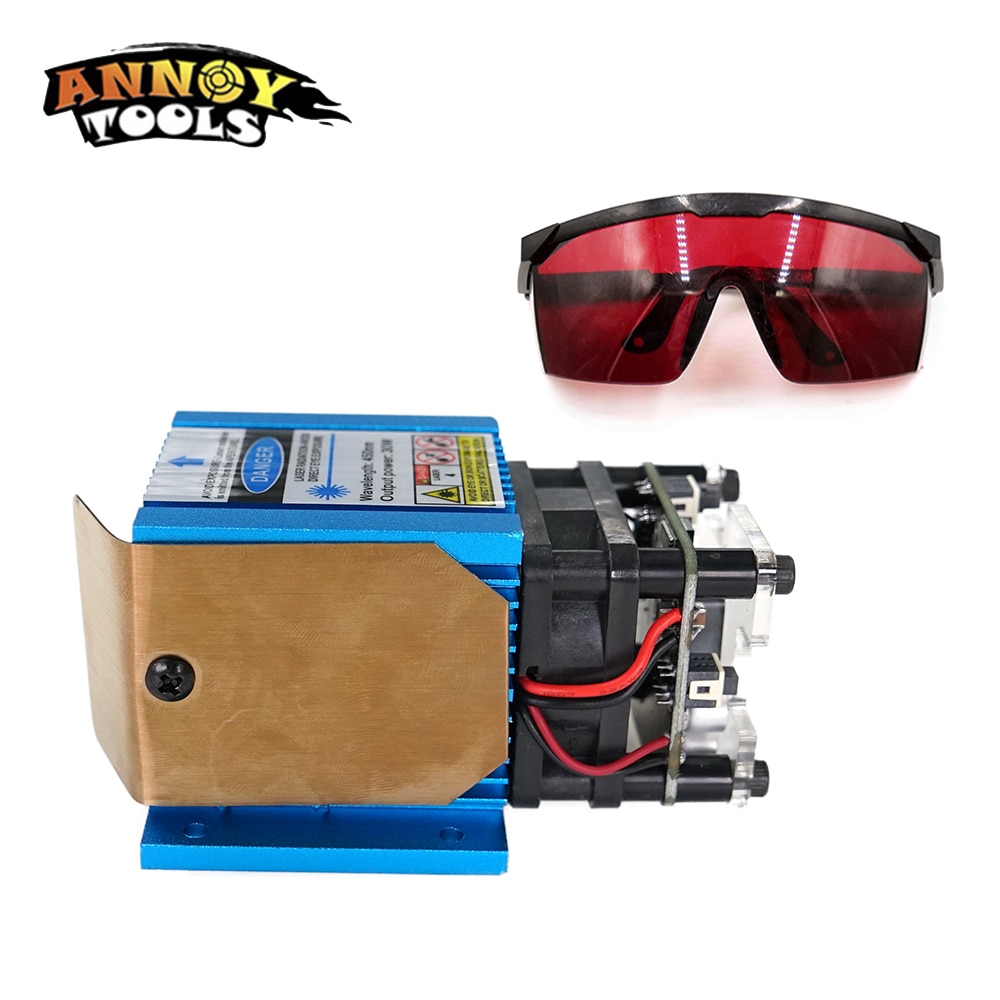

laser module *1
Protection glasses *1
3pin connect cable*1
2pin connect cable*1
Focusing column*1
Laser power: 15W
Actual output power: 8W
Accuracy: 0.3mm
Focus: fixed focus(can not be adjusted)
Voltage: 12V 5A
Function: red light cross position, New cooling mode
Laser Power: 30W
Actual Output Power: 10W MAX
Accuracy: 0.08mm
Focus: fixed focus(can not be adjusted)
Voltage: 12V 5A
Function: red light cross position, New cooling mode

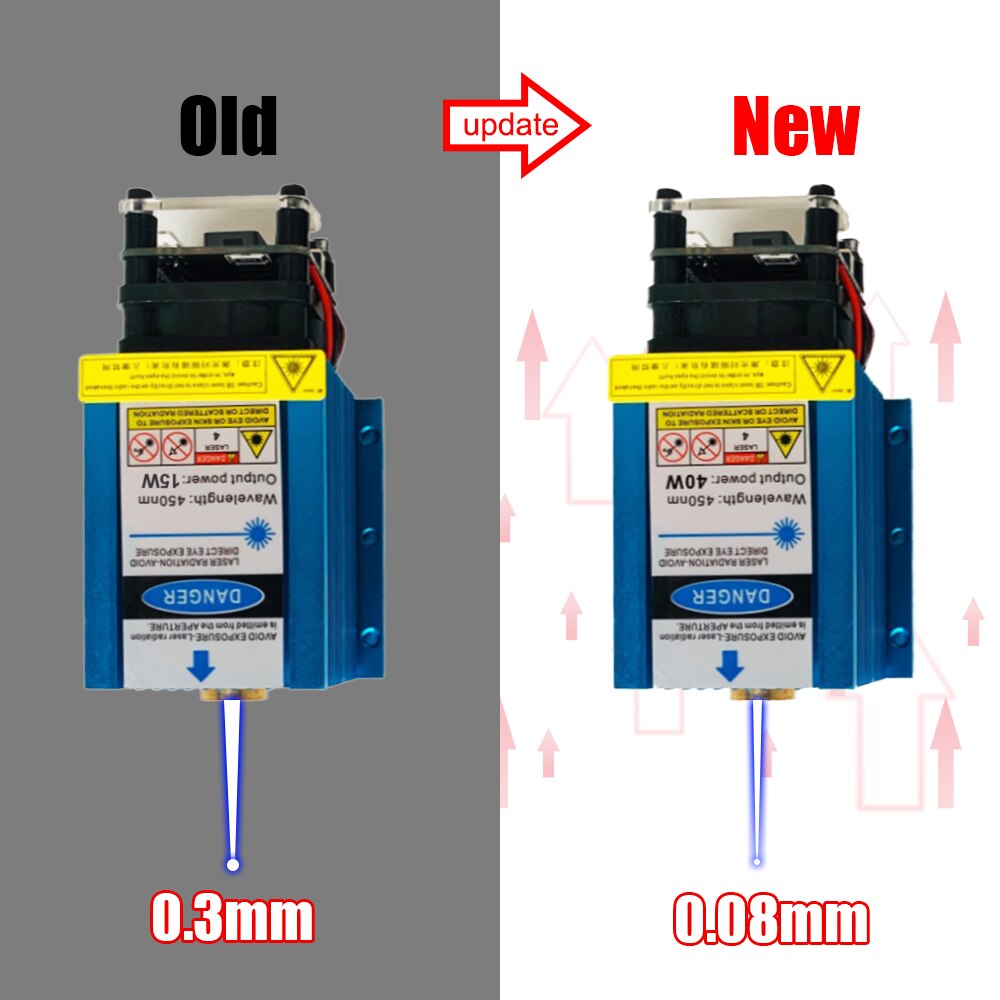

Using the latest spot compression technology, the laser beam is compressed from the original 0.3mm to 0.08mm, with the same laser power, greater intensity and better accuracy
Laser power: 40W
Actual output power: 15W MAX
Accuracy: 0.08mm
Focus: fixed focus(can not be adjusted)
Voltage: 12V 5A
Function: big size better cooling, longer lifetime
Using the latest spot compression technology, the laser beam is compressed from the original 0.3mm to 0.08mm, with the same laser power, greater intensity and better accuracy
