Description

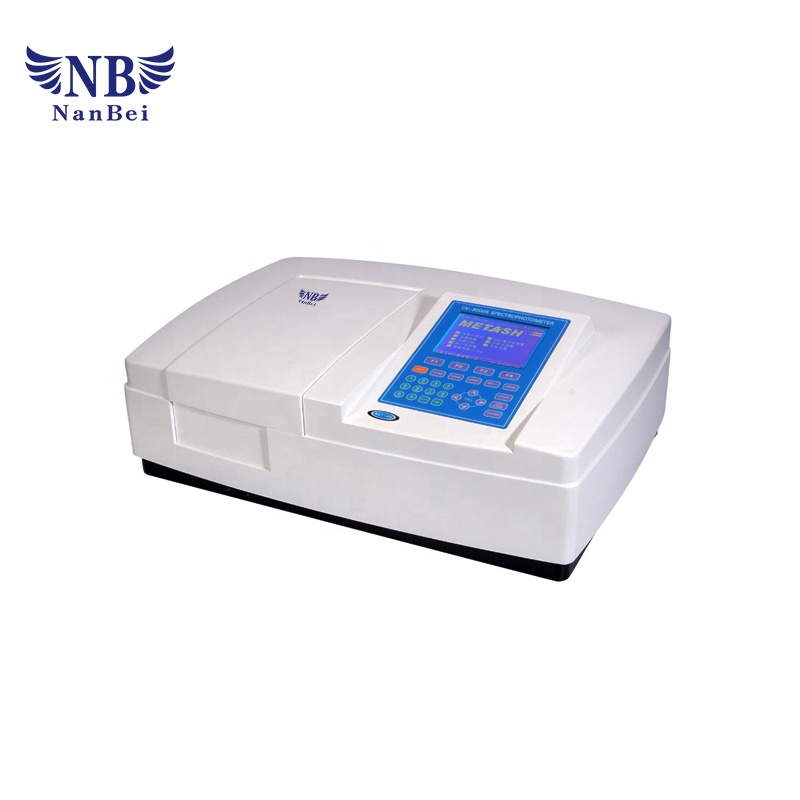

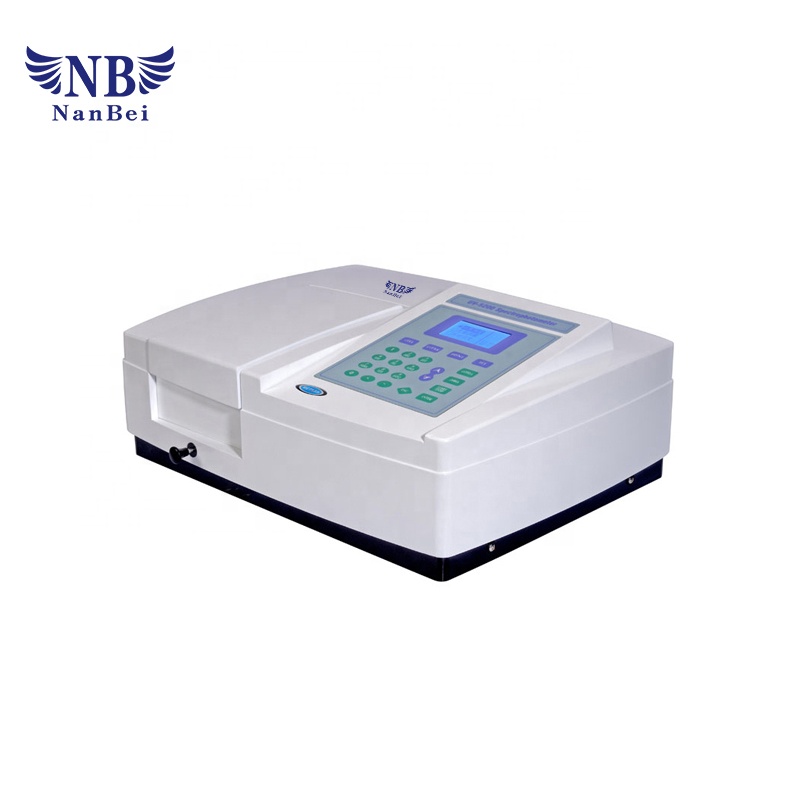

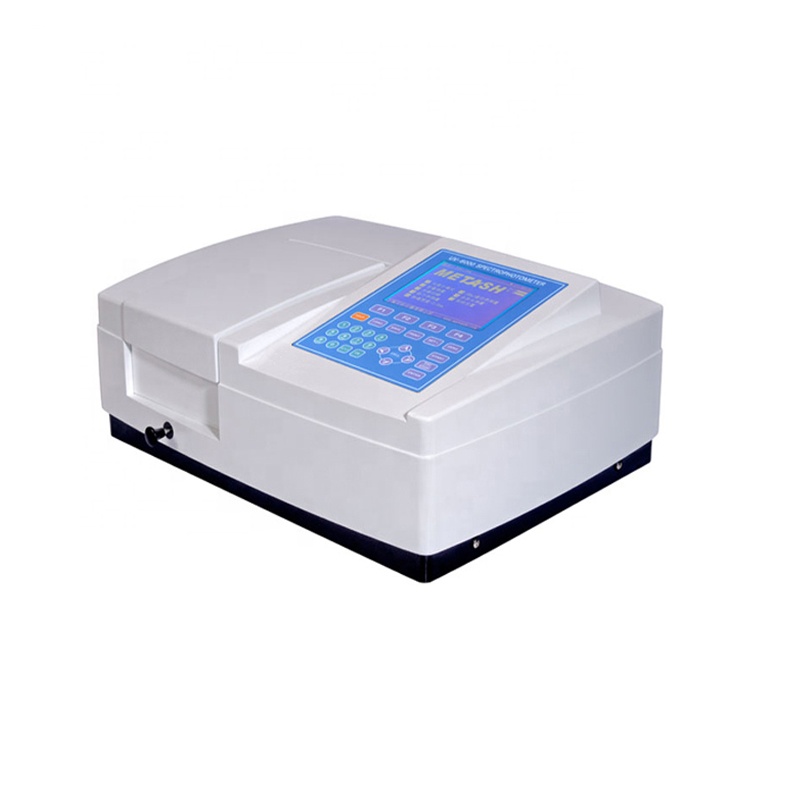

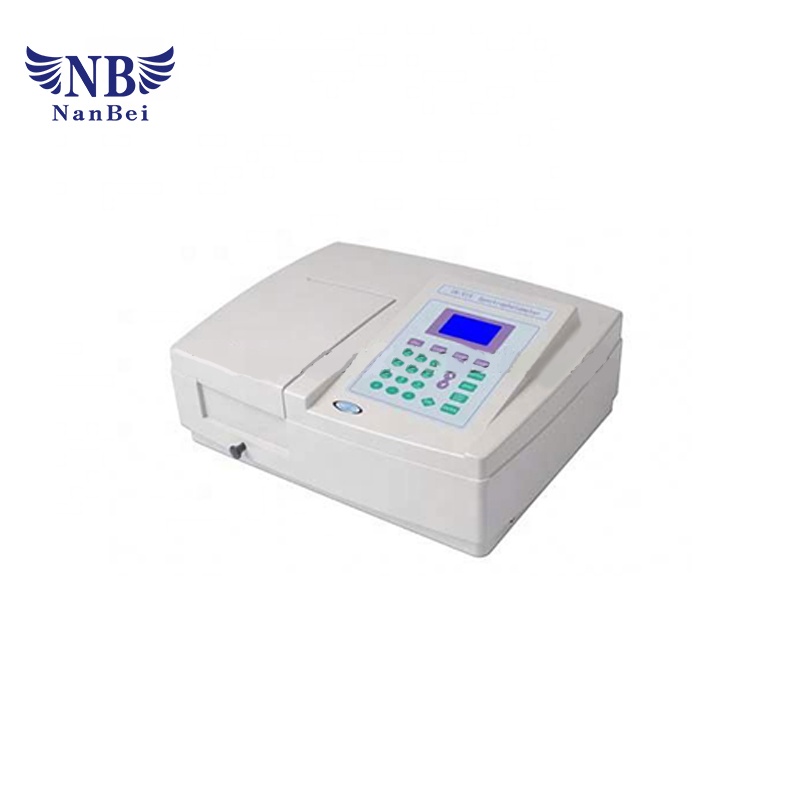

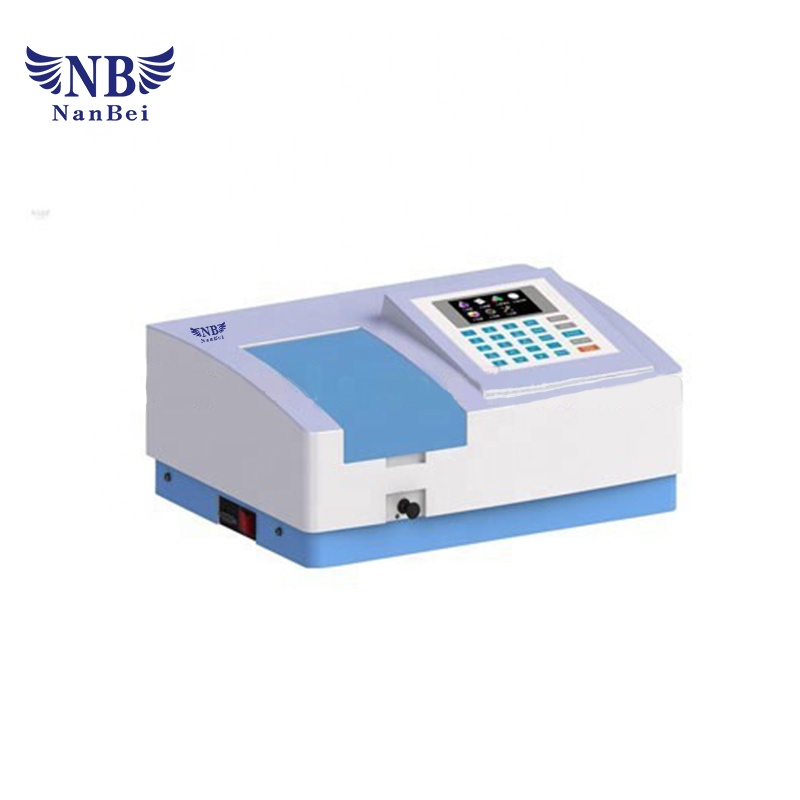

Large LCD screen gold spectrometer   ideal for university, water testing test

Application:



The models of UV/V5100 are the most valuable instruments with highest costeffective. They are capable of storing and recalling up to 200 standard curves and 500 test data results in its RAM. The wide path length and optional accessories make them ideal for university, water testing, environmental and petroleum industry test.

Features

1 Large LCD screen (128×64 Dots).

2 Can display and save 50 groups of data, 3 groups per screen.

3 Data can be restored after a sudden power cut.

4 Auto setting wavelength.

5 Tungsten lamp & deuterium lamp can be turned on/off individually to extend lifetime

6 Automatical WL. calibration and dark current getting.

7 Optional software UV-Professional can expand the applications to Kinetics and Quantitatives.

Specifications:

Model	UV-5100	V-5100
Wavelength Range	200-1000nm	325-1000nm
Band Width	4nm	4nm
Wavelength Accuracy	±2nm	±2nm
Wavelength Repeatability	1nm	1nm
Wavelength Setting	Auto	Auto
Photometric Accuracy	±0.5%T	±0.5%T
Photometric Repeatability	0.3%T	0.3%T
Photometric Display Range	0-200%T, -0.3-3.0A, 0-9999C	0-200%T, -0.3-3.0A, 0-9999C
Stability	0.002A/h @ 500nm	0.002A/h @ 500nm
Stray Light	≤0.3%T@220nm, 360nm	≤0.3%T
Data Output Port	USB	USB
Printer Port	Parallel Port	Parallel Port
Display	128*64 Dots LCD	128*64 Dots LCD
Lamp	Deuterium Lamp & Tungsten Halogen Lamp	Tungsten Halogen Lamp
Detector	Silicon Photodiode	Silicon Photodiode
Software	Available	Available
Dimension (L*W*H)	420*280*180mm	420*280*180mm
Weight	12kg	10kg

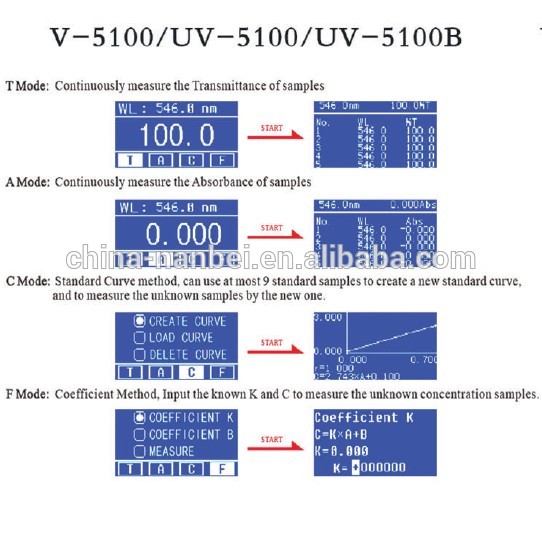

Four Modes:

1, T Mode: Continuously measure the Transmittance of samples

2, A Mode: Continuously measure the Absorbance of samples

3, C Mode: Standard Curve method, can use at most 9 standard samples to create a new standard curve, and to measure the unknown samples by the new one.

4, F Mode: Coefficient Method, Input the known K and C to measure the unknown concentration samples.

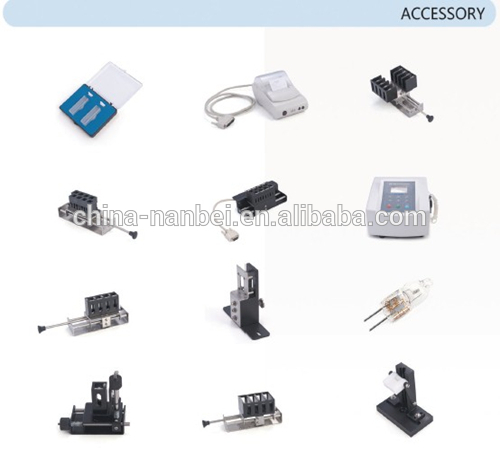

All spectrophotometers are shipped out with standard accessories. The below accessories can be ordered separately once needed

Software:

We use a new windows based PC software designed by Nanbei engineers. It is compatible with Nanbei V/UV 5 Series spectrophotometer. Nanbei takes the best features of the stand-alone version spectrophotometers with more powerful data processing and expanded data collecting and storage capability. It can realize basic testing, quantivative testing, wavelength scanning, Kinetics, DNA test and standard curve functions.

Functions:
