Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1 year
- Type: Wall Mounted Type
- Customized support: OEM, ODM, CL2 Gas Detector
- Place of Origin: Shaanxi, China
- Brand Name: HuaFan
- Model Number: HFF-CL2
- Product name: Lab Use Chemical Chlorine Gas Detector CL2 Monitor for Industry
- Detecting Gas: CL2
- Measure Range: 0-20ppm
- Usage: CL2 Gas Detector
- Alarm Type: Sound Light Alarm
- Sensor: Electrochemical Sensor
- Response time: 30s
- Sampling method: Natural Diffusion
- Power supply: 220V 50HZ
- Display: LCD Display
- Certification: CE
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{font-size:18px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:16px}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:169px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:537px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-17{margin-bottom:0}#detail_decorate_root .magic-18{position:relative;width:100%}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:752px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:752px}#detail_decorate_root .magic-21{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-22{position:relative}#detail_decorate_root .magic-23{position:absolute;left:12px;top:12px;height:24px;z-index:3;overflow:hidden;background-color:#3a3531;display:flex;align-items:center;border-radius:12px;font-size:12px;color:white;padding:2px 6px}#detail_decorate_root .magic-24{height:24px;width:24px;background-image:url(“https://img.alicdn.com/tfs/TB1fYbeJ4z1gK0jSZSgXXavwpXa-144-144.gif”);background-repeat:no-repeat;background-size:cover}#detail_decorate_root .magic-25{margin-left:4px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:421.7411988582303px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:421.7411988582303px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:738.6519944979367px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:738.6519944979367px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:682.9105473965287px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:682.9105473965287px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:907px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:907px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:594px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:594px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:690.8422459893048px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:690.8422459893048px}
Products Description

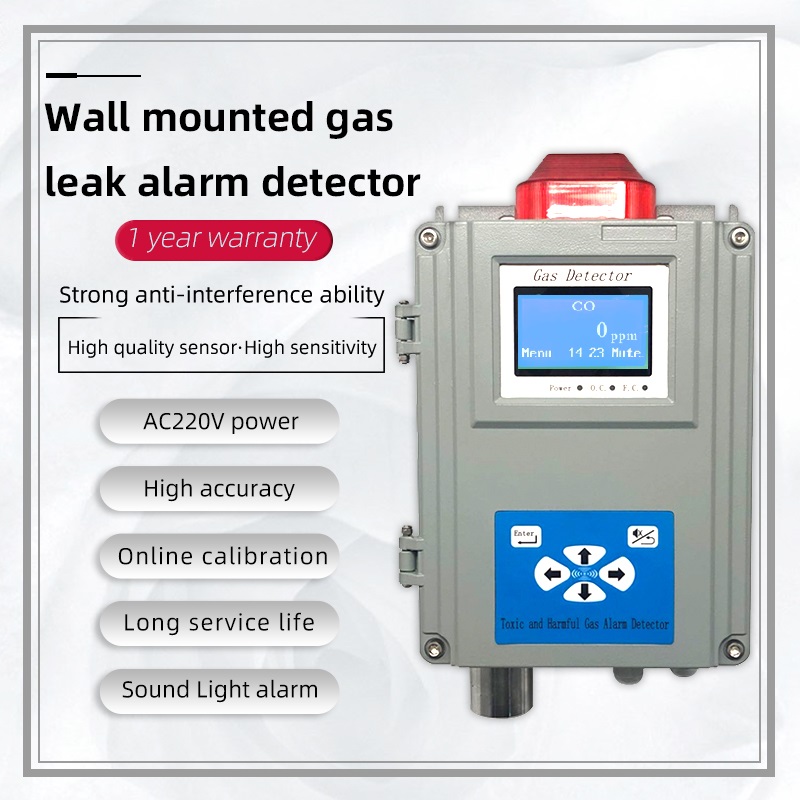

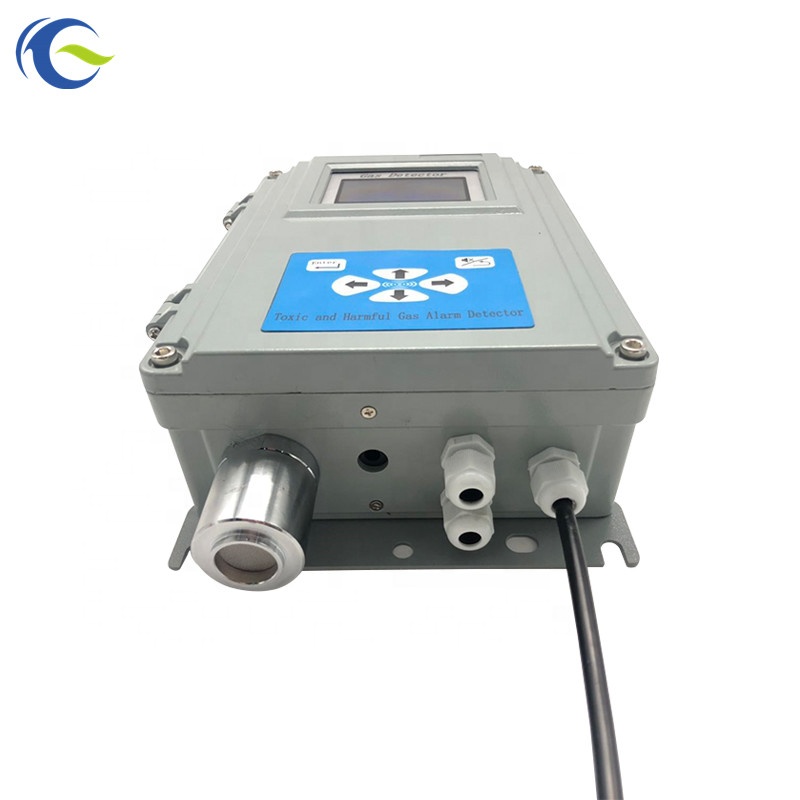

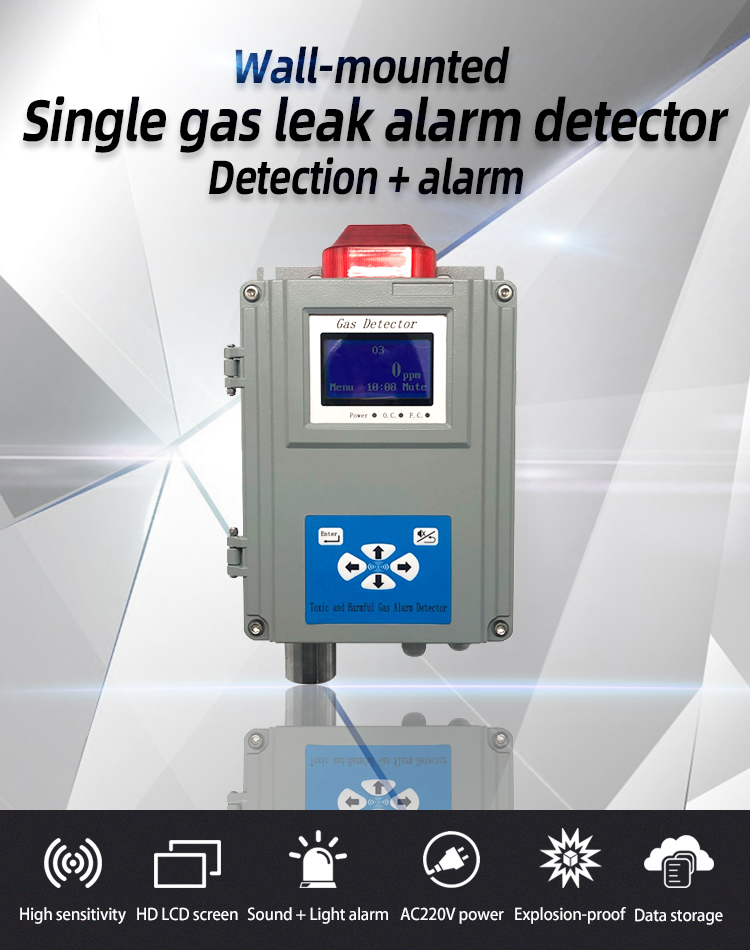

Lab Use Chemical Chlorine Gas Detector CL2 Monitor for Industry
Chlorine is widely used in water treatment,water disinfection,bleach and chemical industry.This wall mounted chlorine gas detector integrates detection,display and alarm, real-time display the concentration of the measured gas in the environment. when the gas leaks and the concentration reaches the alarm point, the instrument will respond quickly and send out an audible and visual alarm.
Product Paramenters
|
Product Type:
|
Wall mounted chlorine gas detector
|
|

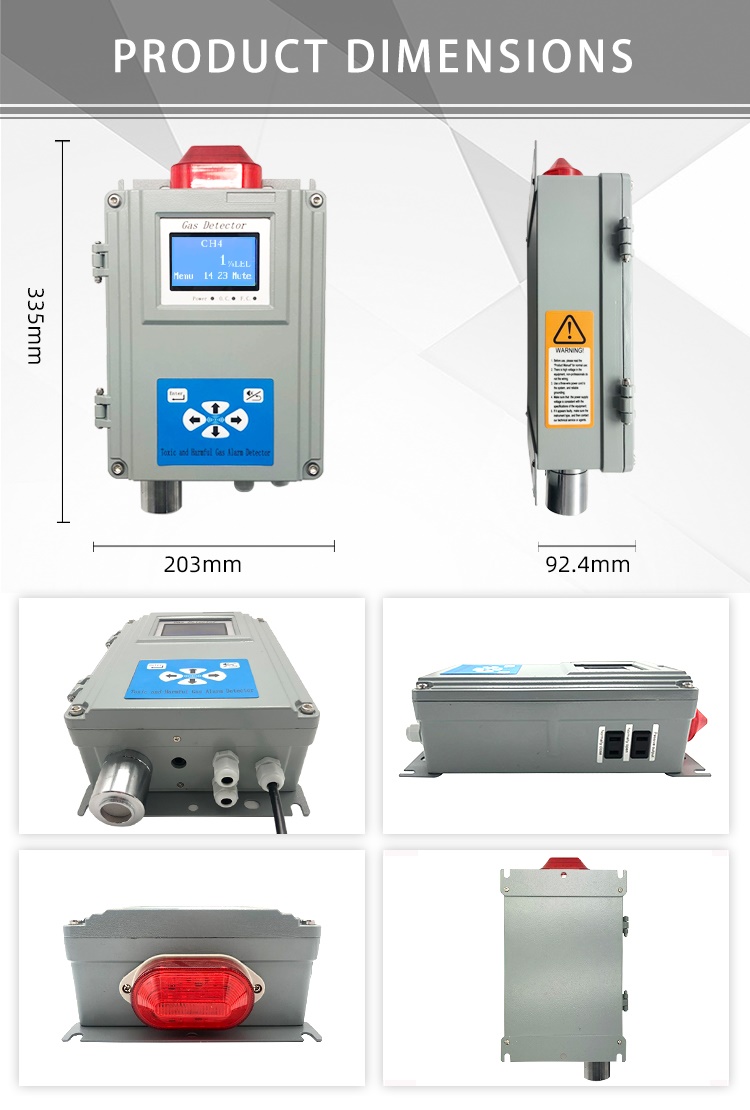

Product Size:
|
34.6*22.3*8.7cm
|
|
Product Weight:
|
3.8kg
|
|
Working voltage:
|
AC95-265V
|
|
Display:
|
LCD display, english description, english panel
|
|

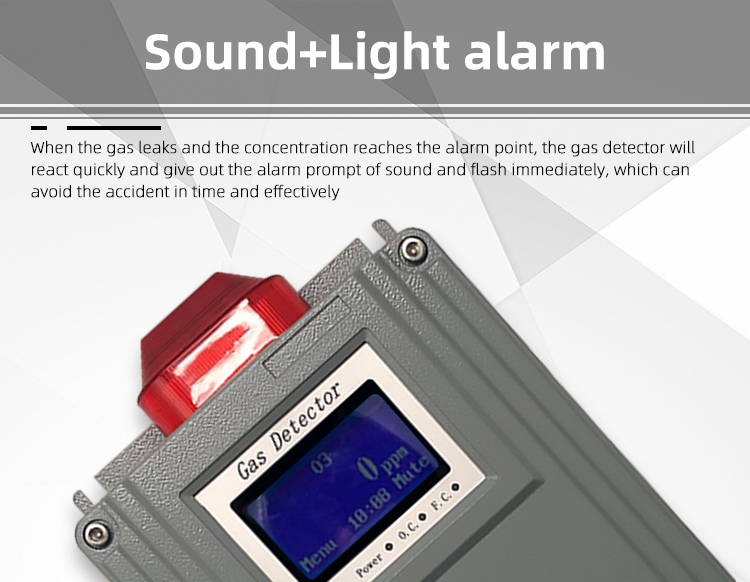

Alarm:
|
Visual& audible. More than 90 dB alarm way
|
|
Detect gas:
|
CL2
|
|
Sensor type:
|
Electrochemistry
|
|
Measure range
|
0-20ppm
|
|
Resolution:
|
0.1ppm
|
|
Reponse time:
|
≤30S
|
|

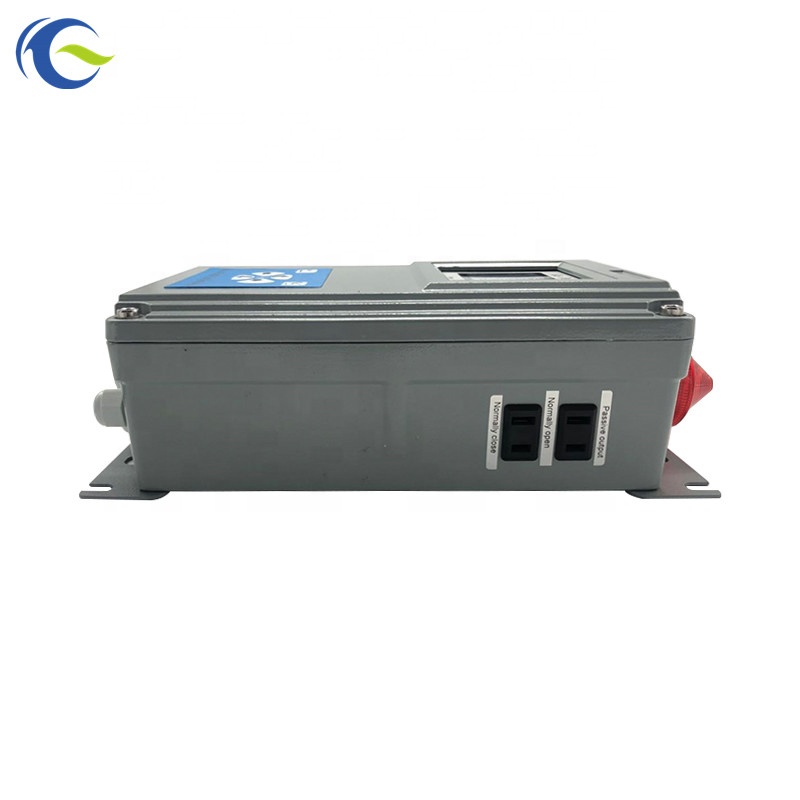

Output control:
|
relay output (AC220V5A), signal control (switch)
|
|
Working pattern:
|
Continuous operation, high and low alarm point(could be set)
|
|
Storage:
|
3000 alarm records
|
|
Optional function:
|
4-20mA/RS485 output signal
|
|
Humidity:
|
15% ~ 90% RH (No condensation)
|
|
Temperature range:
|
-20℃ – 50℃
|
|

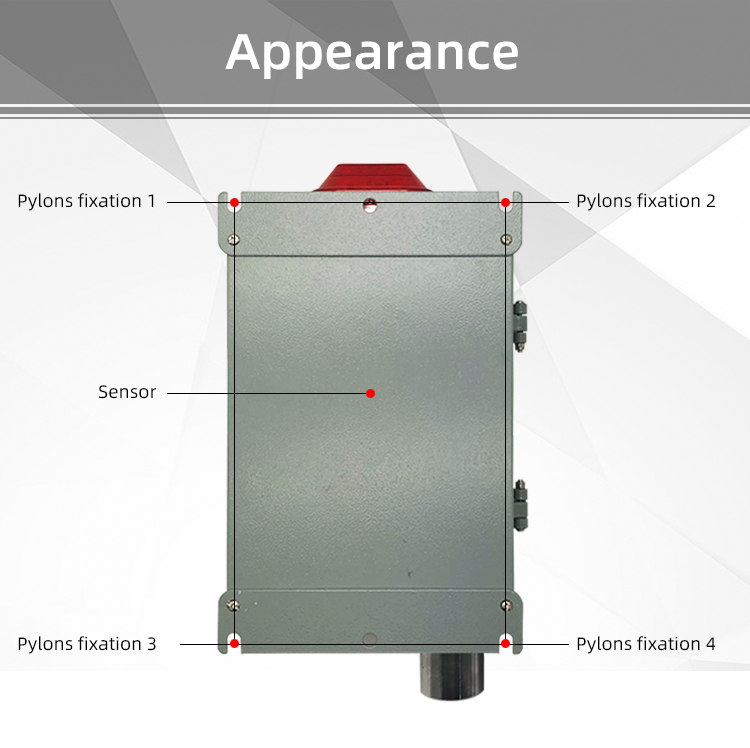

Installation method:
|
wall-mounted installation
|

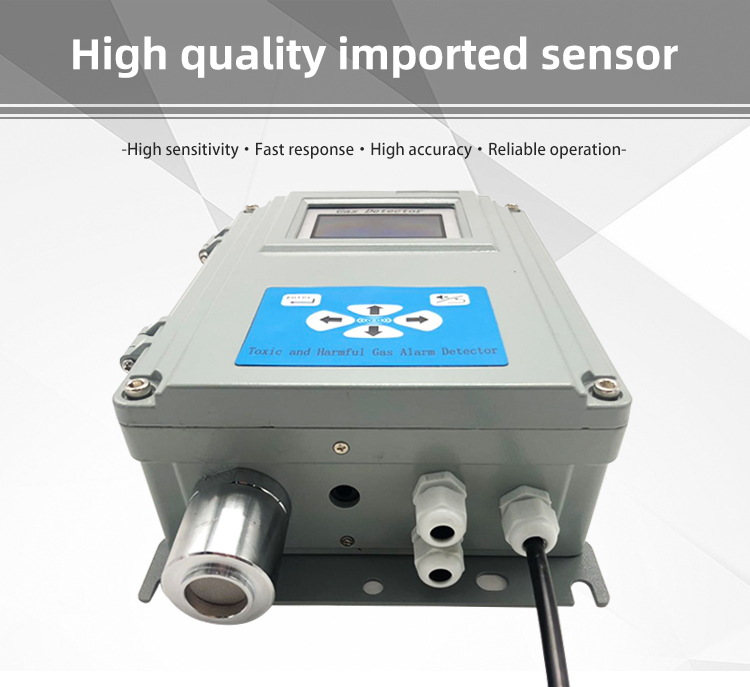

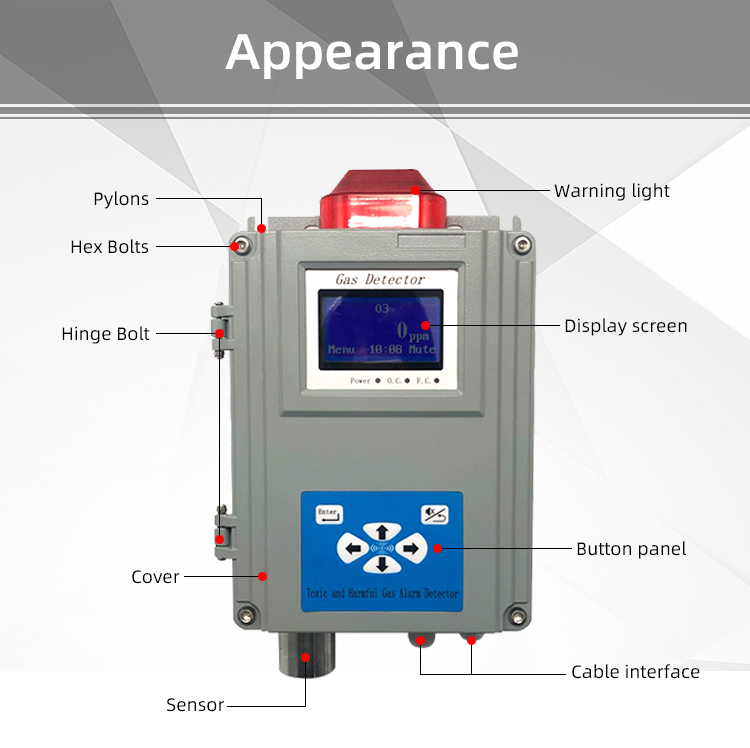

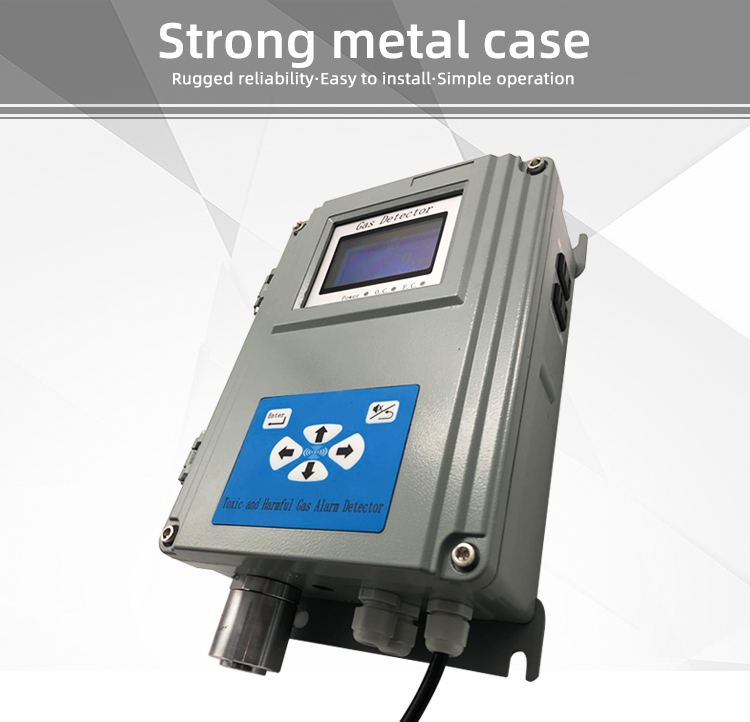

Details Images
Customer Feedback
Recommend Products
VR
Application cases
Wall mounted gas detector is widely used in water company, metallurgy, Garbage Dump, Leather Factory, power plant, chemical industry,coal mine, oil mine, farm, warehouse other places, effectively preventing the happening of the accident.

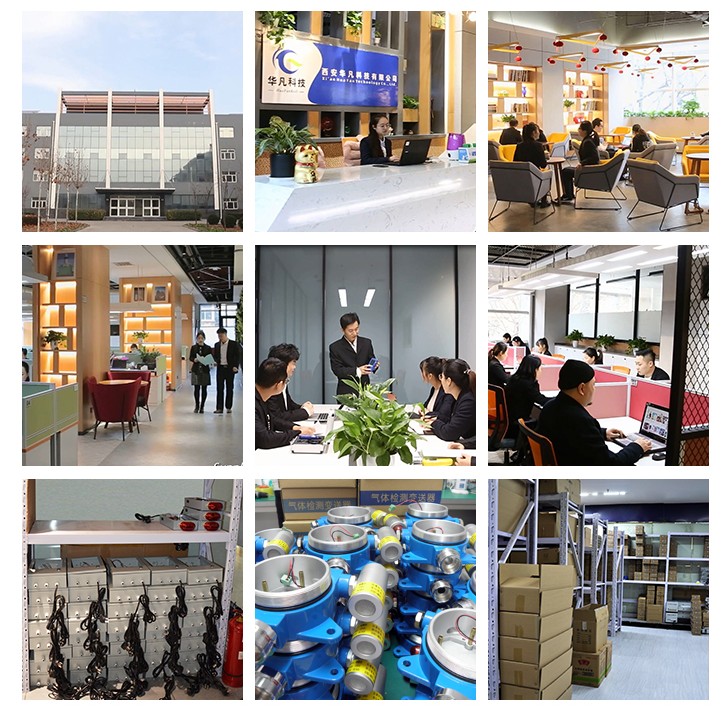

Company Profile

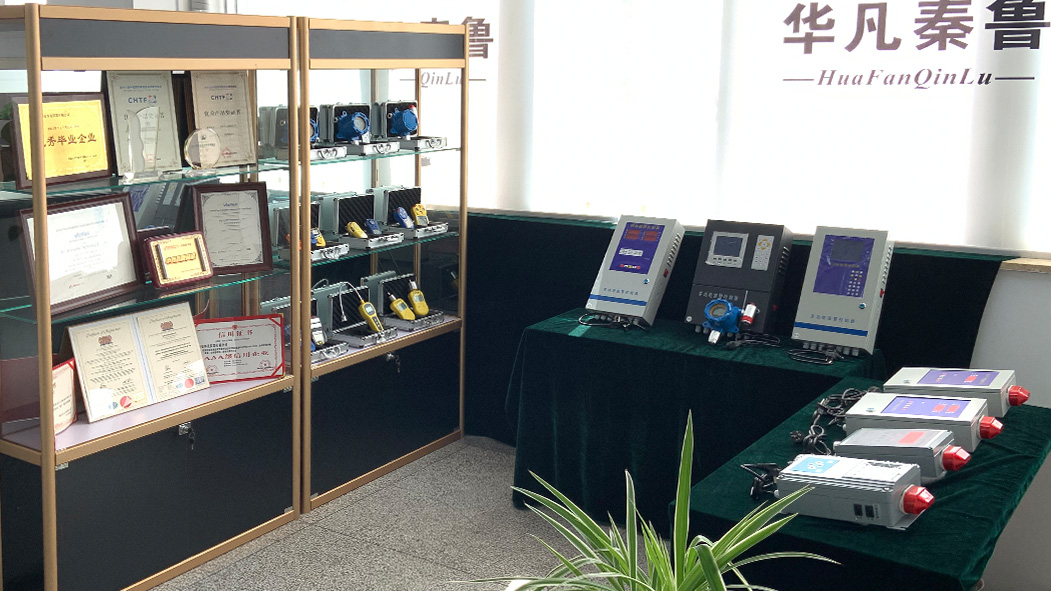

Xi’an Huafan Technology Co., Ltd founded in 2003, specialized in toxic and hazardous gas detection and smart life filed, including research and develop products and operation service. It’s a high-tech enterprise from R & D to technology services and whole industry chain.
We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company’s products, currently composed of 6 senior engineers.
We strictly control every link of production,we has its own regular production workshop, from production to quality inspection to the factory, in accordance with the strict implementation of production standards, we aim to provide customers with high quality products, we are constantly learning, improve and perfect, in the future, I believe we will become better and better.
Our gas detector has industrial production standards and international export standards，We focus on the production of products that meet the standards to provide the greatest guarantee for industrial safety.
From 2016 to 2019, we have participated in the Hong Kong Fair and the Canton Fair for many times,We want more customers to see us,understand us and trust us,We want to be the most trusted and professional partner of customers, so we constantly improve our professional ability and product quality.
FAQ
1. How can I get a sample to check your quality? How long can I expect to get the sample?
We are honored to offer you samples.
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 1-2 days. The samples will be sent to you via express and arrive in 5-7 workdays.
We are honored to offer you samples.
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 1-2 days. The samples will be sent to you via express and arrive in 5-7 workdays.
2. How can I get the price? When can I get the price?
You can send us inquiry or directly ask us by Trade Manager. Also you can call or email to us. For RTS products, you can get the price and buy directly. We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or email us,we will regard your inquiry priority.
3. What’s the Payment?
Alibaba trade assurance order,T/T, Western Union and Paypal are acceptable.
4. What’s your advantage? Why we choose you?
1) Over 17 Years experience in gas detection area. We have the most professional R&D teams.
2) Great production capacity. We support product OEM&ODM, and also the package according to your requirements.
3) Competitive price and international standard quality. We can provide best factory price and agency price if you want to be our agency.
5. Certificate?
We have acquired Explosion-proof,CE,ATEX certificate which is professional certification in gas detector area.
6. Guarantee for the products?
Yes, we offer 1 year warranty.
