Lab Split-Able Pouch Battery Tester With Quartz Window For Punch Cell Analysis

$1,196.80

88 in stock

SKU: 1005004145281831 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • Certification: CE
  • Place of Origin: Fujian, China
  • Brand Name: Zopin
  • Model Number: ZP-PCL
  • Material: Nylon or PEEK
  • Anode Die: 58mm (L) x 45mm (W). with 10mm (L) protrude current collector
  • Standard size: Cathode Die: 57mm (L) x 44mm (W). with 10mm (L) x 10mm (W)
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#000;font-family:Roboto;font-size:16px;color:#000;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:180px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:180px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{text-align:justify}#detail_decorate_root .magic-9{font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-10{font-size:16px}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:206px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{font-size:22px}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:500px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{overflow:hidden;width:373px;height:370px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:12px;margin-left:-33px;width:473px;height:336px}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:370px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-19{margin-top:5px;margin-left:-51px;width:498px;height:349px}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{font-size:18px}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:580px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{overflow:hidden;width:373px;height:368.585798816568px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:12px;margin-left:35px;width:303px;height:299px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:368px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-26{margin-top:3px;margin-left:-6px;width:361px;height:298px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:464.46700507614213px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:464.46700507614213px}#detail_decorate_root .magic-29{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:1737px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:1737px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:941px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:941px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:560px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:560px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:730px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:730px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:810px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:810px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:410px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:410px}

Product Description

Features

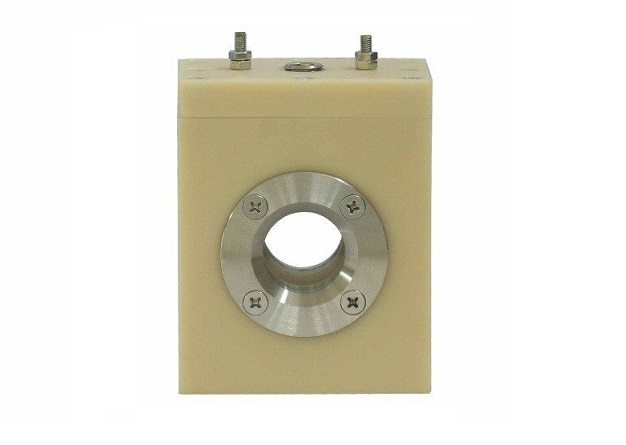

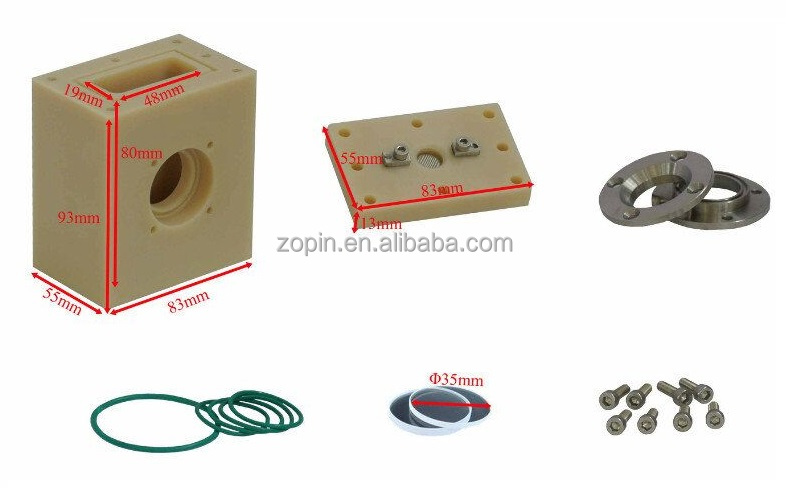

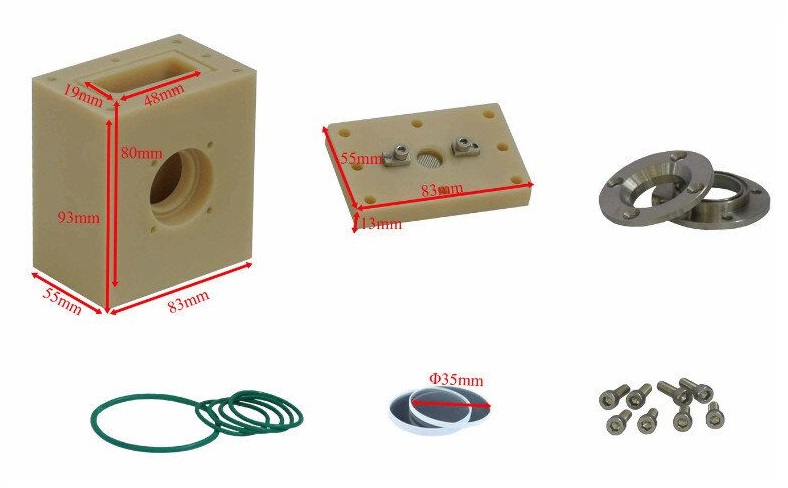

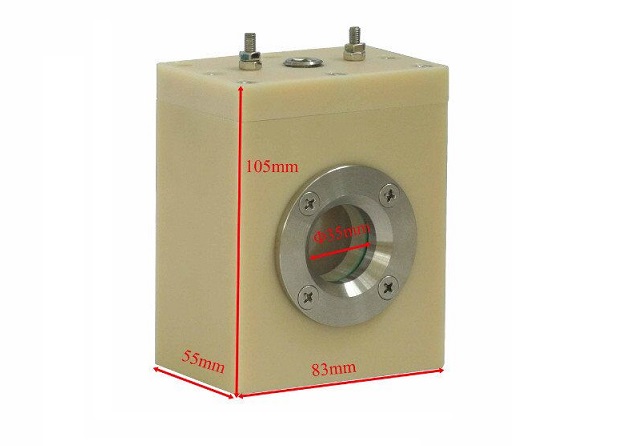

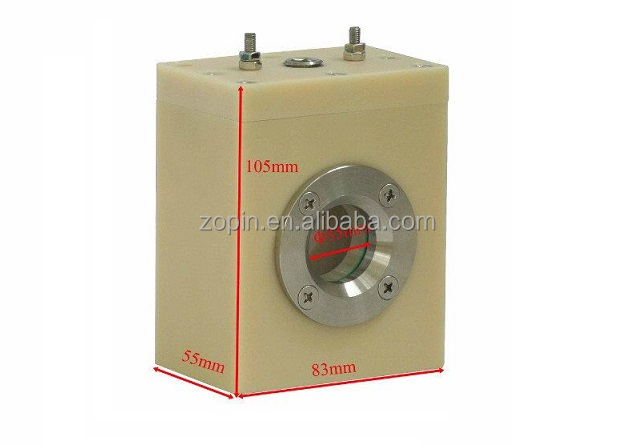

EQ-SPCW is splittable pouch cells with a double quartz window for X-Ray or Raman in-situ analysis. The split pouch cell is made of Nylon or Peek. Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrode easily, quickly and cost-effectively.

Features
1. 30 mm diameter quartz window installed on two sides of pouch cell for transparency measurement.
2. Pouch cell is sealed by PTFE O-ring without liquid and gas leaking.
3. One pressure gauge installed on top to monitor pressure. You may remove the gauge and use 1/4 female port to inject electrolyte
into the pouch cell.
4. Pouch cell is easy assembling by only four cap mounting screws.
5. It is easy to separate after test for microstructure analysis.
6. Space saving, compact design allows you put it into the glove box.
Material
1. Nylon or PEEK (Poly Ether Ether Ketone) selectable.
2. Body:Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC and O-ring: Sealed by electrolyte
corrosive-proof PTFE O-rings.
3. Body:PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance
properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings.
Electrode Sheet dimension
1. Standard size: Cathode Die: 57mm (L) x 44mm (W). with 10mm (L) x 10mm (W) protrude current collector
2. Anode Die: 58mm (L) x 45mm (W). with 10mm (L) protrude current collector
3. Customized size pouch cell is available upon request.

Application Note
1. In order to make metal air pouch cell, you can drill holes in the case. We can help you do that at an extra cost.
2. You may use die cutter to prepare electrode via layer by layer or make winding type pouch cell electrode.

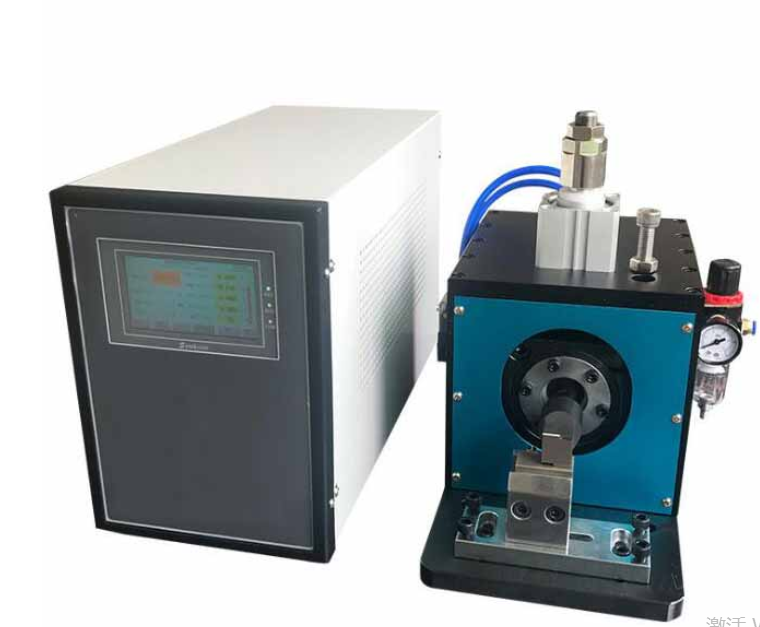

3. You may need an ultrasonic welder to welding electrode tape to connect to the split cell.

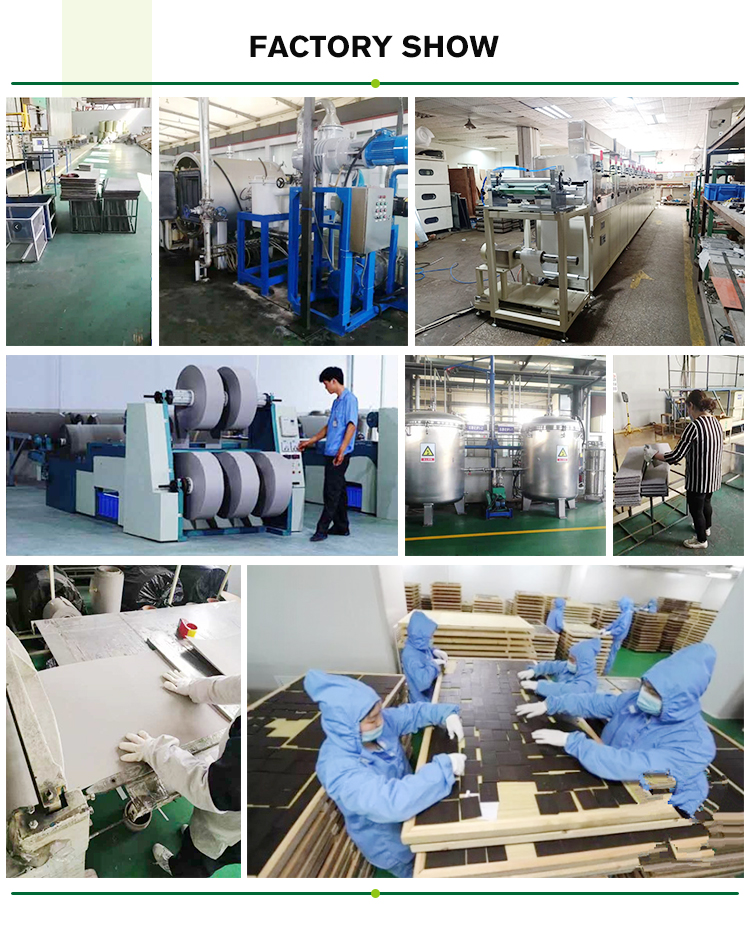

Company Profile

Cooperative Partner

Customers Feedback

Package & Transport

FAQ

Q1:What is the pore size on the foam and what is the PPI range?
A:100um<pore size<10mm, PPI range is 5ppi-500ppi.


<pore size<10mm,ppi range is 5ppi-500ppi.

Q2:Do you accept credit card payment?

A:We accept any payment method, credit card, bank transfer, Paypal, etc.

Q3:Can you customize the size and shape?

A:Yes, we accept customization, not only the size and shape, but also PPI or porosity and pore size.

Q4:Can I place one small order for first time to test the quality?

A:Small order are also welcomed.

Q5:Can I visit your factory?

A:Your are welcomed to visit our factory,and we offer free hotel and free car.


<pore size<10mm,ppi range is 5ppi-500ppi.
