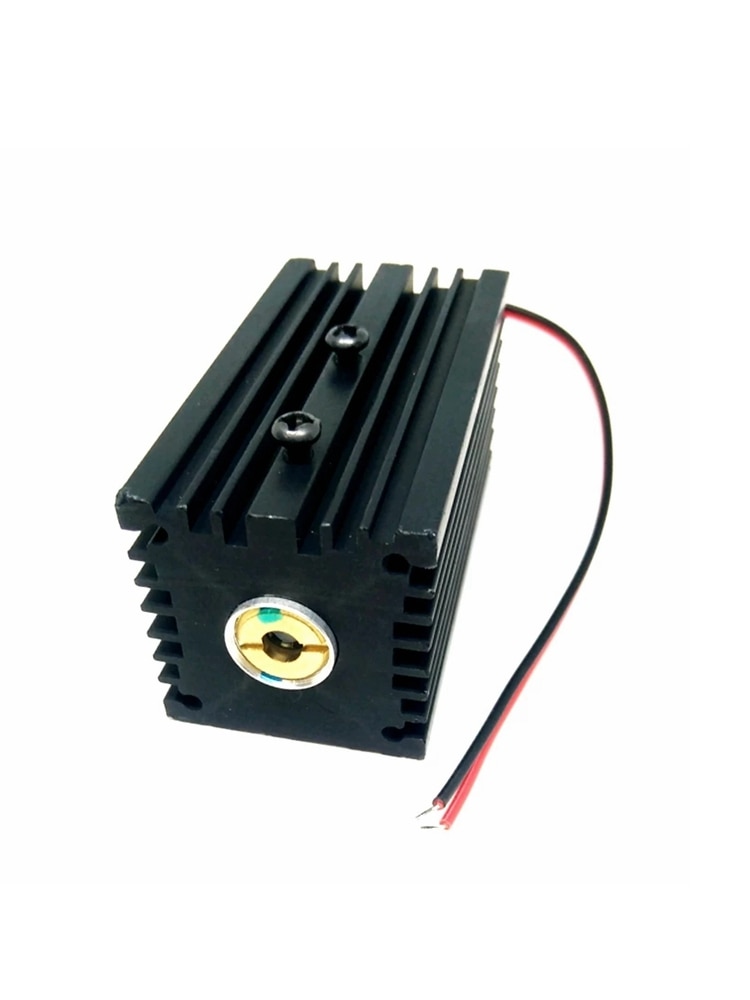

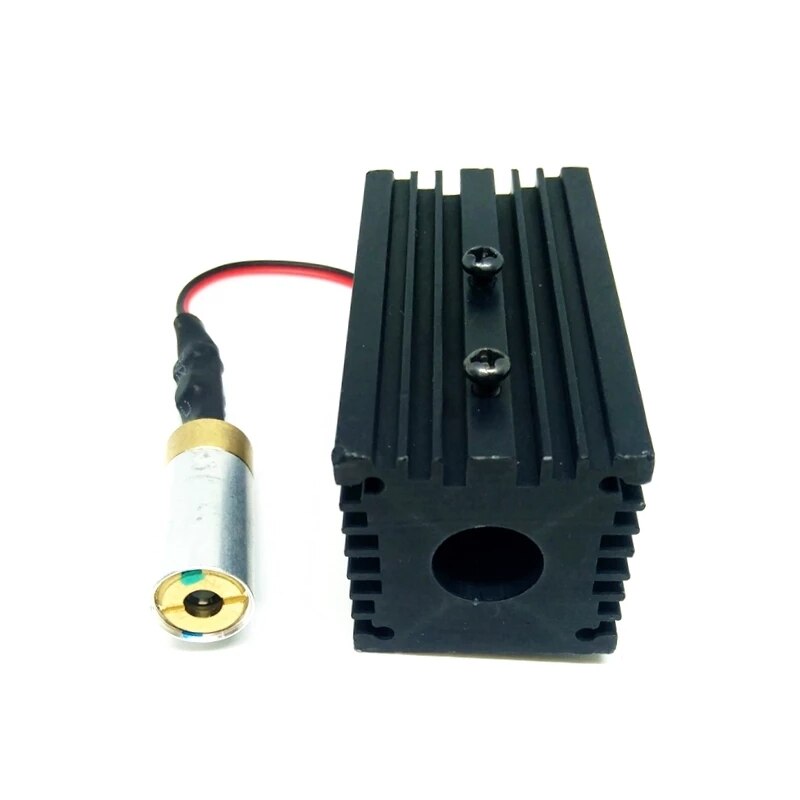

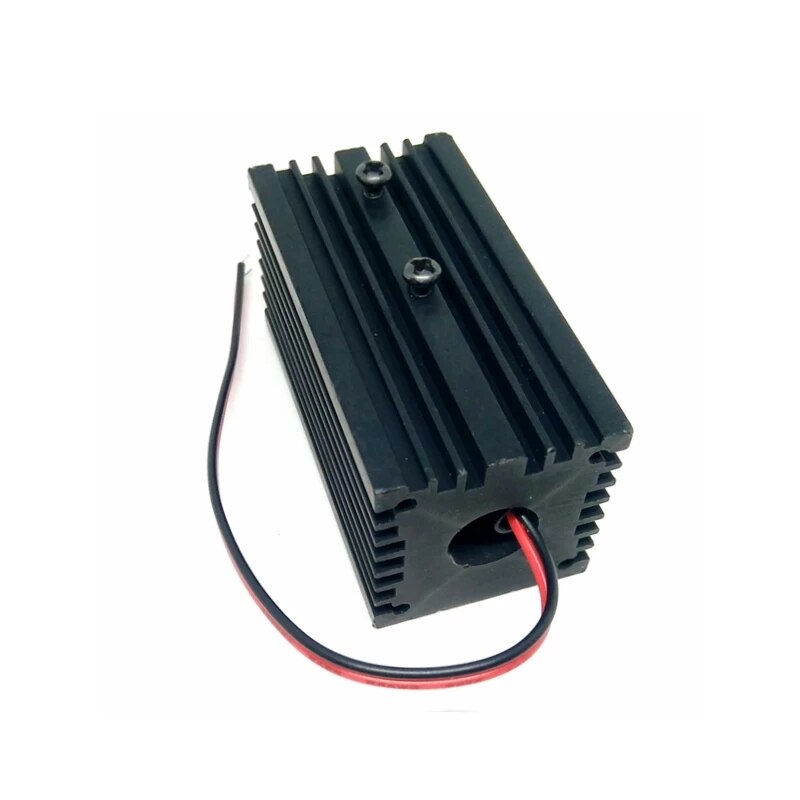

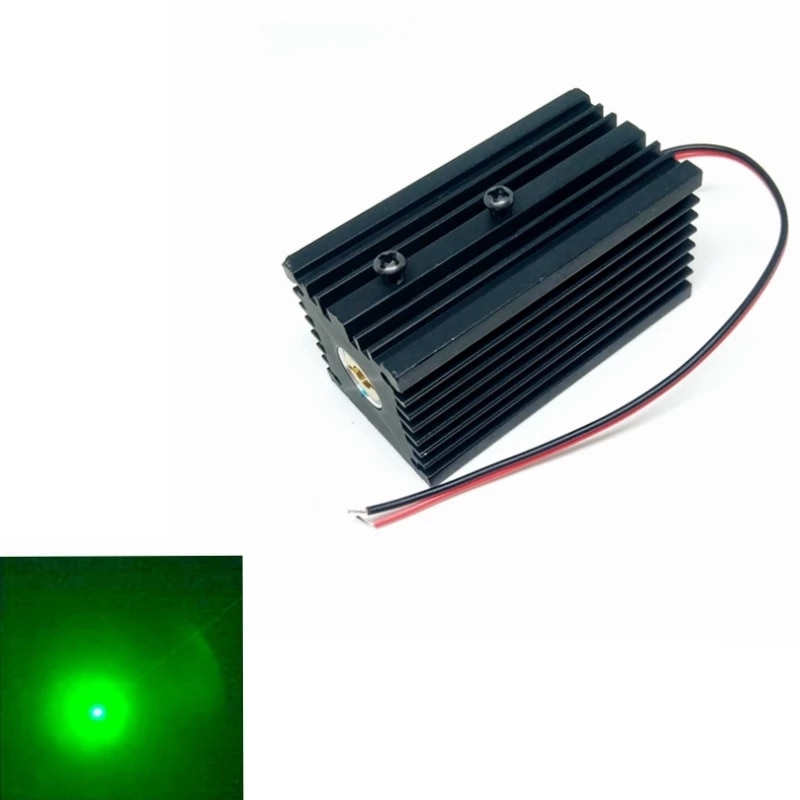

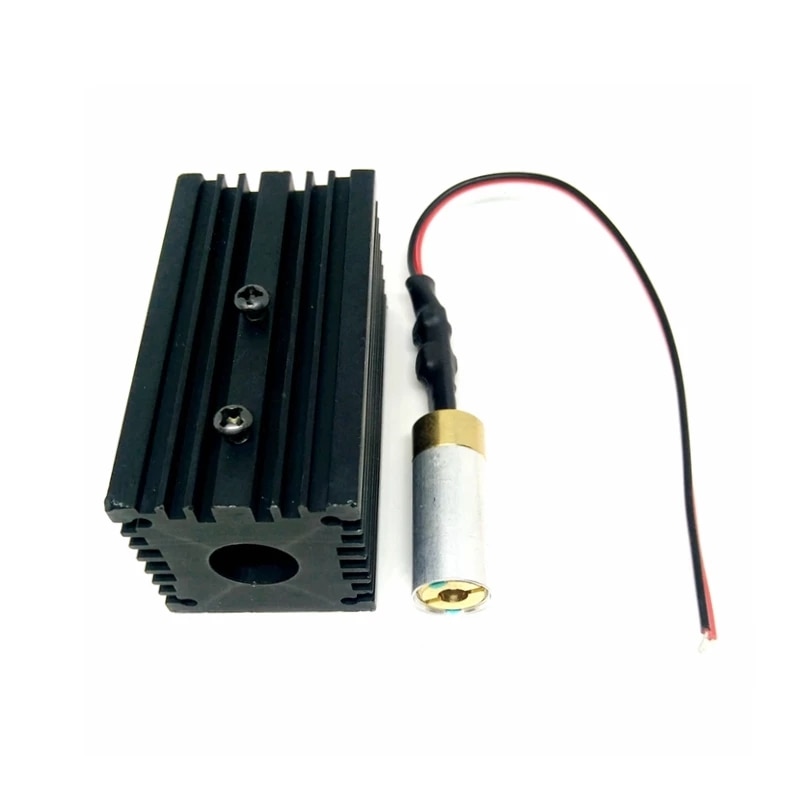

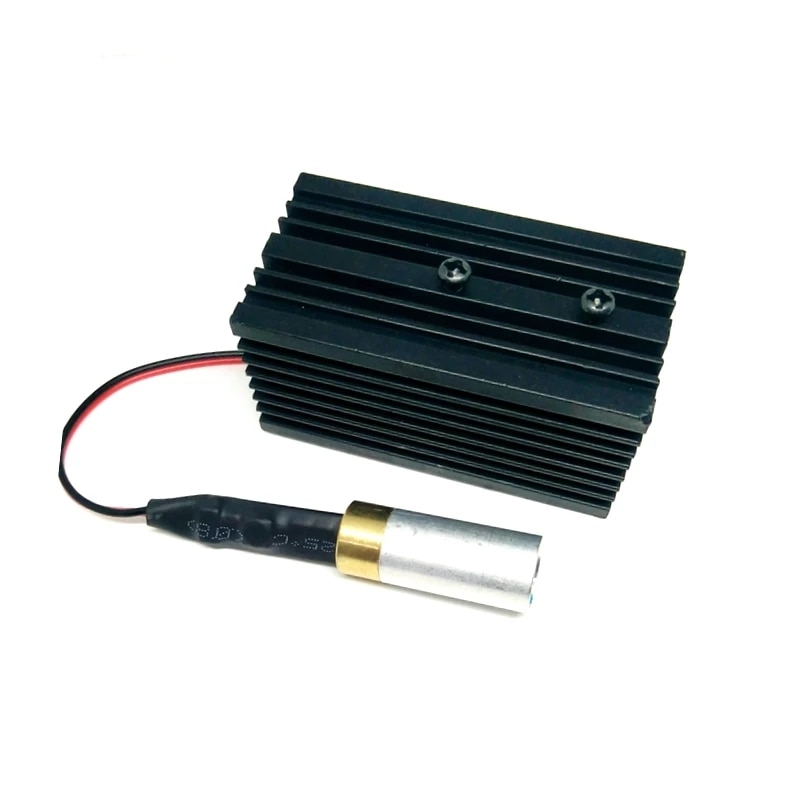

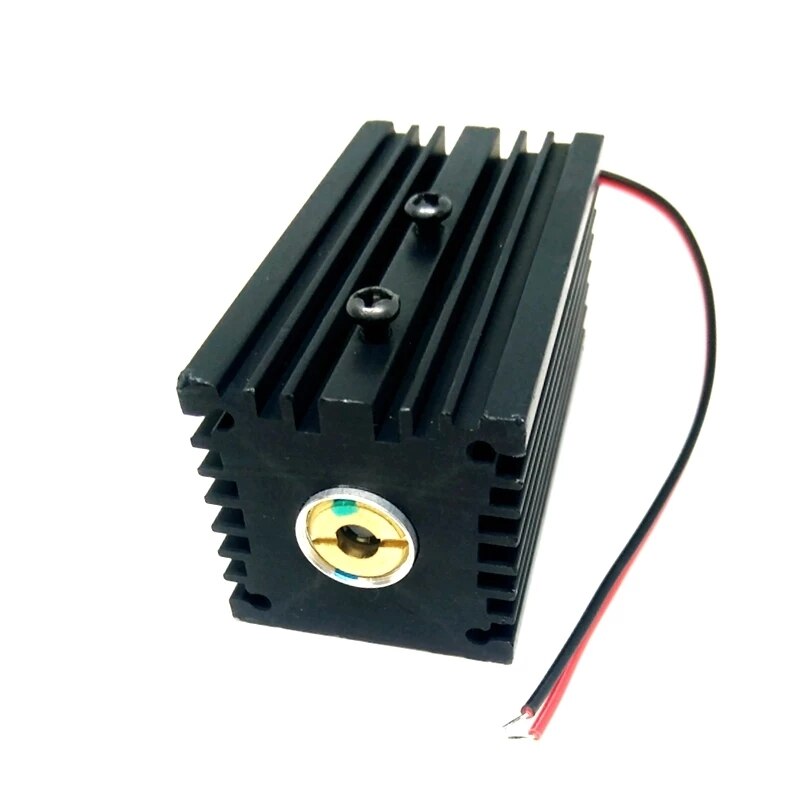

LAB Industrial 532nm 10mw 5VDC Green Laser Diode Dot Module with 62x32mm Cooling Heatsink for 12mm Laser Diode Module

$145.20

SKU: 1005004779021949 Category:

Description

  • Brand Name: Q-LINE
  • Certification: NONE
  • Origin: Mainland China
  • Item Type: Stage Lighting Effect
  • Style: DMX Stage Light
  • Occasion: Professional Stage & DJ
  • Power: 5mw
  • Model Number: 515nm

Specifications of the heatsink:

size:62*32*32mm
inner diameter:12mm
net weight of the heatsink: 120g
This heatsink can work with 12mm diameter laser module, it can prolong the duty cycle of the laser.

Specifications of the Laser Diode Dot Module

Output Power(mw) :10
Wavelength(nm) :532
Working Voltage: 5V
Working current:250mA
Working Temperature:-30℃~50℃
Laser Shape :DOT
Duty Cycle: 45 seconds ON,15 seconds OFF
Spot Description: The factory default focusing at 13 meters, that is 13 meters to the minimum point 10 * 10mm
Focusable :N/A
Range:3000 meters
Material and Color :Brass
Dimensions:about ¢12*54mm(including PCB)
