Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1year
- Customized support: OBM
- Place of Origin: Guangdong, China
- Brand Name: graigar
- product name: leakage switch tester
- model: Kyoritsu 5410
- Features: Dustproof and waterproof

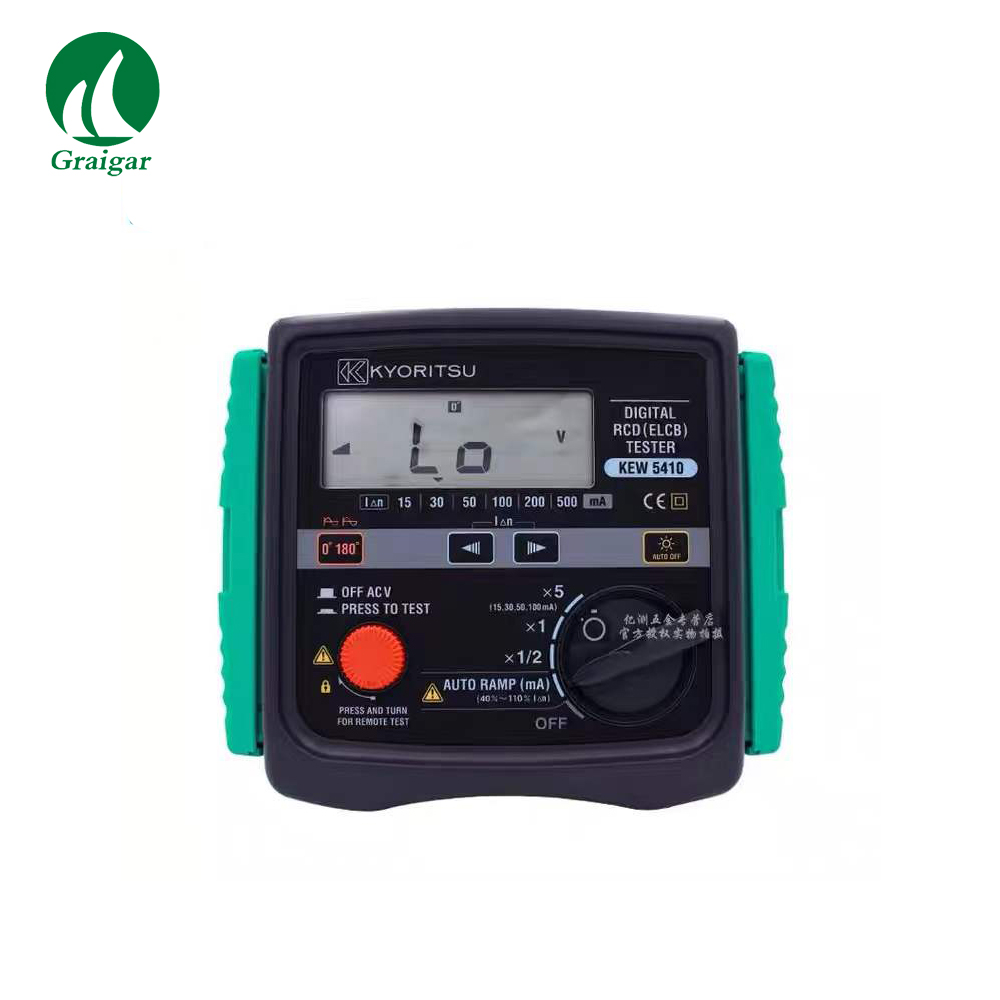

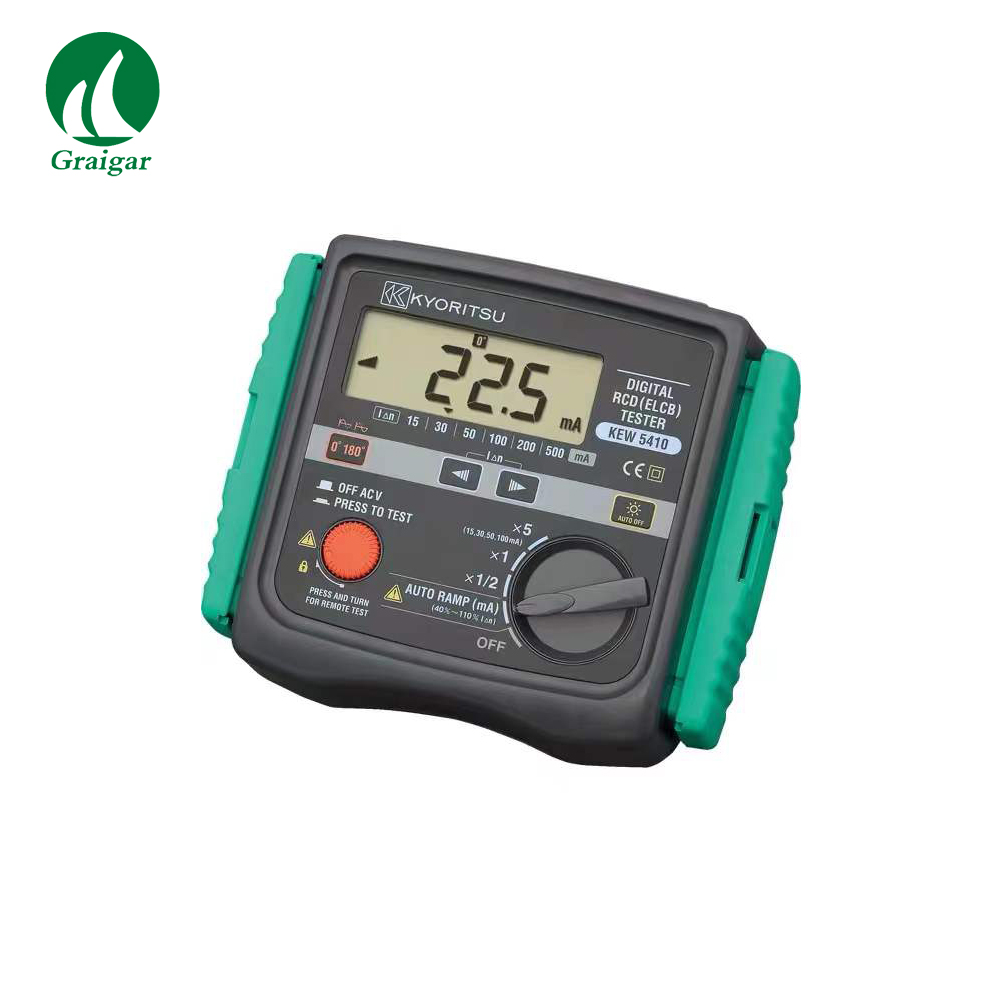

KYoritsu 5410 leakage switch tester waterproof and dustproof
Features
This instrument can test the working time and residual current value of the leakage switch
1. Working hours test
×1/2 range, rated non-working current test, ×1.×5 range, test working time.
2. Residual current test
It can automatically increase the current and test the residual current.
3. Remote testing
The instrument switch is set to the remote position, and the two test leads can be held in both hands for testing.
4. Voltage test
Continuously measure the system voltage in the standby state of each range
5. Automatic detection of contact voltage
When using the grounding test, in order to avoid poor grounding, during the leakage switch test (when the test current flows), the voltage of the grounding electrode or protective conductor is automatically detected. Stop the test at AC50V and issue a warning.
6. Dustproof and waterproof
Designed according to JIS C0920 (IEC60529) standard for dust and water resistance. Can be tested in bad weather.

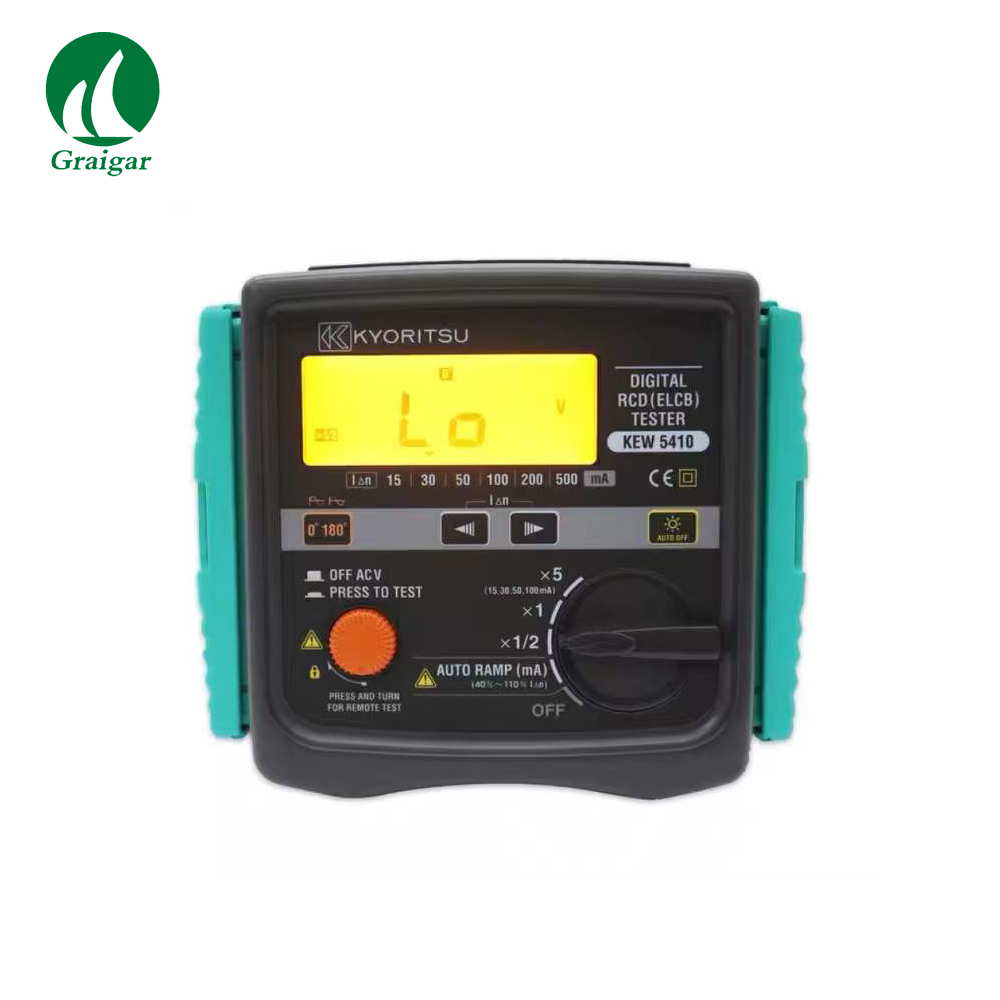

7. Backlight
It can be tested in a dark place and read the data.
