Description
- Certification: CE
- Origin: CN(Origin)

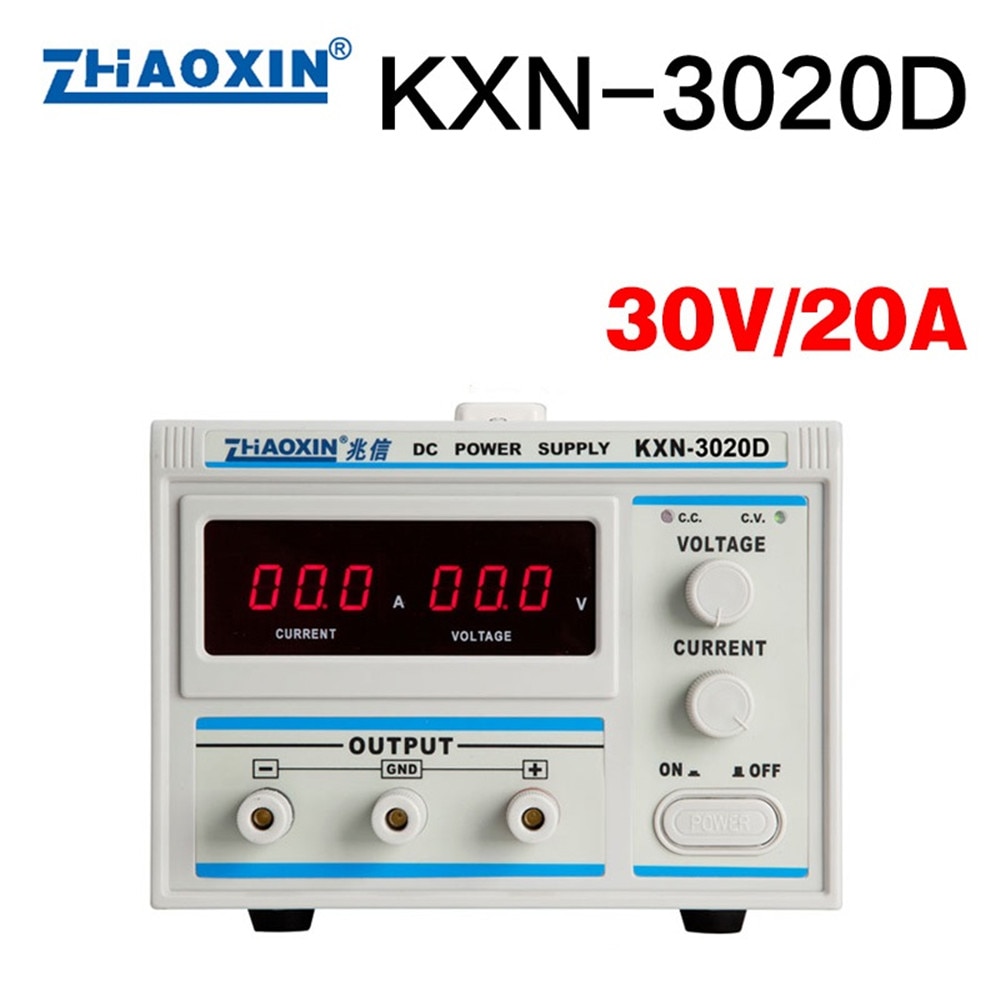

- Model Number: KXN-3020D
- Phase: Single Phase
- Current Type: DC
- Usage: DC regulated power
- is_customized: Yes
Main Features:
–Response and high accuracy when compared with linear power supply.
–Output voltage and output current between 0 to rated value is continuously adjustable.
–Constant voltage and constant current can automatic conversion.
–Overload and reverse polarity protection keep power supply and its loads safe from unexpected conditions.
–LED digital display output voltage and output current
–Cooling fan is connected with temperature sensor. Its can reduce the fan speed automatically when the internal temperature or load decreases to prevent the additional noise
Specifications:
1. Operating temperature (-20-50) Degree Celsius Storage temperature (-40-70) Degree Celsius
2. Relative humidity 90%(40 +- 2Degree Celsius) Atmospheric pressure ( 70-106)hPa
3. Input voltage: AC 220V+- 10% 50Hz/60Hz
4. Display accuracy <=1%
5. Efficiency >= 86%
6. Load regulation <= 0.5%
7. Voltage regulation <= 0.5%
8. Ripple voltage ≤<=0.5% V p-p
9. 100Hz Ripple voltage <= 300mV
10. Insulation resistance >= 20MΩ
11. Withstand voltage from input voltage to casing >= AC1500V
12. Withstand voltage from input voltage to output voltage = AC1500V
13. MTBF >== 50000h
14. Boot buffer delay 3-5S
15. Overheat protect threshold value 75-85Degree Celsius
