Description
- Phase: single phase
- Current Type: DC
- Usage: SVC
- Brand Name: wanptek
- is_customized: Yes
- Model Number: KPS602DF

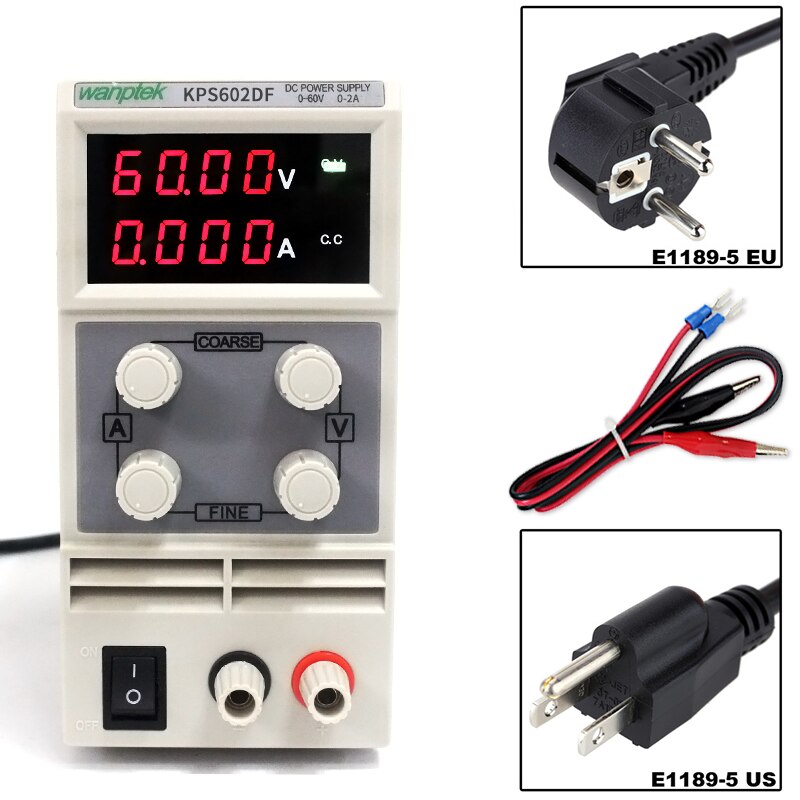

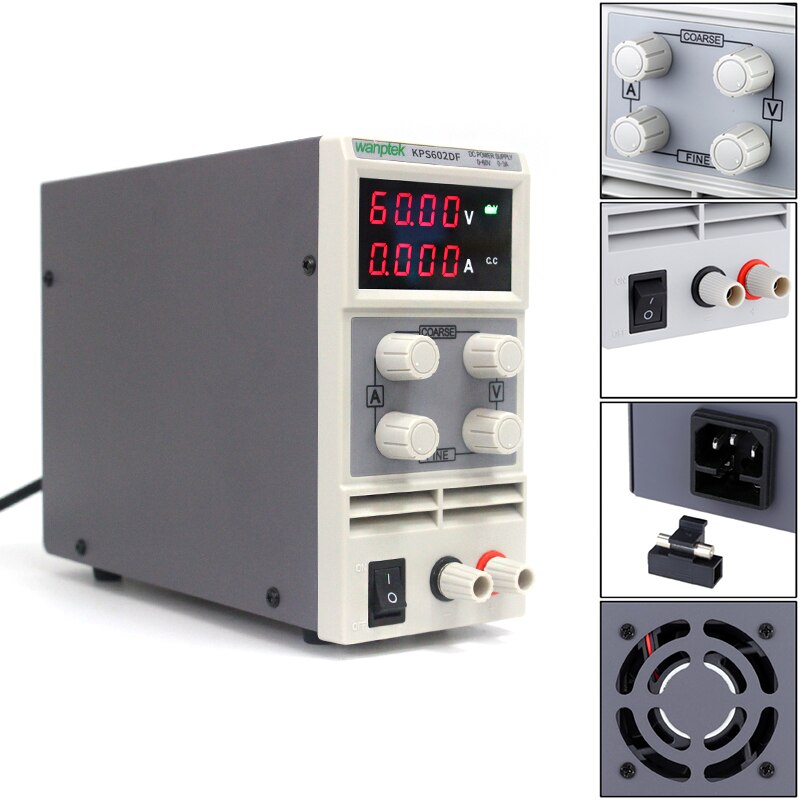

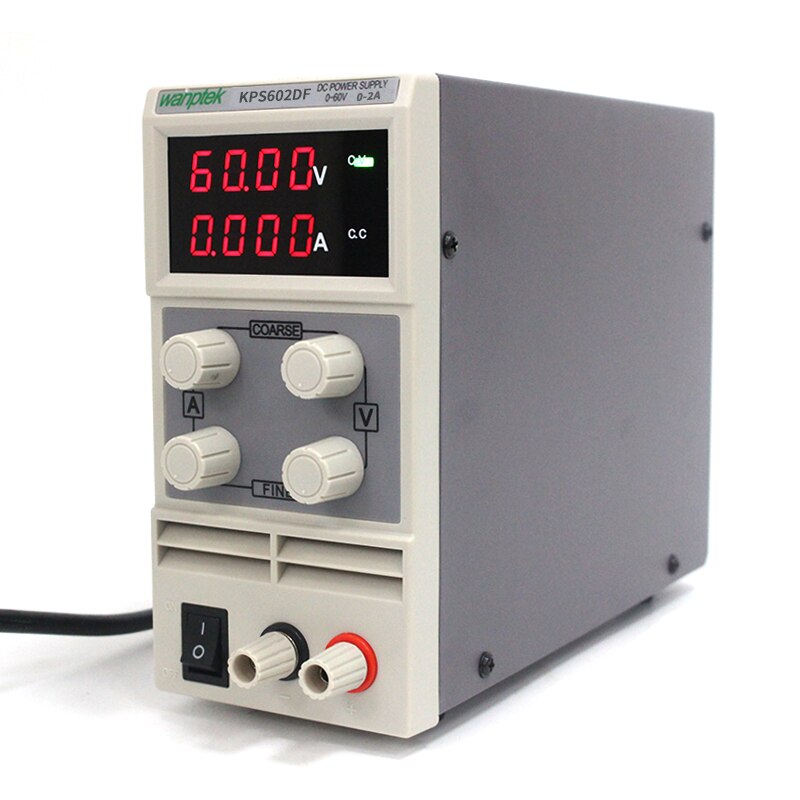

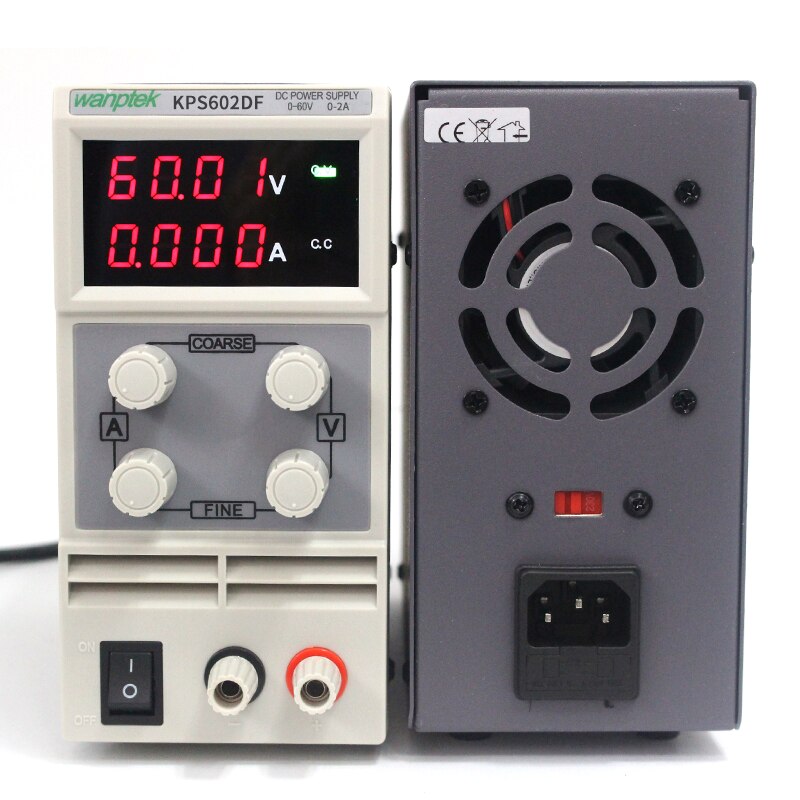

KPS602DF Adjustable High Precision Double LED Display Switch DC Power Supply Protection Function 60V2A 110V-230V 0.1V/0.001A EU
KPS series is a single set of output, high precision double display switch dc power supply.Machines have complete operating protection function, with high performance, low ripple, high stability , light weight and small volume etc. Current limiting protection
can make KPS power supply and load against accidental damage. KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Technical indicators:

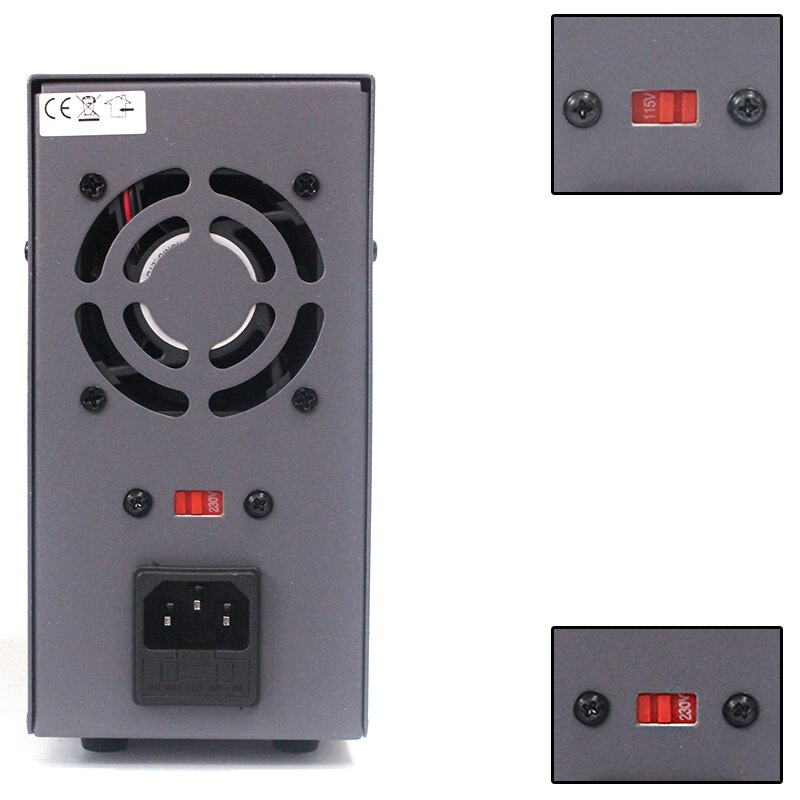

Input voltage: AC 110V/220V/50/60Hz
Output voltage: 0 – 60V
Output current: 0 – 2A
Voltage resolution: 0.01V
Current resolution: 0.001A
Power effect: CV1%+10mV
Effect of load: CV1%+10mV
Ripple and noise: Vp-p1%
Voltage display precision: 1%+1digits
Current display precision: 1%+2digits
Net/gross Weight (KG): 1.4/1.7

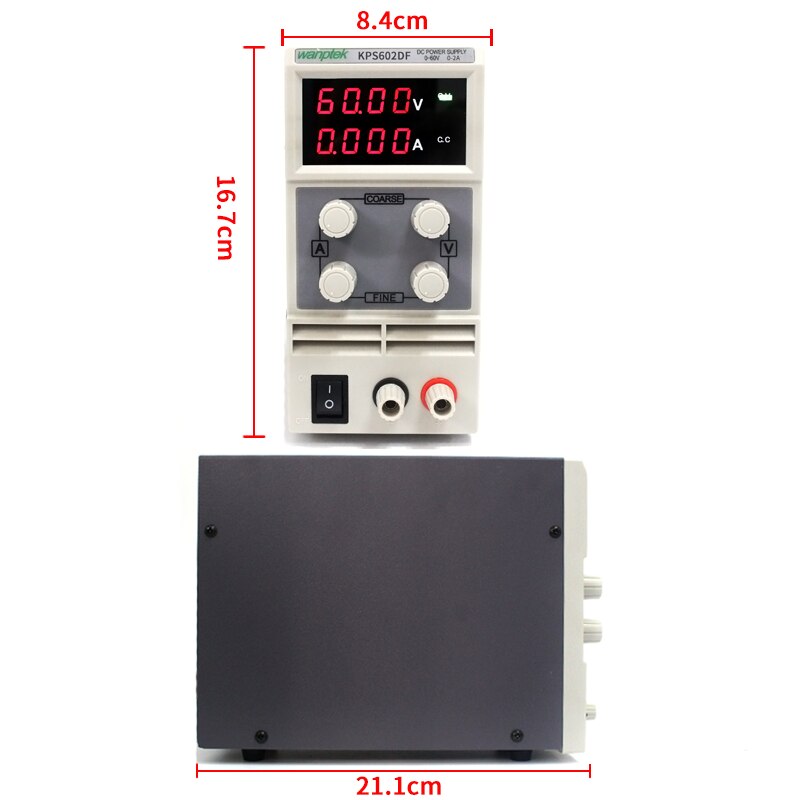

Volume (mm): 81WX165HX220L
Operating environment: (-10-45) Rh<90%
Model
|
Model |
Output voltage |
Output current |
Display resolution |
|
KPS602DF |
0-60V |
0-2A |
0.1V/0.001A |
