Description
- Phase: single phase
- Current Type: DC
- Usage: SVC
- Brand Name: wanptek
- Model Number: KPS1560D
- is_customized: Yes

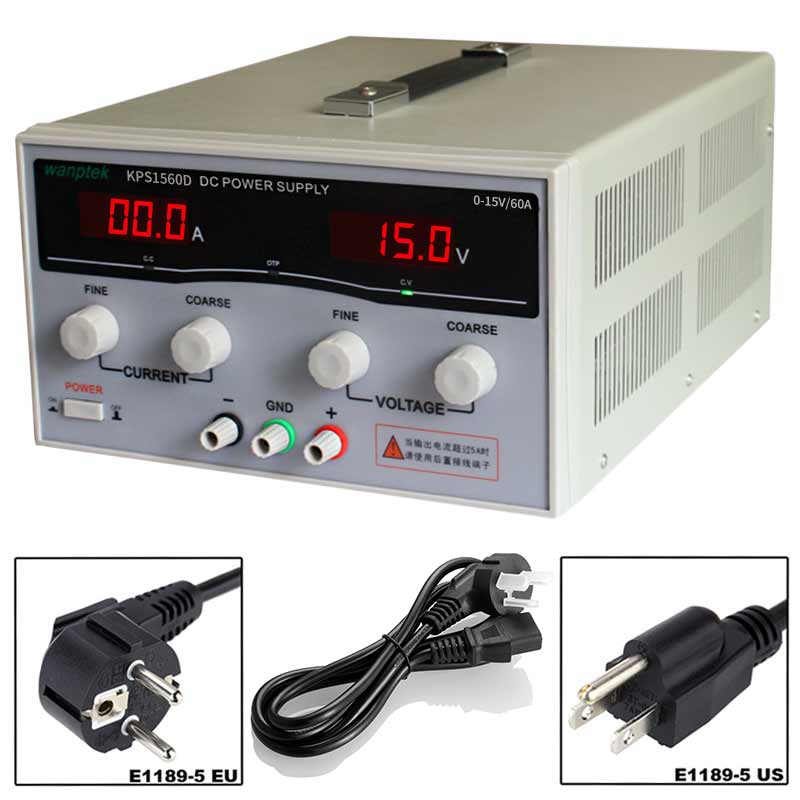

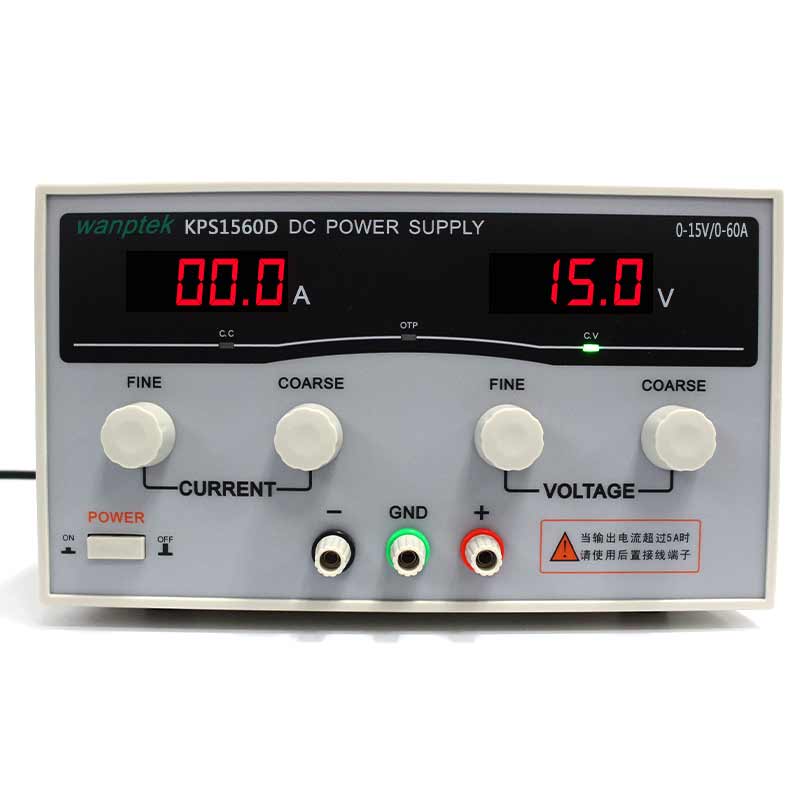

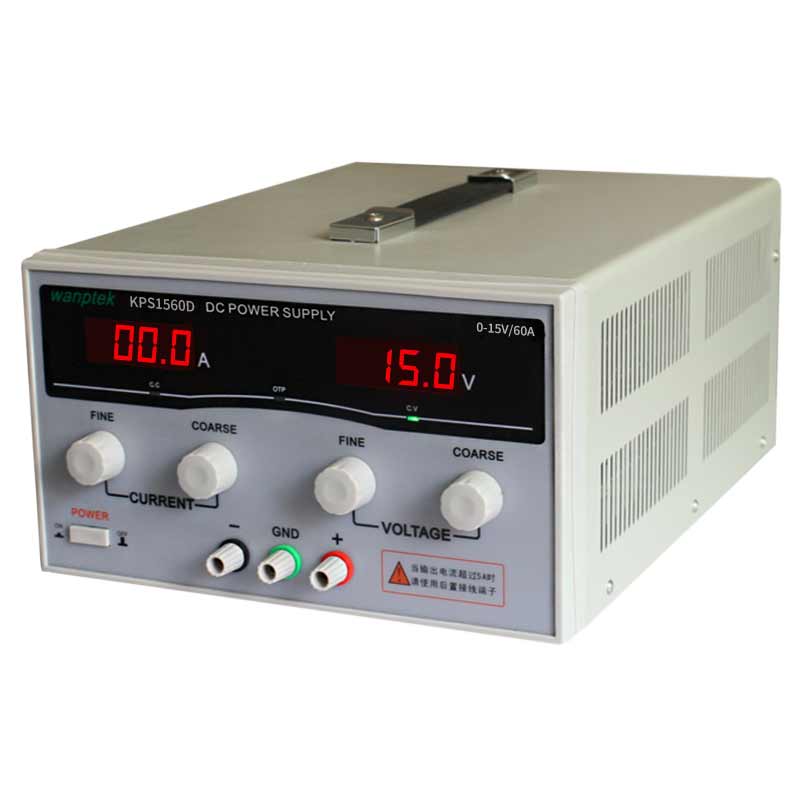

KPS1560D 15V 60A Digital Adjustable DC Power Supply High Power Switch DC Power Supply 110/220V 0.1V 0.
Output voltage:0 ~ Nominal value
Output current:0 ~ Nominal value
Voltage resolution:0.1V
Current resolution:0.1A
Power effect:CV≤0.3%+10mV
Effect of load:CV≤0.5%+30mV
Ripple and noise:Vp-p≤0.5%+10mV
Voltage display precision:±1%+1digits
Current display precision:±1%+1digits
Net/gross Weight (KG):5.0-5.3/6.2-6.5
Product size(mm):260W×160H×375L
Package size(mm):340W×240H×415L
Operating environment:(-10~45)C Rh<90%
Working time:a long time
Standard Accessories:
Power cord×1 Instruction book×1 Warranty card certification×1
Product Model
| Model | Output | Model | Output | ||||
| voltage | current | Rated power | voltage | current | Rated power | ||
| KPS1530D | 15V | 30A | 450W | KPS3020D | 30V | 20A | 600W |
| KPS1540D | 15V | 40A | 600W | KPS3030D | 30V | 30A | 900W |
| KPS1550D | 15V | 50A | 750W | KPS3040D | 30V | 40A | 1200W |
| KPS1560D | 15V | 60A | 900W | KPS3050D | 30V | 50A | 1500W |
| KPS6010D | 60V | 10A | 600W | KPS3060D | 30V | 60A | 1800W |
| KPS6020D | 60V | 20A | 1200W | KPS1005D | 100V | 5A | 500W |
| KPS6030D | 60V | 30A | 1800W | KPS10010D | 100V | 10A | 1000W |
