Description
- Phase: single phase
- Current Type: DC
- Usage: SVC
- Brand Name: wanptek
- is_customized: Yes
- Model Number: KPS1203D

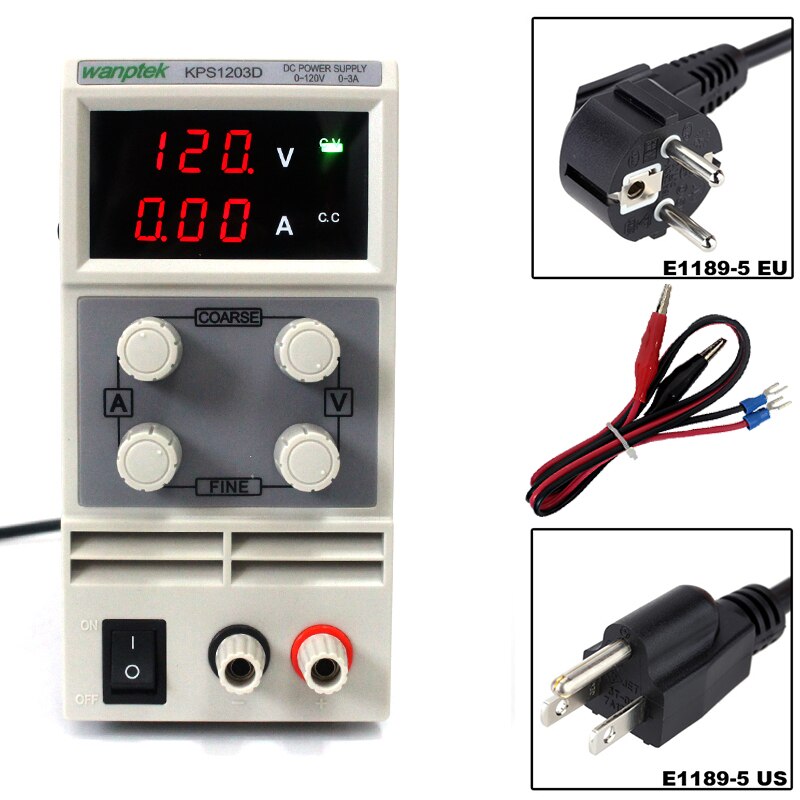

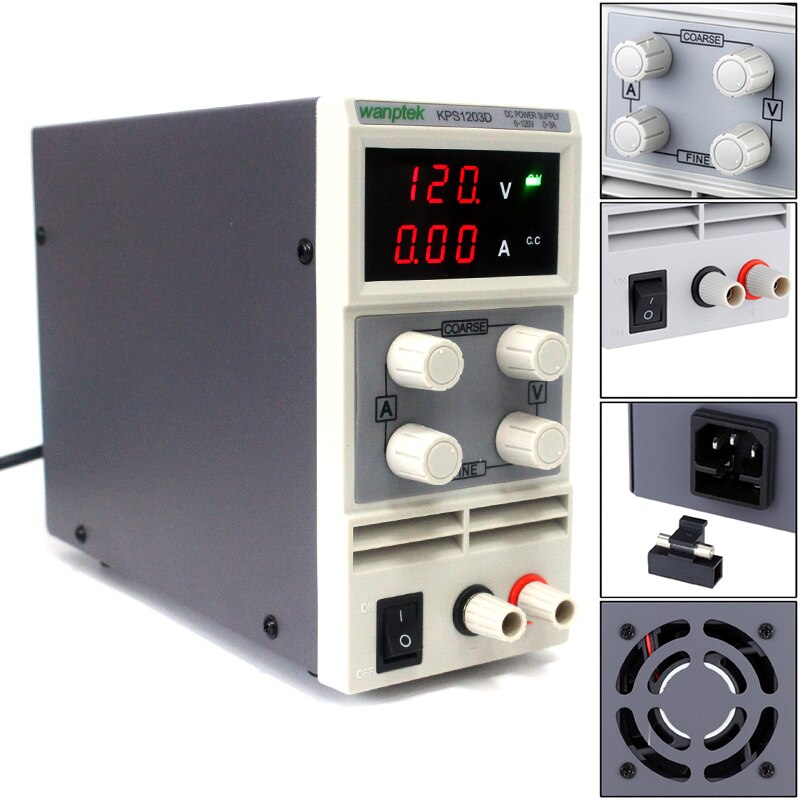

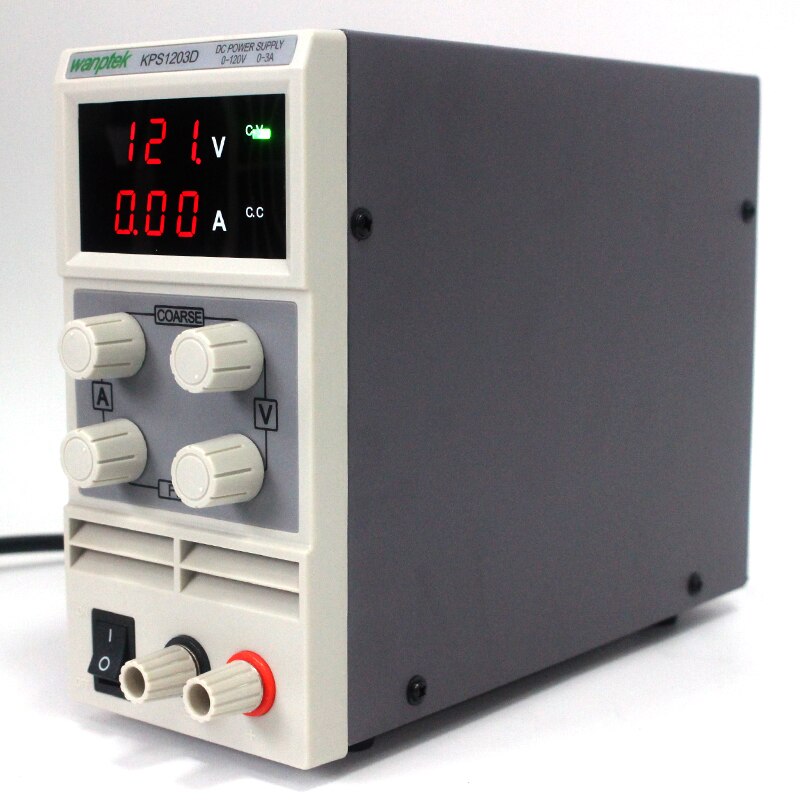

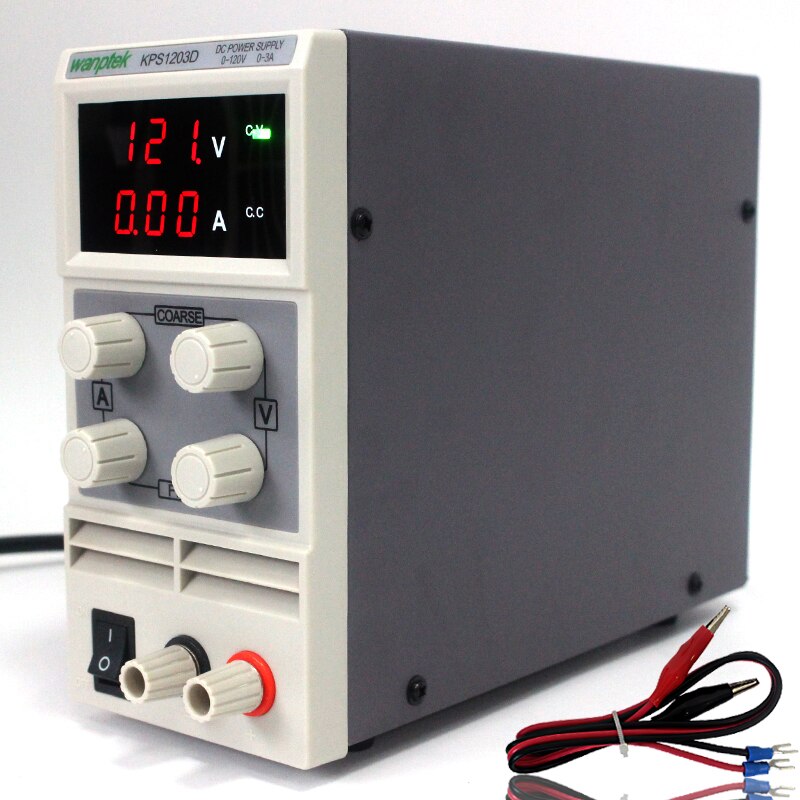

KPS1203D Adjustable High Precision Double LED Display Switch DC Power Supply Protection Function 120V3A 110V/220V 0.1V/0.01A EU
Summary
RKS series is a single set of output, high precision double display switch dc power
supply.Machines have complete operating protection function, with high performance,
low ripple, high stability , light weight and small volume etc. Current limiting protection
can make RKS power supply and load against accidental damage.
RKS series power supply with low temperature control circuit, a cooling fan noise is low.
Special point
1, have complete operating protection function
2, highly efficient, low ripple, small volume, light weight
3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation

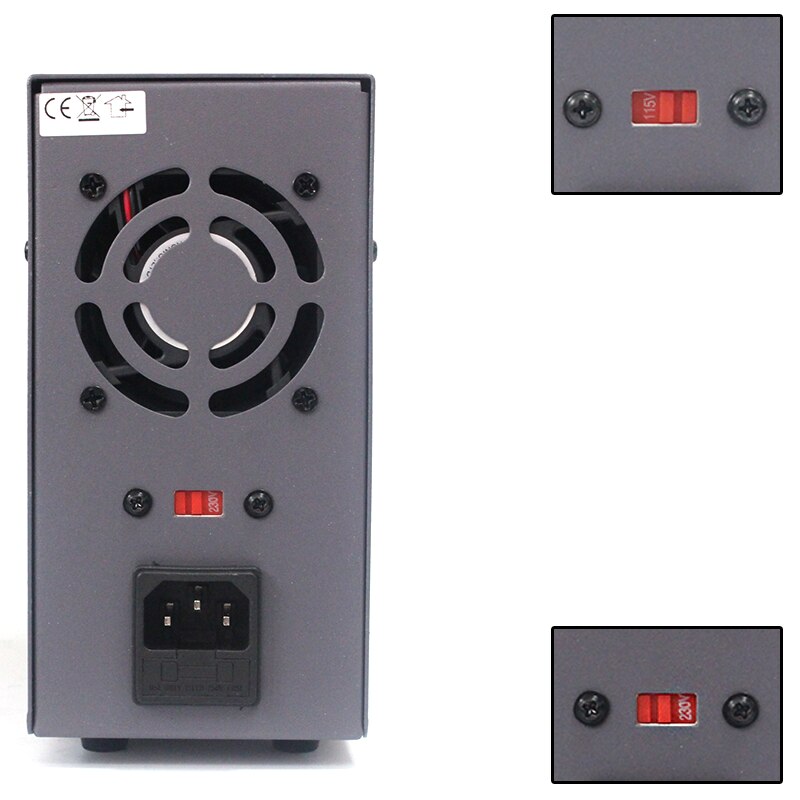

5, dual voltage input and convenient choice
6, temperature control fan heat dissipation, low noise
7, Double potentiometer more precise adjustment
Technical indicators
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 120V
Output current:0 ~ 3A
Voltage resolution:100mV
Current resolution:10mA
Power effect:CV≤1%+10mV
Effect of load:CV≤1%+10mV
Ripple and noise:Vp-p≤1%
Voltage display precision:±1%+1digits
Current display precision:±1%+2digits
Volume (mm):81W×165H×220L
Operating environment:(-10~45) Rh<90%
Working time:a long time
