Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Guangdong, China
- Brand Name: KUNKIN
- Model Number: KP184E
- Product name: KP184E
- Load voltage: DC 1 -150 V
- Load current: 0-40A
- Load power: 0-400W
- Measuring precision Current: ±0.05% 5mA
- Measuring Precision Voltage: ±0.05% 5mV
- Control precision Current: ±0.05% 5mA
- Control precision Voltage: ±0.05% 5mV
- Communication Mode: RS232/RS485
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{font-size:16px}#detail_decorate_root .magic-5{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:259px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:18px;padding:5px 10px;width:442px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-9{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-10{margin-bottom:0}#detail_decorate_root .magic-11{position:relative;width:100%}#detail_decorate_root .magic-12{width:750px}#detail_decorate_root .magic-13{overflow:hidden;width:373px;height:298.40000000000003px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:373.00000000000006px;height:298.40000000000003px}#detail_decorate_root .magic-15{overflow:hidden;width:373px;height:298px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:373px;height:298.40000000000003px}#detail_decorate_root .magic-17{overflow:hidden;width:373px;height:295px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:373px;height:349.854415274463px}#detail_decorate_root .magic-19{overflow:hidden;width:373px;height:295px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-20{margin-top:-36px;margin-left:12px;width:373px;height:407.26509186351706px}#detail_decorate_root .magic-21{overflow:hidden;width:247.33333333333334px;height:157.2118758434548px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:-9.012145748987855px;margin-left:0;width:247px;height:215px}#detail_decorate_root .magic-23{overflow:hidden;width:247.33333333333334px;height:157.2118758434548px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:247px;height:246px}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:247px;height:247px}
KP182E/KP184E series electronic load can be widely employed in LED lighting,
power supply, charger, battery and other industries. The current mode can be used to
simulate the resistive load to discharge the battery and make the power supply under
load; the voltage mode can be used to simulate the capacitive load to make the charger
under load, and also be used to simulated the characteristics of constant voltage of LED
and make the LED driving power under load. The product has the advantages of simple
use, convenient operation, perfect protection function. Such performance and function
is incomparable to the tradition slide-wire resistor. The application in related industries
can improve the production efficiency and reduce the production cost to a great extent.

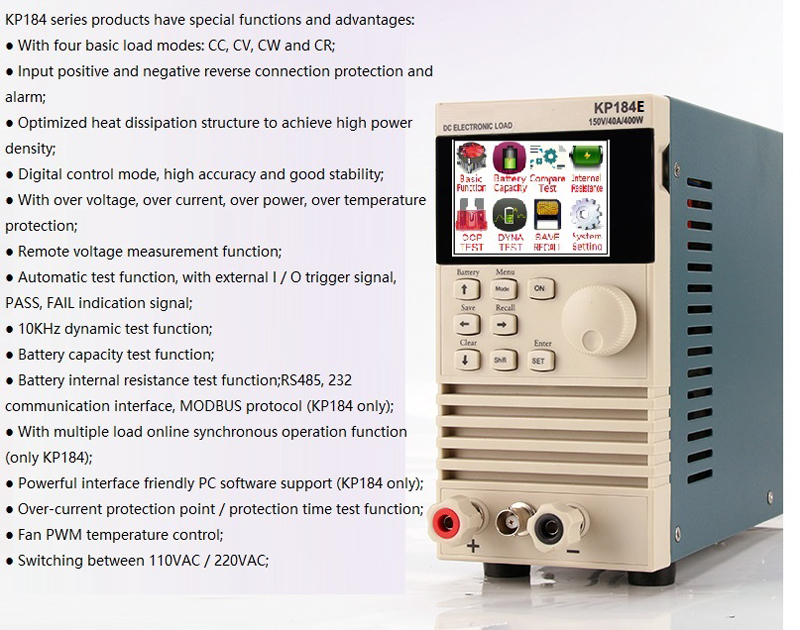

Special functions and advantages of KP182E/KP184E series products

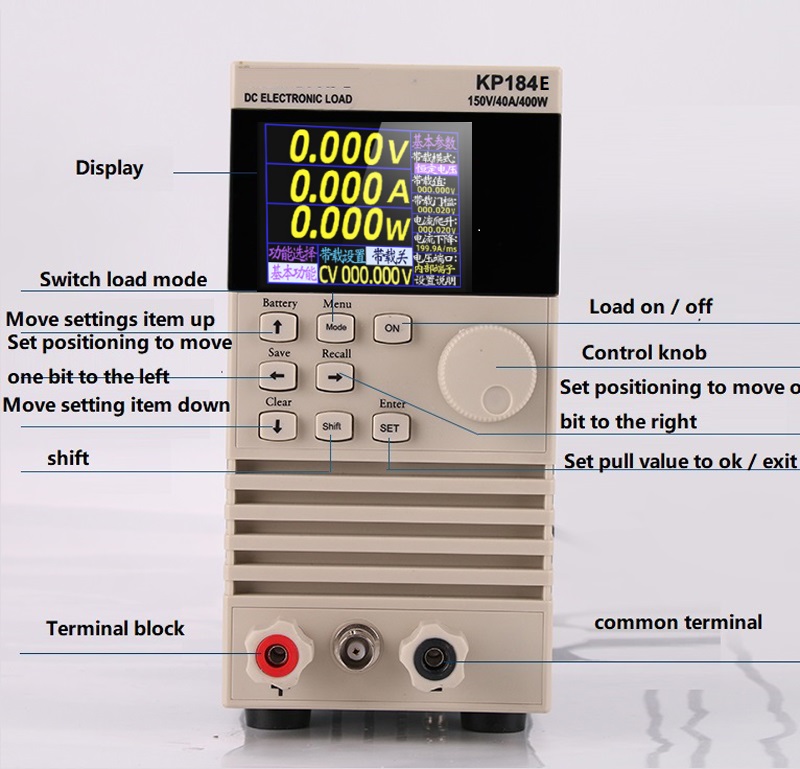

●Intuitive functional single-page operating system, 320 * 240 resolution, TFT display;
●Equipped with four basic load mode including CC, CV, CR, CP;
●Input positive and negative reversed polarity to protect and alarm
●Optimized heat radiation structure can realize high power density;
●Digital control mode, high precision and strong stability;
●Equipped with over voltage/over current/over power/over temperature protection;
●Function of remote voltage measurement;

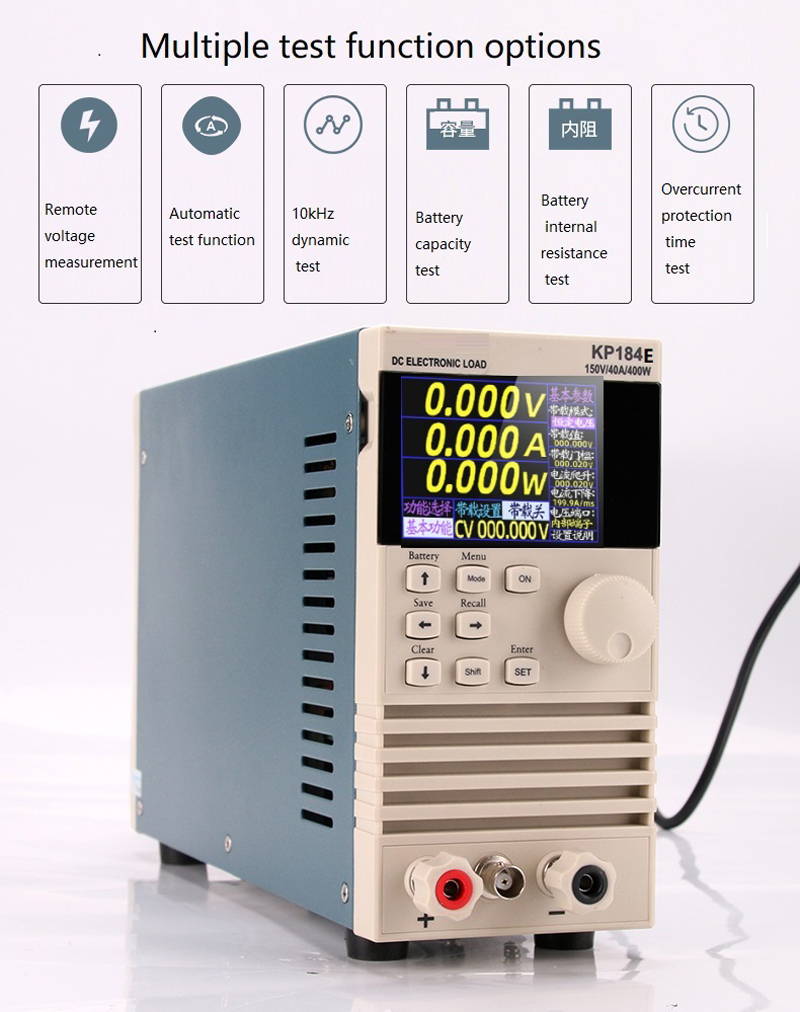

●Function of automatic test with external I/O trigger signal, PASS, FALL index signal;
●Function of 10KHz dynamic test;
●Function of test on battery capacity;
●Function of test on internal resistance of battery
●Function of test on overcurrent protection point/protection time
●Temperature control of fan FWM;
●Switchover of 110VAC/220VAC power supply
●RS232、RS485 communication interface, MODBUS/SCPI protocol (only KP184E)
●Powerful and user-friendly software support of upper computer (only KP184E)
power supply, charger, battery and other industries. The current mode can be used to
simulate the resistive load to discharge the battery and make the power supply under
load; the voltage mode can be used to simulate the capacitive load to make the charger
under load, and also be used to simulated the characteristics of constant voltage of LED
and make the LED driving power under load. The product has the advantages of simple
use, convenient operation, perfect protection function. Such performance and function
is incomparable to the tradition slide-wire resistor. The application in related industries
can improve the production efficiency and reduce the production cost to a great extent.
Special functions and advantages of KP182E/KP184E series products
●Intuitive functional single-page operating system, 320 * 240 resolution, TFT display;
●Equipped with four basic load mode including CC, CV, CR, CP;
●Input positive and negative reversed polarity to protect and alarm
●Optimized heat radiation structure can realize high power density;
●Digital control mode, high precision and strong stability;
●Equipped with over voltage/over current/over power/over temperature protection;
●Function of remote voltage measurement;
●Function of automatic test with external I/O trigger signal, PASS, FALL index signal;
●Function of 10KHz dynamic test;
●Function of test on battery capacity;
●Function of test on internal resistance of battery
●Function of test on overcurrent protection point/protection time
●Temperature control of fan FWM;
●Switchover of 110VAC/220VAC power supply
●RS232、RS485 communication interface, MODBUS/SCPI protocol (only KP184E)
●Powerful and user-friendly software support of upper computer (only KP184E)
Specification
|
Brand Name
|
KUNKIN
|
|
Model Number
|
KP184E
|
|
Power consumption
|
< 20 W
|
|
Load voltage
|
DC 1 -150 V
|
|
Load current
|
0-40A
|
|
Load power
|
0-400W
|
|
Measuring precision Current
|
±0.05%+5mA
|
|
Measuring Precision Voltage
|
±0.05%+5mV
|
|
Control precision Current
|
±0.05%+5mA
|
|
Control precision Voltage
|
±0.05%+5mV
|
|
Communication Mode
|
RS232/RS485
|

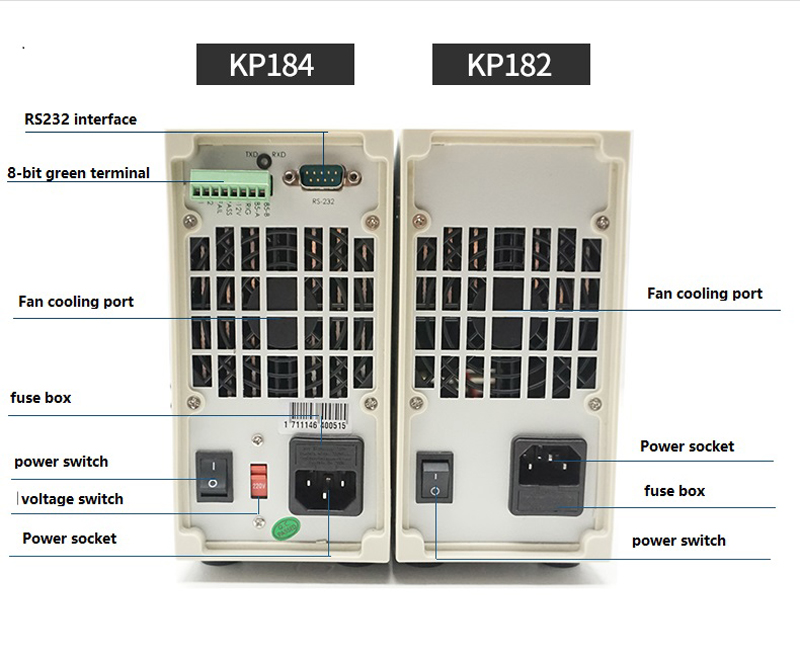

Product Description
Packing & Delivery
Package: Normally we use the standard exporting packaging. We also can according to clients’ request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
3. By Sea: Delivery from the shenzhen sea port
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
3. By Sea: Delivery from the shenzhen sea port

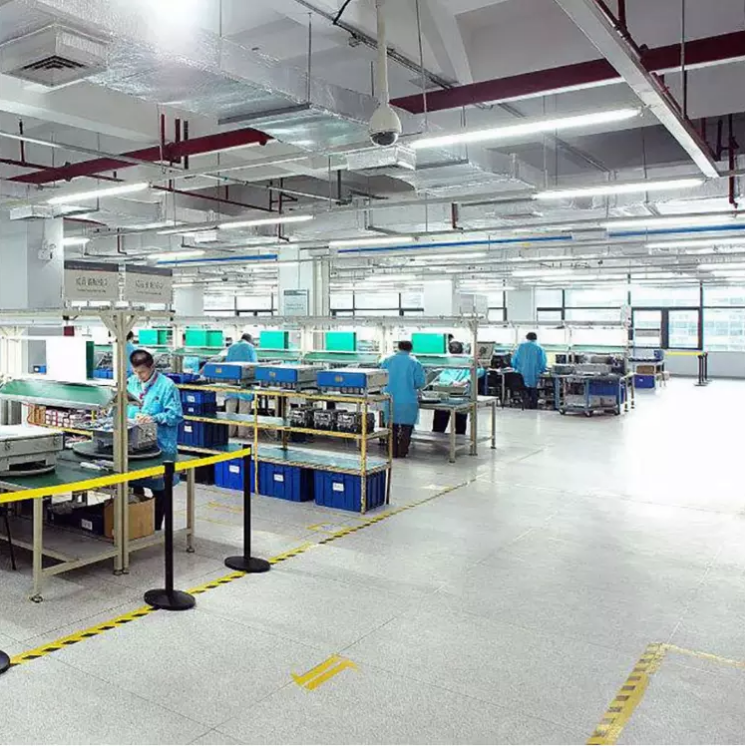

Company Profile
