KKMOON Professional CNC 20000mW Desktop Laser Engraver Carving Machine Mini DIY Printer Wood Router Kit with Protective Glasses

$52.92$275.99

SKU: 4001119592841 Category:

Description

  • Brand Name: KKMOON
  • Origin: CN(Origin)
  • Certification: ce
  • Model Number: CNC Laser Engraver Engraving Carving Machine

Features:

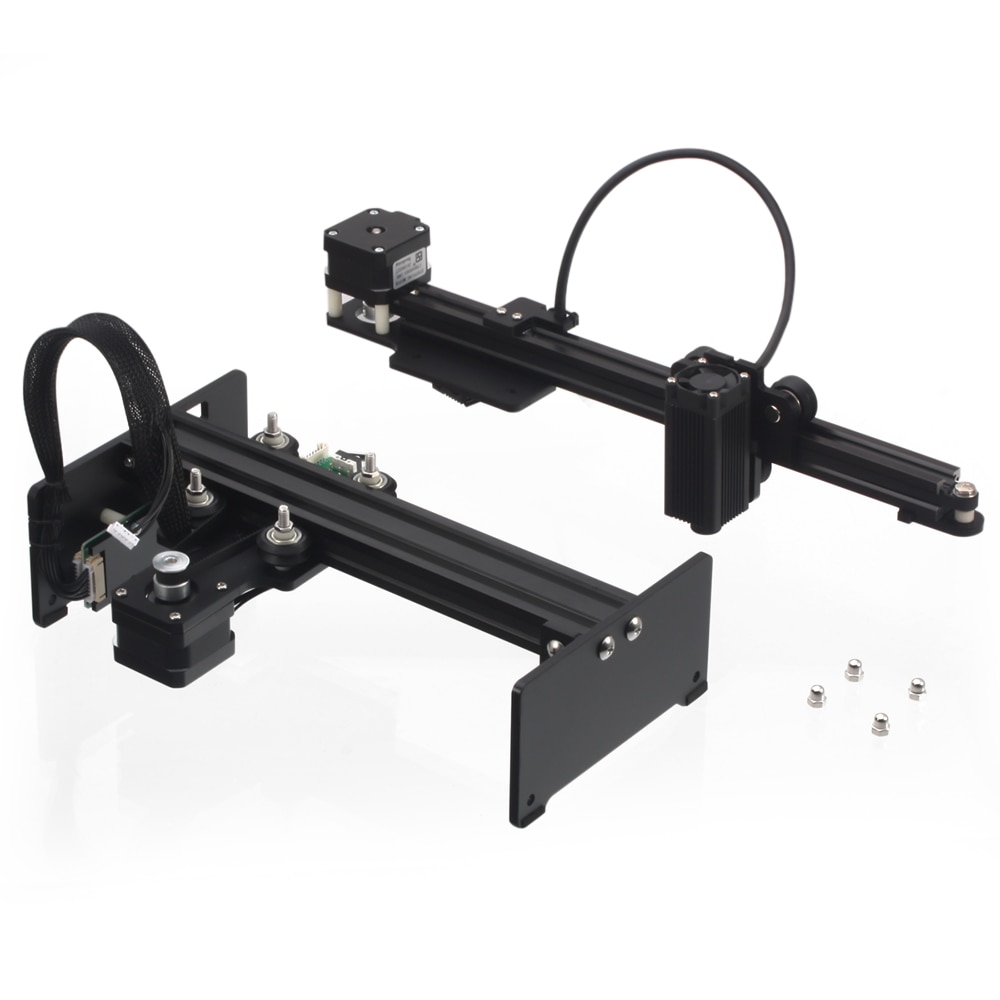

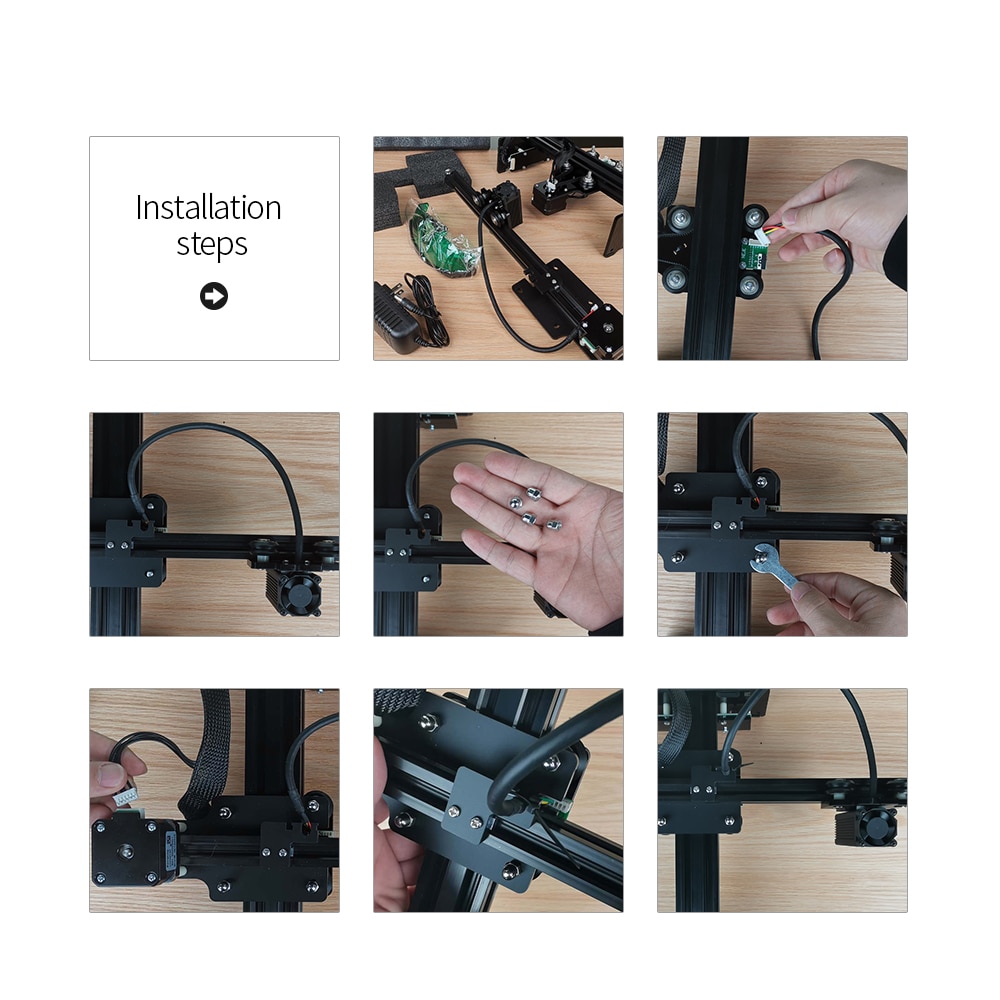

It is not a DIY kit. After strict quality inspection, the whole machine was tested and assembled at the factory, you just need to assemble the X-axis and Y-axis together, very easy to get started.

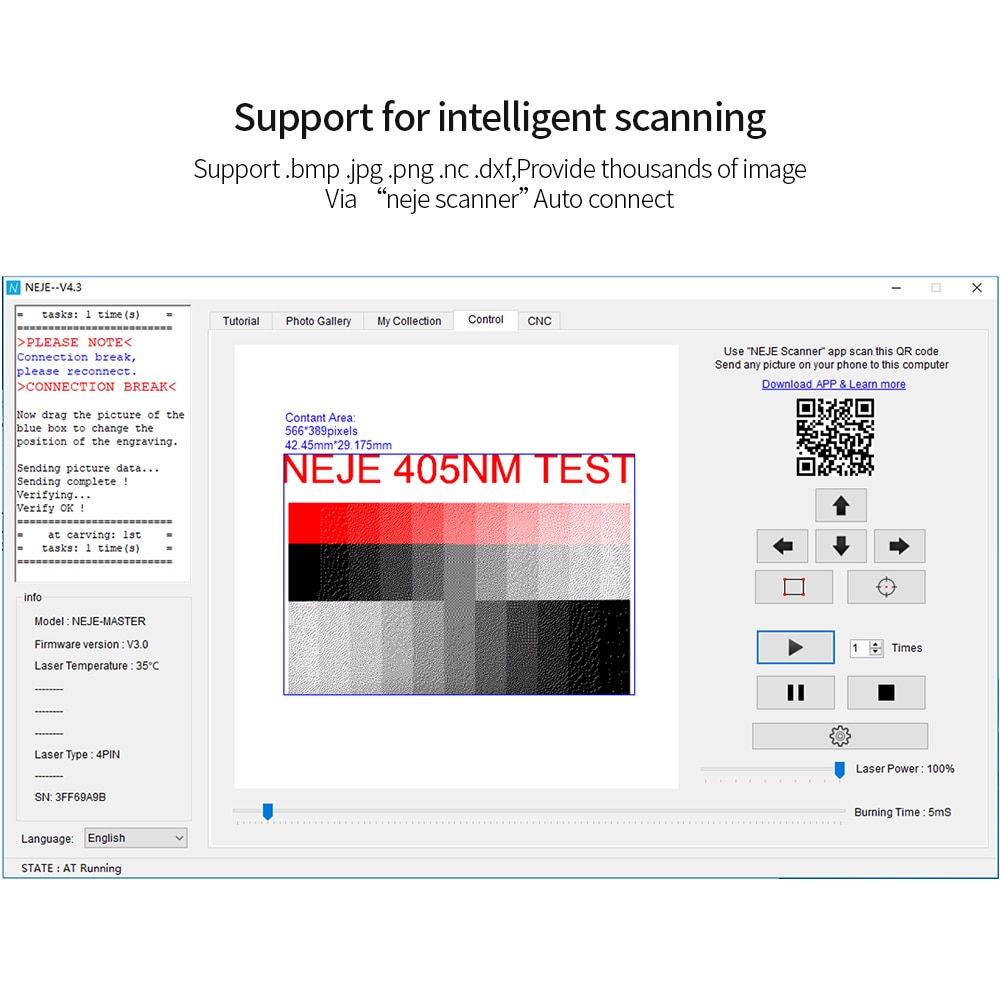

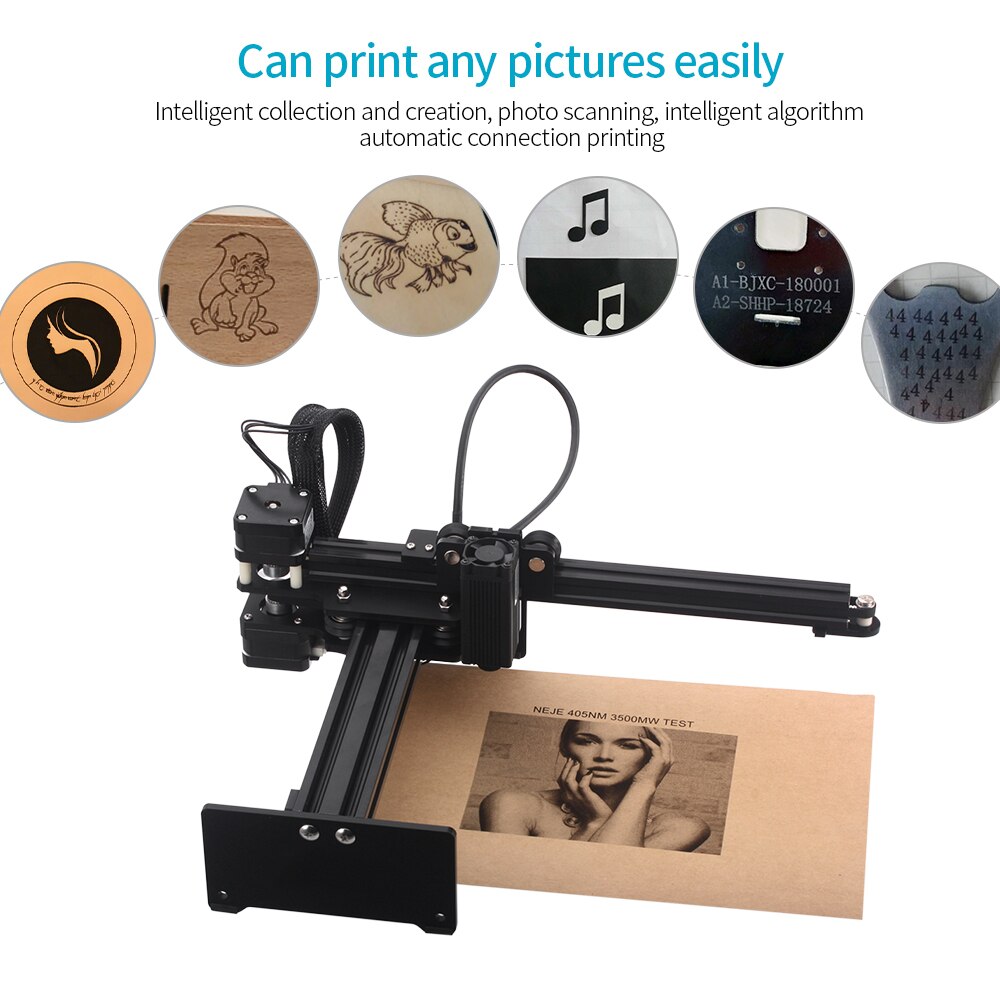

Support “neje scanner” app, intelligent collection and creation, photo scanning, intelligent algorithm automatic connection printing. Taking a .JPG or .PNG photo from camera or album, and send the photo to the windows and MAC software directly.
The machine in-built with a gyroscope protection device. When the machine is running, the built-in gyroscope will record the working position at the beginning. If there is an accidental touch or the machine is displaced, the machine will automatically stop working to prevent accidents.
Professional file processing algorithm, the software can restore your design 1:1 lossless to each pixel. A variety of image algorithms better present the image characteristics of your family or idol.
Getting the driver and software installed was real easy. Download and install directly from the link, the software will be automatically connected after opening the software.
Provide professionals with the ability to directly parse the works designed by Inkscape and CAD software, directly execute .nc files and .dxf files, and execute them accurately. You can do the complex edits in PS / Inkscape / CAD or similar and just burn with the included program.
At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software, but also support the operation fun of GRBL open source software; it supports the dynamic control laser module developed by Neje, which can support PWM power regulation, low light brightness regulation, laser temperature induction protection.
4A load current, capable of delivering powerful output power, 15,000 rpm fan and exquisite heatsink design, can keep temperature safe control within 60 degrees Celsius, maximizing protection laser life, no matter how high-intensity you use, no matter how you work how long.
Full-featured that directly execute .BMP, .JPG, .PNG files and “NEJE CLOUD”/ Online G-code provides thousands of engraving materials and resources to download and keep updating.
Standard 450nm 20W laser tube. The Master 20W excels in fast cutting and can cut materials from 3mm to 8mm thickness.
4Pin laser design with temperature sensing and surge protection design can effectively extend the laser life, and the laser interface supports other machines developed by KKmoon.

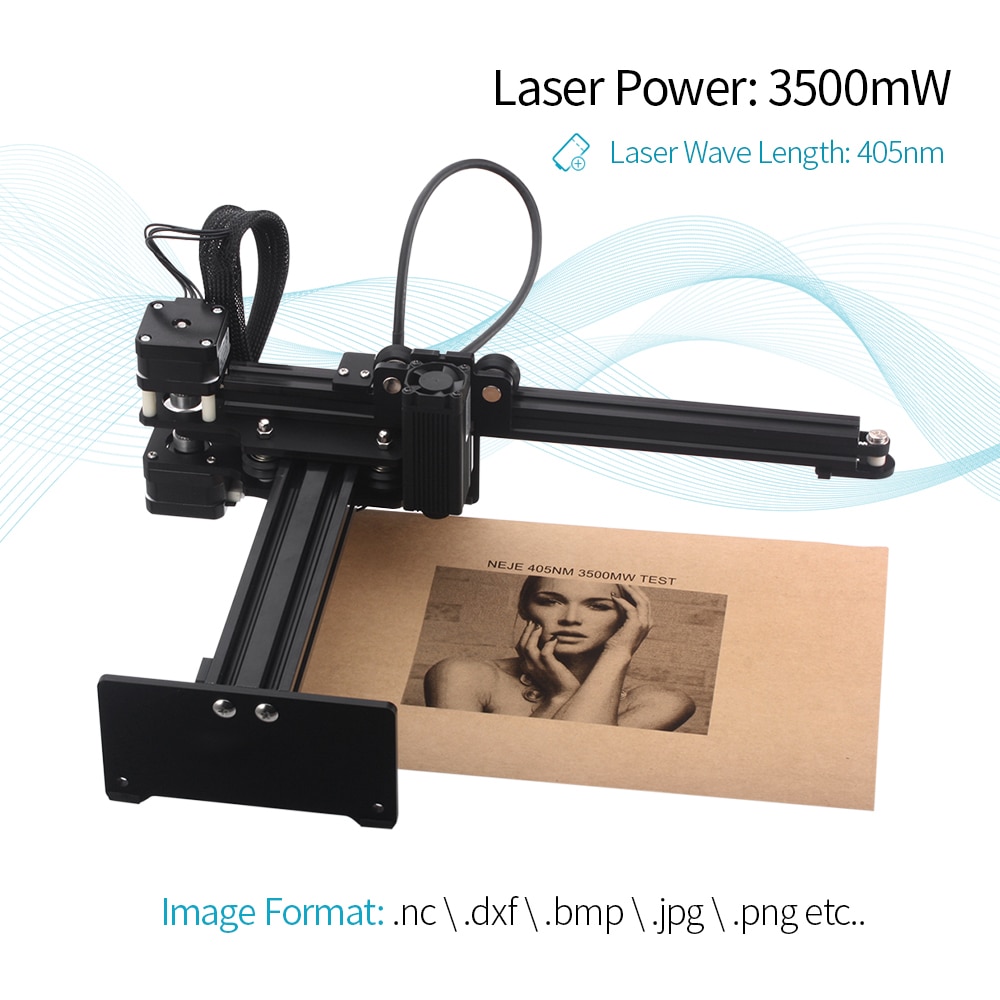

Compatible with a variety of power lasers, while supporting 4pin 405nm 3500mw, 4pin 450nm 7000mw and 4pin 450nm 20W.

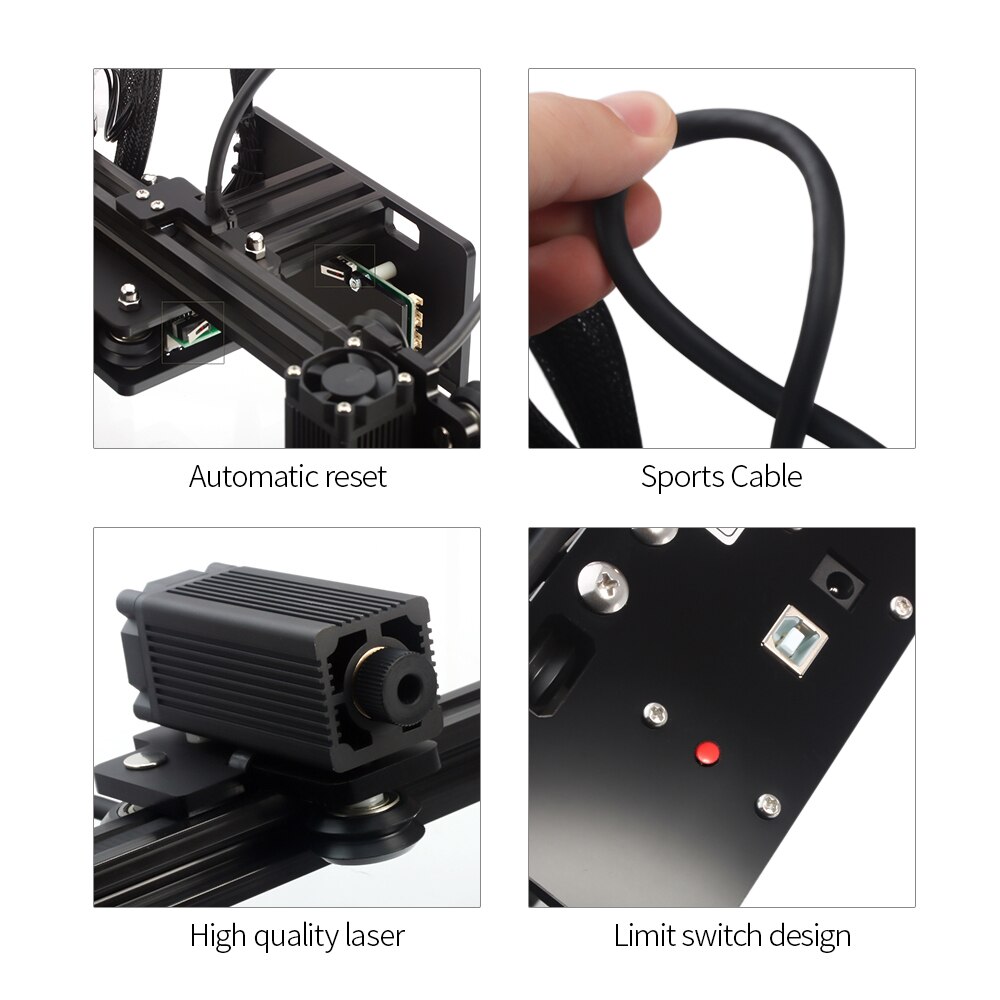

Multi-functional keys can support offline work: press 1 time to reset automatically, press 2 times to perform frame positioning, press 3 times to start engraving, press 4 times to stop engraving.
Dual MCU: One MCU for Support NEJE Controller(Windows & MAC), The Other for GRBL Controller.
20W Specifications:

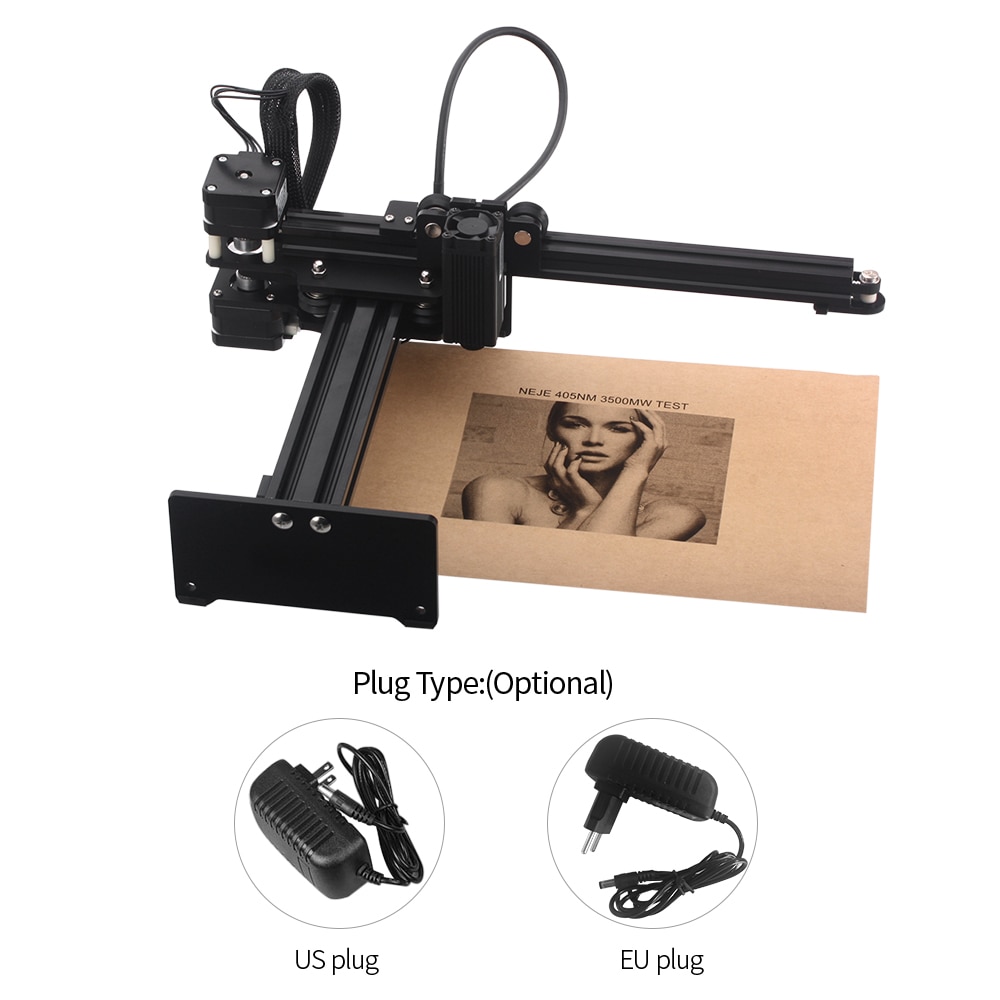

Plug Type: EU / US (Optional)
The master 20w specializes in cutting wood and paper.
Recommend to use the CNC model (NC.file/G-code file) to cut.
Main applications: Cutting, Paper cutting, Wood cutting(<5mm), Depth Engraving(<3mm), G-code drawing, Drawing depth engraving, etc.
Material: Acrylic + PP + Aluminum
Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Drive position: built-in
Wavelength: 450nm
Input power: approx. 12V2A ≈ 20W (without fan power)
Output optical power: 5.5W
Image Format:.nc .dxf .bmp .jpg .png etc..
Image Size: 2000 * 2000 pixels / 0.075mm point distance
Support System: WinXP / Win7 / Win8 / XP / Win10, Mac OS, android APP(neje scanner)
Machine Supply Voltage: 12V3A
Control line installation method: pluggable
Focus range: 5-50mm
Best focal length: 10mm from the light exit
Engraving Area: 150mm x 150 mm in Working area; 160mm x 160mm in GRBL Mode

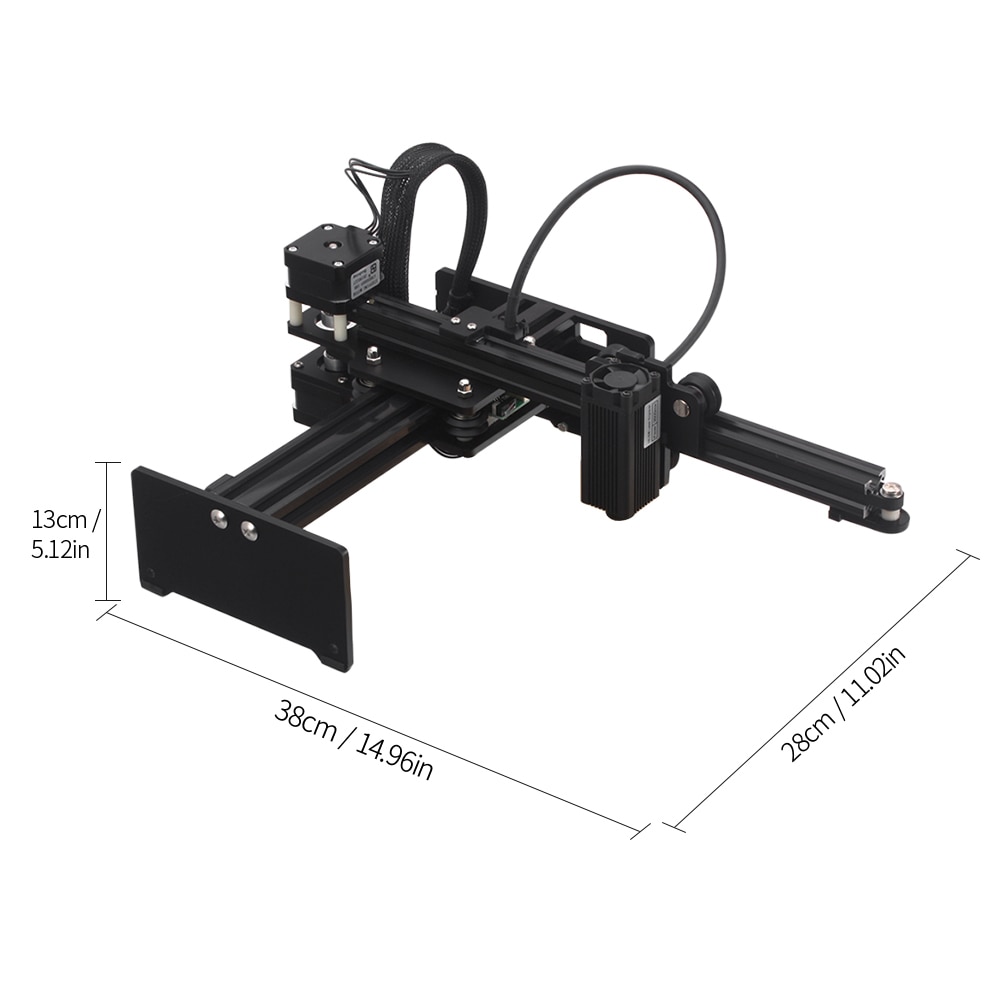

Item Size: Approx. 38 * 28 * 13cm / 14.96 * 11.02 * 5.12in
Item Weight: Approx. 1400g / 49.39oz
Package Weight: Approx. 2100g / 74.08oz
Package Size: Approx. 43 * 27 * 14.5cm / 16.93 * 10.63 * 5.71in
7W Specifications:
Plug Type: EU / US (Optional)
Material: Acrylic+aluminum+stainless Steel
Main Color: Black
Input: 12V750mA (about 7w)
Laser Wave Length: 450nm
Output optical power: 2.5W
PWM: 50KHz-20KHz / 3.3V-12V
Temperature Sensor: yes
Best focus range: 0mm-50mm( Recommend 0-10mm)
Max cutting thickness: 3mm(Light diameter:<0.15mm)
Minimum Focus Diameter: 0.01mm ( Recommend Focus Range<10mm)
Z-axis extension: yes
Sensor safety protection: yes
Power supply: Power Adapter 12V2A
Image Format: .nc .dxf .bmp .jpg .png etc..
Image Size: 2000 * 2000 pixels / 0.075mm point distance
Supported OS: WinXP / Win7 / Win8 / XP / Win10 ,Mac OS, android APP(neje scanner)
Engraving Area: 150mm x 150 mm in Working area; 160mm x 160mm in GRBL Mode
Item Size: Approx. 38 * 28 * 13cm / 14.96 * 11.02 * 5.12in
Item Weight: Approx. 1300g / 45.86oz
Package Weight: Approx. 1900g / 67.02oz
Package Size: Approx. 43 * 27 * 14.5cm / 16.93 * 10.63 * 5.71in
3.5W Specifications:

Plug Type: EU / US (Optional)
Material: Acrylic+aluminum+stainless Steel
Main Color: Black
Input: 12V, 280mA (about 3500mw)
Output optical power: 600mw
PWM: 50KHz-20KHz / 3.3V-12V
Temperature Sensor: yes
Focus range: 0mm-50mm ( Recommend 0-10mm)
Max cutting thickness(Non Woven Fabric): 3mm(Light diameter:<0.15mm)
Minimum Focus Diameter:0.01mm ( Recommend Focus Range<10mm)
Image Format:.nc .dxf .bmp .jpg .png etc..
Image Size:2000 * 2000 pixels / 0.075mm point distance
Support System:WinXP / Win7 / Win8 / XP / Win10, Mac OS, android APP(neje scanner)
Machine Supply Voltage: 12V2A
Z-axis extension: yes
Sensor safety protection: yes
Engraving Area: 150 * 150mm
Item Size: 38 * 28 * 13cm / 14.96 * 11.02 * 5.12in
Item Weight: 1300g / 45.86oz
Package Weight: 1900g / 67.02oz
Package Size: 43 * 27 * 14.5cm / 16.93 * 10.63 * 5.71in

Package List:
1 * Engraving Machine
1 * Protective Glasses
1 * USB Cable
1 * Power Adapter
1 * Wrench
1 * Whiteboard Marker
2 * Wood Block
5 * Paper
1 * Brush
1 * Metal tag
1 * User Manual
Note:
1.Especially good at cutting, It can cut wood (3-8mm). It supports metal engraving including alumina oxide, and other non-reflective materials, depth of engraving (0.5-3mm wood).
2.Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, etc. Can not work on the stainless steel, alloy, glass, and some reflective materials.
3.It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser.
4.When the machine is working, it is recommended not to look directly at the laser head, and not to operate the laser head directly by hand.
5.Laser diode is a sensitive component, pay attention to prevent electrostatic damage (product includes electrostatic protection design, but there is a certain probability of damage).

6.Need to switch to the CNC Mode to cutting.
