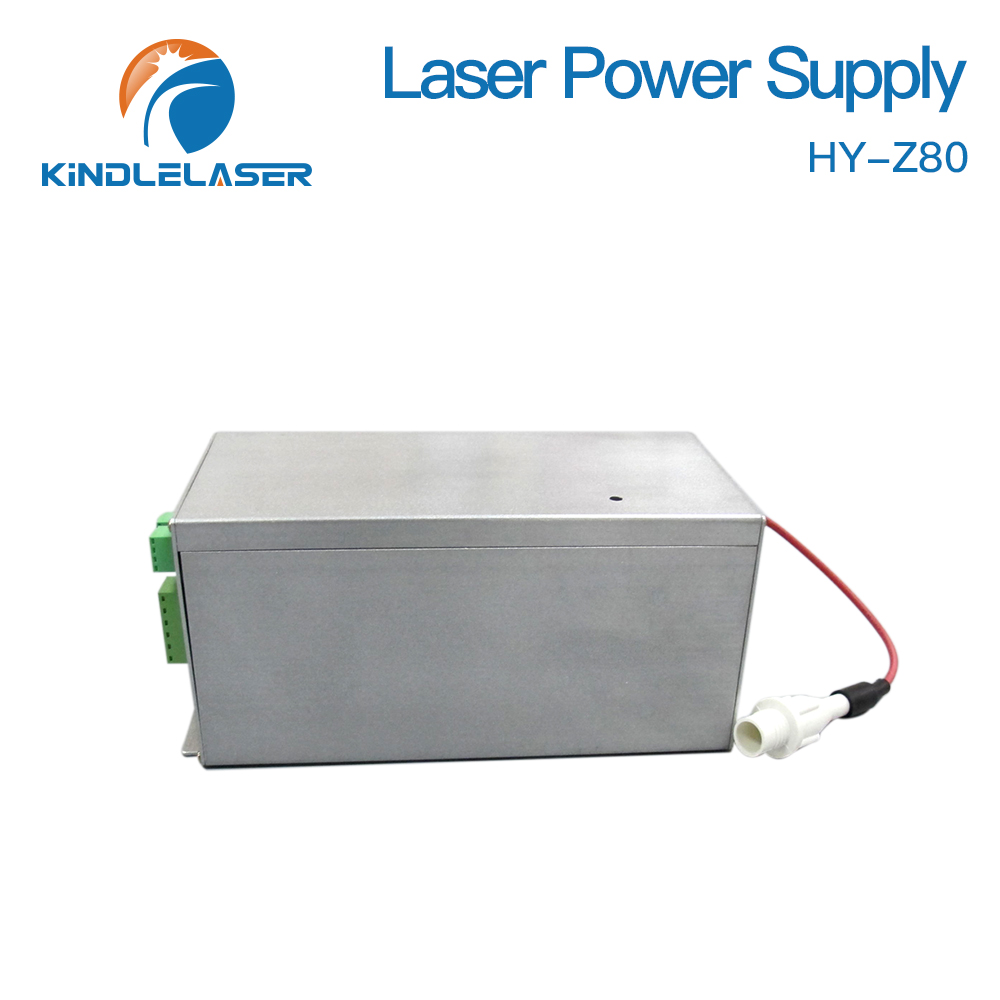

KINDLELASER 80-100W CO2 Laser Power Supply Monitor HY-Z80 Z Series AC90-250V EFR Tube for CO2 Laser Engraving Cutting Machine

$198.00

SKU: 1005004036795589 Category:

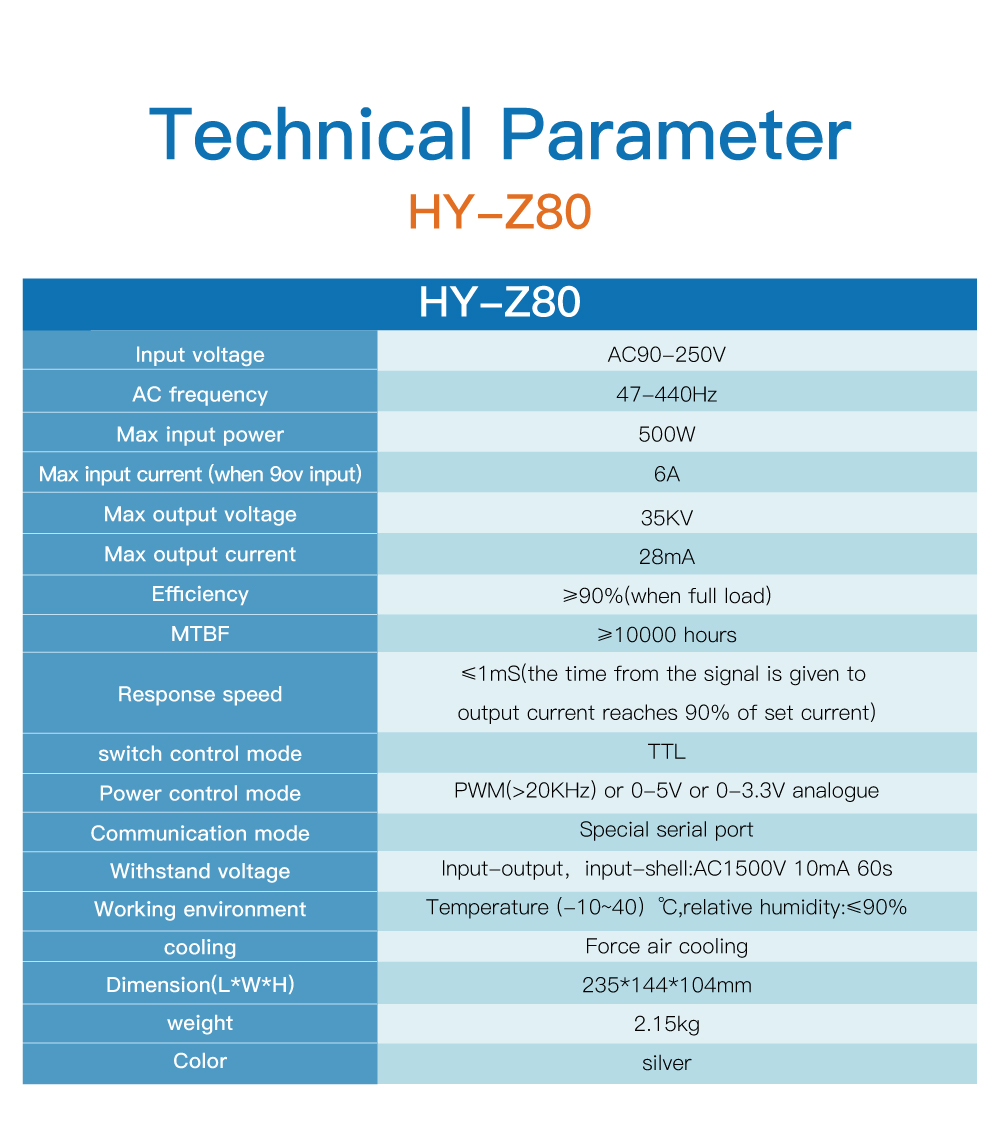

Description

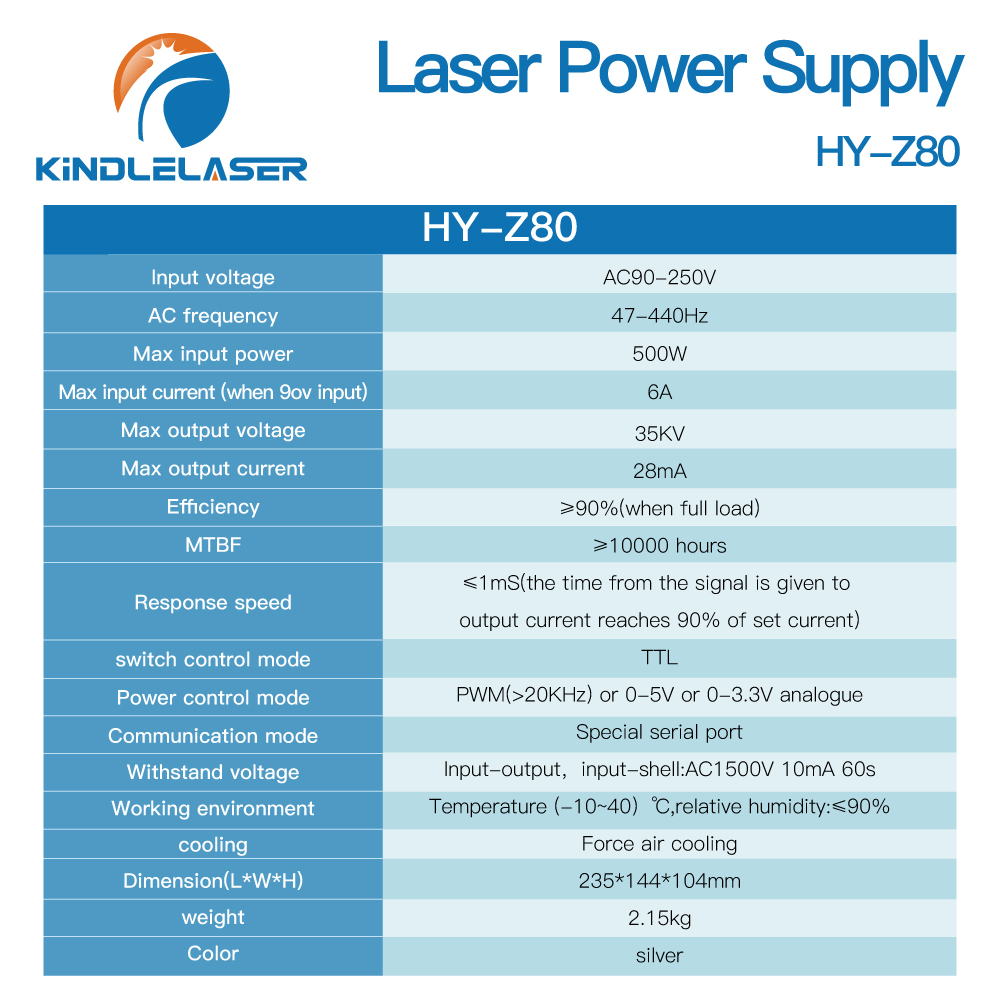

  • Brand Name: Kindlelaser
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: 80-100W PSU HY-Z80
  • Input Voltage: AC90-250V
  • Max Input Power: 500W
  • Max Input Current: 6A
  • Max Output Voltage: DC 40KV
  • Max Output Current: DC 28mA

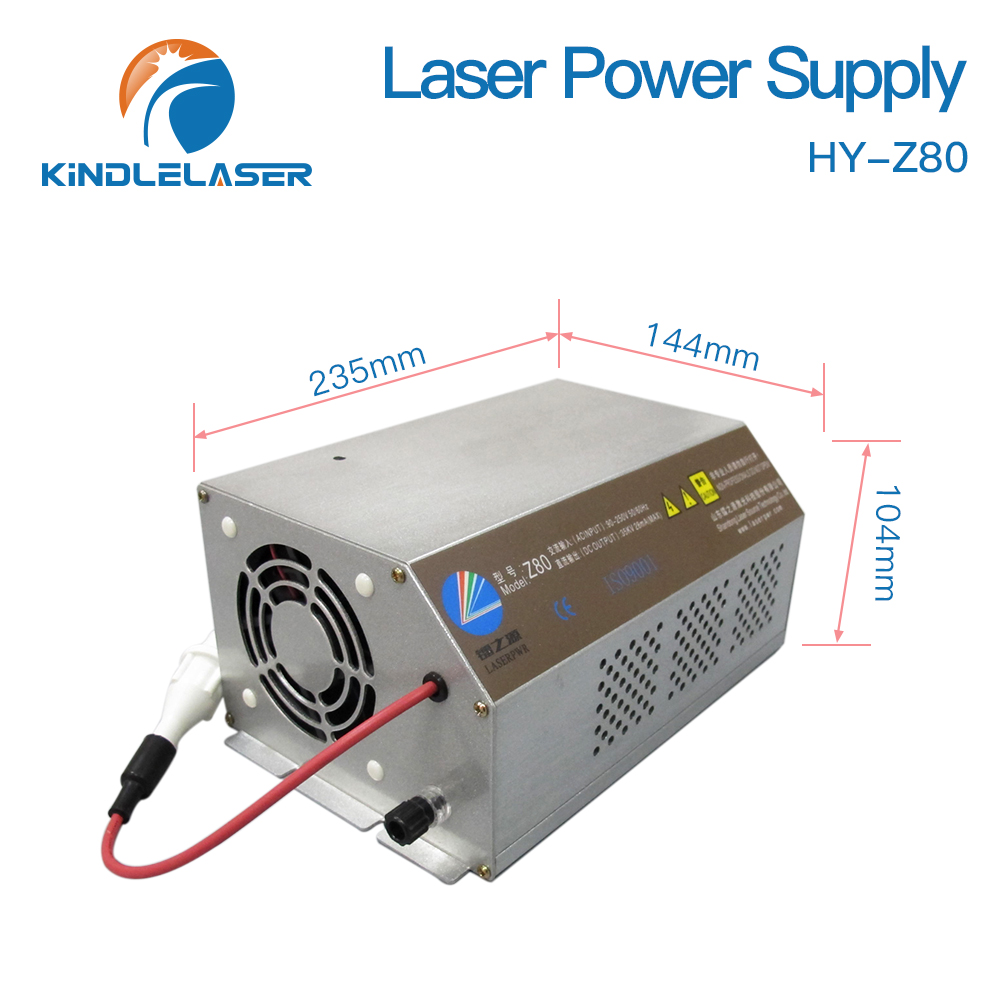

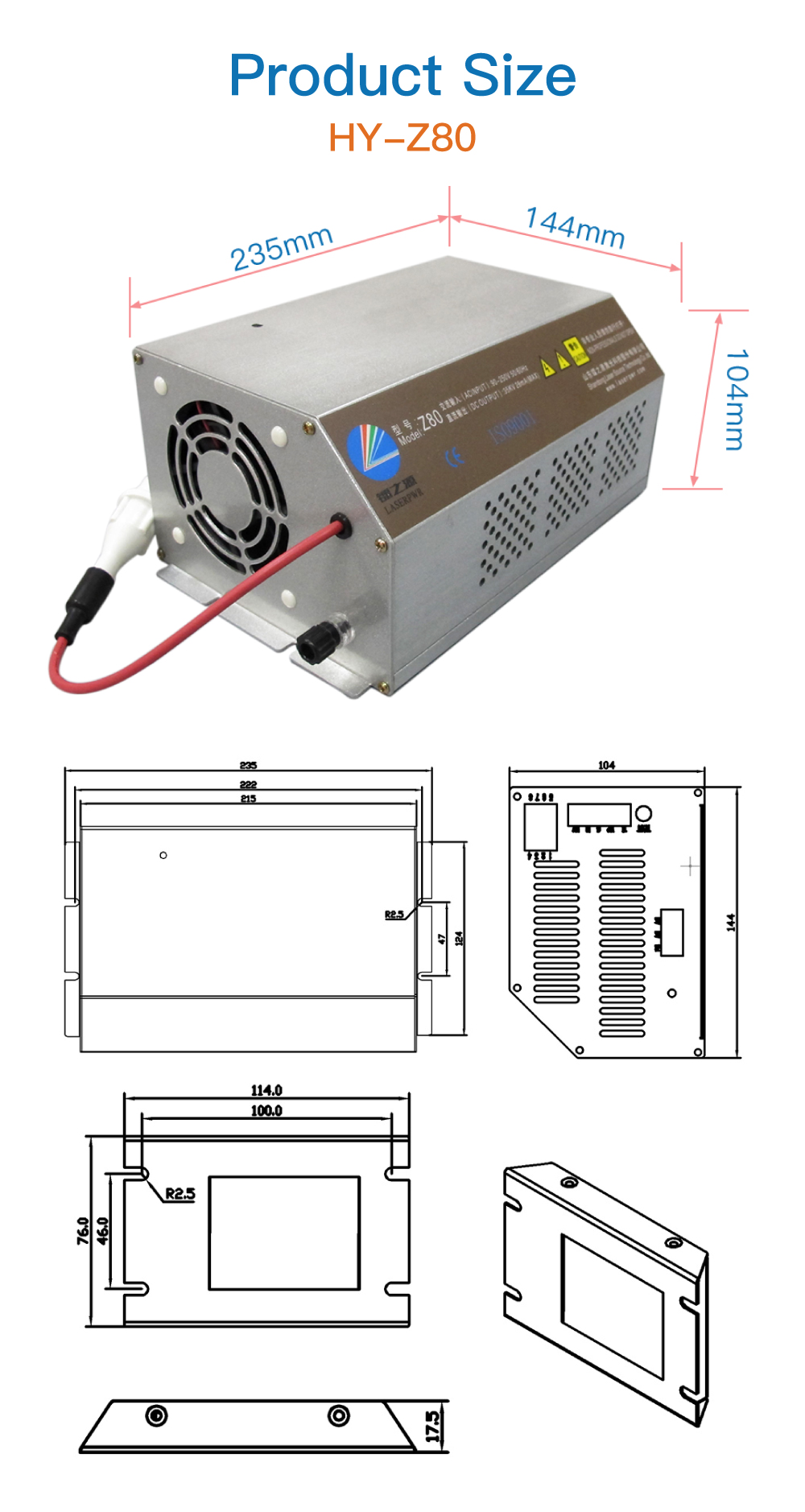

  • Dimension: 235*144*104 mm
  • MTBF: ≥10000 hours
  • Efficiency: ≥90%(when full load)
  • Response Speed: ≤1mS
  • Weight (KG): 2.15 kg

KINDLELASER 80-100W CO2 Laser Power Supply Monitor HY-Z80 Z Series AC90-250V EFR Tube for CO2 Laser Engraving Cutting Machine

Features

    1.High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.

    2.Make the maintenance much easier: User can judge the problem by himself.

    3.Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.

    4.Universal: with PFC function, AC90-250V input voltage range, globally universal.

    5.Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.

    6.More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.

    7.Excellent cover with patent design: Good appearance, better heat dissipation.

    8.lmproved current control mode, more stable laser, better compatibility.
