Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Warranty: 1 year
- Customized support: OBM
- Place of Origin: Guangdong, China
- Brand Name: Graigar
JW4108S Fusion Splicer for FTTH Fiber Optic Fusion Splicer
Introduction:
JW4108S FTTH Fusion Splicer, with high performance price ratio, is the main product of Shanghai Joinwit. With smart appearance, reliable quality, JW4108S is a special design for the installation, operation and maintenance of optical fiber specially designe a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
We can also provide a more advanced type of fusion splicer — JW4106S, if you are interested in JW4106S, please click here to view more.
Features:
-
Used for FTTH and ordinary fiber project
-
Core to core alignment by PAS technology
-
9 sec splicing time and 30 sec heat time
-
300 X or Y view, 200 X and Y view
-
5 inch digital high-quality LCD screen, observe X and Y view at same time
-
Three in one fixture, splicing single fiber, cable indoor and pig tail
-
Built in large capacity lithium battery of 200 times splicing and heating
-
Small size and light weight, 2.1KG including battery
Specification:
Model |
JW4108S FTTH Fusion Splicer |
Splicing Type |
SM, MM, DS, NZDS |
Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return Loss |
>60dB |
Splicing Mode |
Manual, Half Auto, Auto |
Fiber Alignment |
Core to Core Alignment by PAS technology |
Applicable Fiber |
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
Splicing Time |
≤9s |
Heat Time |
≤30s |
Fiber Image/ Magnification |
300/200 |
View Display |
5 inch digital high-quality LCD screen |
Tension Test |
Standard 2N (option) |
Battery Capacity |
200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
Battery Life |
Cycling charge 300-500 times, easy to replace battery |
Electrodes Life |
3000, easy to replace electrodes |
Power Source |
≤20W |
Interface |
USB Convenient data download and software update |
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Operating Condition |
0-5000m above sea level, Temperature: -10℃~60℃, Humidity:0~95%RH (No dew) |
Weight (including battery) |
2.1 KG (including battery) |
Dimension (LxWxH) |
135mm(L)×158mm(W)×155mm(H) |

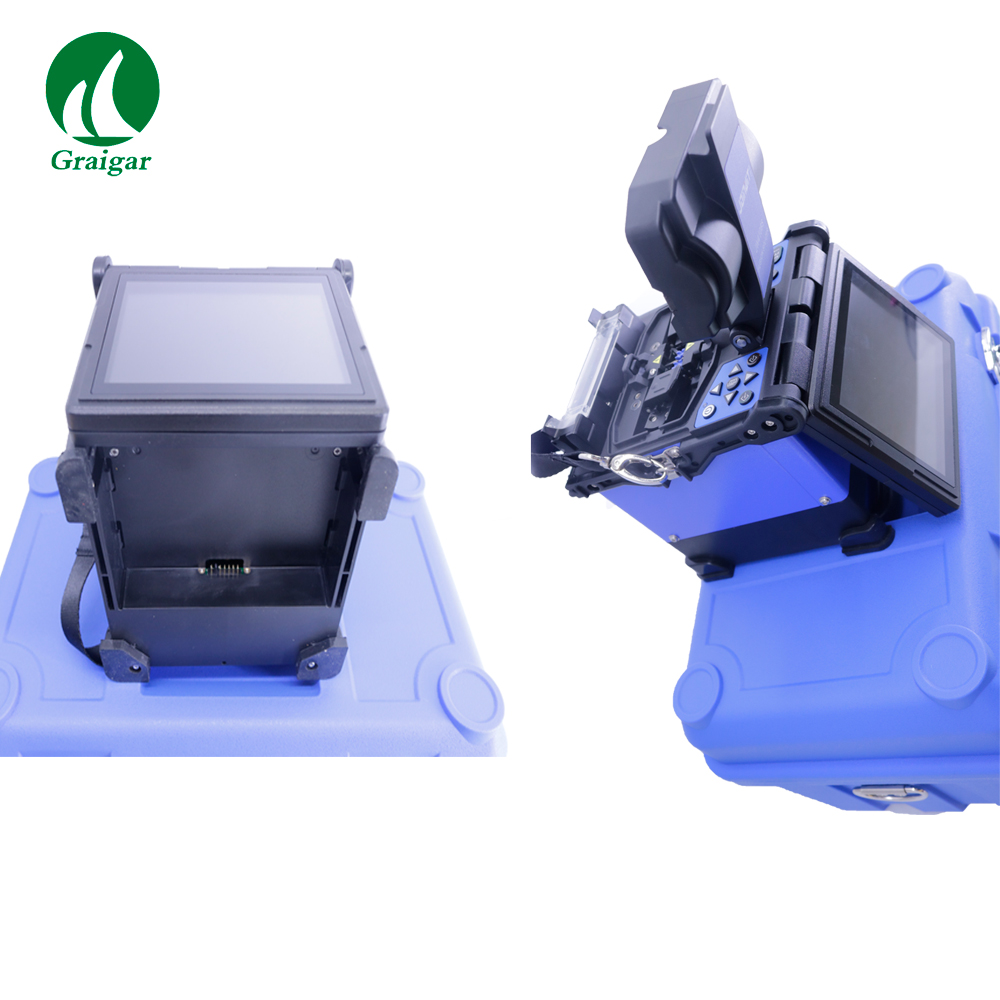

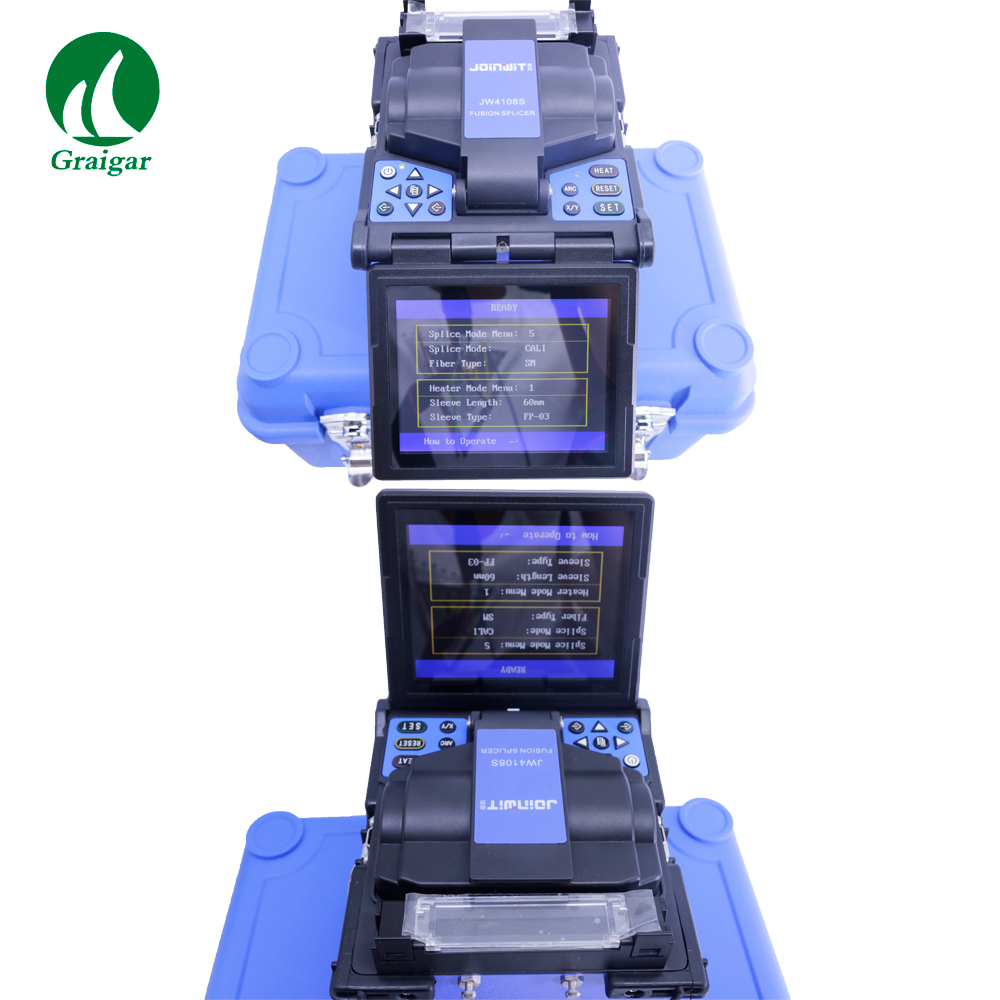

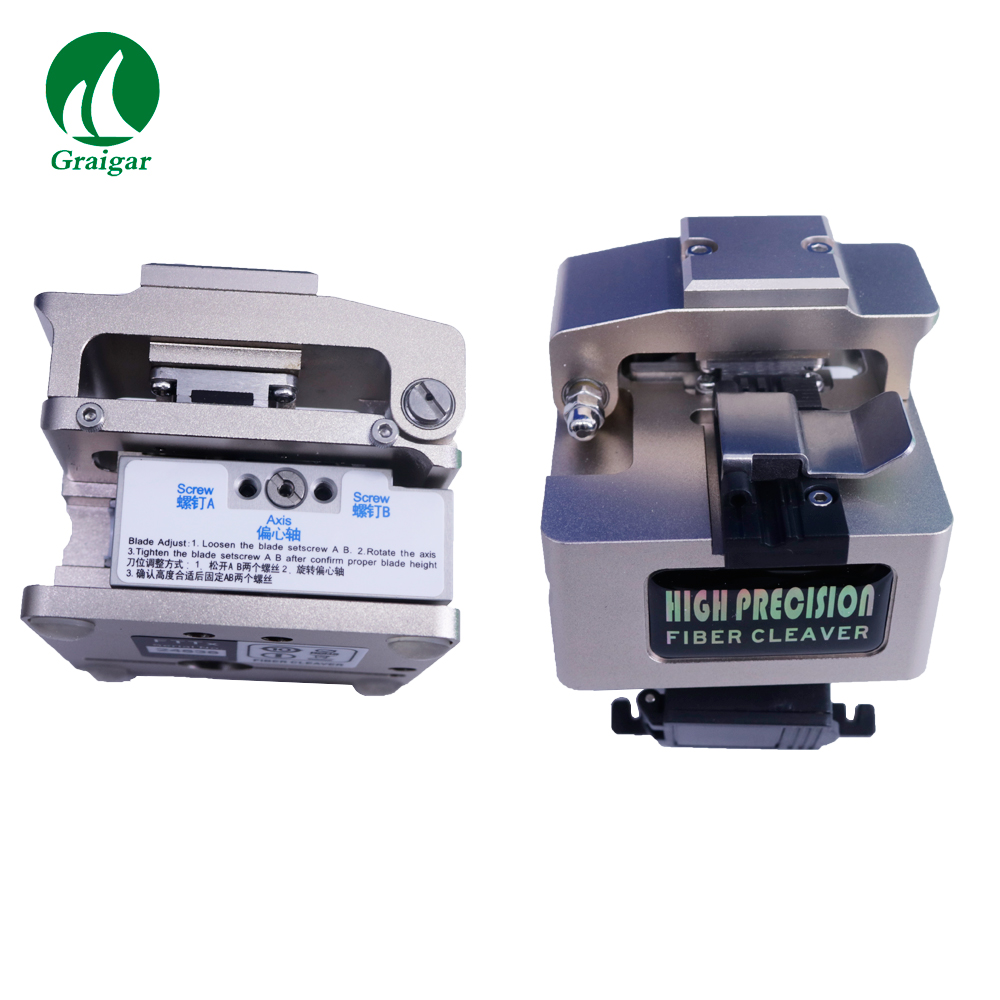

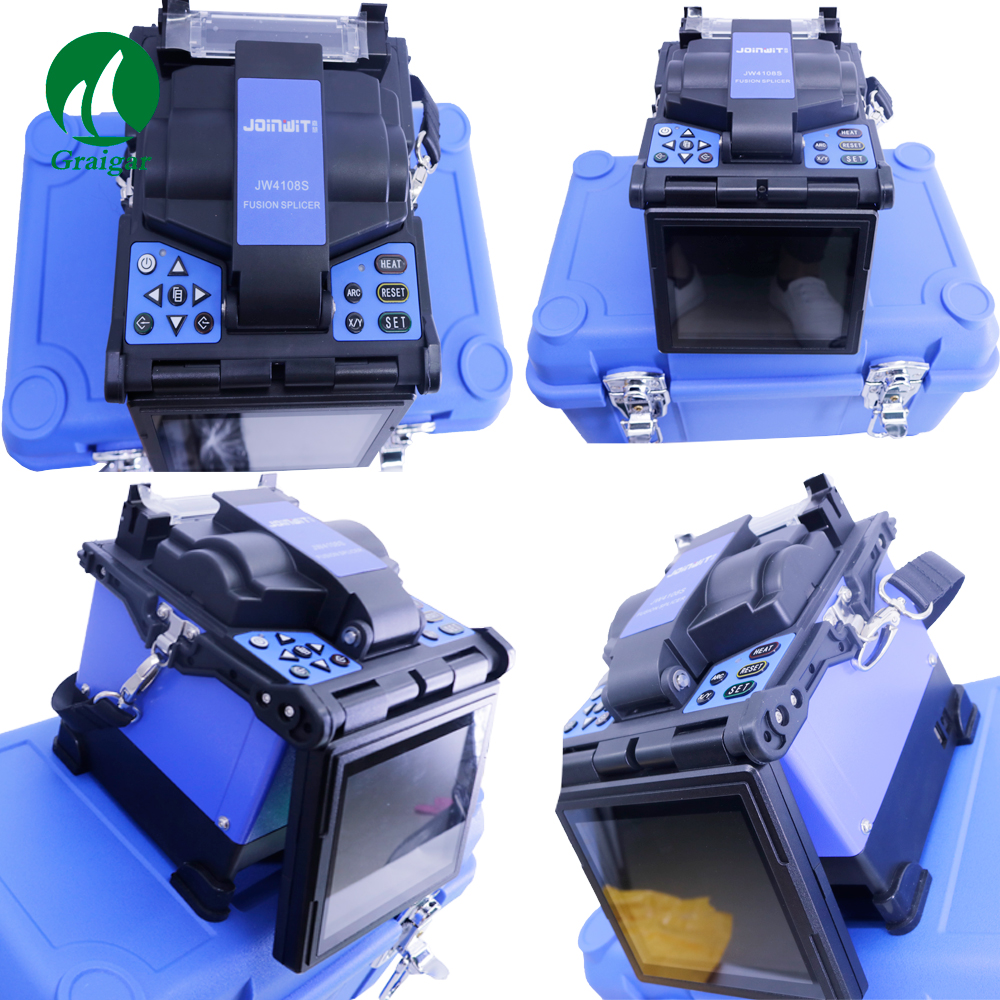

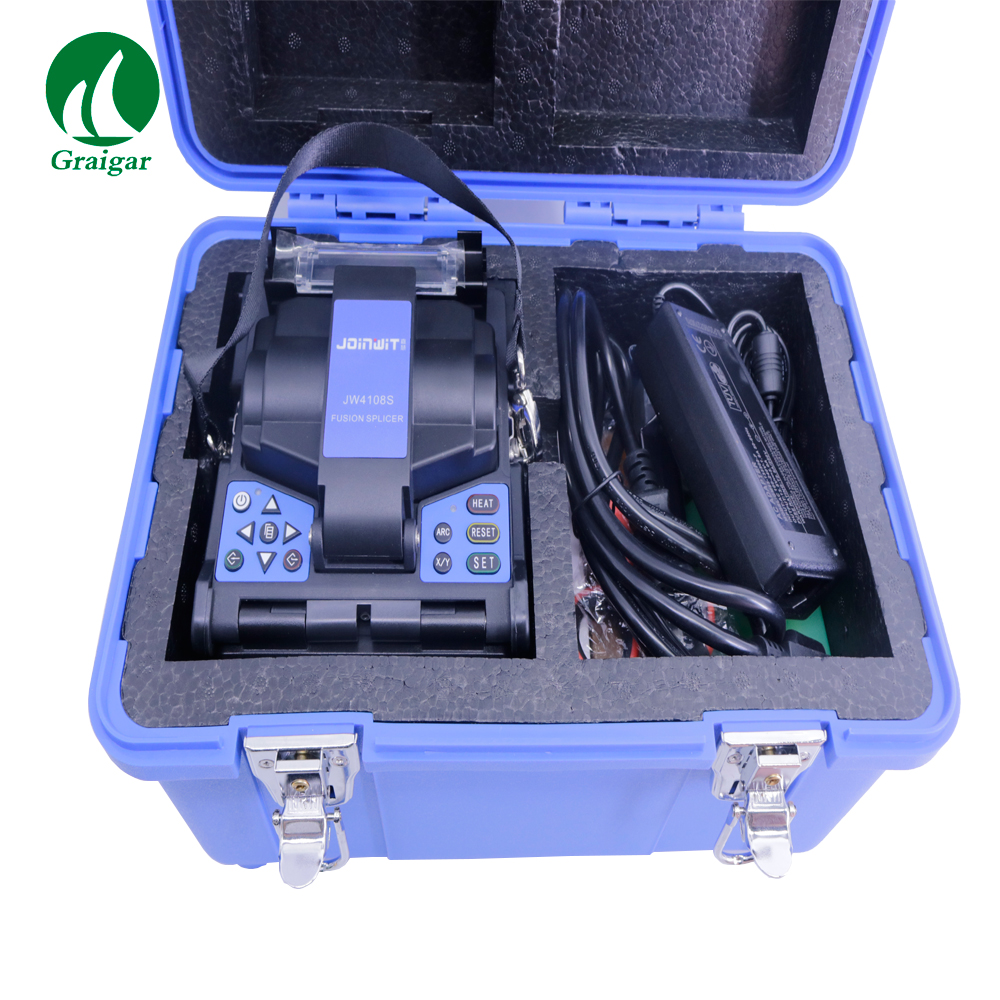

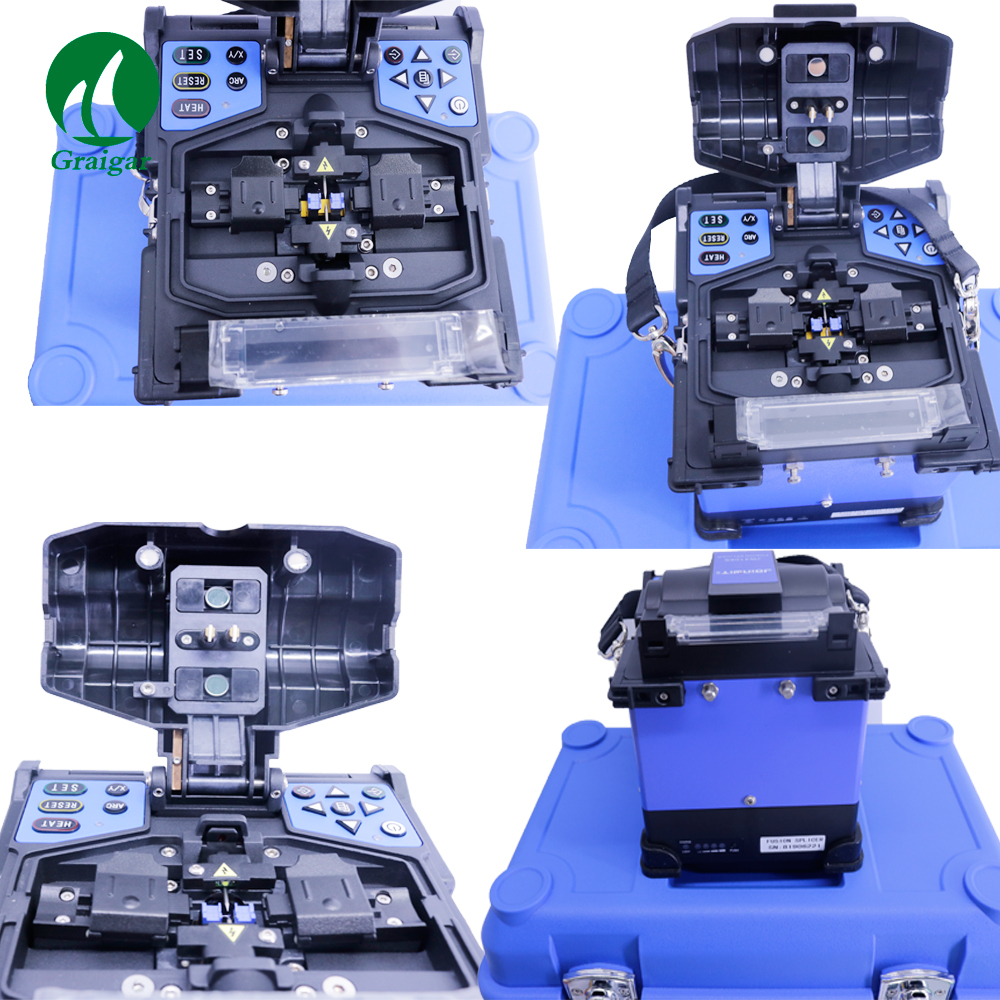

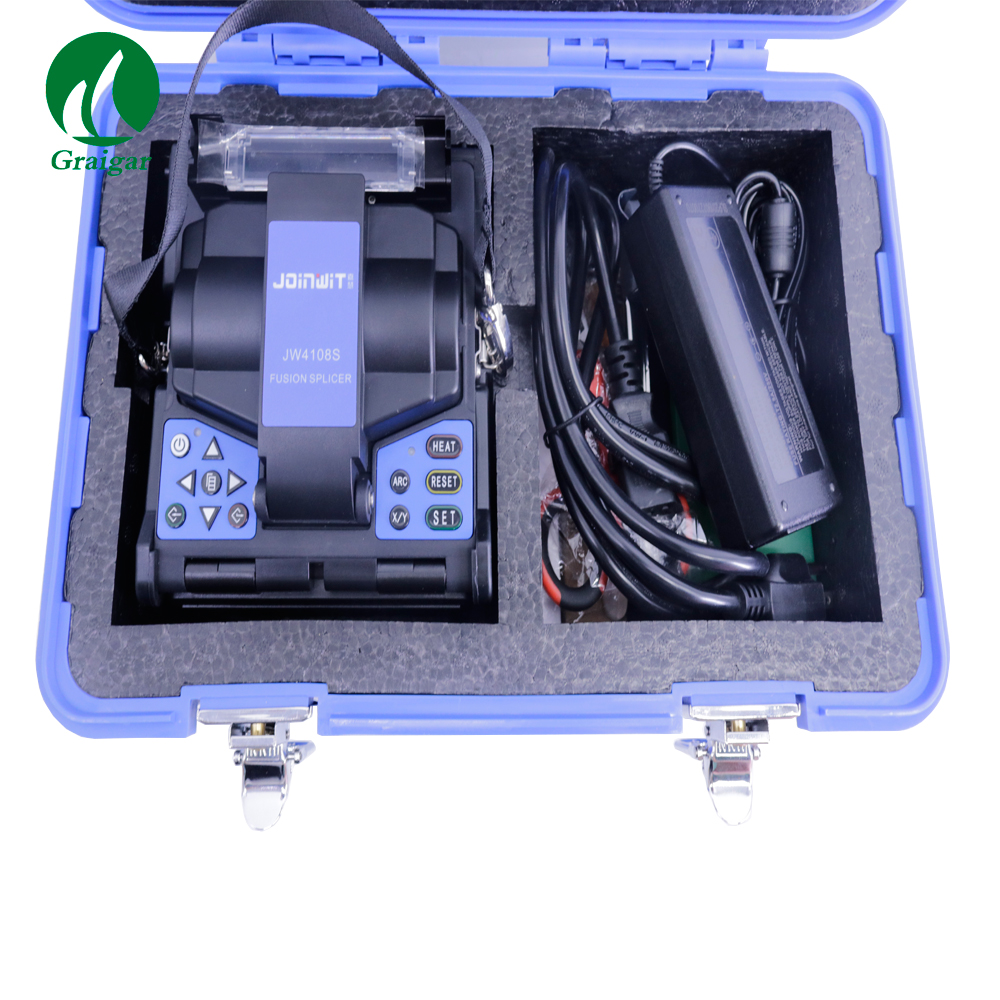

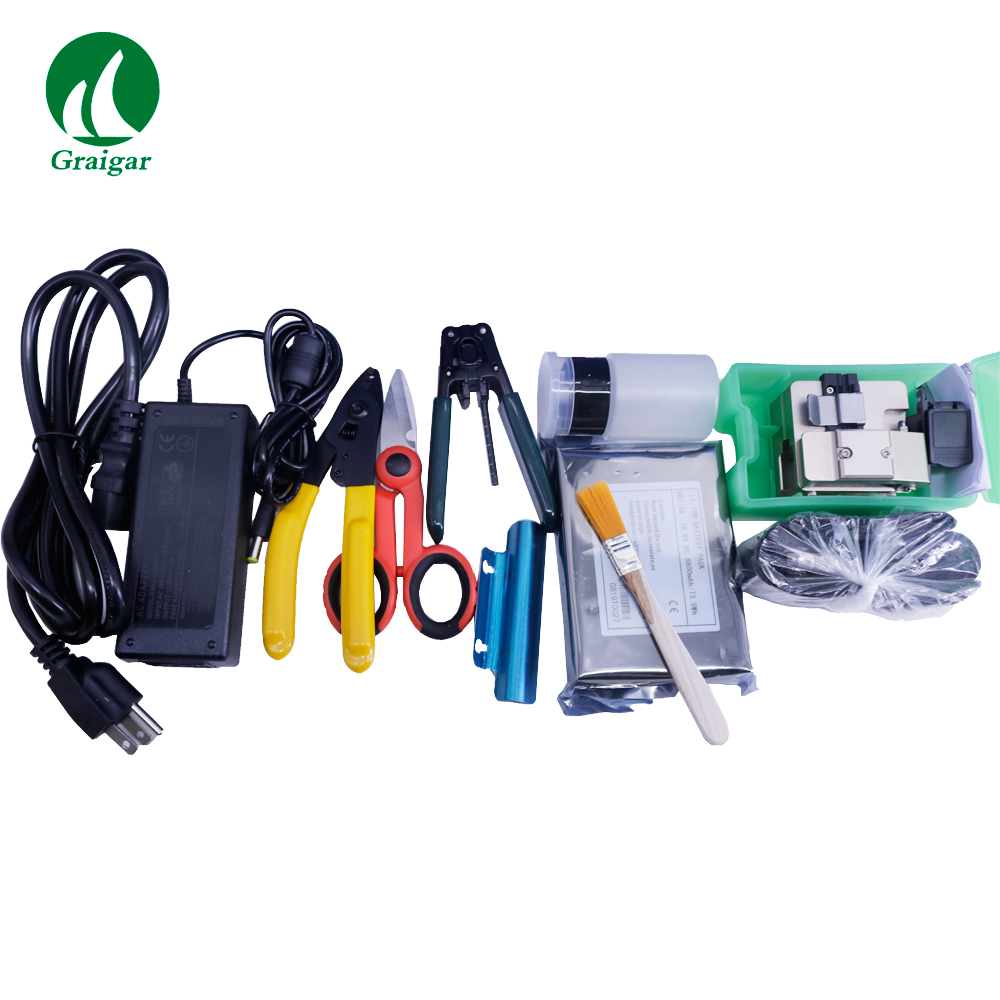

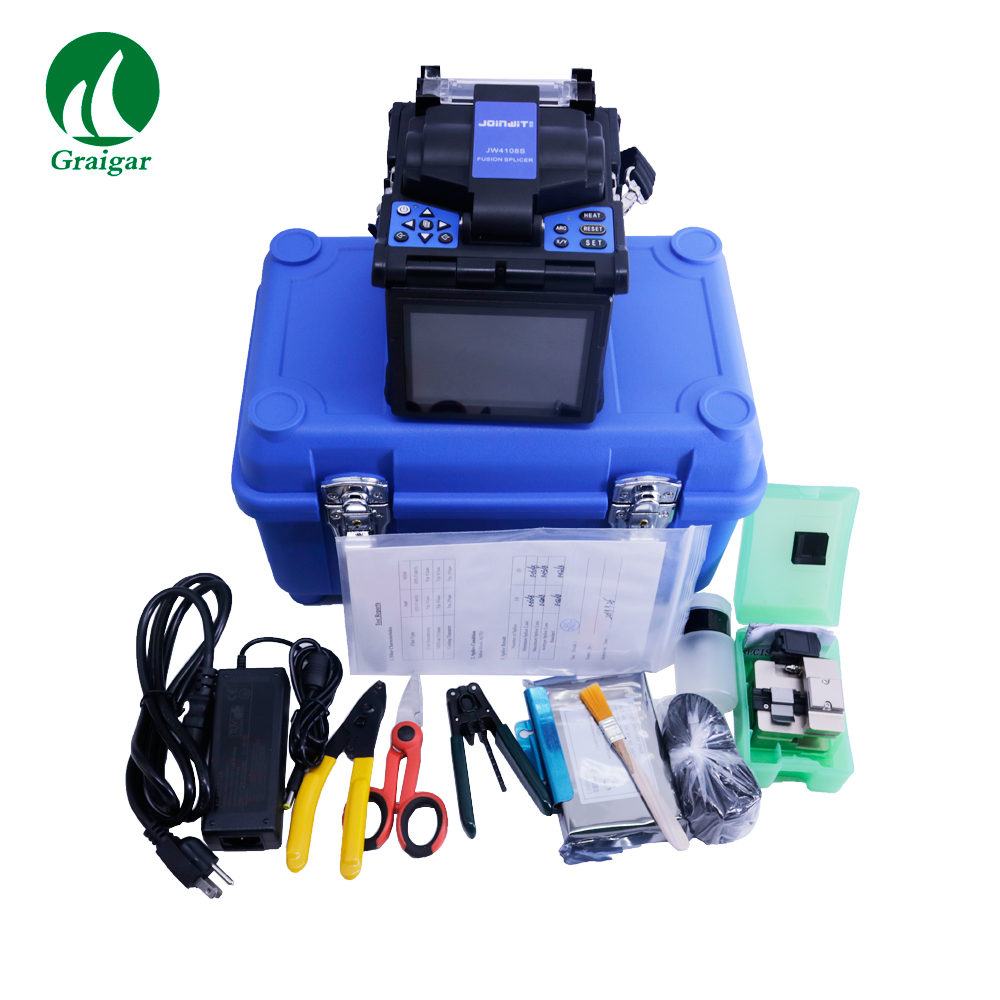

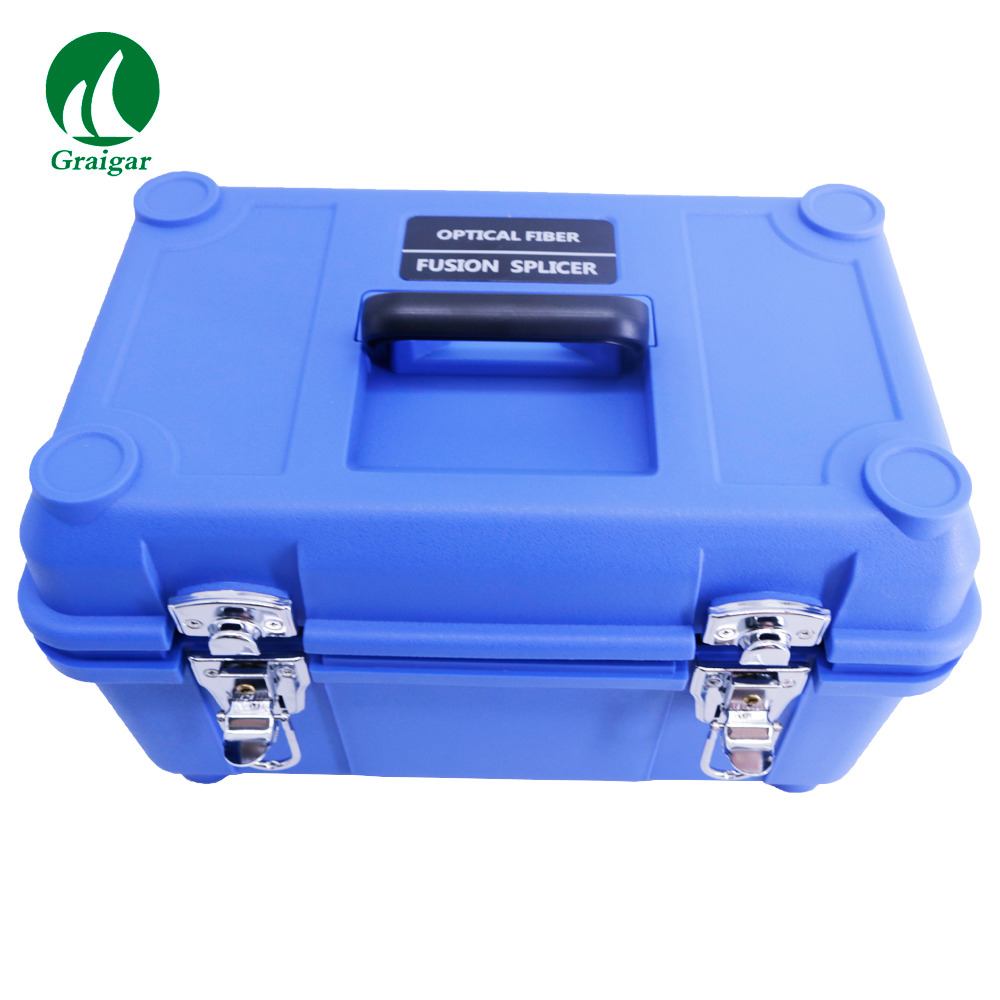

Product Images:
