Description
Products Description

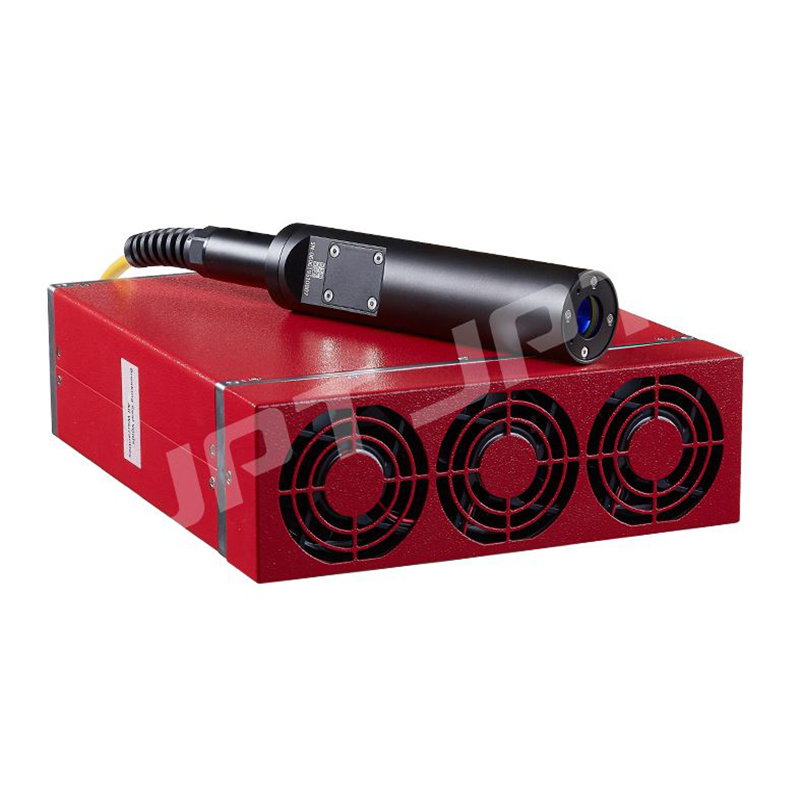

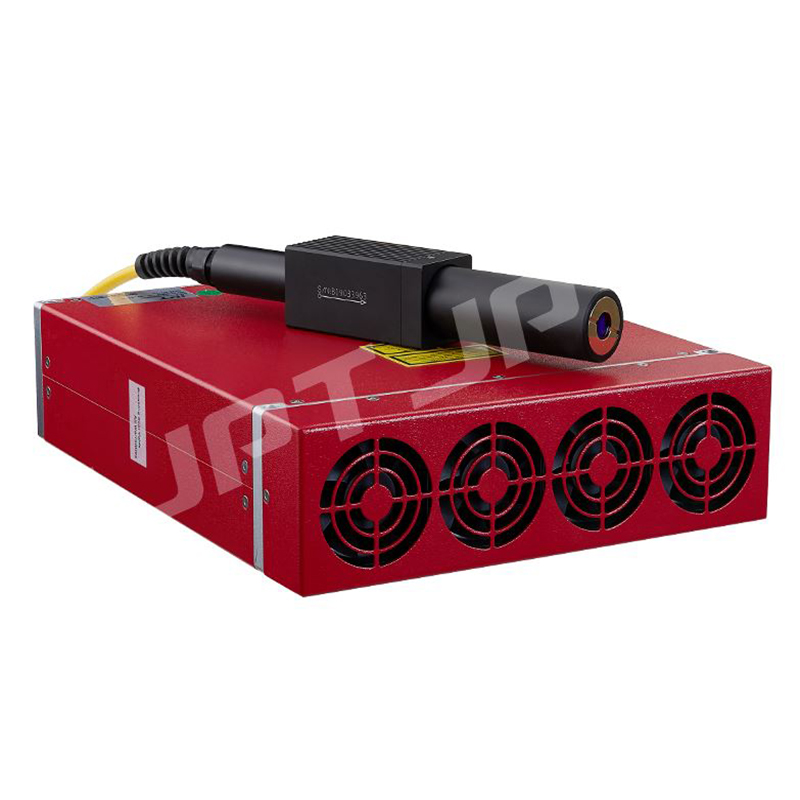

The M7 series is a high-power fiber laser that uses a direct electrical modulation semiconductor laser as the seed source (MOPA) solution. It has perfect laser characteristics and good pulse shape control capabilities. Compared with the Q-switched fiber laser, the pulse frequency and pulse width of the MOPA fiber laser are independently controllable. By adjusting and matching two laser parameters, it can achieve a constant high peak power output and can be applied to a wider range of marking substrates. In addition, the possibility of turning Q-switched lasers into MOPA is possible, and the higher output power makes it particularly advantageous in high-speed marking applications.
Product Paramenters
|
Model
|
YDFLP-60-M7-L1-R
|
YDFLP-80-M7-L1-R
|
YDFLP-100-M7-L1-R
|
YDFLP-120-M7-L1-R
|
|
Rated output power: (W)
|
60
|
80
|
100
|
120
|
|
Center wavelength: (nm)
|
1064±5
|
1064±5
|
1064±5
|
1064±5
|
|
Repetition frequency range (kHz)
|
1-4000
|
1-4000
|
1-4000
|
1-4000
|
|
Output power stability
|
＜5%
|
＜5%
|
＜5%
|
＜5%
|
|
Pulse width range (ns)
|
2-500
|
2-500
|
2-500
|
2-500
|
|
Output spot diameter (mm)
|
7±0.5
|
7±0.5
|
7±0.5
|
7±0.5
|
|
Beam quality M²
|
＜1.8
|
＜1.8
|
＜1.6
|
＜1.6
|
|
Maximum single pulse energy (mJ)
|
1.5
|
2.0
|
1.5
|
1.5
|
|
Output fiber length (m)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
|
Input power (VAC)
|
24
|
24
|
24
|
24
|
|
Power adjustment range (%)
|
0-100
|
0-100
|
0-100
|
0-100
|
|
Power consumption (W)
|
300
|
380
|
420
|
500
|
|
Dimensions (mm)
|
325 × 260 × 75
|
325 × 260 × 75
|
350 × 280 × 112
|
350 × 280 × 112
|
|
cooling method
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Applications
laser cutting
laser welding
laser cleaning
Our Advantages
Our company is located in Wuhan Optics Valley and has more than 20 years of laser industry experience
Laser Technology R&D Laboratory
Large inventory of lasers
