Products Description

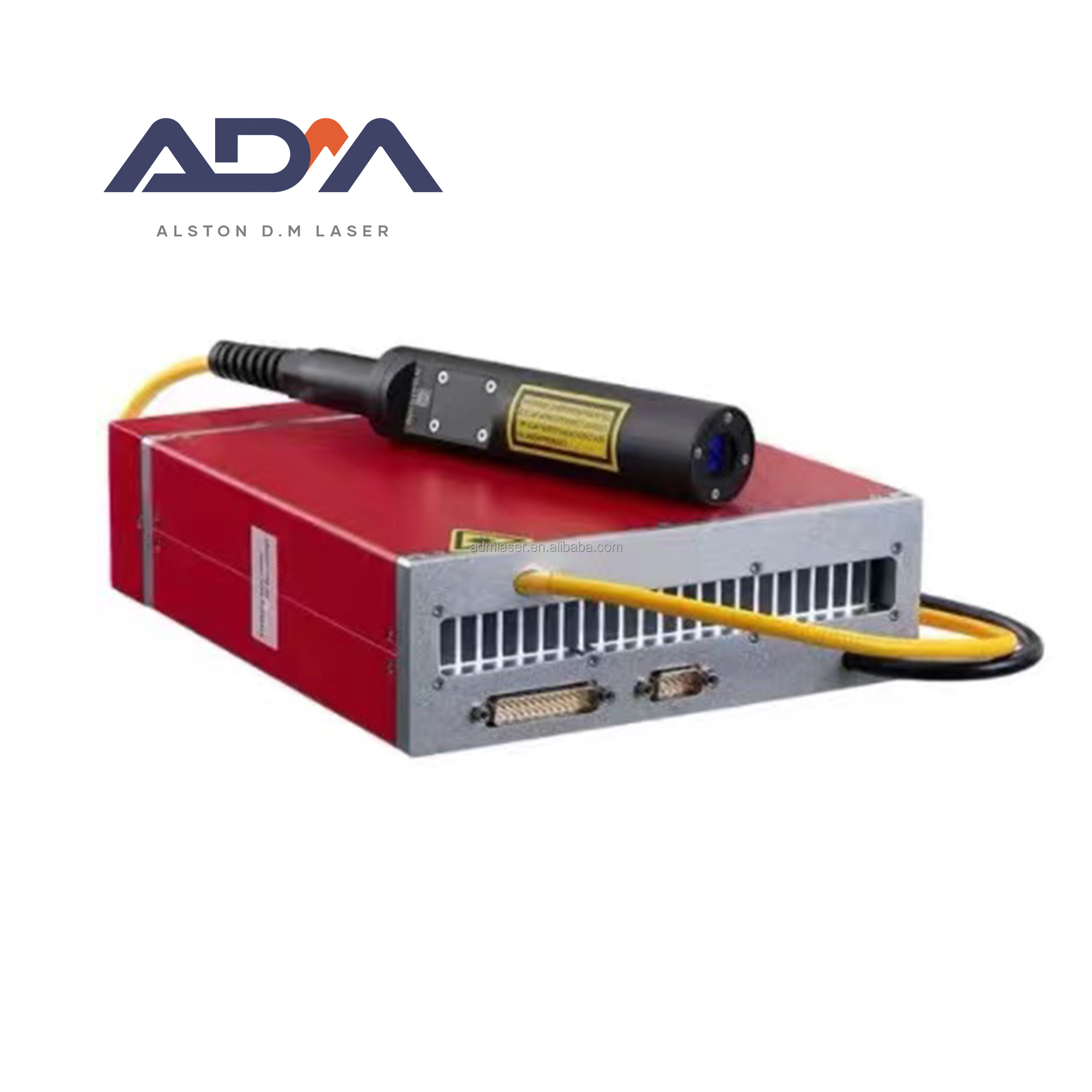

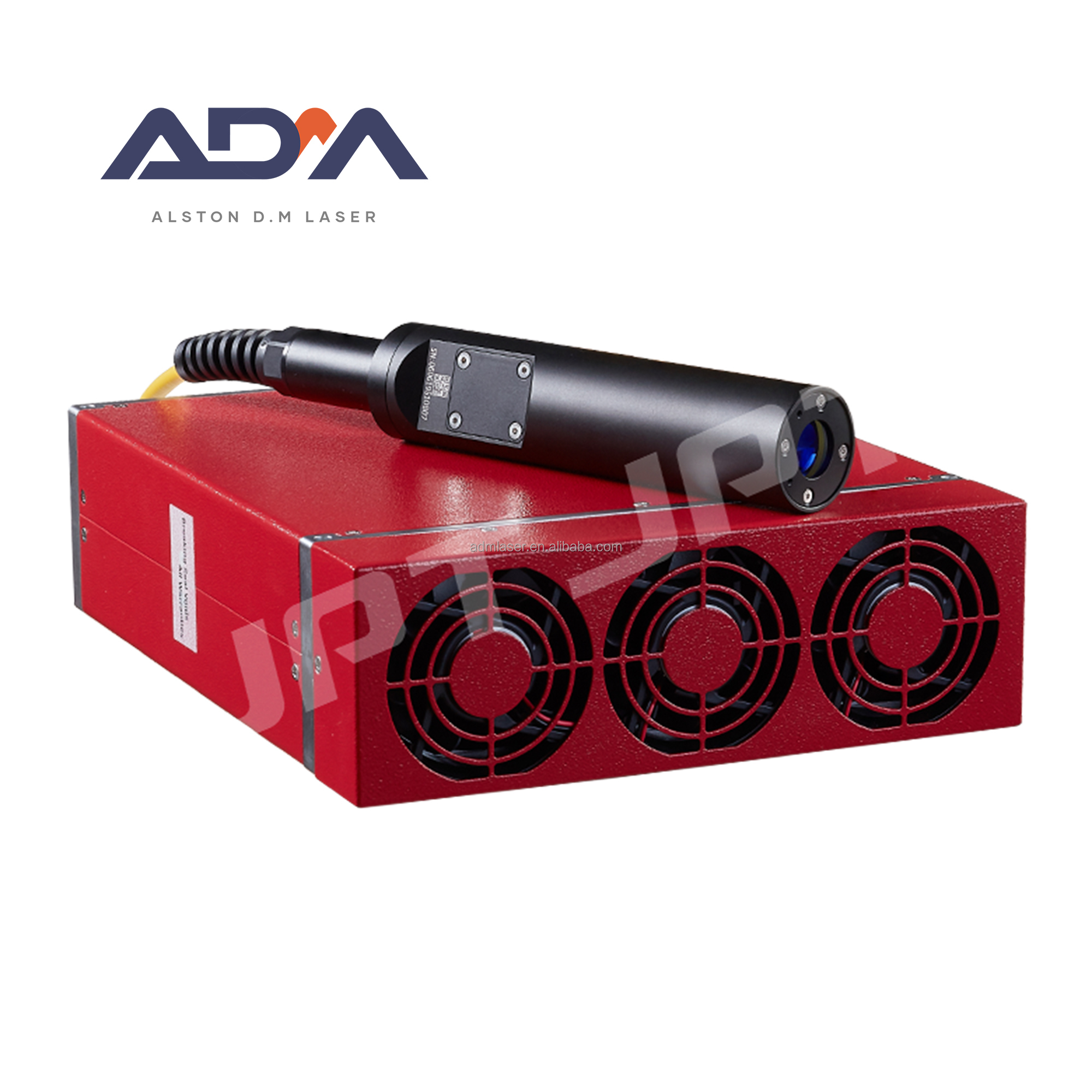

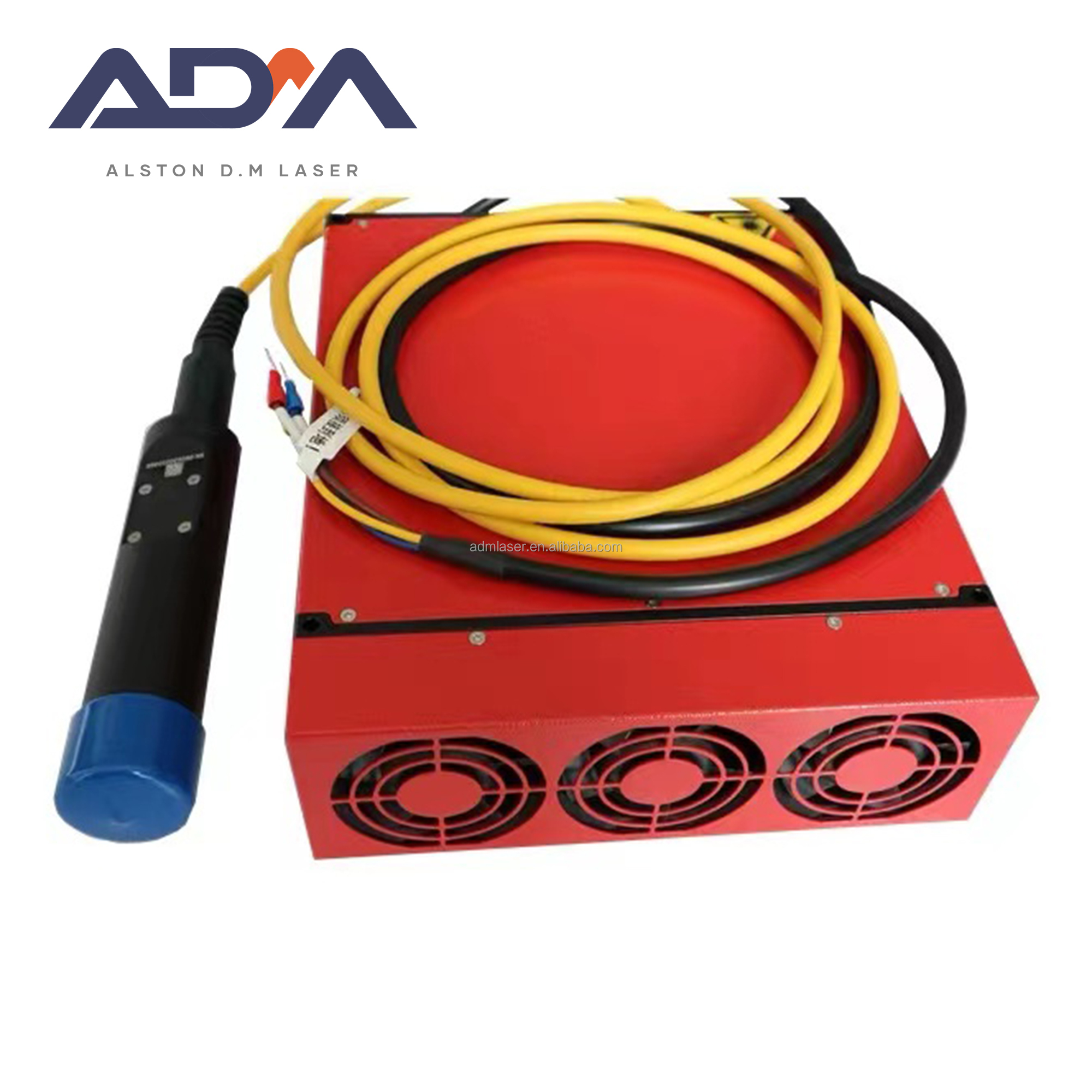

JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications
Unit
|
Parameter
|
||||
Product Model
|
YDFLP-C-20-M7-S-R
|
YDFLP-C-30-M7-S-R
|
|||
M2
|
<1.3
|
||||
Delivery Cable Length
|
m
|
2
|
|||
Nominal Average Output Power
|
W
|
>20
|
>30
|
||
Maximum Pulse Energy
|
mJ
|
0.8
|
|||
Pulse Repetition Rate Range
|
kHz
|
1 ~ 4000
|
|||
Pulse Duration
|
ns
|
2 ~ 350
|
|||
Output Power Stability
|
%
|
<5
|
|||
Cooling Method
|
风冷
|
||||
Supply DC Voltage (VDC)
|
V
|
24
|
|||
Current Consumption
|
A
|
<5
|
<6
|
||
Environmental Supply Current
|
A
|
>5
|
>6
|
||
Power@20℃
|
W
|
<120
|
<144
|
||
Central Emission Wavelength
|
nm
|
1064
|
|||
Emission Bandwidth@3dB
|
nm
|
<15
|
|||
Polarization
|
Random
|
||||
Output Beam Diameter
|
mm
|
7±0.5
|
|||
Output Power Tuning Range
|
%
|
0 ~ 100
|
|||
Operation Temperature
|
℃
|
0 ~ 40
|
|||
Storage Temperature
|
℃
|
-10 ~ 60
|
|||
N.W
|
KG
|
4.4
|
4.5
|
||
Size(L×W×H)
|
mm
|
245 × 200 × 65
|
