JPT laser source fiber laser welding machine 1000W about steel

$14,400.00$44,550.00

SKU: 1005002687347150 Category:

Description

  • Brand Name: JNLINK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: LXW
  • CNC or Not: CNC
  • Application: Laser welding metal
  • Name: laser welding machine
  • Laser source: 1000w 1500w 2000w
  • Wavelength: 1064nm
  • Pulse WidtH: 0.1~20ms
  • Observation system: 10 times microscope
  • Cooling system: Water Cooling system
  • Welding depth: 0.1mm-3mm

JPT laser source fiber laser welding machine 1000W about steel

Technologie Parameter

Laser power

LXW-1000 W

Center wavelength

1080±5nm

Ausgang power stabilität

<2%

Laser frequenz

50Hz-5 KHz

Adjustable power range

5-95%

Beam quality

1.3m²

Optimal operating environment

Temperature 10-35 ° C, humidity 20% -80%

Power supply

380V±10%/50Hz

Fiber optical length

10m

Cooling method

Water Cooling 1P

Application materials:

Carbon steel, stainless steel, galvanized sheet etc.

Working mode:Continuously

Continuously

Kühlung wasser temperatur

20-25° C

Power Consumption

6KW

Application

This machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation , mechanical and electrical products, automotive and other industries.

Sample

Character

1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate which can sweat fine sweat structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily
Maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the cone is small, the precision is high
Appearance is smooth, flat and beautiful.
5. No consumption, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Configuration

Laser Source:

Controller Screen:

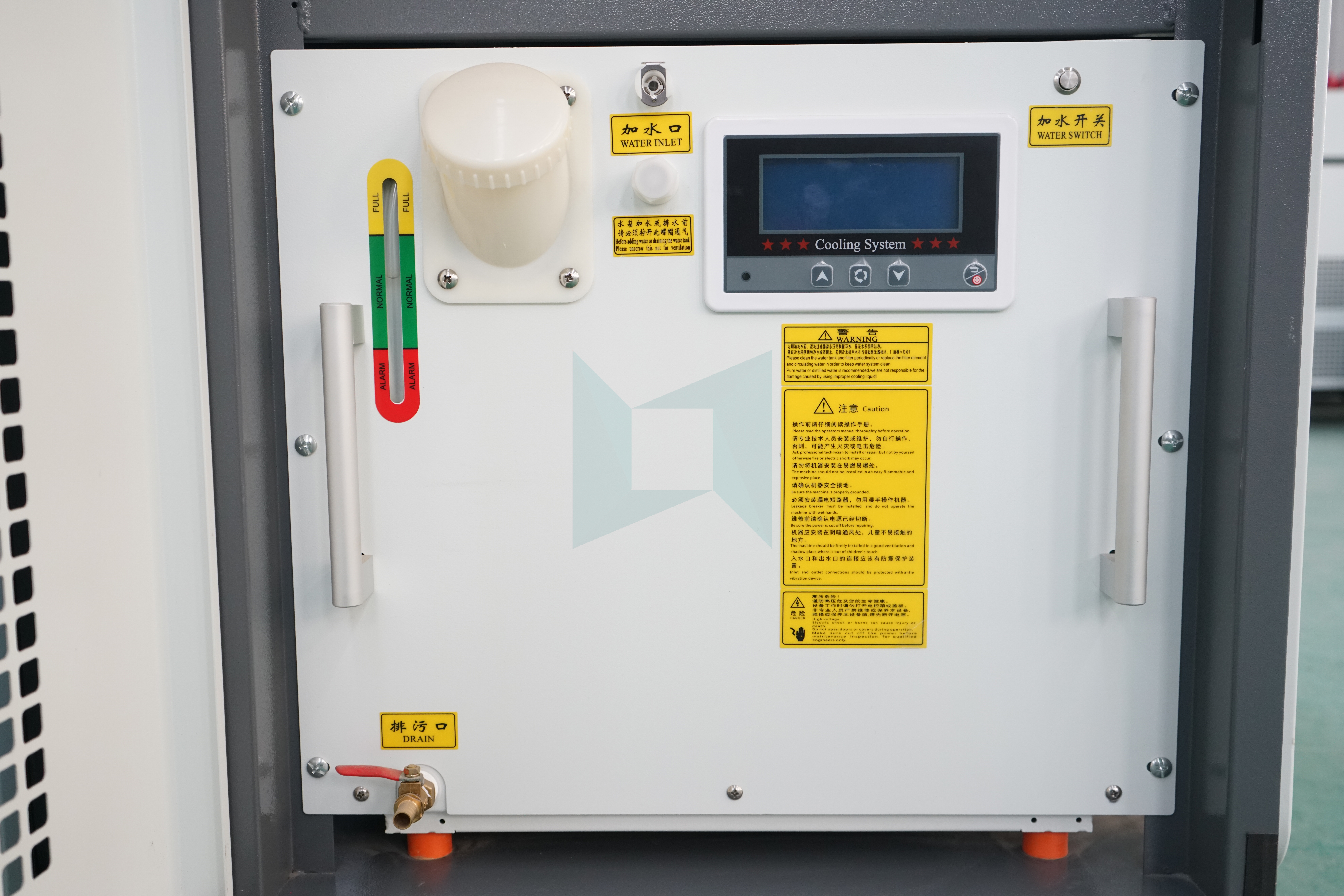

Water Chiller:

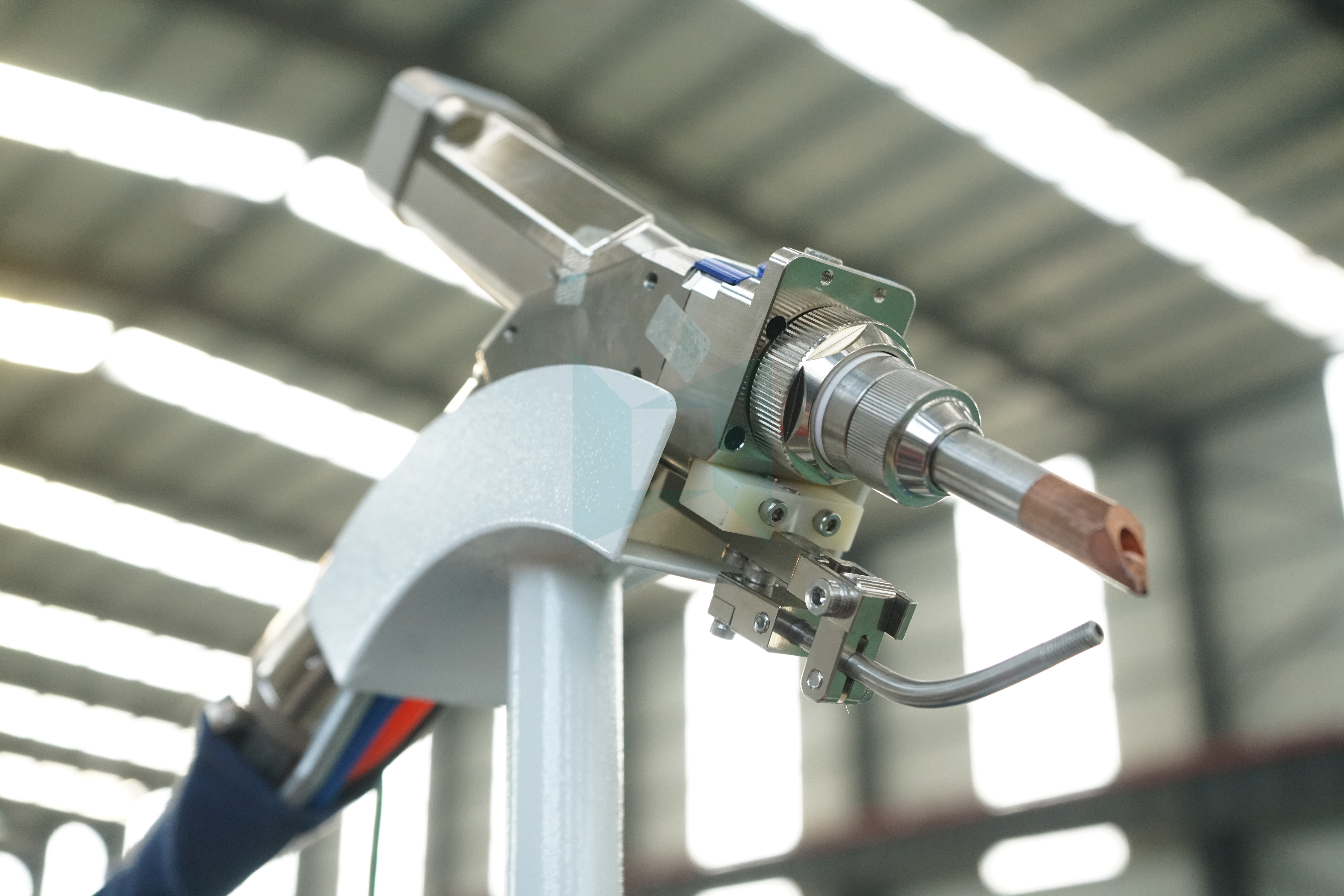

Laser Welding Head:
