Description
Products Description

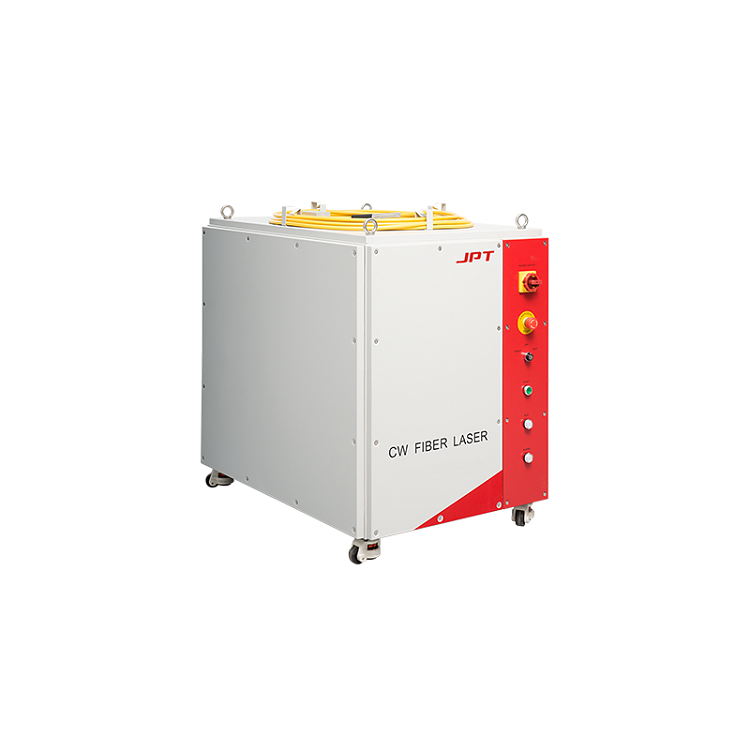

1000W,1500W,2000W JPT cw laser source
JPTCW series laser (1000/1500/2000W) is an optimized combination of optical, mechanical, electrical and soft.
Features
—Through the control interface and Jeep standard software, the running status of the laser can be monitored and alarmed in real time, and the running data can be collected and recorded. The laser adopts water-cooled heat dissipation and cabinet design.
—It has many advantages such as high electro-optic conversion efficiency, low energy consumption, maintenance-free adjustment, flexible fiber optic conductive output, and easy handling and lifting.
—It is an ideal light source for industrial laser cutting, welding and other applications.
—It is an ideal light source for industrial laser cutting, welding and other applications.
Product Paramenters
|
Nominal Average Output Power
|
1000w
|
1500w
|
2000w
|
||
|
Beam parameter Product
|
<0.45mm×mrad
|
<1.5mm×mrad
|
<1.5mm×mrad
|
||
|
Central wavelength
|
1080nm
|
1080nm
|
1080nm
|
||
|
Spectral width@3db
|
<6nm
|
<6nm
|
<6nm
|
||
|
Armored Cable Length
|
15m
|
20m
|
20m
|
||
|
Cooling Method
|
Water cooled(Purified Water)
|
||||
|
Operating Voltage
|
Single-phase
220(AC)±10%
|
Single-phase
220(AC)±10%
|
Three-phase
380(AC)±10%
|
||
|
Maximum Power Consumption
|
3300w
|
5000w
|
7000w
|
||
|
Switch on/off time
|
20us
|
20us
|
20us
|
||
|
Maximum modulation frequency
|
20KHZ
|
20KHZ
|
20KHZ
|
||
|
Operation Temporature
|
23-26℃
|
23-26℃
|
23-26℃
|
||
|
Storage temperature range
|
-10-60℃
|
-20-50℃
|
-20-50℃
|
||
|
N.G.
|
60KG
|
90KG
|
110KG
|
||
|
SIZE
|
760*483*196mm
|
864*483*241
|
864*483*267
|
||
APPLICATIONS
laser welding
laser cutting
