JPT 1kw CW Fiber Laser Source Fiber Laser Cutting Welding Machine Source Power Supply For JPT Fiber Laser Source

$4,465.37

SKU: 3482038018651 Category:

Description

Products Description

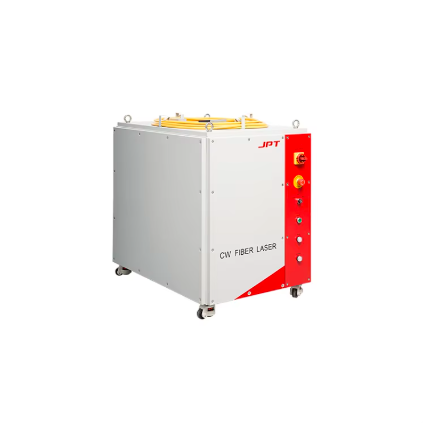

1000W,1500W,2000W JPT cw laser source


JPTCW series laser (1000/1500/2000W) is an optimized combination of optical, mechanical, electrical and soft.

Features

—Through the control interface and Jeep standard software, the running status of the laser can be monitored and alarmed in real time, and the running data can be collected and recorded. The laser adopts water-cooled heat dissipation and cabinet design.

—It has many advantages such as high electro-optic conversion efficiency, low energy consumption, maintenance-free adjustment, flexible fiber optic conductive output, and easy handling and lifting.
—It is an ideal light source for industrial laser cutting, welding and other applications.

Product Paramenters

Nominal Average Output Power
1000w

1500w

2000w

Beam parameter Product
<0.45mm×mrad

<1.5mm×mrad

<1.5mm×mrad

Central wavelength
1080nm

1080nm

1080nm

Spectral width@3db
<6nm

<6nm

<6nm

Armored Cable Length
15m

20m

20m

Cooling Method
Water cooled(Purified Water)

Operating Voltage
 Single-phase
220(AC)±10%

Single-phase
220(AC)±10%

 Three-phase
380(AC)±10%

Maximum Power Consumption
3300w

5000w

7000w

Switch on/off time
20us

20us

20us

Maximum modulation frequency
20KHZ

20KHZ

20KHZ

Operation Temporature
23-26℃

23-26℃

23-26℃

Storage temperature range
-10-60℃

-20-50℃

-20-50℃

N.G.
60KG

90KG

110KG

SIZE
760*483*196mm

864*483*241

864*483*267

APPLICATIONS

laser welding

laser cutting

Additional information

Model Number

JPT-1000W
