JPT 150-300W MOPA Pulse Width Fiber Laser Source With Red Dot High Quality Laser Module for Fiber Laser Marking Machine

  • Home
  • JPT 150-300W MOPA Pulse Width Fiber Laser Source With Red Dot High Quality Laser Module for Fiber Laser Marking Machine

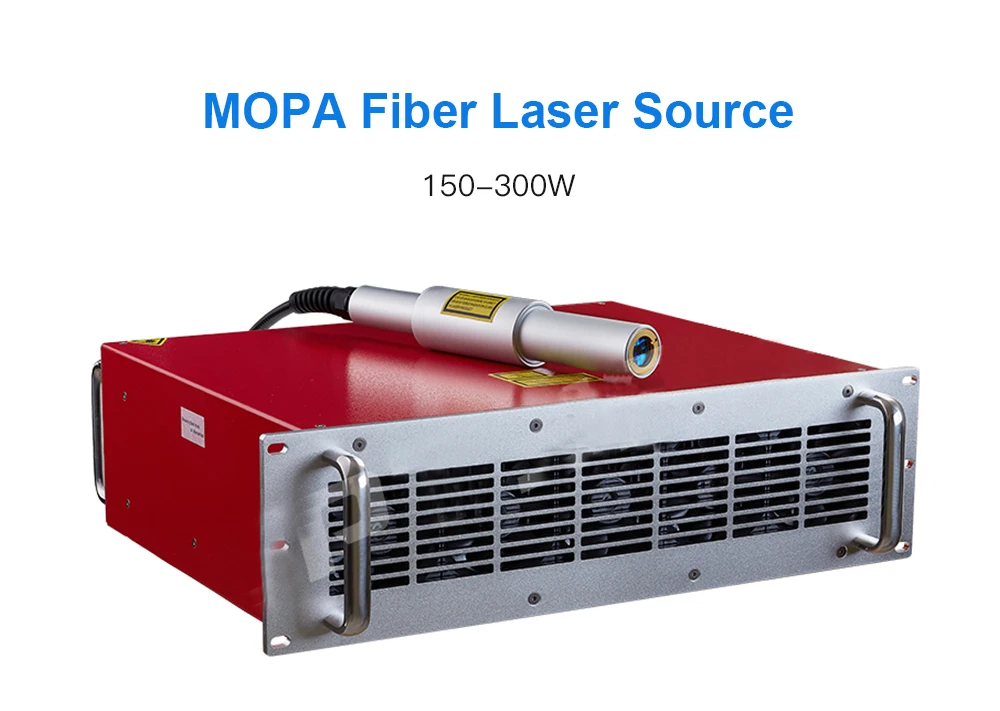

JPT 150-300W MOPA Pulse Width Fiber Laser Source With Red Dot High Quality Laser Module for Fiber Laser Marking Machine

$58,842.75$143,393.70

SKU: 1005002607521577 Category:

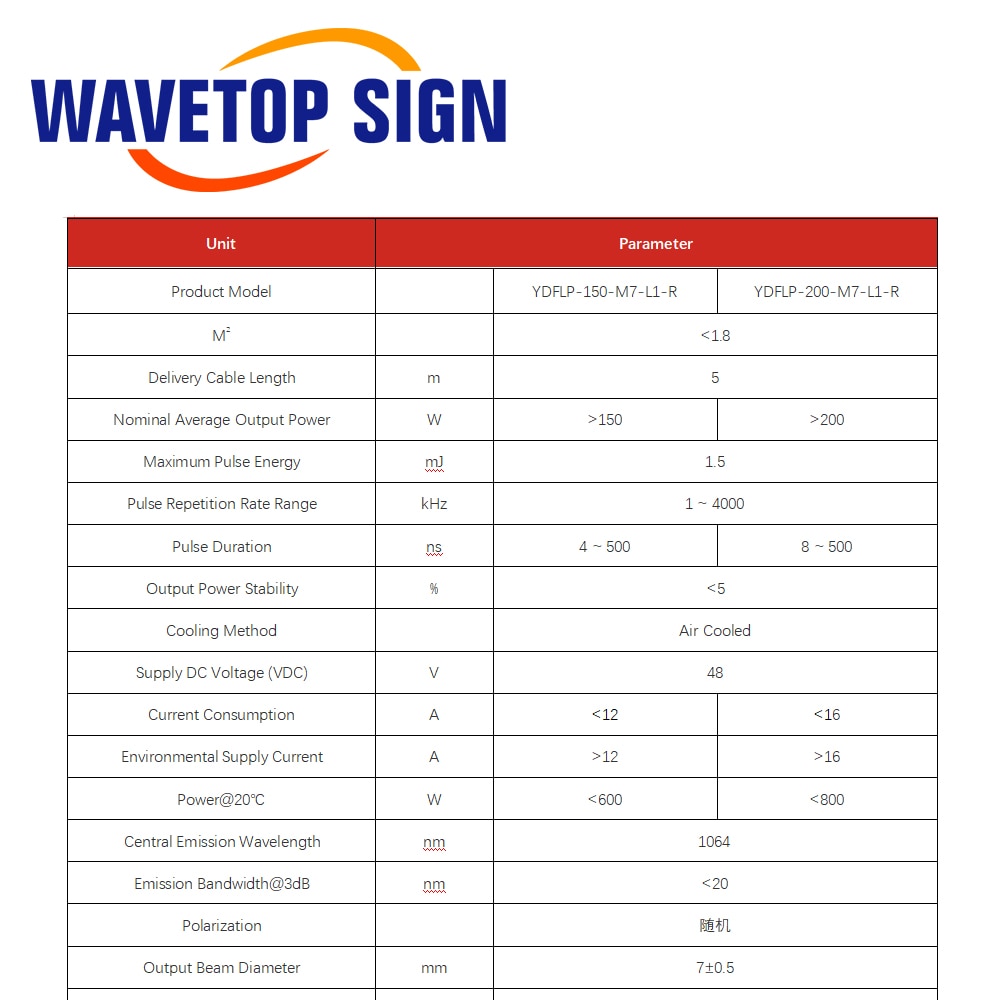

Description

  • Brand Name: wavetopsign
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • Model Number: M7-L1-R
  • Wavelength: 1064nm
  • Mode: Q-Pulse
  • Polarization: Random
  • Power: 150-300W
  • Cooling Method: Air Cooled
  • Repetition Range: 25-400kHz
  • Pulse Duration: 200ns
  • Output Beam Diameter: 7±0.5mm
  • Application: Fiber Laser Marking Machine
  • SKU: WT032012090

Application Advantages:

Laser descaling

Surface treatment

Thin plate cutting and welding

Carving, drilling

Stripping anode, stripping coating

On-the-fly marking

Introduction:

The M7 series is a high-power fiber laser that uses a direct electrical modulation semiconductor laser as the seed source (MOPA) solution. It has perfect laser characteristics and good pulse shape control capabilities. Compared with Q-switched fiber lasers, the pulse frequency and pulse width of MOPA fiber lasers are independently controllable. By adjusting and matching two laser parameters, it can achieve constant high peak power output and can be applied to a wider range of marking substrates. In addition, the possibility of turning the Q-switched laser into MOPA is possible, and the higher output power makes it particularly advantageous in the application of high-speed marking.
