Description
- Brand Name: HKNA
- Origin: CN(Origin)

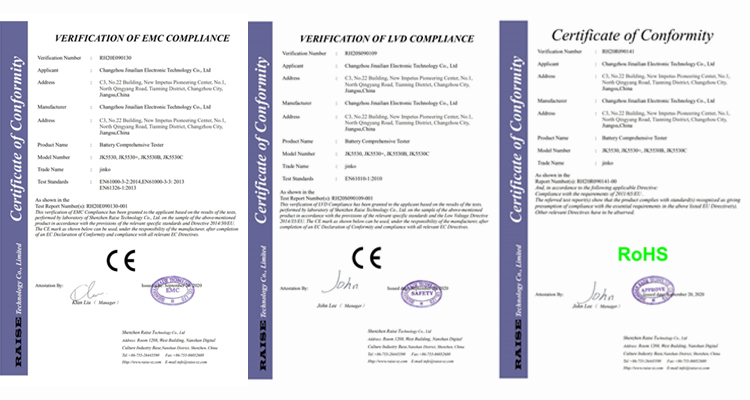

- Certification: CE
- Place of Origin: Jiangsu, China
- Brand Name: Jinko
- Model Number: JK5530

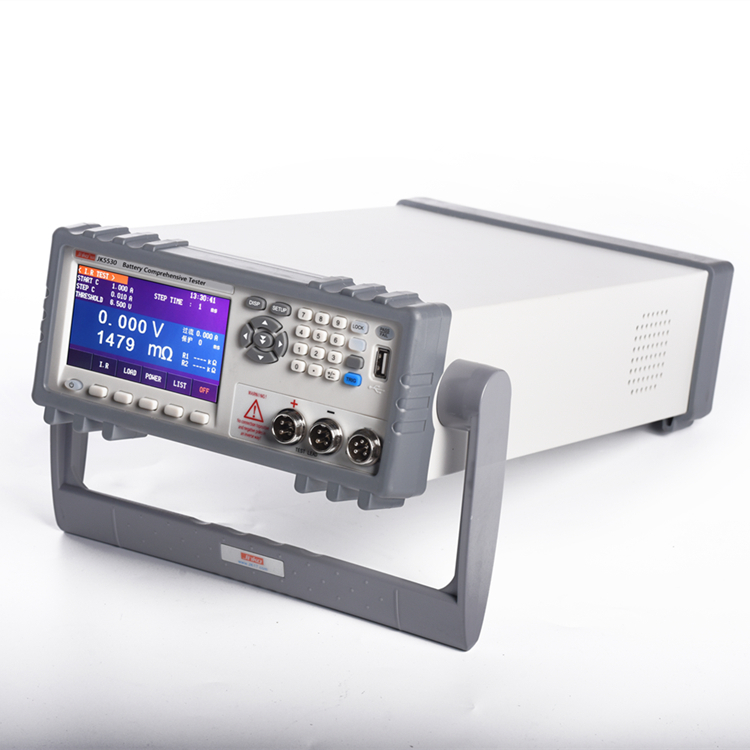

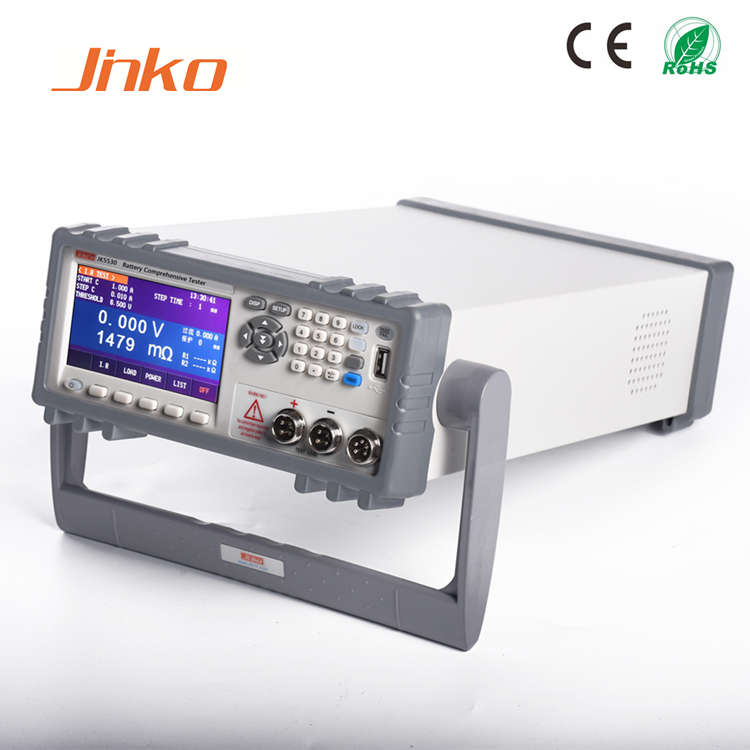

- Product name: Capacity Tester Battery
- Voltage measurement Range: 0-36V
- Voltage measurement accuracy: ±(result *0.1% 3mV)(voltage 0~36V) ±(result*0.1% 30mV)(voltage 37~62V)
- Capacity measurement range: 0-10000mAH
- battery capacity measurement Accuracy: 10AH :±5%
- internal resistance measurement range: 0-999mΩ
- Maximum output voltage: 16V
- Maximum output power: 80W
- Maximum output current: 5A
- Ripple voltage: <20mV

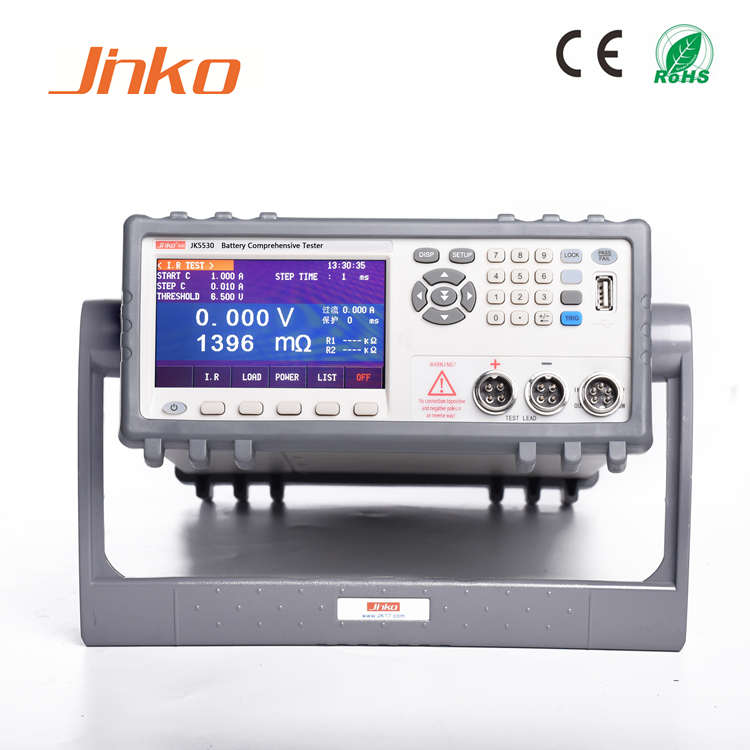

The basic functions of the JK5530 battery comprehensive tester include:
1.The static parameters of the battery are detected quickly.
2.Battery capacity detection.
3.The battery charging function can be selected separately.
4.The battery discharge function can be selected separately.
5.The function of the numerical control current and voltage source.
6.Numerical control electronic load function.
7.Function of voltage and internal resistance meter
8.Instrument calibration function
Technical parameters:
|
Model |
JK5530 |
JK5530+ |
JK5530B |
|
|
Test range
|
Voltage measurement range |
0-36V, resolution:1mV |
0-60V resolution:1mV |
0-62V resolution 1mV accuracy:±5mV |
|
Internal resistance measurement range |
0-1999mΩ Resolution 1mΩ |
|||
|
Capacity measurement range |
0-99999mAH,Minimum resolution 1mAH |
|||
|
R1 R2 resistance |
1kΩ ~ 200kΩ |
|||
|
Accuracy |
Voltage measurement accuracy |
±(result*0.1%+3mV) (voltage 0~36V) |
||
|
Current measurement accuracy |
±(result*0.2%+30mA)(current 0~10A) |
|||
|
Internal resistance measurement accuracy |
±(result*1%+1mΩ) |
|||
|
Capacity measurement accuracy |
±2% |
|||
|
Test speed |
Static test (All functions) |
1.1-2s |
||
|
Capacity test |
Determine the capacity test time according to the battery capacity and discharge power |
|||
|
Internal CNC |
Maximum output voltage(Constant voltage + constant current) |
20V |
60V |
|
|
Voltage source index |
Output maximum current |
5A |
10A(common) |
|
|
Output maximum power |
80W |
200 W |
||
|
Ripple voltage |
<20mV |
<100mV |
||
|
Load adjustment rate |
<10% |
|||
|
Response time (time from 0 to the highest output voltage) |
1S |
|||
|
Internal CNC electronic load index |
Maximum discharge voltage |
30V |
62 V |
|
|
Maximum discharge current |
10A(continuous) |
30A(continuous) |
||
|
Limit power |
80W(continuous) |
100W(continuous) |
200W(continuous) |
|
|
Load mode |
constant current |
Constant voltage, constant current |
||
|

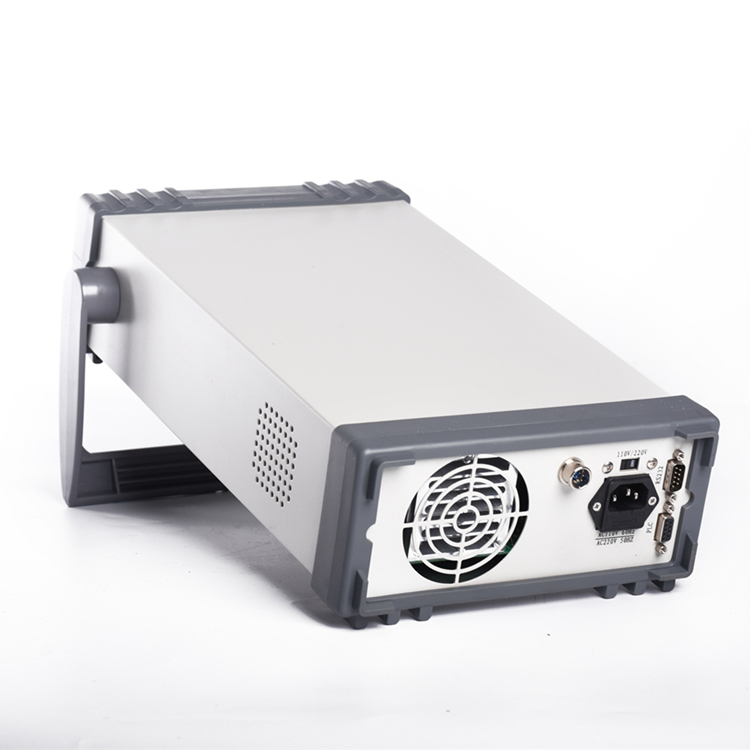

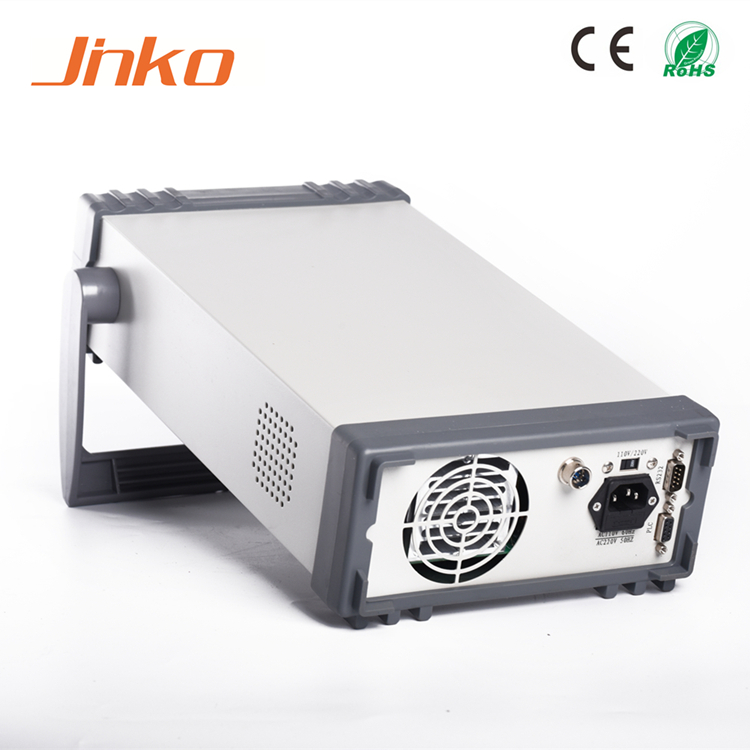

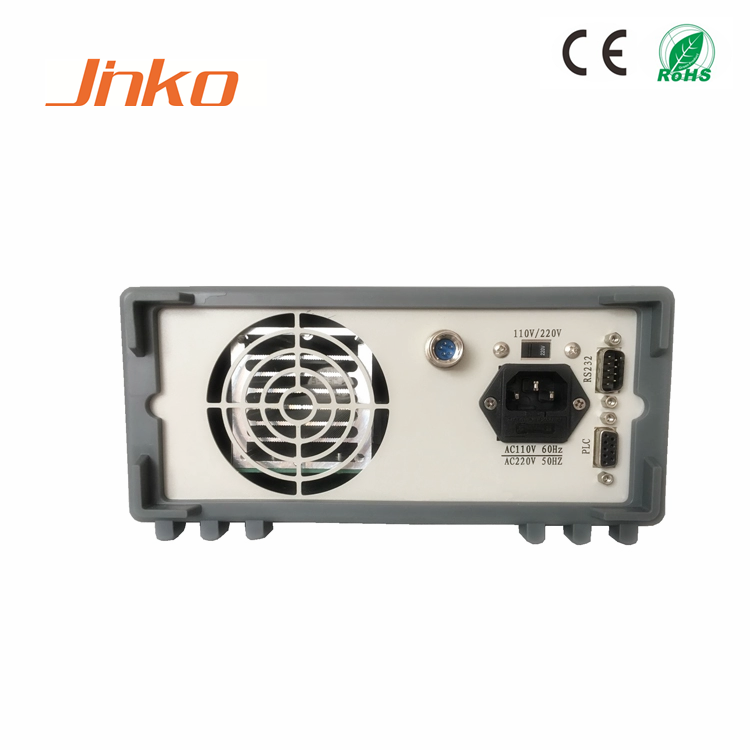

Interface |
|
No |
Yes (with host computer software) |
|
|
Accessories |
|
Test fixture for resistance, Test fixture for voltage, Temperature probe, Power cable, Data line (JK5530+,JK5530B) |
||
|
Size&Weight |
JK5530/JK5530+ Dimension(mm):225(W)*110(H)*355(D), About 3.6kg JK5530B Dimension(mm):225(W)*110(H)*405(D), About 4.5kg |
|||
