Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AKJ1325F
- CNC or Not: CNC
- Is Smart Device: No
- Product name: laser cutter cutting machine
- Laser power: 1000W / 2000W / 3000W
- Working table: Sawtooth Platform
- Driving system: Delta servo motor with driver
- Transmission: Ball screw tranmission
- Power supply: 220V/50HZ 110V/60HZ
- Guide rail: Taiwan Hiwin Linear Square Rails
- Cooling system: Water Chilller
- color: Opitional
- Keyword: laser cutter cutting machine
Jinan Acctek 1000w 1500w Fiber Laser Metal Cutting Machine Cnc Steel Cutter
Product Description

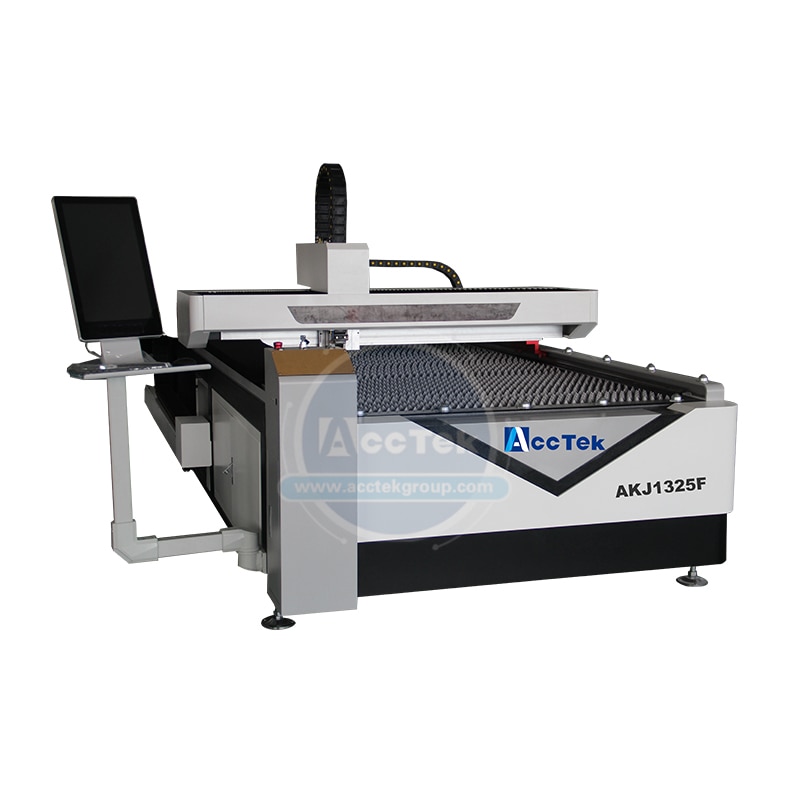

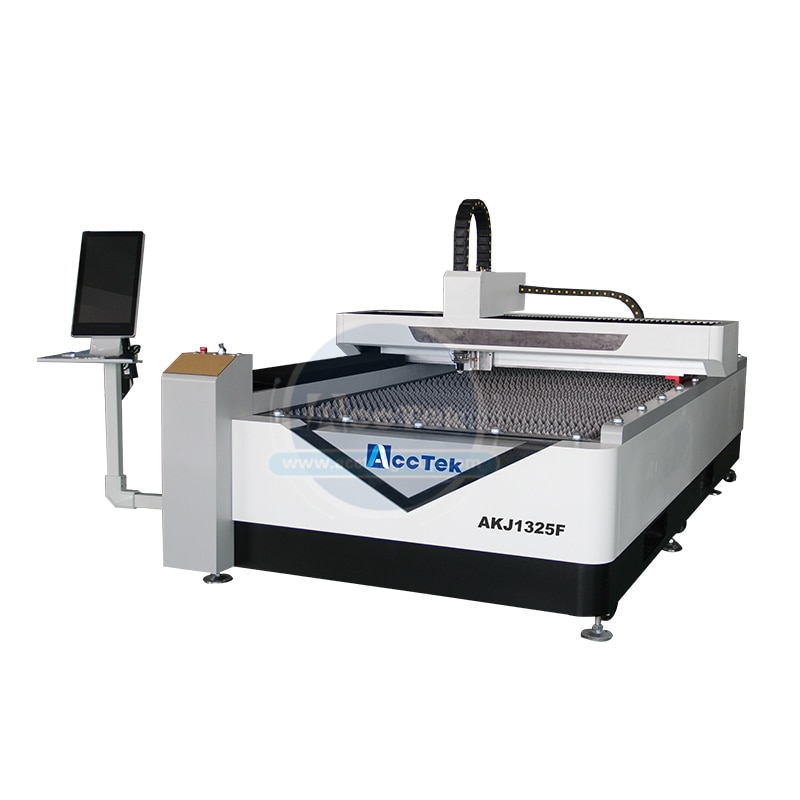

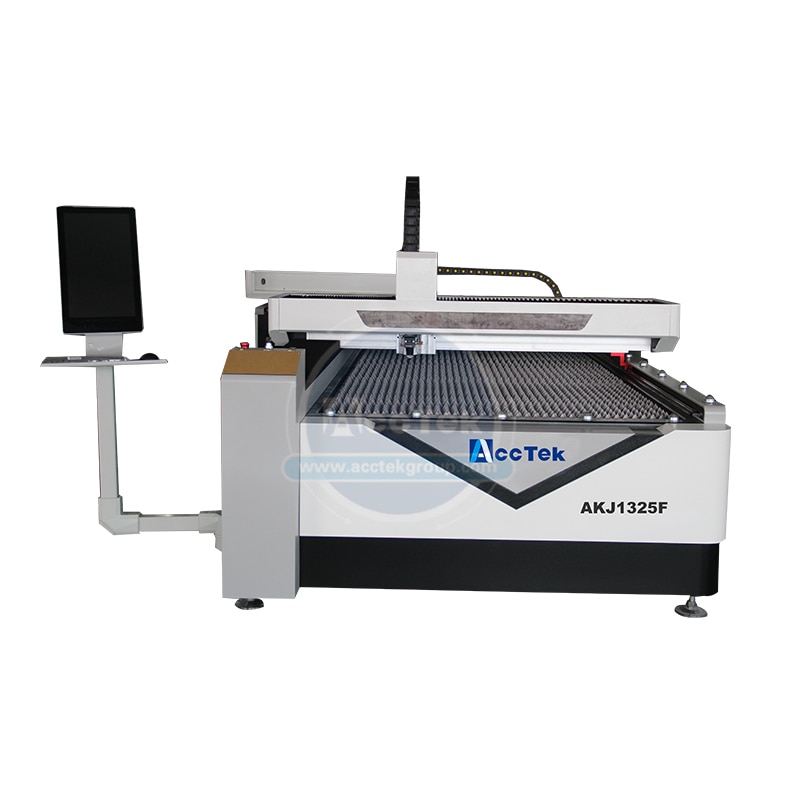

1325 fiber laser cutting machine
Laser source: IPG or Raycus fiber laser source
Fiber laser power : 1000W, 1500W, 2000W, 3000W (Optional)
Working size : 1300*2500mm
X and Y positioning accuracy : +-0.02mm
Transmission mode : X Y axis Gear rack tranmission
Rated voltage and frequency : 220V/50Hz/60Hz/60A
1-Configurations & technical parameter |
||
Working area |
1300*2500mm |
|
Control System |
Au3tech controller with aut follow system |
|
Laser head |
Au3tech brand laser cutting head |
|
Guide rail |
Taiwan HIWIN linear guide rail 25mm |
|
Transmission |
Taiwan TBI Balls Screw transmission |
|
Electronic Components |
French Schneider |
|
Motor |
Taiwan Delta 750w servo motor |
|
Max Cutting Speed |
35m/min |
|
X axis max speed |
65m/min |
|
Y axis max speed |
70m/min |
|
Z axis max speed |
30m/min |
|
X axis max acceleration |
1G |
|
Y axis max acceleration |
1G |
|
Cooling Way |
Water Cooling |
|
Min line width |
0.1mm |
|
Power Requirements |
220V, 50/60Hz, 1phase |
|
Continuous Working Time |
24Hours |
|
2- Standard parts of the machine |
||
Name |
Specification |
Quantity |
Machine body |
1300*2500mm working area |
1 set |
Laser generator |
Standard |
1 set |
Water chiller |
cooling laser head and generator |
1 set |
Control box |
Au3techcontrol system |
1 set |
Laser cutting head |
Auto following function |
1 set |
Protective lens |
standard |
1 pc |
Focus lens |
standard |
1 set (2 pcs) |
Details of machine
Professional Au3tech cutting head for cutting metal
sawtooth table for cutting metal sheet
Raycus and IPG as optional 1000w/1500w/2000w/3000w etc
Industrial water chiller : CW6000 water chiller with cooling effect well
