Description
- Brand Name: Aideepen
- Certification: CE
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Accuracy Class: JH-D202X-R2/R4 5K Electric Joystick Potentiometer 2-axis 2D
- Model Number: JH-D202X-R2/R4 5K Electric Joystick Potentiometer 2-axis 2D
- Measuring Range: JH-D202X-R2/R4 5K Electric Joystick Potentiometer 2-axis 2D
- Dimensions: JH-D202X-R2/R4 5K Electric Joystick Potentiometer 2-axis 2D

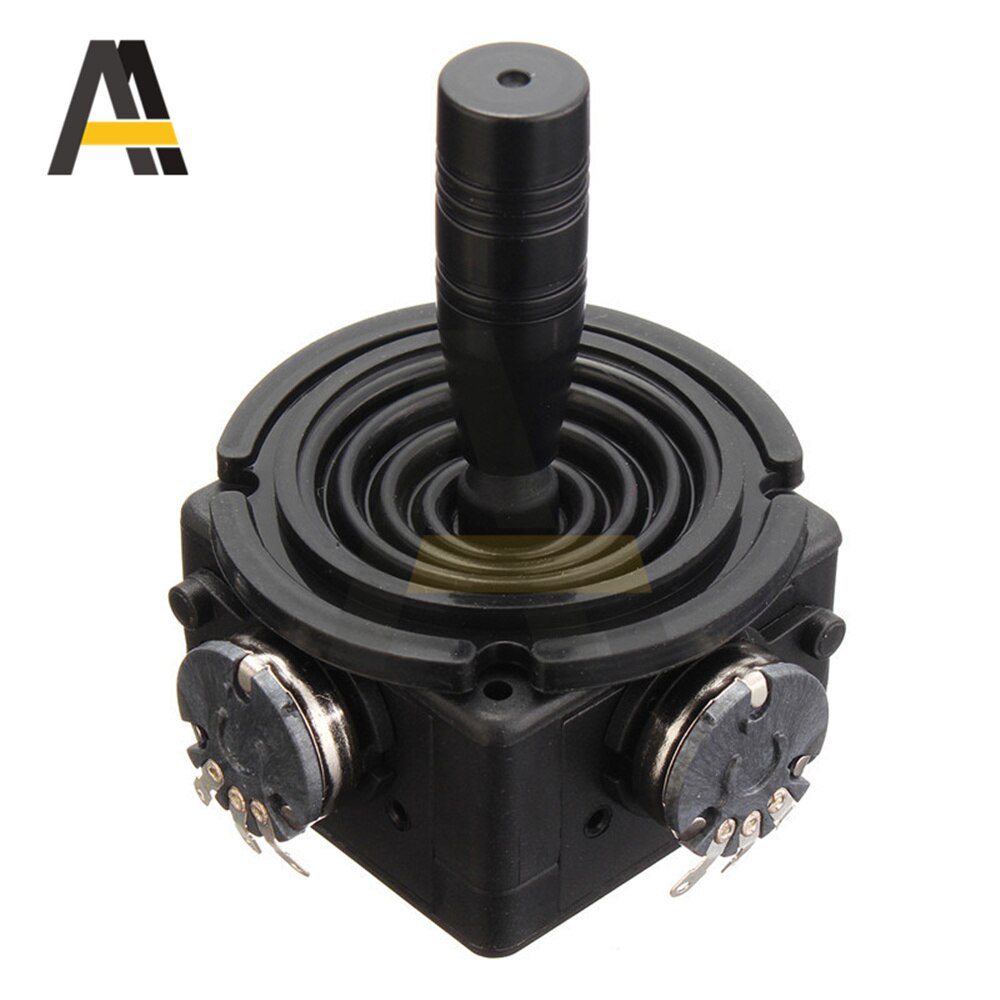

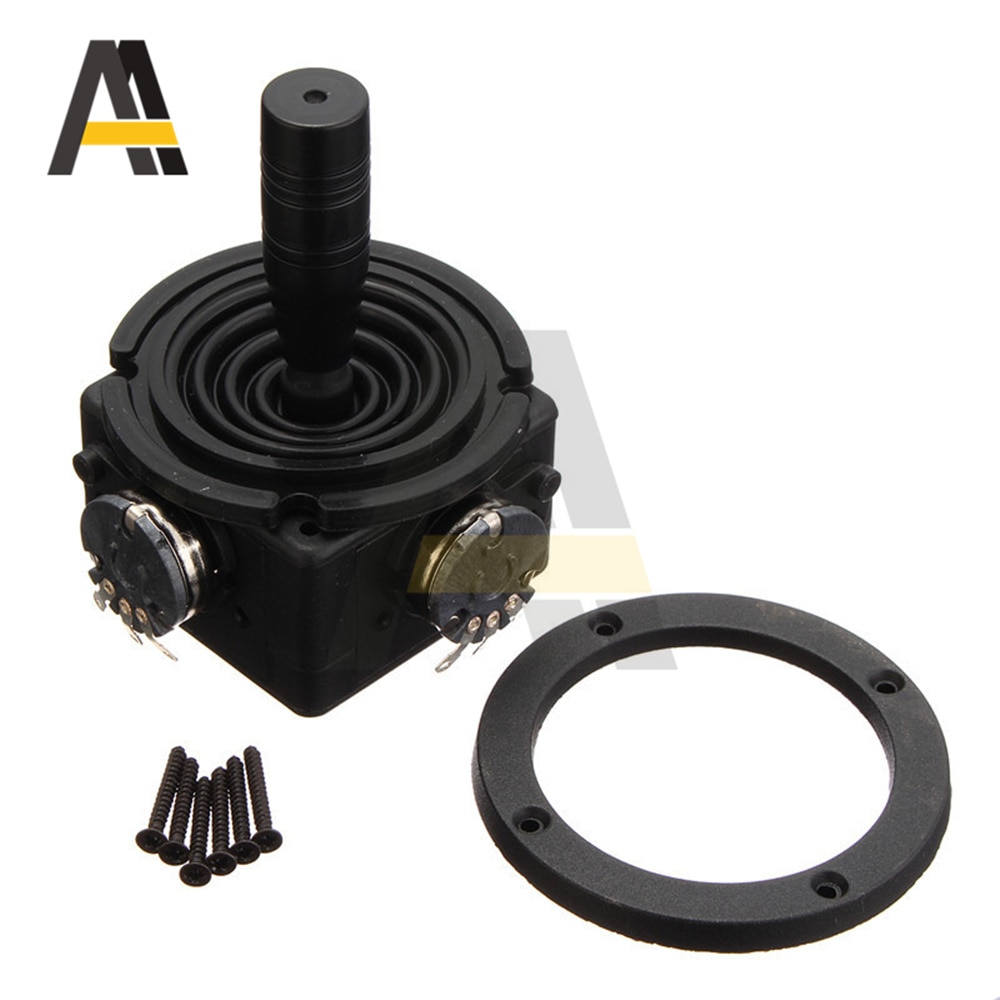

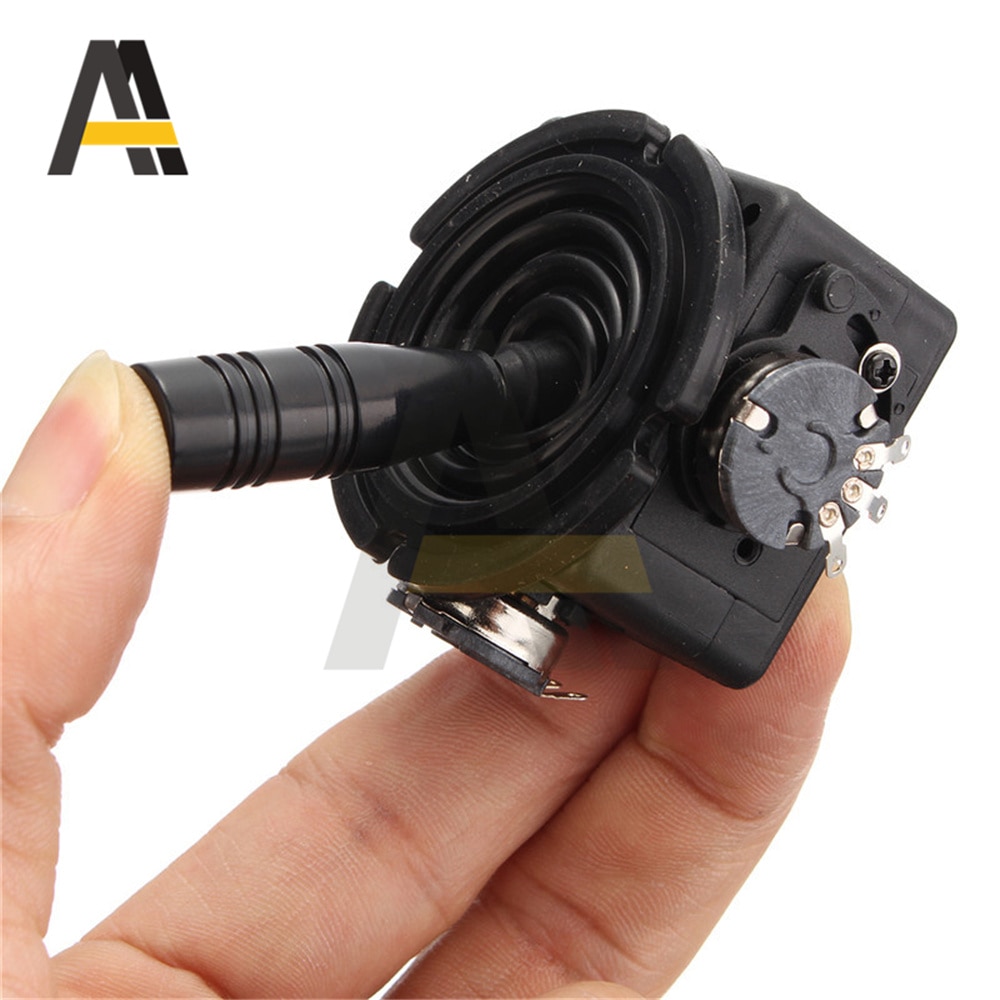

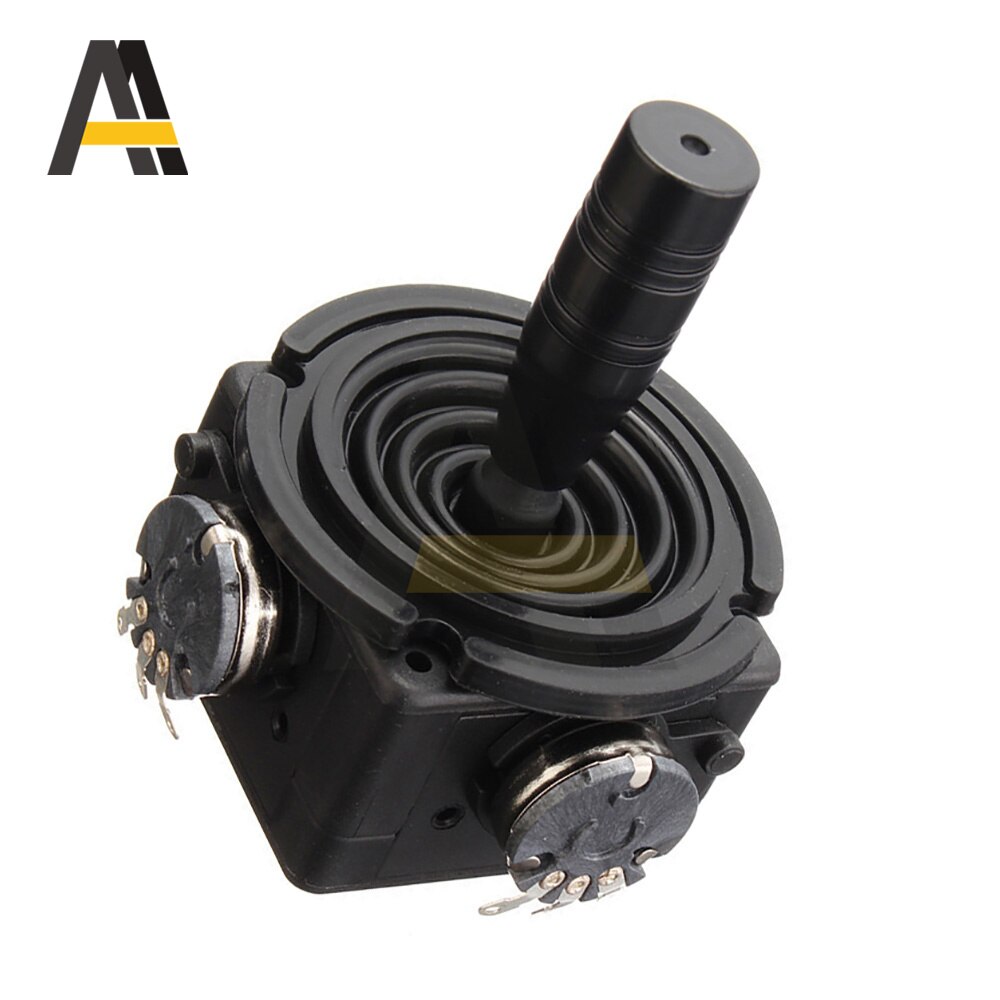

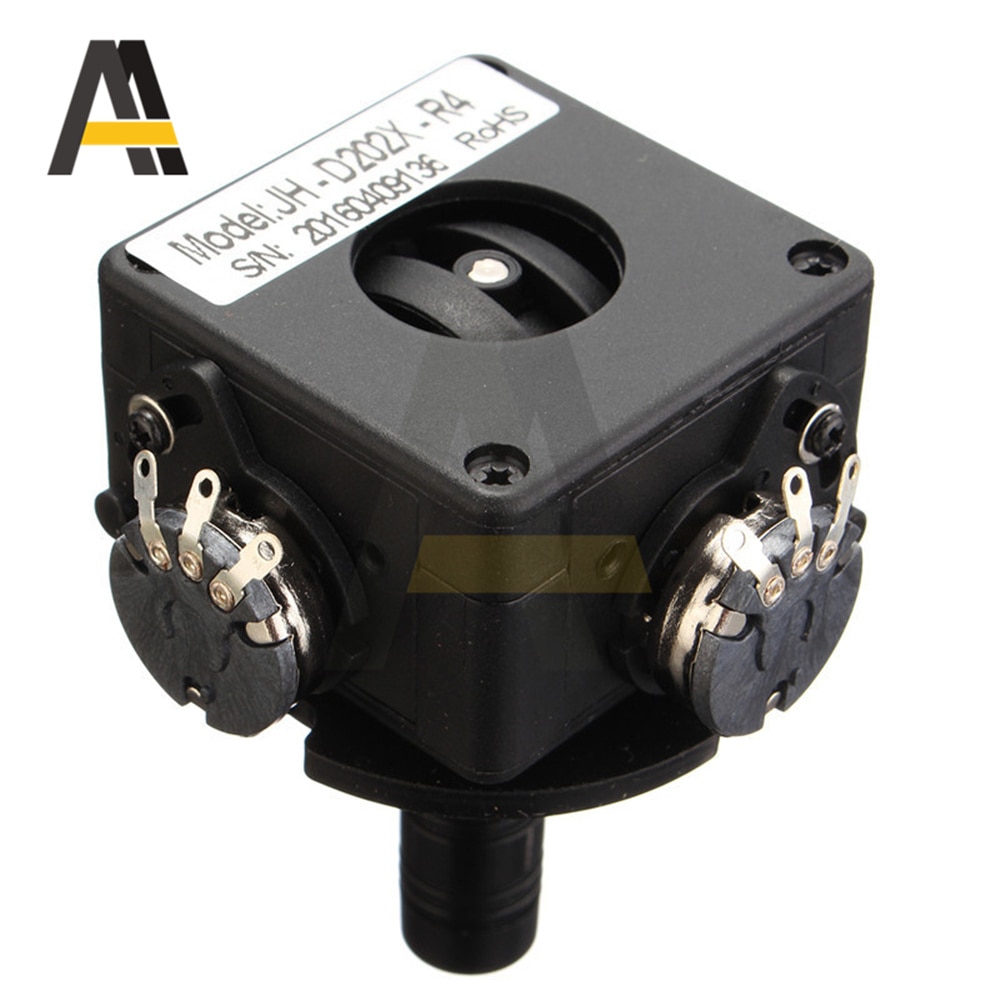

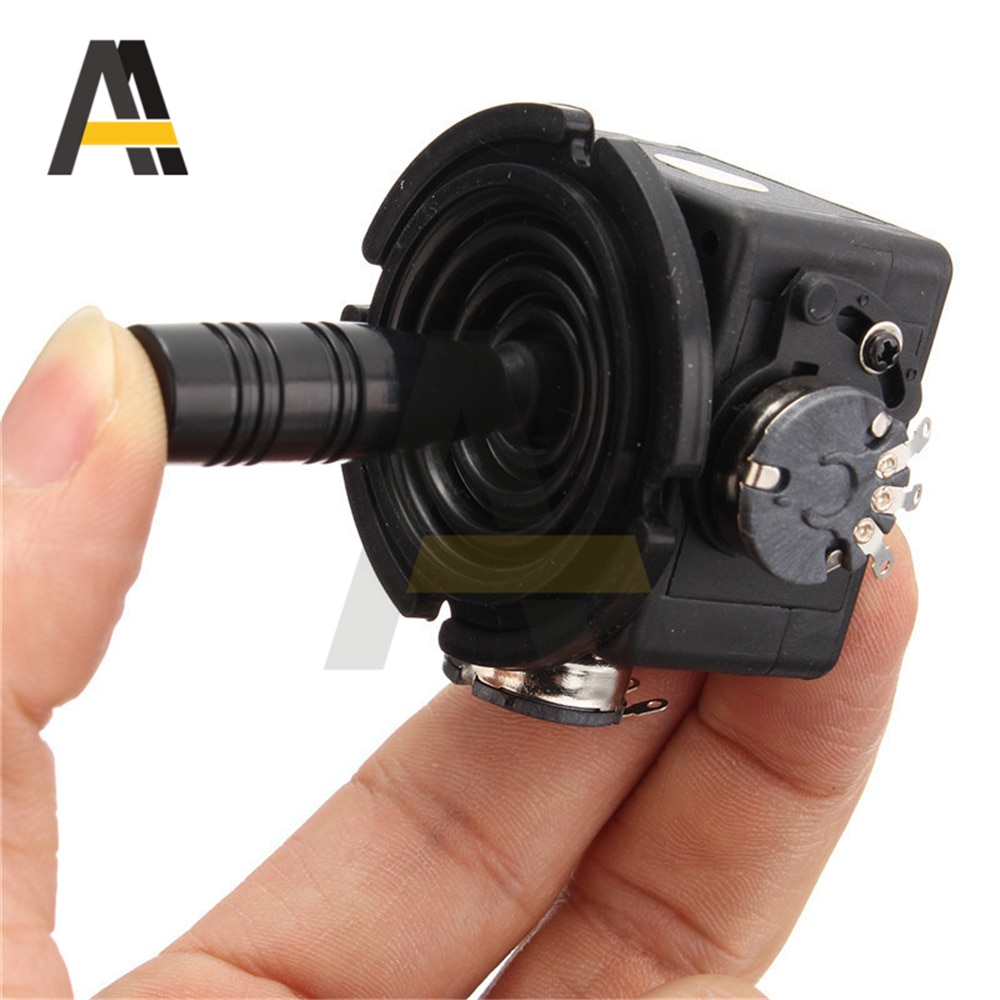

JH-D202X-R2/R4 5K Electric Joystick Potentiometer 2-axis 2D Monitor Keyboard Ball Joyrode Controller for Automated Machine Control
Specification:
Colour: Black
Copy tolerance: ±20%
Independent linearity: ±1%
Z-axis electrical angle: ±45°
Recovery error rate: ±0.03KΩ
X&Y axis electrical angle: ±25°
Substitute value: Standard 5KΩ
Resolution: essentially unlimited
Outpoot smoothness: 0.5% max
Temperature coefficient resistance: ±400 ppm /°C
Insulation resistance: 50MΩ@ 500VDC, 60 seconds
Operating torque: X&Y axis 90gf and 250gf, Z axis 330gf
R300Z axis potentiometer, R400Z axis potentiometer and button switch wire: AWG28 color code, silver plated, PTFE insulated wire standard length 100mm.
Application:
1. Automated machine control.
2. Therapeutic imaging system.
3. Industrial Scientific Instruments.
4. Mobile photography and TV control system.
5. Film frequency compilation production equipment.
Package Included:
1 x joystick potentiometer
