Iron Laser Cutting Machine Fiber Laser 1000w 2000w Leser Cutting Router 1530 Cnc Metal Milling Machine

$48,017.27$113,417.27

SKU: 1005002244732636 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1530F3
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Application: LASER CUTTING
  • Laser Type: Fiber Laser
  • Cutting Speed: 15000mm/min
  • Control Software: Cypcut controller
  • Guiderail Brand: HIWIN
  • Laser generator: Raycus laser generator
  • Servo Motor Brand: Yaskawa
  • After-sales Service: Online support

Iron Laser Cutting Machine Fiber Laser 1000w 2000w Leser Cutting Router 1530 Cnc Metal Milling Machine

Feature of fiber leser cutting router 1530:
1. THE THIRD GENERATION AVIATION ALUMINUM GANTRY
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
2. THE SEGMENTED RECTANGULAR TUBE WELDED BED
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength
and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
3. WITHOUT MANUAL FOCUSING
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

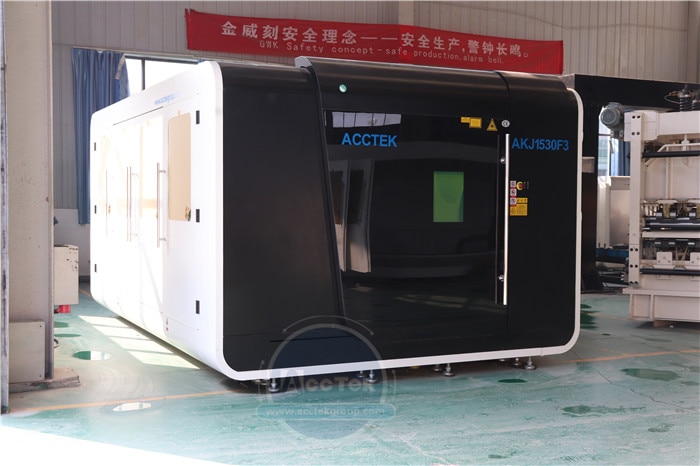

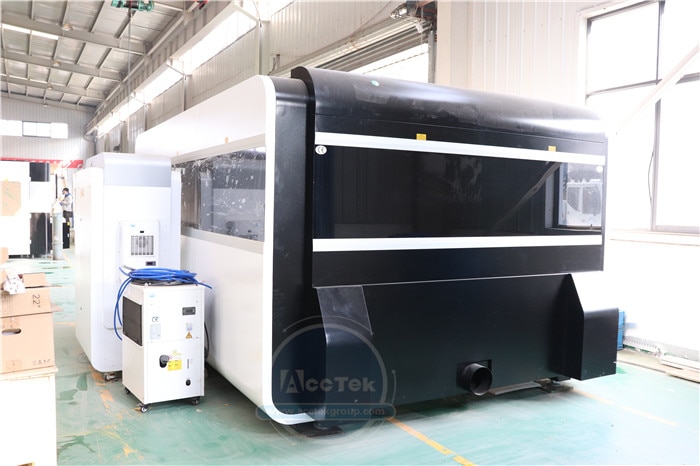

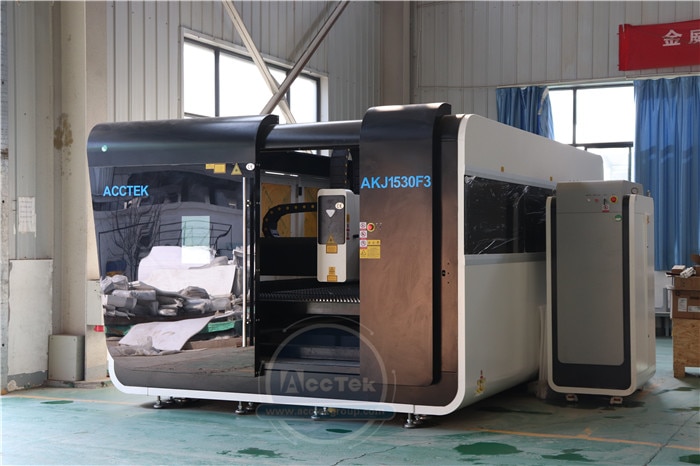

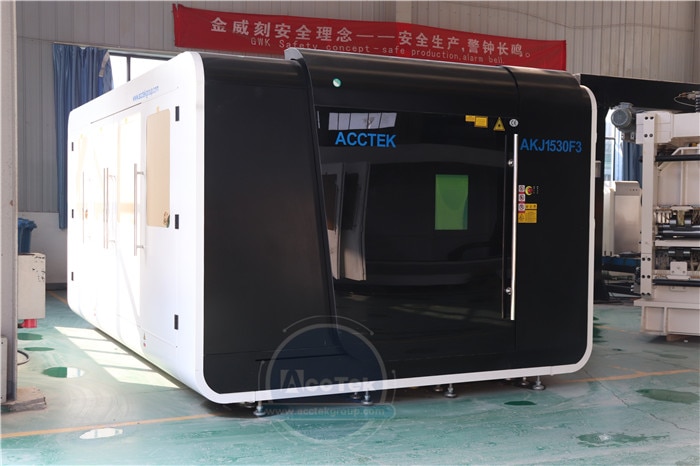

Detailed images offiber leser cutting router 1530:

Parameter data offiber leser cutting router 1530
Machine model
AKJ1530F3
Laser power
1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions
5425*3150*2530mm
Working area
3000mm x 1500mm
Repeat positioning accuracy
±0.02mm
Maximum speed
120m/min
Max. acceleration
1.5G
Voltage and frequency
380V 50Hz/60HZ

Samples and applications:

AKJ1530F3 fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice.

For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery

and equipment manufacturing, usually use high power fiber laser cutting machine for processing.

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Company profile:

After sales Service :

1. Engineers available to service machinery overseas. Machine has been adjusted before delivery , operation data was included.

2.1year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when problems

happened during the warranty period.

3.Lifetime maintenance free of charge.Free training course at our plant. 24 hours on line service each day, free technical support.

FAQ:

1.I knew nothing about this machine, what kind of machine i should choose?

It is easy to choose. Just tell us what you want to do with cnc router,then let us give you perfect solutions and suggestions.

2: When i got this machine, but i did not know how to use it.What should i do?

We will send video and English manual with the machine.If you still have some doubts, we can talk online with whatsapp ,wechat etc .

3: If some problems happened during warranty period,what should i do?

We will supply free parts in machine warranty period after talking with our service team.We also supply free after-service forever,so any

doubts,just us know,we will give you solutions as soon as possible.
