Description
IPG Photonics’ PLD-40 Series fiber-coupled diode lasers provide up to 30 W of output power within 0.13 NA. PLD-40 diode options include 105 μm or 110 μm fiber core diameter, and center wavelength at 915 nm,940 nm or 975 nm. A wavelength stabilization option is also available at 975 nm.
FEATURES
Amplifier Pumping
Laser Pumping
Graphic Arts / Printing
Illumination
Direct Diode Lasers
Material Processing
Medical & Dental
Photovoltaics
APPLICATIONS
915, 940, 975 nm Center
Wavelengths
30 W Output Power
Wavelength Stabilization Option at 975 nm
0.12 NA into 105 or 110 μm Fiber Core Diameter
High Reliability
Robust Compact Package

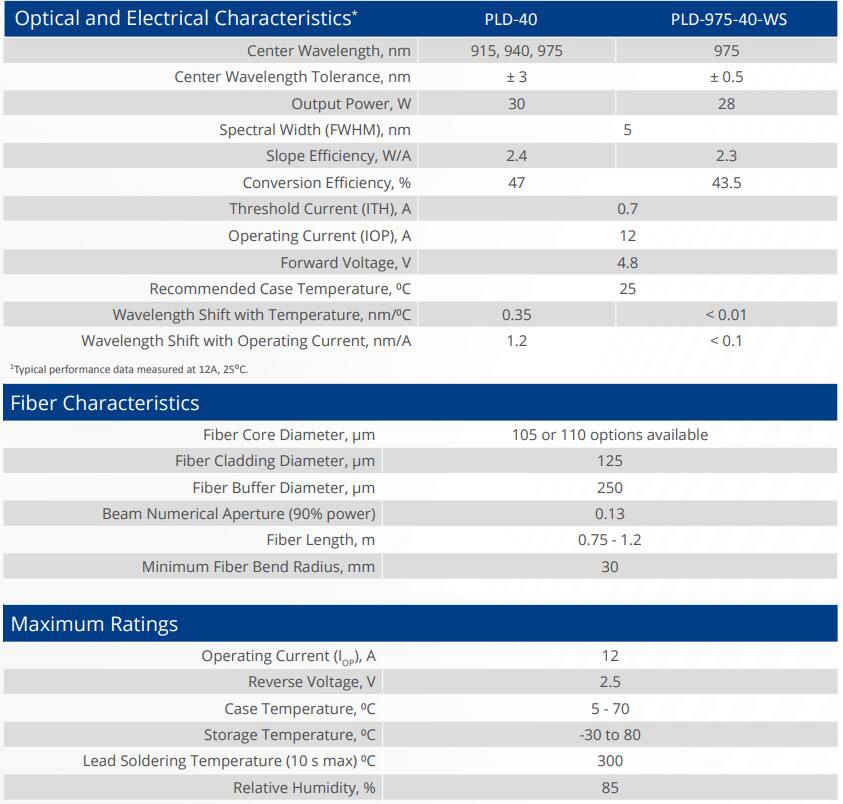

Download the datasheet as following:
